Goodman - 2.5 Ton Cooling - 60k BTU/Hr Heating - Heat Pump + Furnace System - 14.3 SEER2 - 80% AFUE - Horizontal
Goodman - 2.5 Ton Cooling - 60k BTU/Hr Heating - Heat Pump + Furnace System - 14.3 SEER2 - 80% AFUE - Horizontal
Goodman - 2.5 Ton Cooling - 60k BTU/Hr Heating - Heat Pump + Furnace System - 14.3 SEER2 - 80% AFUE - Horizontal
Goodman - 2.5 Ton Cooling - 60k BTU/Hr Heating - Heat Pump + Furnace System - 14.3 SEER2 - 80% AFUE - Horizontal

Goodman - 2.5 Ton Cooling - 60k BTU/Hr Heating - Heat Pump + Furnace System - 14.3 SEER2 - 80% AFUE - Horizontal

GOODMAN
Brand: GOODMAN
SKU: GSZB403010 GCVC800603BX CHPTA3026B4
Availability: Out Of Stock
Free Shipping
$4,562.00
$4,562.00

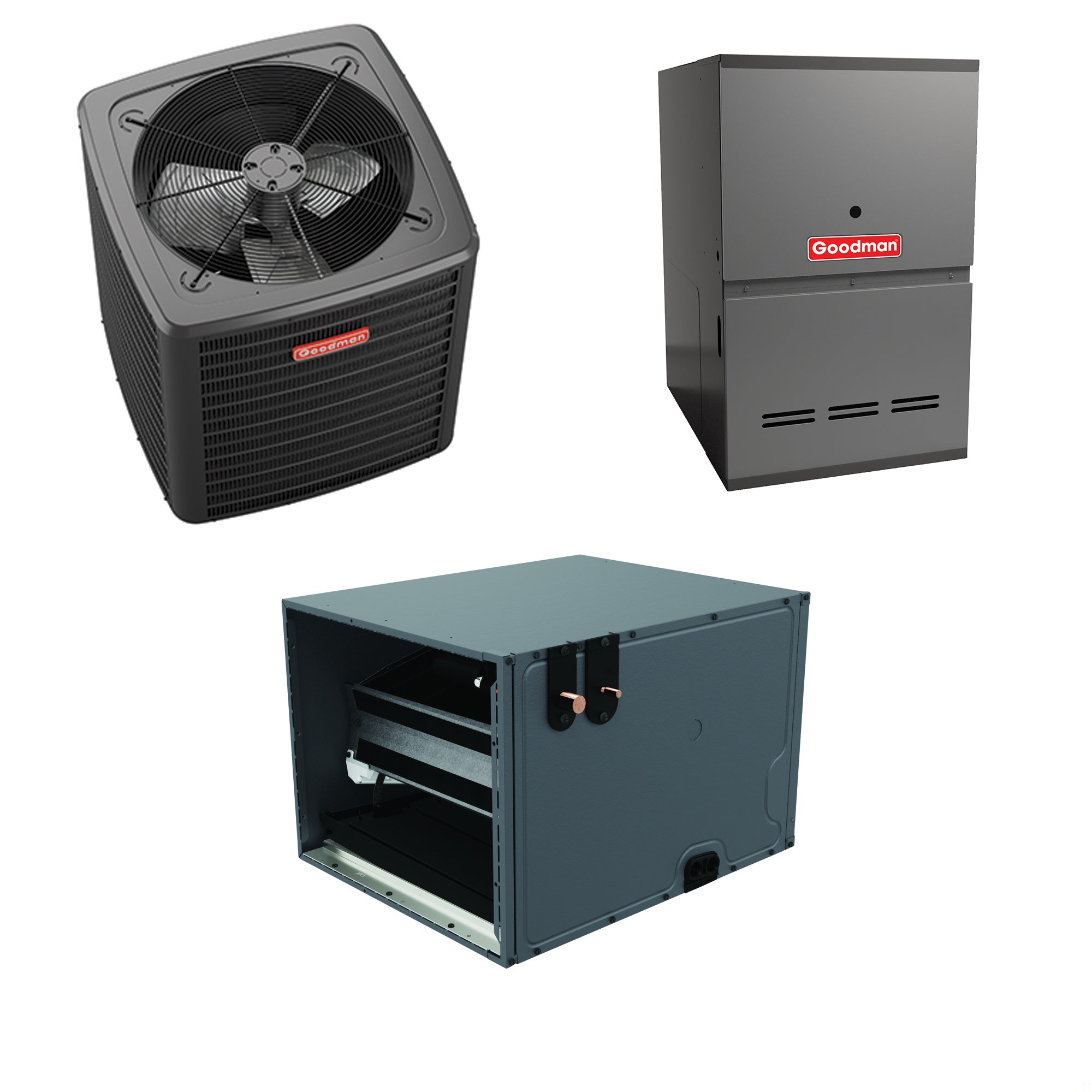

Bundle Includes
Goodman GSZB403010 GSZB 2.5 Ton - 14.3 SEER2 - 7.5 HSPF2 - Heat Pump - 208/230V - Single Phase - R-410A Quantity: 1
Goodman GCVC800603BX 80% AFUE - 48,000 BTU - Multi-Position - Furnace Quantity: 1
Goodman CHPTA3026B4 Evaporator Coil, 2.5 Tons, Horizontal, R-410A TXV Quantity: 1
Manuals:

Specification Highlights

Operating Mode
Heating and Cooling
Modulating/Staging
Two Stage
Refrigerant Type
R-410A

View More

LTL Delivery

This product weighs 355 lbs and may require the use of lift gate. If you require a lift gate you will have the option to add one FREE of charge at checkout.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

The Goodman 2.5 Ton Cooling and 60,000 BTU/Hr Heating System integrates a heat pump, furnace, and cased evaporator coil, making it a comprehensive HVAC solution. This bundled system includes a GSZB4 air conditioner, a GCVC80 furnace, and a CHPTA evaporator coil. Each component emphasizes ease of installation and long-term durability.

Features and Bundle Details

The Goodman GSZB403010 GCVC800603BX CHPTA3026B4 Bundle System

This package offers reliable and efficient heating and cooling for homes. The system contains:

  • Advanced Heat Exchanger Design: Tubular heat exchanger in the GCVC80 furnace
  • Variable Speed ECM Motor: Efficient and quiet motor in the GCVC80
  • Quiet Comfort: Low sound levels with consistent comfort
  • ComfortBridge Technology: Monitors system performance for custom comfort

Goodman GSZB403010 Heat Pump

The GSZB403010 is an efficient heat pump condenser, designed for heating and cooling applications. It features:

  • Energy-Efficient Compressor: Provides refrigerant flow
  • Smartshift Technology: Smooth transition in defrost mode
  • High-Quality Construction: Galvanized steel cabinet with a powder-paint finish
  • Factory-installed Components: Including suction-line accumulator and crankcase heater

Goodman GCVC800603BX Gas Furnace

The GCVC800603BX furnace ensures reliable heating with its advanced design. Key highlights include:

  • Two-Stage Operation: Provides precise temperature control
  • Durable Construction: Heavy-duty tubular heat exchanger
  • ComfortBridge Technology: Continuous system monitoring
  • Low Noise Levels: Quiet blower and gas valve

Goodman CHPTA3026B4 Cased Evaporator Coil

The CHPTA3026B4 evaporator coil complements the system with its efficient cooling design. Features include:

  • All-Aluminum Coil: Maximizes heat transfer and efficiency
  • Foil-Faced Insulation: Prevents condensate formation
  • Factory-installed TXV: For refrigerant flow management
  • UV-Resistant Drain Pan: Ensures system safety and operation

Product Highlights

This comprehensive HVAC system is designed for efficiency and durability. The advanced heat exchanger, variable speed motor, and additional features ensure reliable performance and comfort.

Specifications
Overview
Operating Mode
Heating and Cooling
Modulating/Staging
Two Stage
Refrigerant Type
R-410A
Blower Motor Type
ECM Variable-Speed
Coil Width
17.5 Inches
Configuration
Horizontal
Compressor Stages
Single Stage
DOE Regional Compliance
Nationwide (Except CA)
AFUE
80 %
Capacity
2.5 Tons
Cooling Capacity
30000 BTU
Nominal Cooling Capacity
30000 BTU
Heating BTU
60000
Maximum Air Flow
1200 CFM
SEER2
14.3
EER2
11.5
HSPF2
7.5
Product Weight
326 Pounds
Shipping Weight
356 Pounds
ETL Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
210318808
Type
Heat Pump Condenser
Product Line
GSZB4
Product Category
Heat Pump
Operating Mode
Heating and Cooling
Refrigerant Type
R-410A
Installation Location
Outdoor
Compressor Stages
Single Stage
DOE Regional Compliance
Nationwide
Installation Available
Yes
Capacity
2.5 Tons
Cooling BTU
30000
Cooling Capacity
30000 BTU
Heating Capacity
30000 BTU
Maximum Sound Level
75 dB
SEER2
14.3
HSPF2
7.5
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
18.6 Amps
Recommended Breaker Size
30 Amps
Suction Connection Size
3/4 Inch
Liquid Connection Size
3/8 Inch
Product Height
39 1/2 Inches
Product Width
29 Inches
Product Depth
29 Inches
Product Weight
175 Pounds
Shipping Weight
190 Pounds
ETL Listed
Yes
Energy Star Listed
No
AHRI Certified
Yes
ISO Certified
Yes
Parts Warranty
5 Years Years
Compressor Warranty
Limited* 10 Years
Type
Gas Furnace
Product Line
GCVC80
Product Category
Furnace
Fuel Type
Natural Gas
Vent Type
Chimney Vent
Modulating/Staging
Two Stage
Blower Motor Type
ECM Variable-Speed
Configuration
Downflow/Horizontal
Gas Conversion Kit
Available
DOE Regional Compliance
Nationwide (Except CA)
Installation Available
Yes
AFUE
80 %
Heating BTU
60000
High Fire Input
60000 BTU
High Fire Output
48000 BTU
Low Fire Input
42000 BTU
Low Fire Output
33600 BTU
Maximum Air Flow
1200 CFM
Ultra Low NOx Emissions
No
Low NOx Emissions
Yes
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
7.75 Amps
Recommended Breaker Size
15 Amps
Flue Connection Size
4 Inches
Cabinet Width
17 1/2 Inches
Product Height
33 1/2 Inches
Product Width
17 1/2 Inches
Product Depth
28 Inches
Shipping Weight
105 Pounds
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
AHRI Reference Number
202274193
Parts Warranty
10 Years
Heat Exchanger Warranty
Lifetime Years
Type
Evaporator Coil
Product Line
CHPTA
Product Category
Evaporator Coil
Refrigerant Type
R-410A
Casing
Cased
Style
A Coil
Configuration
Horizontal
Installation Available
Yes
TXV Installed
Yes
Capacity
2.5 Tons
Cooling BTU
30000
Nominal Minimum Cooling Capacity
30000 BTU
Suction Connection Size
7/8 Inch
Liquid Connection Size
3/8 Inch
Cabinet Width
17 1/2 Inches
Product Height
17 1/2 Inches
Product Width
26 Inches
Product Depth
21 Inches
Product Weight
46 Pounds
Shipping Weight
61 Pounds
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty
10 Years
Parts Warranty
10 Limited Years
