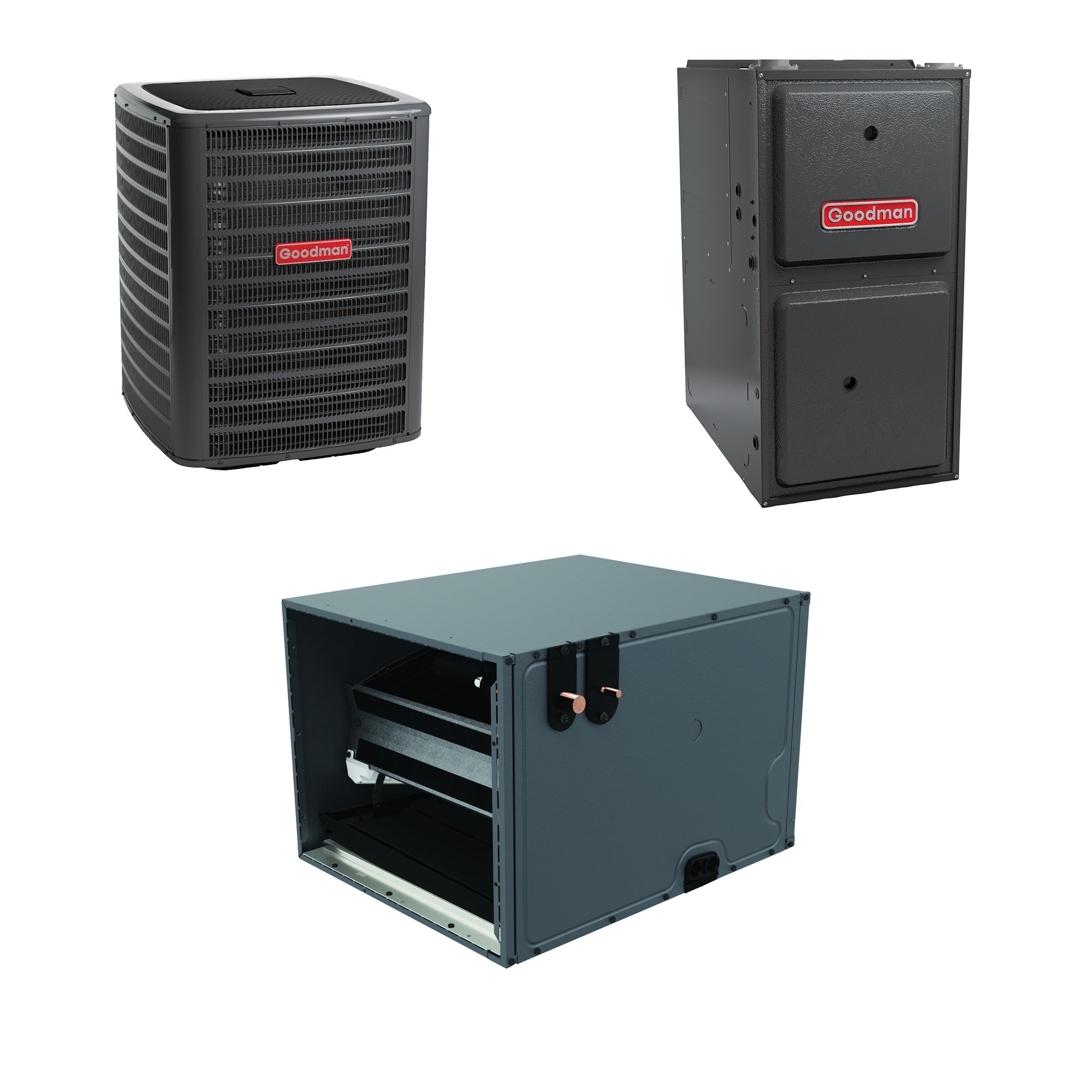

Overview of Goodman GSXN403010 GCVC960603BN CHPTA3630B4 Bundle System
The Goodman GSXN403010 GCVC960603BN CHPTA3630B4 bundle system is designed to provide comprehensive climate control solutions, leveraging key components: the GSXN4 air conditioner, the GCVC96 furnace, and the CHPTA cased evaporator coil. This integration ensures that the system offers efficient cooling and reliable heating, making it suitable for various regions with diverse weather conditions.
Features:
- Includes GSXN4 air conditioner, GCVC96 furnace, and CHPTA3630B4 cased evaporator coil
- Designed for ease of installation and long-term durability
- Ideal for areas with moderate cooling demands and cold winters
- Provides energy-efficient performance and consistent comfort
The Goodman GSXN403010 Air Conditioner
The Goodman GSXN403010 air conditioner component is built to deliver efficient cooling with a 2.5-ton capacity and 14.3 SEER2 rating. It includes a copper tube and enhanced aluminum fin coil to maximize heat transfer efficiency. The unit features a durable heavy-gauge galvanized-steel cabinet with a 500-hour salt-spray approval finish.
Features:
- 2.5 Ton Cooling Capacity
- 14.3 SEER2 rating for energy efficiency
- Copper tube and aluminum fin coil
- Heavy-gauge galvanized-steel cabinet

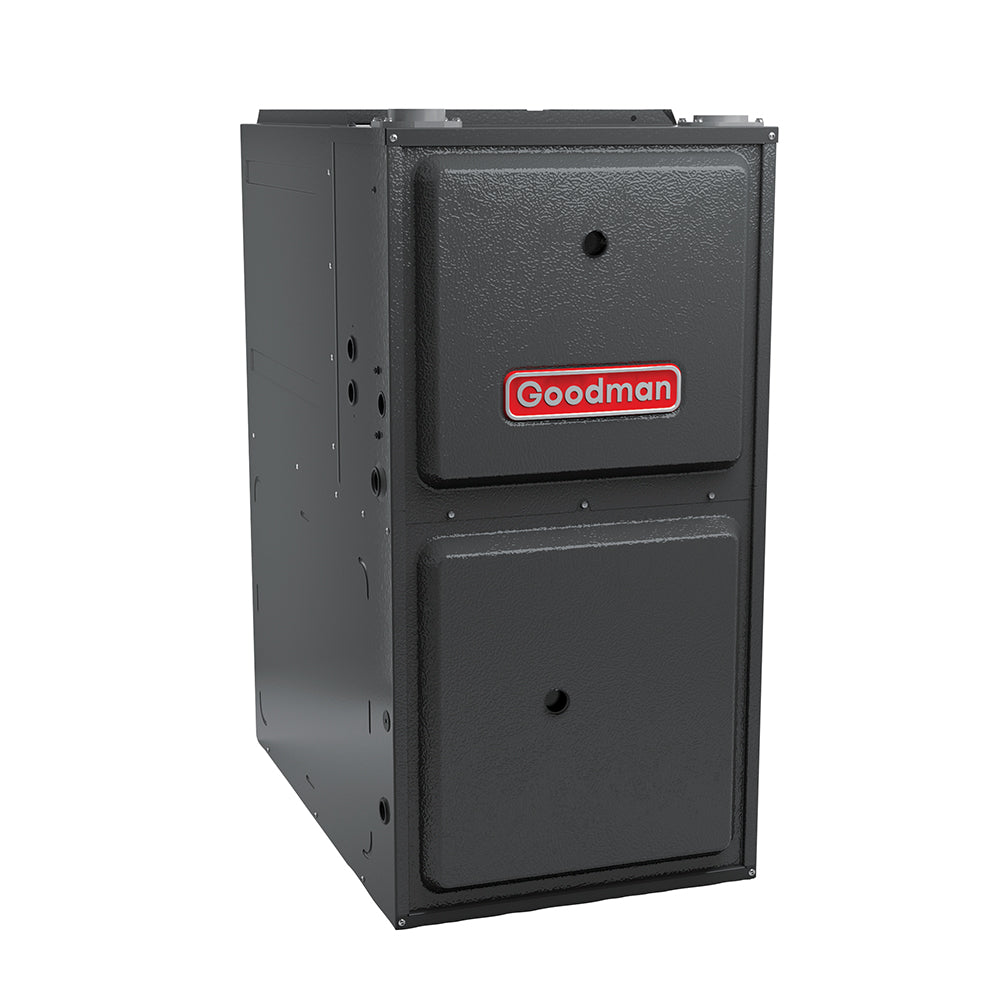

The GCVC960603BN Gas Furnace
The Goodman GCVC960603BN gas furnace delivers 60,000 BTU/Hr of heating with a 96% AFUE rating. It employs a dual-diameter tubular heat exchanger made from aluminized steel and a secondary stainless steel heat exchanger. The furnace is equipped with several venting options and is compatible with Goodmans ComfortBridge™ communicating controls.
Features:
- 60,000 BTU/Hr heating capacity
- 96% AFUE for high efficiency
- Dual-diameter tubular heat exchanger
- ComfortBridge™ compatible
The CHPTA3630B4 Cased Evaporator Coil
The Goodman CHPTA3630B4 evaporator coil is designed for horizontal installation. It has a 3.0-ton cooling capacity and includes a factory-installed thermostatic expansion valve. The all-aluminum coil maximizes surface area and optimizes heat transfer. The coil also features foil-faced insulation and a UV-resistant DecaBDE-free thermoplastic drain pan with secondary drain connections.
Features:
- 3.0 Ton Cooling Capacity
- Factory-installed thermostatic expansion valve
- All-aluminum coil design
- Foil-faced insulation and UV-resistant drain pan
