Goodman - 2.5 Ton Cooling - 60k BTU/Hr Heating - Air Conditioner + Variable Speed Furnace System - 15 SEER2 - 80% AFUE - Upflow

Product Overview

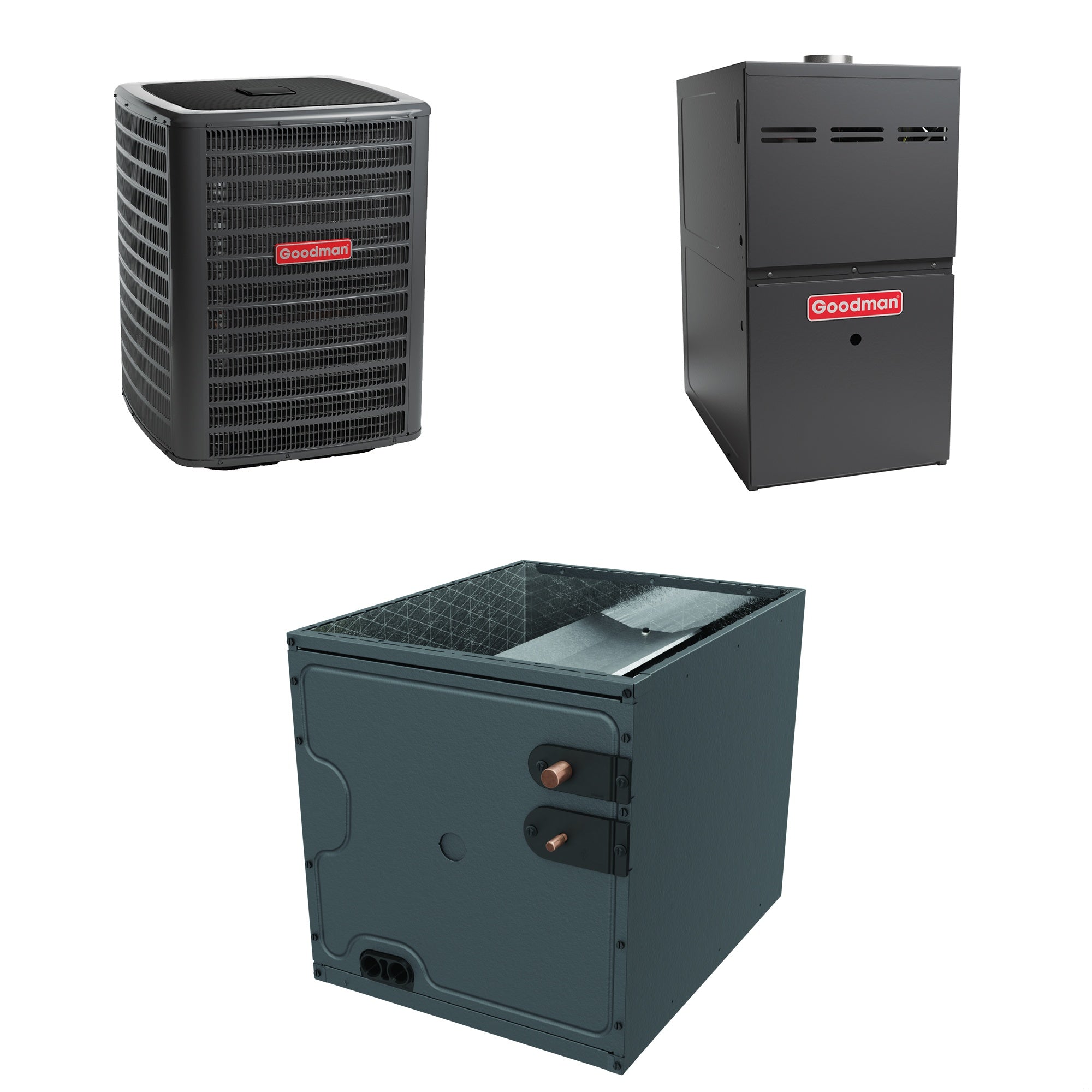

The Goodman GSXN403010 GMVC800603BN CAPTA3026B4 bundled system integrates a 2.5-ton air conditioner, a variable-speed 60,000 BTU furnace, and a cased evaporator coil. This setup offers comprehensive heating and cooling solutions ideal for diverse climates. In combination, these components ensure efficient and reliable operation over the long term.

The Goodman GSXN403010 Condenser

The GSXN403010 air conditioner in this bundle features a single-stage energy-efficient compressor and a condenser coil designed with copper tubing and enhanced aluminum fins. The condenser comes with a factory-installed filter drier to remove moisture and trap impurities.

• Cooling Capacity: 30000 BTU
• SEER2: 14.3
• Voltage: 208/230 Volts
• Weight: 156 lbs

The GMVC800603BN Furnace

The GMVC800603BN furnace employs a heavy-duty tubular heat exchanger made of aluminized steel for efficient heat transfer. The unit is equipped with a variable speed ECM motor that adjusts according to heating or cooling demands.

• Heating BTU: 60000
• AFUE: 80%
• Voltage: 115 Volts
• Weight: 105 lbs

The CAPTA3026B4 Evaporator Coil

The CAPTA3026B4 cased evaporator coil includes a factory-installed internal thermostatic expansion valve for streamlined installation. The coil features an all-aluminum design to optimize heat transfer and enhance durability.

• Cooling Capacity: 2.5 Tons
• Width: 17.5 inches
• Height: 26 inches
• Weight: 50 lbs
