Goodman - 2.5 Ton Cooling - 60k BTU/Hr Heating - Air Conditioner + Variable Speed Furnace System - 15 SEER2 - 80% AFUE - Horizontal

Features

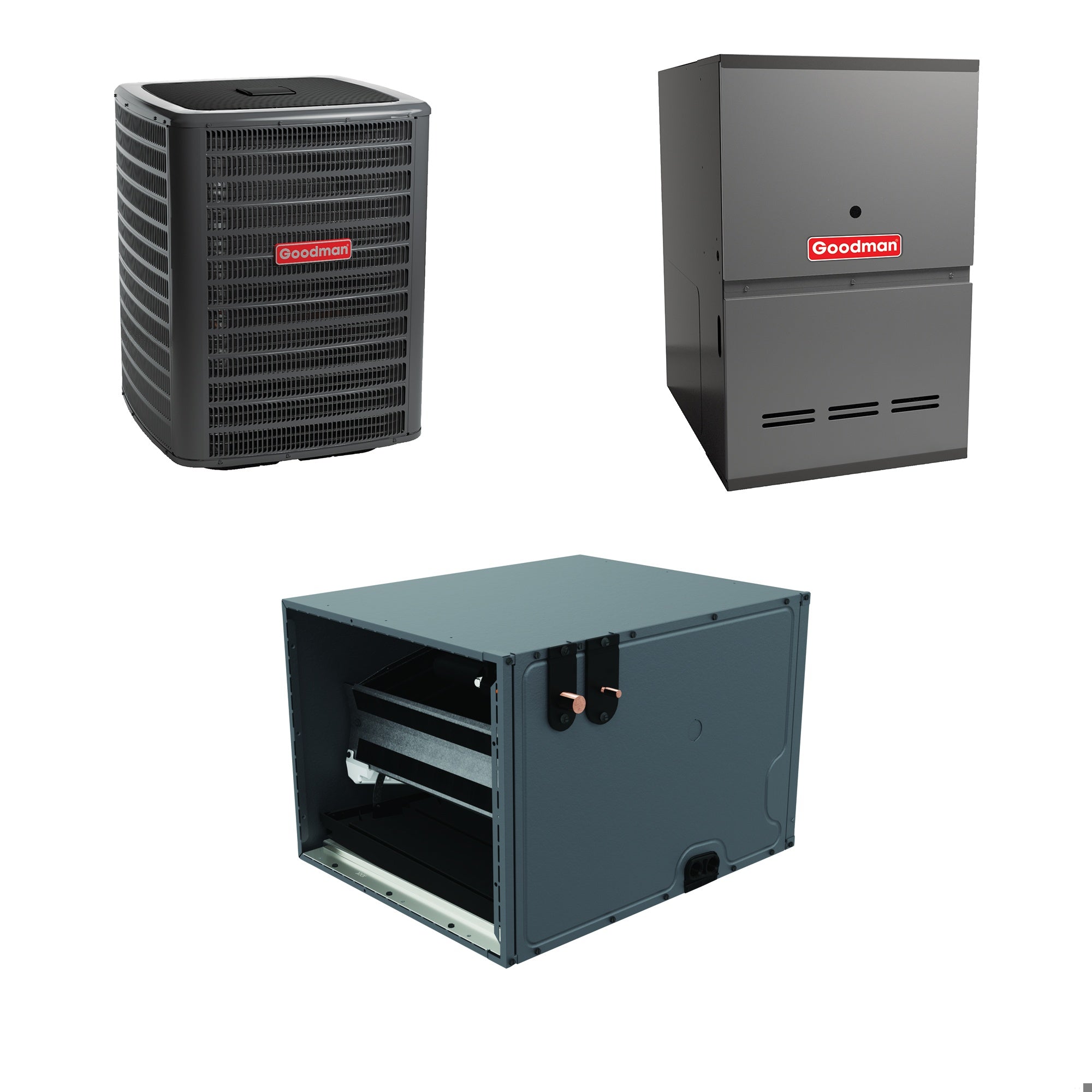

The Goodman GSXN403010 GCVC800603BX CHPTA3630B4 central air and furnace kit is a comprehensive HVAC solution for updating your home system. Ideal for areas with average cooling needs and long, cold winters, this kit includes a GSXN4 air conditioner, a GCVC80 furnace, and a CHPTA cased evaporator coil. Each component is designed with ease of installation and durability in mind, providing both upfront and long-term value. Together, these components offer a complete comfort solution backed by Goodmans superior craftsmanship.

• All-Aluminum Coil
• Internal Thermostatic Expansion Valve
• Condensate Management
• Advanced Heat Exchanger Design
• Variable Speed ECM Motor
• ComfortBridge Technology

Product Highlights

Reliable and efficient components designed for optimal performance and durability.

Product Information

Standard Information

• Brand: Goodman
• Model: GSXN403010 GCVC800603BX CHPTA3630B4
• Category: Gas Electric Split Systems
• Breadcrumb: Air Conditioner Systems >> Central Air Conditioners >> Gas Electric Split Systems

Goodman GSXN403010 Air Conditioner

The Goodman GSXN403010 is a 2.5-ton air conditioner with a 14.3 SEER2 rating and R-410A refrigerant. Designed for efficiency, it features aluminum fins and copper tubing for maximum heat transfer. The unit also includes a factory-installed filter drier and a galvanized-steel cabinet for durability.

• Capacity: 2.5 Tons
• Cooling BTU: 30000 BTU
• Efficiency: 14.3 SEER2
• Sound Level: 72 dB
• Dimensions: 29 x 29 x 39.5 inches
• Weight: 156 pounds

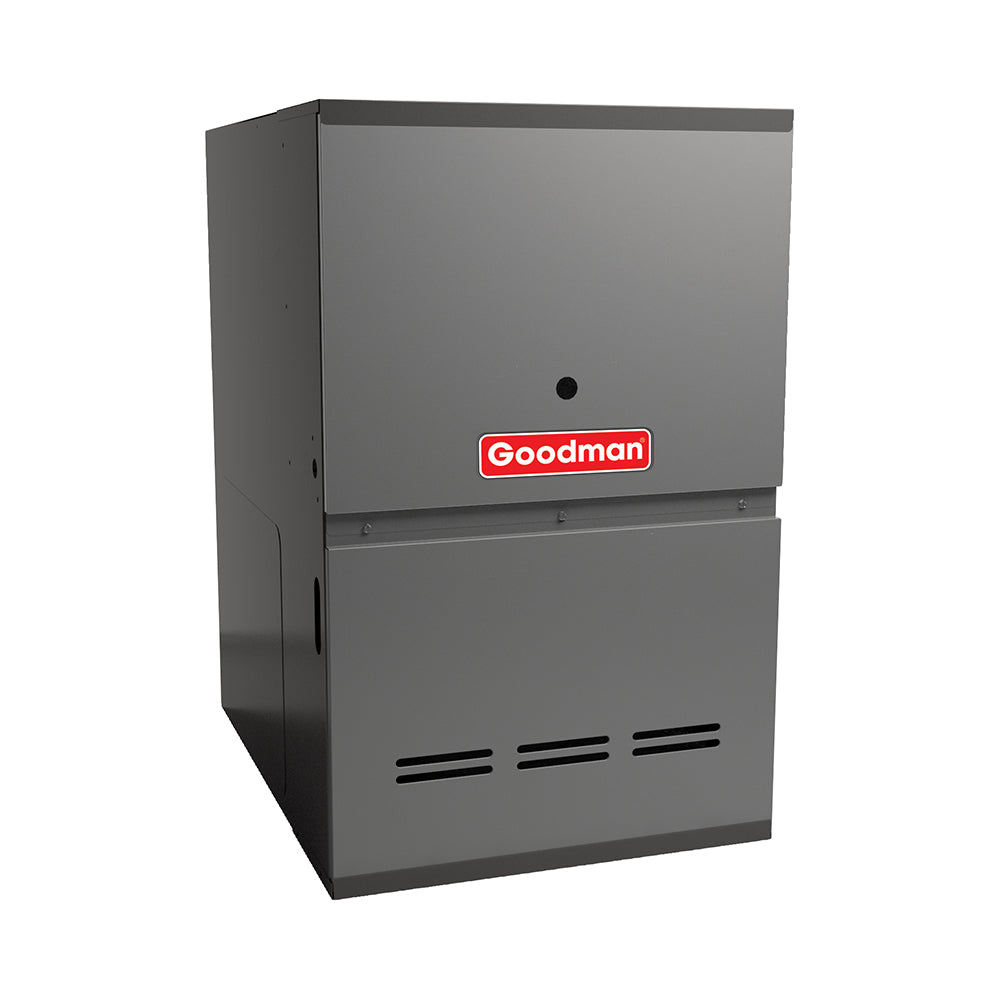

Goodman GCVC800603BX Gas Furnace

The GCVC800603BX is an 80% AFUE, 60,000 BTU/hr two-stage downflow/horizontal gas furnace. It includes a heavy-duty tubular heat exchanger made from aluminized steel and a variable speed ECM motor for precise temperature control. The unit also features Goodmans ComfortBridge technology for continuous performance monitoring.

• Heating BTU: 60000 BTU
• Efficiency: 80% AFUE
• Configuration: Downflow/Horizontal
• Blower Motor: ECM Variable-Speed
• Dimensions: 17.5 x 28 x 33.5 inches
• Weight: 105 pounds

Goodman CHPTA3630B4 Cased Evaporator Coil

The CHPTA3630B4 is a 3.0-ton horizontal A coil cased evaporator coil with a factory-installed TXV. It includes foil-faced insulation for condensate management and a UV-resistant, DecaBDE-free thermoplastic drain pan with secondary drain connections.

• Cooling Capacity: 36000 BTU
• Configuration: Horizontal
• TXV Installed: Yes
• Dimensions: 17.5 x 21 x 17.5 inches
• Weight: 51 pounds
