GOODMAN
Brand: GOODMAN
SKU: GSXN403010 GCVC960603BN CHPTA3026B4
Availability: In Stock
Free Shipping
truck-svgrepo-com

Ships via Freight in 3-5 Business Days
$4,583.00
$4,583.00
Bundle Includes
Goodman GSXN403010 GSXN4 2.5 Ton - 14.3 SEER2 - Air Conditioner - 208/230V - Single Phase - R-410A Quantity: 1
Goodman GCVC960603BN Variable Speed 2-Stage Downflow/Horizontal Gas Furnace 60,000 BTU/H 96% AFUE Quantity: 1
Goodman CHPTA3026B4 Evaporator Coil, 2.5 Tons, Horizontal, R-410A TXV Quantity: 1
Manuals:

Specification Highlights

Product Category
Furnace & Air Conditioner Package
Operating Mode
Heating and Cooling
Modulating/Staging
Two Stage

View More

LTL Delivery

This product weighs 357 lbs and may require the use of lift gate. If you require a lift gate you will have the option to add one FREE of charge at checkout.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

The Goodman GSXN403010 GCVC960603BN CHPTA3026B4 Bundle System

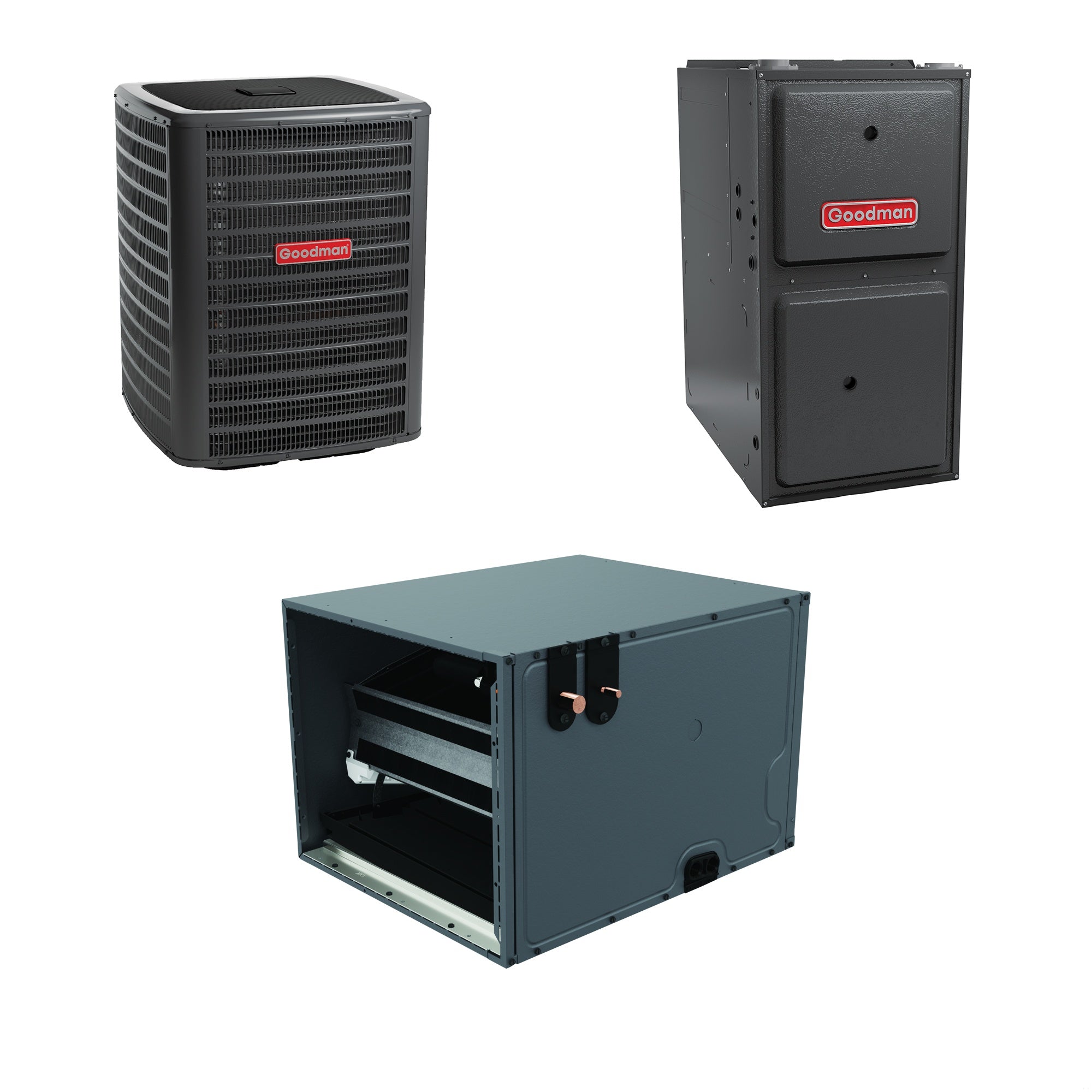

The Goodman central air and furnace kit is an efficient way to upgrade your homes HVAC system. This bundle includes a GSXN4 air conditioner, a GCVC96 gas furnace, and a cased CHPTA evaporator coil. It is ideal for regions with average cooling needs and long, cold winters.

  • SEER2 of 14.5
  • AFUE of 96%
  • 2.5 Tons cooling capacity
  • 60,000 BTU/h heating capacity
  • Horizontal configuration

Goodman GSXN403010 Air Conditioner

The GSXN4 air conditioner included in this bundle is designed for efficient cooling.

  • Single stage cooling
  • Energy-efficient compressor
  • Copper tube/enhanced aluminum fin coil
  • Factory-installed filter drier
  • Heavy-gauge galvanized-steel cabinet

Goodman GCVC960603BN Gas Furnace

The GCVC96 gas furnace in this kit is optimized for reliable heating during winter months.

  • Dual-diameter tubular heat exchanger
  • Secondary stainless steel heat exchanger
  • Low noise blower and gas valve
  • Multiple venting options
  • Compatible with ComfortBridge™ system

Goodman CHPTA3026B4 Cased Evaporator Coil

Included in this bundle is the CHPTA evaporator coil, which ensures efficient refrigerant flow and comfort.

  • All-aluminum coil
  • Factory-installed internal thermostatic expansion valve
  • Condensate management features
  • Foil-faced insulation
  • UV-resistant thermoplastic drain pan
Specifications
Overview
Product Category
Furnace & Air Conditioner Package
Operating Mode
Heating and Cooling
Modulating/Staging
Two Stage
Blower Motor Type
ECM Variable-Speed
Coil Width
17.5 Inches
Configuration
Horizontal
DOE Regional Compliance
Nationwide (Except CA)
Subscription Eligible
No
AFUE
96 %
Capacity
2.5 Tons
Cooling Capacity
28200 BTU
Nominal Cooling Capacity
30000 BTU
Heating BTU
60000
Maximum Air Flow
1200 CFM
SEER2
14.5
EER2
11.7
Product Weight
321 Pounds
Shipping Weight
360 Pounds
ETL Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
208791601
Type
Gas Furnace
Product Line
GCVC96
Product Category
Furnace
Fuel Type
Natural Gas
Vent Type
Direct Vent
High Fire Input
60000 BTU
High Fire Output
57600 BTU
Low Fire Input
42000 BTU
Low Fire Output
40320 BTU
Ultra Low NOx Emissions
No
Low NOx Emissions
Yes
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
7.8 Amps
Recommended Breaker Size
15 Amps
Flue Connection Size
2 or 3 Inches
Cabinet Width
17 1/2 Inches
Product Height
34 1/2 Inches
Product Width
17 1/2 Inches
Product Depth
28 3/4 Inches
Product Weight
119 Pounds
Energy Star Listed
Yes
ISO Certified
Yes
Parts Warranty
5 Years
Heat Exchanger Warranty
20 Years
Type
Condenser
Product Line
GSXN4
Product Category
Air Conditioning Condensers
Cooling
Yes
Refrigerant Type
R-410A
Installation Location
Outdoor
Compressor Stages
Single Stage
Cooling BTU
30000
Maximum Sound Level
72 dB
Voltage
208/230 Volts
Minimum Circuit Ampacity
15.5 Amps
Recommended Breaker Size
25 Amps
Suction Connection Size
7/8 Inch
Liquid Connection Size
3/8 Inch
Product Height
39 1/2 Inches
Product Width
29 Inches
Product Depth
29 Inches
Product Weight
156 Pounds
Shipping Weight
180 Pounds
Warranty Information
Limited* 10 Years Years
Compressor Warranty
LIFETIME Years
ETL Listed
Yes
ISO Certified
Yes
AHRI Certified
Yes
Type
Evaporator Coil
Product Line
CHPTA
Product Category
Evaporator Coil
Refrigerant Type
R-410A
Casing
Cased
Configuration
Horizontal
TXV Installed
Yes
Cooling BTU
30000
Suction Connection Size
7/8 Inch
Liquid Connection Size
3/8 Inch
Cabinet Width
17 1/2 Inches
Product Height
17 1/2 Inches
Product Width
26 Inches
Product Depth
21 Inches
Product Weight
46 Pounds
Shipping Weight
61 Pounds
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
10 Years
Parts Warranty
10 Limited Years
