Goodman - 2.5 Ton Cooling - 60k BTU/Hr Heating - Air Conditioner + Multi Speed Furnace System - 14.5 SEER2 - 96% AFUE - Horizontal

Overview

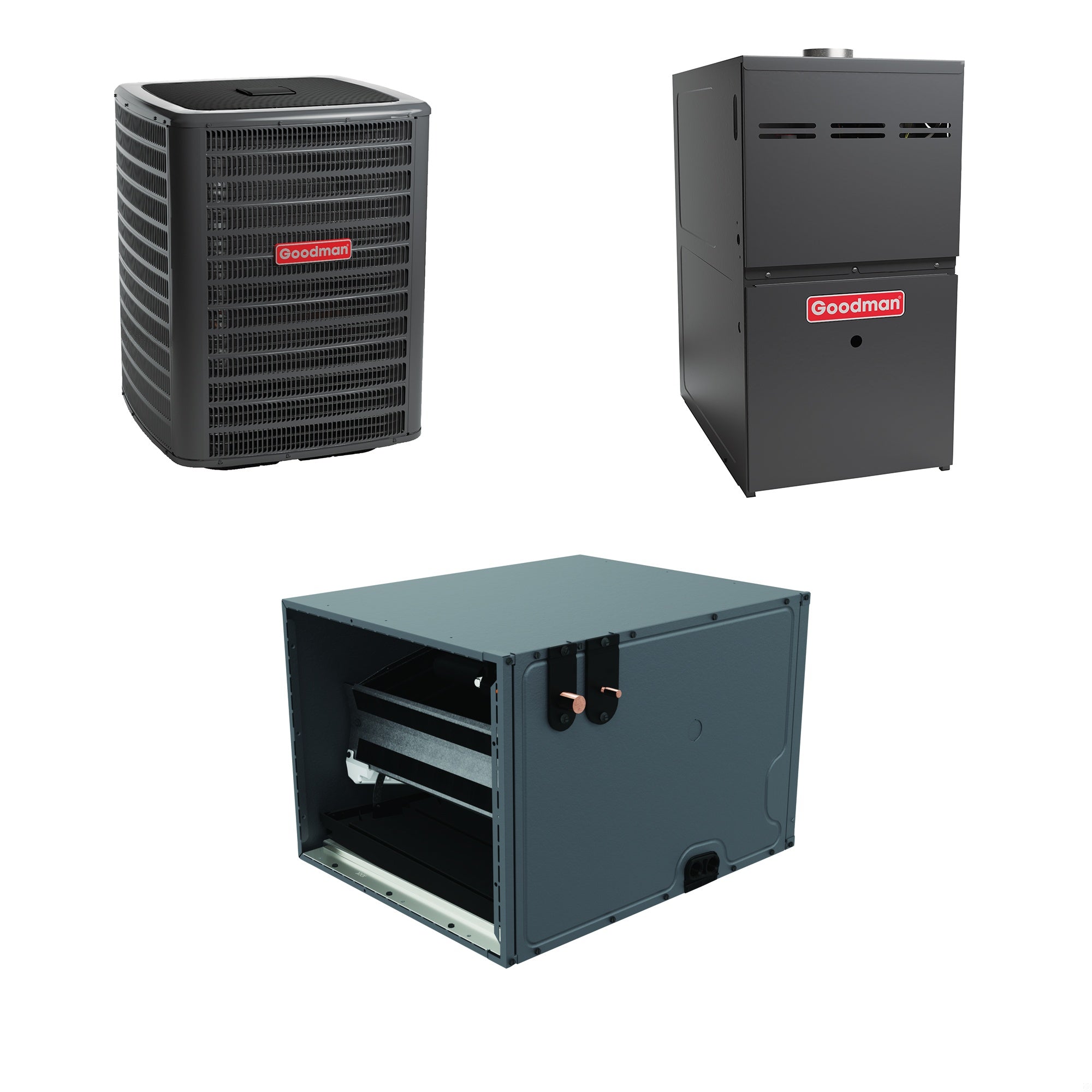

The Goodman GSXN403010 GC9C960603BN CHPTA3630B4 bundle is a comprehensive HVAC upgrade package. This bundle features the GSXN4 air conditioner, GC9C96 furnace, and CHPTA evaporator coil. Together, these components offer efficient cooling and heating solutions with ease of installation and long-term durability.

Features of the Goodman GSXN403010 GC9C960603BN CHPTA3630B4

• All-aluminum evaporator coil for optimal heat transfer
• Internal thermostatic expansion valve in the CHPTA cased evaporator coil
• Condensate management with foil-faced insulation and UV-resistant thermoplastic drain pan
• Advanced aluminized-steel tubular heat exchanger design in the GC9C96 furnace

The Goodman GSXN403010 Air Conditioner

The GSXN403010 air conditioner features a high SEER2 rating of 14.3, ensuring energy-efficient cooling. It has single-stage compressor stages and is built with an all-aluminum fin coil for maximum efficiency.

• Energy-efficient compressor for optimal performance
• Factory-installed filter drier to remove moisture and impurities
• Heavy-gauge galvanized-steel cabinet for durability
• Maximum sound level of 72 dB, ensuring quiet operation

The GC9C960603BN Gas Furnace

The GC9C960603BN gas furnace is designed for efficient heating with a 96% AFUE rating. It utilizes a two-stage ECM multi-speed blower motor and provides up to 60,000 BTU/h heating capacity.

• Secondary heat exchanger for additional heat production
• Quiet operation with low sound levels from the blower, motor, and gas valve
• Multiple venting options for flexible installation
• Easy integration with humidifiers and electronic air cleaners

The CHPTA3630B4 Cased Evaporator Coil

The CHPTA3630B4 evaporator coil has a nominal cooling capacity of 36,000 BTU and comes factory-installed with a thermostatic expansion valve. Its design includes a horizontal configuration with a cased style, ensuring compatibility with the other components in the bundle.

• All-aluminum design for durability and efficient heat transfer
• Foil-faced insulation to prevent condensate formation
• Factory-installed thermostatic expansion valve for easy installation
• UV-resistant DecaBDE-free thermoplastic drain pan with secondary drain connections

This bundle is an ideal solution for homes needing efficient cooling and heating. Each component is designed to work cohesively, ensuring you receive reliable comfort throughout the year.
