Goodman - 2.5 Ton Cooling - 60k BTU/Hr Heating - Air Conditioner + Multi Speed Furnace System - 14.5 SEER2 - 80% AFUE - Downflow

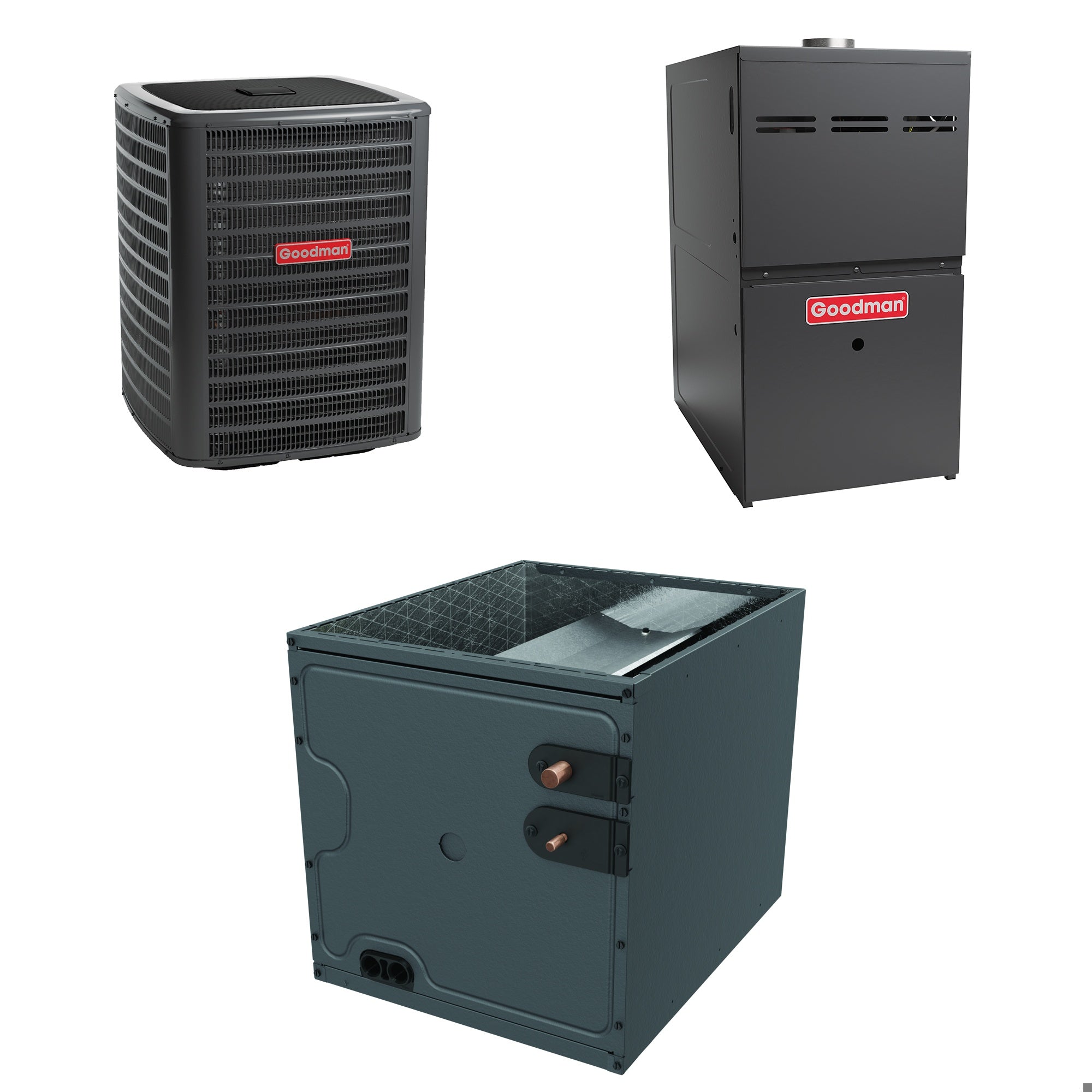

The Goodman GSXN403010 GC9C800603BX CAPTA3026B4 Bundle System

The Goodman GSXN403010 GC9C800603BX CAPTA3026B4 is a comprehensive HVAC solution designed to deliver efficient heating and cooling for your home. This bundle includes a GSXN4 air conditioner, a GC9C80 furnace, and a CAPTA evaporator coil, making it suitable for areas with average cooling needs and long cold winters. Each component focuses on ease of installation and longevity, ensuring you get both upfront and long-term value.

Features

• All-Aluminum Coil: Maximizes surface area for efficient heat transfer
• Internal Thermostatic Expansion Valve: Ensures ideal refrigerant flow
• Condensate Management: Foil-faced insulation and rust-resistant drain pan
• Advanced Heat Exchanger: Tubular design with aluminized steel
• Multi-Speed ECM Motor: Efficient blower motor for precise temperature control
• Quiet Comfort: Low sound levels from blower and gas valve
• Energy-Efficient Compressor: Reliable refrigerant flow

The Goodman GSXN403010 Air Conditioner

The Goodman GSXN403010 is a 2.5-ton air conditioner designed for efficient cooling. It employs a single-stage compressor and features a copper tube/enhanced aluminum fin coil to maximize heat transfer capabilities. The unit comes with a factory-installed filter drier to remove moisture and impurities, preventing corrosion and blockages.

• SEER2 Rating: 14.3
• Cooling Capacity: 30000 BTU
• Maximum Sound Level: 72 dB
• Heavy-Gauge Galvanized-Steel Cabinet: Durable construction with 500-hour salt-spray approval

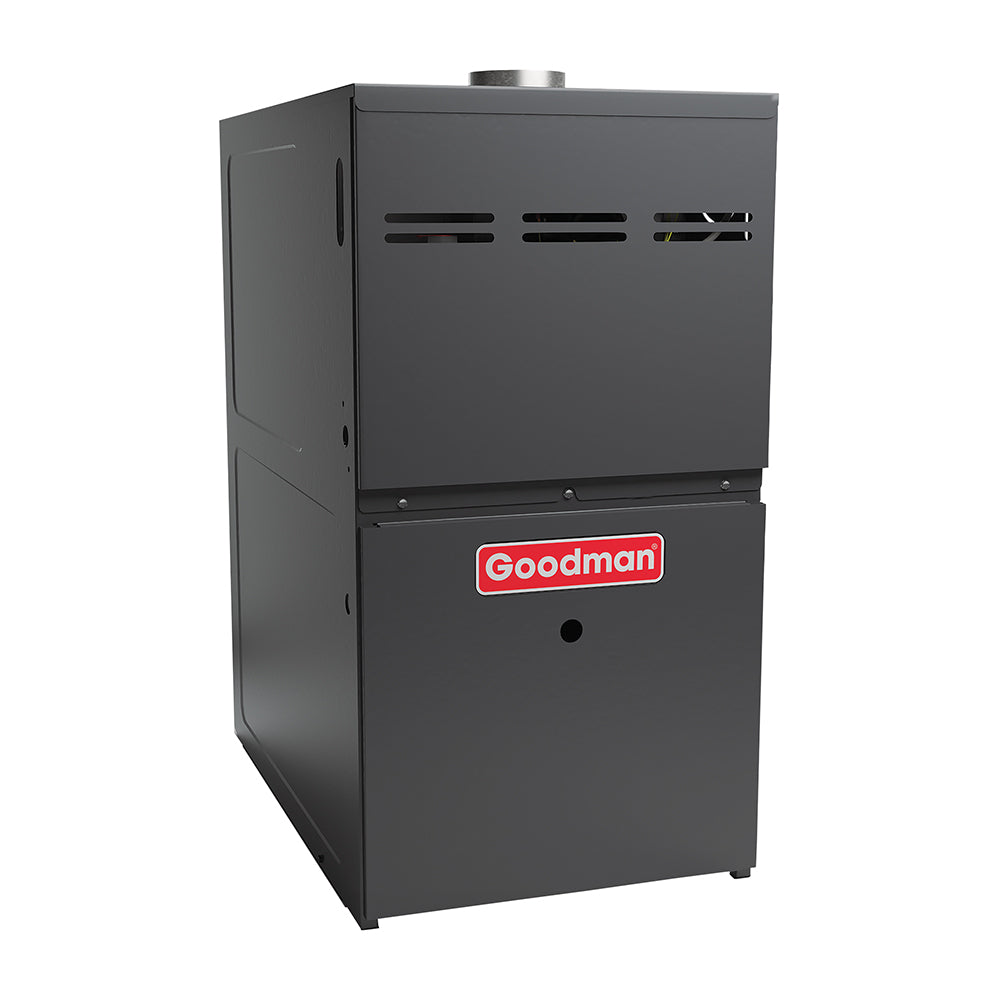

The GC9C800603BX Gas Furnace

The Goodman GC9C800603BX is a 60k BTU gas furnace featuring an 80% AFUE rating. It uses a reliable tubular heat exchanger made from aluminized steel and wrinkle-bend technology for durability. The furnace also includes a multi-speed ECM motor for energy-efficient operation and quiet comfort.

• AFUE: 80%
• Heating BTU: 60000
• Maximum Air Flow: 1200 CFM
• Self-Diagnostic Control Board: Monitors system for reliable operation

The CAPTA3026B4 Cased Evaporator Coil

The Goodman CAPTA3026B4 is a cased evaporator coil designed for upflow/downflow configurations. It features an all-aluminum design with sine fins and grooved tubes to optimize heat transfer. The coil includes a factory-installed thermostatic expansion valve for ease of installation and efficient refrigerant flow.

• Cooling Capacity: 30000 BTU
• Cabinet Width: 17.5 inches
• TXV Installed: Yes
• Foil-Faced Insulation: Prevents condensate formation
