Goodman - 2.5 Ton Cooling - 60k BTU/Hr Heating - Air Conditioner + Multi Speed Furnace System - 14.3 SEER2 - 96% AFUE - Horizontal

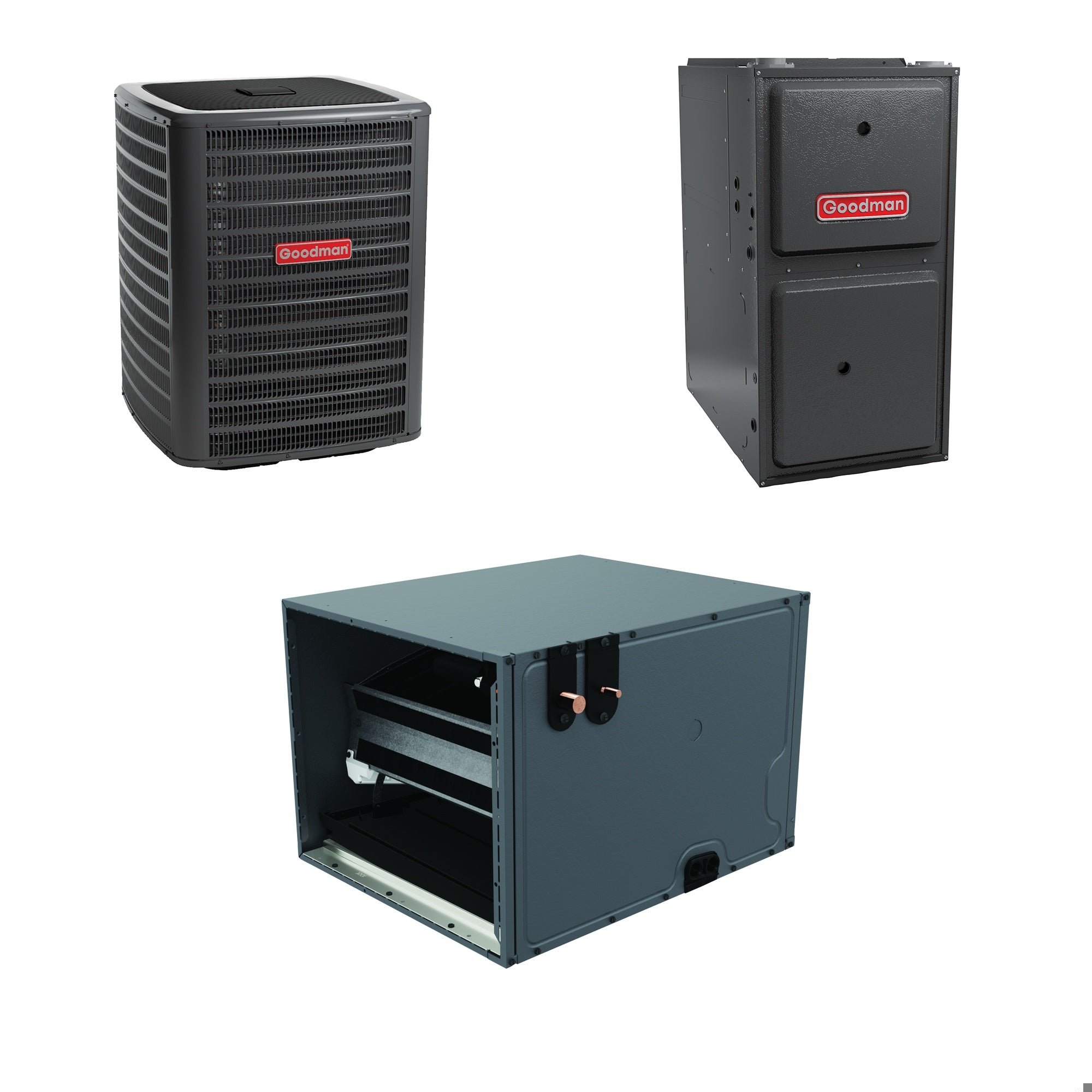

The Goodman GSXN403010 GM9S960603BN CHPTA3026B4 Bundle System

The Goodman GSXN403010 GM9S960603BN CHPTA3026B4 bundle system is an efficient solution for upgrading home HVAC needs. This bundle includes the GSXN4 air conditioner, GM9S96 gas furnace, and CHPTA evaporator coil. Designed for regions requiring moderate cooling and reliable heating, this system is built for ease of installation and durability. Key features include:

• 14.3 SEER2 Efficiency
• 96% AFUE Rating
• 2.5 Ton Cooling Capacity
• 60,000 BTU Heating Capacity
• Horizontal Configuration

Product Highlights

The Goodman GSXN403010 GM9S960603BN CHPTA3026B4 system seamlessly integrates various components to provide efficient heating and cooling throughout the year. Each component is manufactured for easy installation and long-term use. This bundle is ideal for areas with moderate cooling needs and harsh winters.

The Goodman GSXN403010 Air Conditioner

The Goodman GSXN403010 air conditioner ensures efficient cooling with a SEER2 rating of 14.3 and a cooling capacity of 2.5 tons. The unit comprises an aluminum evaporator coil, copper tubing, and an energy-efficient compressor.

• Single-stage compressor for consistent reliability
• Aluminum fin and copper tube condenser coil
• Factory-installed filter drier
• Galvanized steel cabinet

Product Information

• Cooling Capacity: 30,000 BTU
• Sound Level: 72 dB
• Dimensions: 29 inches (Width) x 29 inches (Depth) x 39.5 inches (Height)
• Weight: 156 lbs

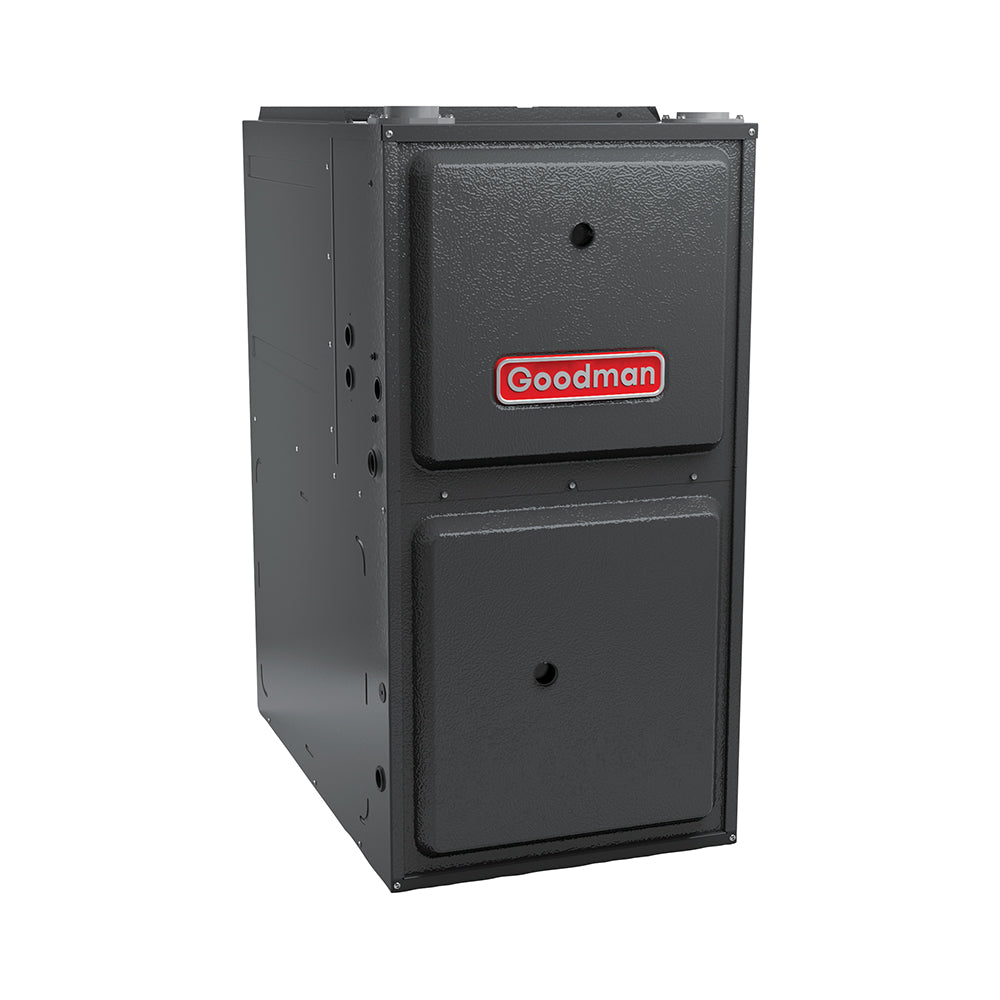

The GM9S960603BN Gas Furnace

The GM9S960603BN gas furnace features a multi-speed ECM blower motor and a 96% AFUE rating, ensuring efficient heat distribution. The aluminized-steel tubular heat exchanger and secondary heat exchanger enhance durability and performance.

• Direct vent configuration
• Single-stage motor
• Quiet operation
• Compatibility with humidifiers and electronic air cleaners

Product Information

• Heating Capacity: 60,000 BTU
• Dimensions: 17.5 inches (Width) x 28.75 inches (Depth) x 34.5 inches (Height)
• Weight: 118 lbs

The CHPTA3026B4 Cased Evaporator Coil

The CHPTA3026B4 cased evaporator coil from Goodman is designed for horizontal installation. The all-aluminum construction maximizes surface area for optimal heat transfer. It also comes with a factory-installed thermostatic expansion valve and foil-faced insulation.

• 2.5 ton cooling capacity
• 17.5 inches coil width
• UV-resistant thermoplastic drain pan
• Pre-installed TXV for streamlined installation

Product Information

• Cooling Capacity: 30,000 BTU
• Dimensions: 17.5 inches (Width) x 21 inches (Depth) x 17.5 inches (Height)
• Weight: 46 lbs
