Goodman - 2.5 Ton Cooling - 60k BTU/Hr Heating - Air Conditioner + Multi Speed Furnace System - 14.3 SEER2 - 96% AFUE - Downflow

Overview

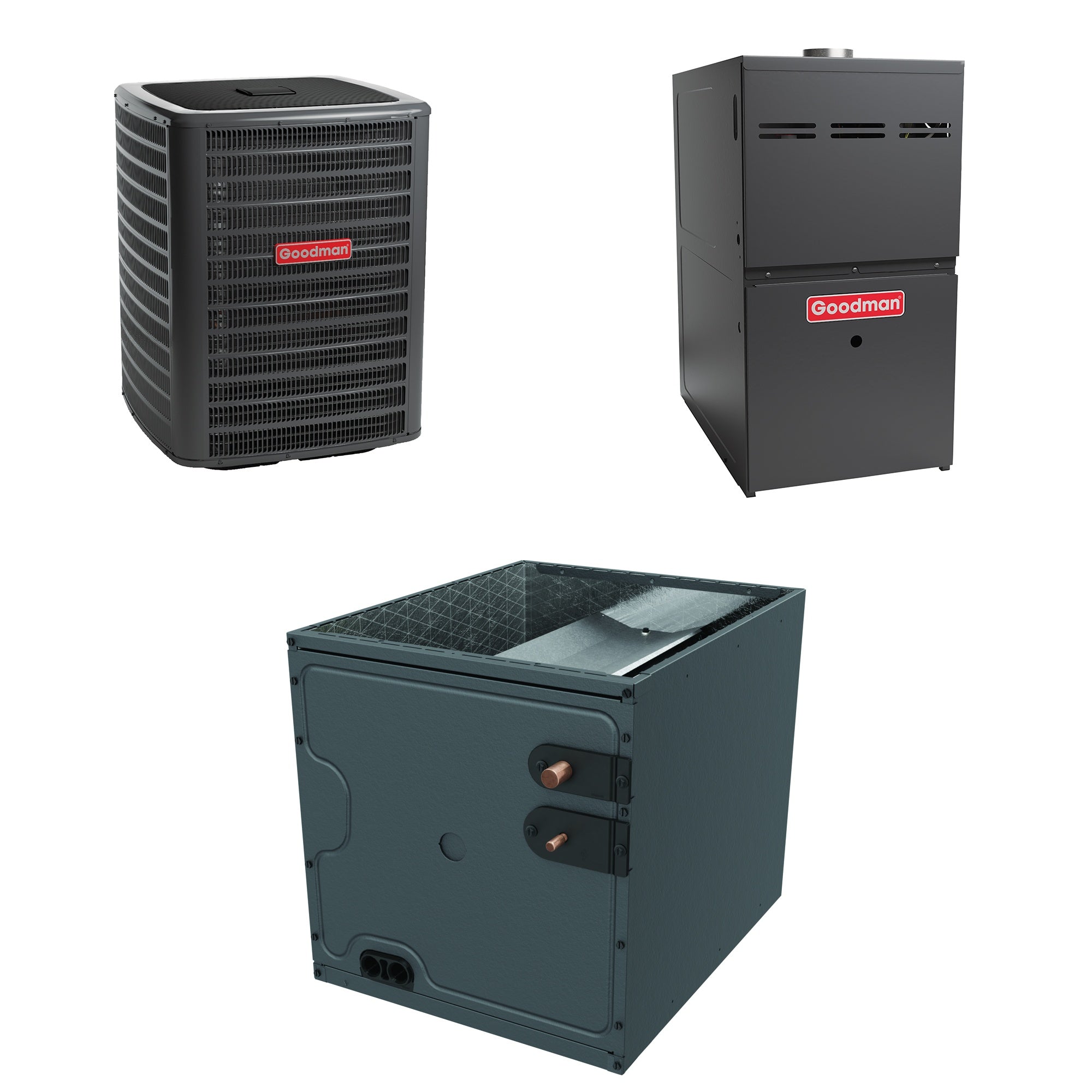

The Goodman GSXN403010 GC9S960603BN CAPTA3626B4 air conditioner and furnace kit combines efficient cooling and heating solutions for your home. This kit features a GSXN4 air conditioner, a GC9S96 furnace, and a CAPTA cased evaporator coil. Its designed to provide optimal comfort in regions with moderate cooling needs and long cold winters. All components are built for easy installation and durability, ensuring value over time.

• All-aluminum coil for efficient heat transfer
• Internal thermostatic expansion valve for easy installation
• Advanced heat exchanger design for dependable heat transfer
• Foil-faced insulation for better condensate management
• Quiet operation with multiple fan speeds
• Various venting options for easy setup

Goodman GSXN403010 Air Conditioner

The GSXN4 air conditioner is designed for reliable cooling with high efficiency. It uses R-410A refrigerant and features an energy-efficient compressor. The condenser coil combines aluminum fins and copper tubes to maximize heat transfer. A factory-installed filter drier in the liquid line removes moisture and impurities, enhancing durability and performance.

• 2.5-ton cooling capacity
• Maximum cooling capacity of 30,000 BTU
• 14.3 SEER2 rating
• Single-stage compressor for consistent cooling
• Heavy-gauge galvanized steel cabinet for durability
• Quiet operation with 72 dB maximum sound level

Goodman GC9S960603BN Gas Furnace

The GC9S96 furnace provides efficient heating with a 96% AFUE rating. It features an aluminized-steel tubular heat exchanger and a secondary stainless steel heat exchanger for enhanced performance. The furnace supports both direct vent and single-pipe venting configurations. It operates quietly, thanks to its carefully selected blower, motor, and gas valve components.

• 60,000 BTU heating capacity
• Maximum air flow of 1200 CFM
• Single-stage operation for consistent performance
• ECM multi-speed blower motor
• Compatible with humidifiers and electronic air cleaners
• Corrosion-resistant stainless steel secondary heat exchanger

Goodman CAPTA3626B4 Cased Evaporator Coil

The CAPTA evaporator coil is built for durability and efficiency. It features an all-aluminum design with sine fins and grooved tubes to optimize heat transfer. A factory-installed thermostatic expansion valve simplifies setup. The coil is insulated with foil-faced material to prevent condensate formation, and it includes a thermoplastic drain pan for effective condensate management.

• 3-ton cooling capacity
• 36000 BTU nominal cooling capacity
• Compatible with R-410A refrigerant
• Upflow/downflow configuration
• Insulated to minimize condensate issues
• Factory-installed thermostatic expansion valve
