Goodman - 2.5 Ton Cooling - 60k BTU/Hr Heating - Air Conditioner + Multi Speed Furnace System - 14.3 SEER2 - 80% AFUE - Horizontal

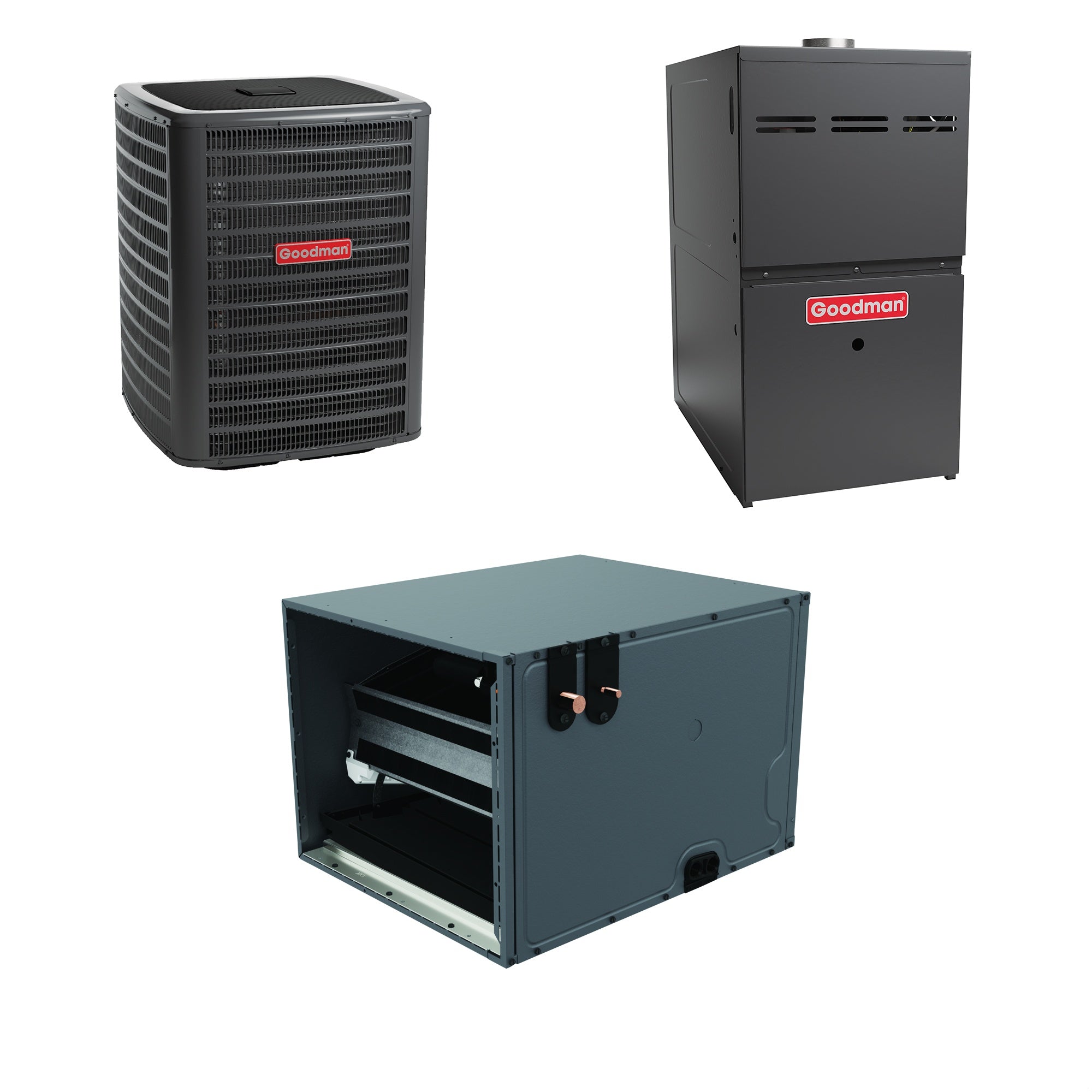

The Goodman GSXN403010 GC9C800603BX CHPTA3026B4 Bundle System

The Goodman GSXN403010 GC9C800603BX CHPTA3026B4 bundle system brings a comprehensive HVAC solution for your homes climate management. This system includes the GSXN4 air conditioner, the GC9C80 furnace, and the CHPTA cased evaporator coil. These components collectively ensure efficient cooling and heating, making it suitable for regions with moderate cooling and long, cold winters. The system’s design highlights easy installation and longevity, providing upfront and long-term value.

• All-aluminum evaporator coil for efficient heat transfer
• Factory-installed internal thermostatic expansion valve
• UV-resistant thermoplastic drain pan
• Durable tubular heat exchanger
• Multi-speed ECM motor for energy efficiency
• Quiet operation

Product Highlights

This Goodman system combines an air conditioner, gas furnace, and cased evaporator coil, delivering optimal cooling and heating. Its components are built to last with efficient and quiet operations, making it a reliable choice for your homes climate control needs.

The Goodman GSXN403010 Air Conditioner

The Goodman GSXN403010 air conditioner is designed to provide reliable cooling performance with an energy-efficient compressor. The unit features a factory-installed filter drier, ensuring the removal of moisture and impurities, preventing corrosion, freezing, and blockages. The use of copper tubes and aluminum fins in the condenser coil enhances its efficiency.

• 14.3 SEER2 rating
• Single-stage compressor
• Heavy-gauge galvanized-steel cabinet
• Maximum sound level of 72 dB

Product Information

Standard Information

• Refrigerant Type: R-410A
• Operating Mode: Cooling

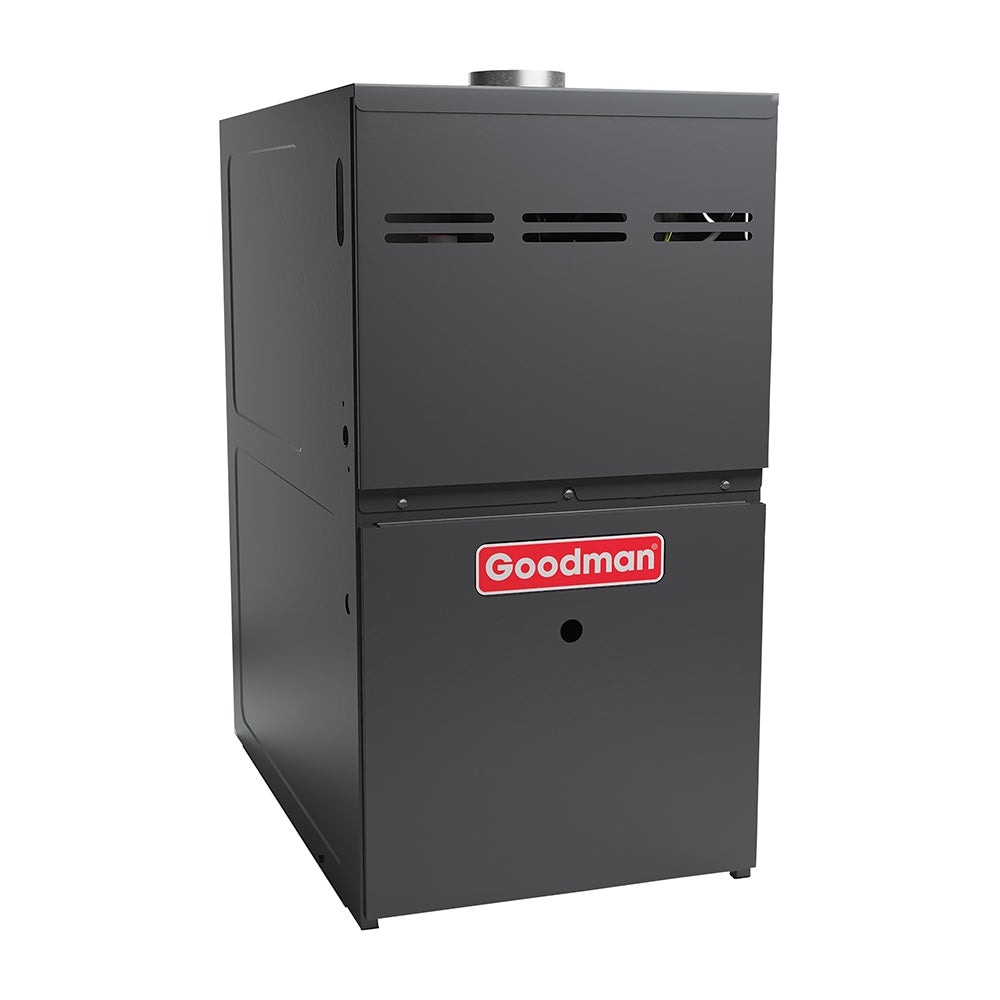

The GC9C800603BX Gas Furnace

The GC9C800603BX gas furnace from Goodman features advanced heat exchanger design and multi-speed ECM motor, ensuring efficient heat transfer and energy savings. The self-diagnostic control board monitors system performance, making maintenance easier. The quiet operation of the GC9C800603BX contributes to a comfortable home environment.

• 80% AFUE
• 60,000 BTU heating capacity
• Two-stage modulation
• Quiet gas valve and blower

Product Information

Standard Information

• Fuel Type: Natural Gas
• Vent Type: Chimney Vent

The CHPTA3026B4 Cased Evaporator Coil

The Goodman CHPTA3026B4 cased evaporator coil is equipped with a factory-installed TXV and features foil-faced insulation to prevent condensate formation. The evaporator coil’s all-aluminum construction ensures high efficiency and durability. The UV-resistant thermoplastic drain pan with secondary drain connections ensures safety and operational reliability.

• 2.5 Ton capacity
• Horizontal configuration
• Width: 17.5 inches
• Factory-installed TXV

Product Information

Standard Information

• Casing: Cased
• Refrigerant Type: R-410A
