Goodman - 2.5 Ton Cooling - 40k BTU/Hr Heating - Heat Pump + Furnace System - 14.3 SEER2 - 96% AFUE - Upflow
Goodman - 2.5 Ton Cooling - 40k BTU/Hr Heating - Heat Pump + Furnace System - 14.3 SEER2 - 96% AFUE - Upflow
Goodman - 2.5 Ton Cooling - 40k BTU/Hr Heating - Heat Pump + Furnace System - 14.3 SEER2 - 96% AFUE - Upflow
Goodman - 2.5 Ton Cooling - 40k BTU/Hr Heating - Heat Pump + Furnace System - 14.3 SEER2 - 96% AFUE - Upflow

Goodman - 2.5 Ton Cooling - 40k BTU/Hr Heating - Heat Pump + Furnace System - 14.3 SEER2 - 96% AFUE - Upflow

GOODMAN
Brand: GOODMAN
SKU: GSZB403010 GMVC960403BN CAPTA3626B4
Availability: Out Of Stock
Free Shipping
$4,862.00
$4,862.00

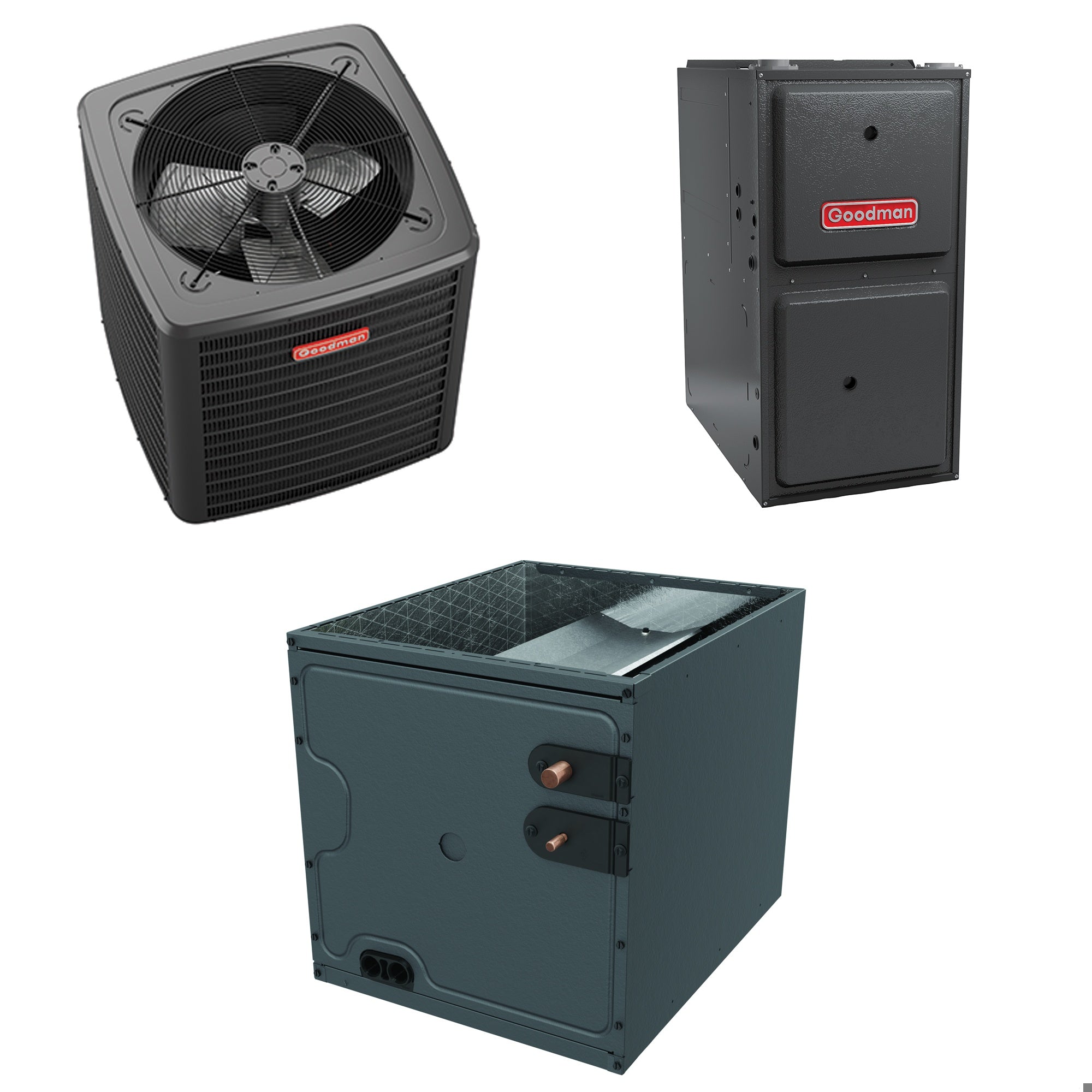

Bundle Includes
Goodman GSZB403010 GSZB 2.5 Ton - 14.3 SEER2 - 7.5 HSPF2 - Heat Pump - 208/230V - Single Phase - R-410A Quantity: 1
Goodman GMVC960403BN GMVC96 2-Stage Gas Furnace 40000 BTU 96% AFUE Quantity: 1
Goodman CAPTA3626B4 Evaporator Coil, 3 Tons, Upflow/Downflow, R-410A Quantity: 1
Manuals:

Specification Highlights

Bundle Overview Performance AFUE
96 %
Bundle Overview Performance EER2
11.0
Bundle Overview Performance HSPF2
7.5

View More

LTL Delivery

This product weighs 372 lbs and may require the use of lift gate. If you require a lift gate you will have the option to add one FREE of charge at checkout.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

The Goodman GSZB403010 GMVC960403BN CAPTA3626B4 Bundle System

The Goodman GSZB403010 GMVC960403BN CAPTA3626B4 is a comprehensive heating and cooling system designed to enhance comfort and efficiency in your home. This bundle includes three major components: the GSZB4 air conditioner, the GMVC96 furnace, and the CAPTA evaporator coil. Each device is crafted to ensure easy installation, durable performance, and significant energy savings.

  • Heat Pump, Furnace, and Cased Evaporator Coil included
  • Enhanced durability and performance
  • Energy-efficient compressor and heat exchanger
  • Quiet operation features

Product Highlights

Designed for efficiency and comfort, this Goodman bundle ensures consistent heating and cooling while maintaining low operational noise. The included components function seamlessly together to deliver superior indoor climate control.

The Goodman GSZB403010 Air Conditioner

The Goodman GSZB403010 is a 2.5-ton air conditioner that operates with a 14.3 SEER2 efficiency rating. Its condenser coil is designed with aluminum fins and copper tubing, maximizing heat transfer capabilities. It includes a factory-installed suction-line accumulator and compressor crankcase heater, ensuring smooth operation and protection against damage.

  • 2.5-ton cooling capacity
  • 14.3 SEER2 rating
  • Aluminum fins and copper tubing
  • Factory-installed safety and efficiency features

Product Highlights

Energy-efficient and reliable, the GSZB403010 air conditioner uses Smartshift™ technology for smooth defrost cycles and features a galvanized steel cabinet for durability.

The GMVC960403BN Gas Furnace

The GMVC960403BN gas furnace offers 40,000 BTU/hr heating capacity with an impressive 96% AFUE efficiency. It features a dual-diameter tubular heat exchanger made of aluminized steel, providing excellent heat transfer and longevity. This furnace includes ComfortBridge™ compatibility, auto-comfort mode, and easy integration with additional system components.

  • 40,000 BTU/hr heating capacity
  • 96% AFUE efficiency
  • ComfortBridge™ compatible
  • Dual-diameter tubular heat exchanger

Product Highlights

The GMVC960403BN is designed for quiet operation and versatile venting setups, ensuring optimal performance in a variety of configurations.

The CAPTA3626B4 Cased Evaporator Coil

The CAPTA3626B4 is a cased evaporator coil with a 3-ton cooling capacity. It features an all-aluminum construction with sine fins and grooved tubes to maximize heat transfer. The coil includes a factory-installed internal thermostatic expansion valve (TXV) and condensate management through foil-faced insulation and a rust-resistant thermoplastic drain pan.

  • 3-ton cooling capacity
  • All-aluminum design
  • Factory-installed TXV
  • Effective condensate management

Product Highlights

Efficient and robust, the CAPTA3626B4 ensures optimal refrigerant flow and reliable operation, contributing to the overall performance of the HVAC system.

Specifications
Overview
Bundle Overview Performance AFUE
96 %
Bundle Overview Performance EER2
11.0
Bundle Overview Performance HSPF2
7.5
Bundle Overview Performance SEER2
14.3
Bundle Overview General Information Configuration
Upflow
Bundle Overview General Information Blower Motor Type
ECM Variable-Speed
Bundle Overview General Information Compressor Stages
Single Stage
Bundle Overview Certifications AHRI Certified
Yes
Bundle Overview DOE Regional Compliance
Nationwide (Except CA)
Bundle Overview General Information Operating Mode
Heating and Cooling
Bundle Overview General Information Refrigerant Type
R-410A
Bundle Overview General Information Product Category
Furnace & Heat Pump Package
Bundle Overview Performance Cooling Capacity
30000 BTU
Bundle Overview Dimensions Product Weight
343 Pounds
Bundle Overview Dimensions Shipping Weight
368 Pounds
GSZB403010 General Information Type
Heat Pump Condenser
GSZB403010 Performance HSPF2
7.5
GSZB403010 Performance SEER2
14.3
GSZB403010 Electrical Data Phase
1
GSZB403010 Electrical Data Voltage
208/230 Volts
GSZB403010 Electrical Data Minimum Circuit Ampacity
18.6 Amps
GSZB403010 Electrical Data Recommended Breaker Size
30 Amps
GSZB403010 Performance Cooling BTU
30000
GSZB403010 Performance Heating Capacity
30000 BTU
GSZB403010 Performance Maximum Sound Level
75 dB
GSZB403010 Certifications ETL Listed
Yes
GSZB403010 Certifications ISO Certified
Yes
GSZB403010 Certifications AHRI Certified
Yes
GSZB403010 Certifications Energy Star Listed
No
GSZB403010 Warranty Information Parts Warranty
5 Years
GSZB403010 Warranty Information Compressor Warranty
Limited 10 Years
GSZB403010 Dimensions Liquid Connection Size
3/8 Inch
GSZB403010 Dimensions Suction Connection Size
3/4 Inch
GSZB403010 Dimensions Product Height
39 1/2 Inches
GSZB403010 Dimensions Product Width
29 Inches
GSZB403010 Dimensions Product Depth
29 Inches
GSZB403010 Dimensions Product Weight
175 Pounds
GSZB403010 Dimensions Shipping Weight
190 Pounds
CAPTA3626B4 General Information Type
Evaporator Coil
CAPTA3626B4 Performance Capacity
3 Tons
CAPTA3626B4 Performance Cooling BTU
36000
CAPTA3626B4 Certifications ETL Listed
Yes
CAPTA3626B4 Certifications AHRI Certified
Yes
CAPTA3626B4 Warranty Information Warranty
5 Years
CAPTA3626B4 General Information Product Line
CAPT
CAPTA3626B4 General Information Style
A Coil
CAPTA3626B4 General Information Casing
Cased
CAPTA3626B4 General Information Refrigerant Type
R-410A
CAPTA3626B4 General Information TXV Installed
Yes
CAPTA3626B4 Dimensions Liquid Connection Size
3/8 Inch
CAPTA3626B4 Dimensions Suction Connection Size
7/8 Inch
CAPTA3626B4 Dimensions Cabinet Width
17 1/2 Inches
CAPTA3626B4 Dimensions Product Height
26 Inches
CAPTA3626B4 Dimensions Product Width
17 1/2 Inches
CAPTA3626B4 Dimensions Product Depth
21 Inches
CAPTA3626B4 Dimensions Product Weight
54 Pounds
CAPTA3626B4 Dimensions Shipping Weight
64 Pounds
GMVC960403BN General Information Type
Gas Furnace
GMVC960403BN Performance Heating BTU
40000
GMVC960403BN Performance AFUE
96 %
GMVC960403BN Performance Maximum Air Flow
1200 CFM
GMVC960403BN Performance High Fire Input
40000 BTU
GMVC960403BN Performance High Fire Output
38400 BTU
GMVC960403BN Performance Low Fire Input
28000 BTU
GMVC960403BN Performance Low Fire Output
26880 BTU
GMVC960403BN Certifications ETL Listed
Yes
GMVC960403BN Certifications ISO Certified
Yes
GMVC960403BN Certifications AHRI Certified
Yes
GMVC960403BN Certifications AHRI Reference Number
7368841
GMVC960403BN Certifications Energy Star Listed
Yes
GMVC960403BN Warranty Information Parts Warranty
5 Years
GMVC960403BN Warranty Information Heat Exchanger Warranty
20 Years
GMVC960403BN Dimensions Flue Connection Size
2 or 3 Inches
GMVC960403BN Dimensions Cabinet Width
17 1/2 Inches
GMVC960403BN Dimensions Product Height
34 1/2 Inches
GMVC960403BN Dimensions Product Width
17 1/2 Inches
GMVC960403BN Dimensions Product Depth
28 3/4 Inches
GMVC960403BN Dimensions Product Weight
114 Pounds
GMVC960403BN Dimensions Shipping Weight
114 Pounds
GMVC960403BN Electrical Data Voltage
115 Volts
GMVC960403BN Electrical Data Frequency
60 Hz
GMVC960403BN Electrical Data Phase
1
GMVC960403BN Electrical Data Minimum Circuit Ampacity
7.8 Amps
GMVC960403BN Electrical Data Recommended Breaker Size
15 Amps
GMVC960403BN General Information Fuel Type
Natural Gas
GMVC960403BN General Information Vent Type
Direct Vent
GMVC960403BN General Information Product Line
GMVC96
GMVC960403BN General Information Modulating/Staging
Two Stage
GMVC960403BN General Information Blower Motor Type
ECM Variable-Speed
GMVC960403BN General Information Configuration
Upflow/Horizontal
GMVC960403BN General Information Gas Conversion Kit
Available
GMVC960403BN Performance Low NOx Emissions
Yes
GMVC960403BN Performance Ultra Low NOx Emissions
No
GMVC960403BN Certifications DOE Regional Compliance
Nationwide (Except CA)
