Goodman - 2.5 Ton Cooling - 40k BTU/Hr Heating - Heat Pump + Furnace System - 14.3 SEER2 - 96% AFUE - Horizontal
Goodman - 2.5 Ton Cooling - 40k BTU/Hr Heating - Heat Pump + Furnace System - 14.3 SEER2 - 96% AFUE - Horizontal
Goodman - 2.5 Ton Cooling - 40k BTU/Hr Heating - Heat Pump + Furnace System - 14.3 SEER2 - 96% AFUE - Horizontal
Goodman - 2.5 Ton Cooling - 40k BTU/Hr Heating - Heat Pump + Furnace System - 14.3 SEER2 - 96% AFUE - Horizontal

Goodman - 2.5 Ton Cooling - 40k BTU/Hr Heating - Heat Pump + Furnace System - 14.3 SEER2 - 96% AFUE - Horizontal

GOODMAN
Brand: GOODMAN
SKU: GSZB403010 GCVC960403BN CHPTA3026B4
Availability: Out Of Stock
Free Shipping
$5,035.00
$5,035.00

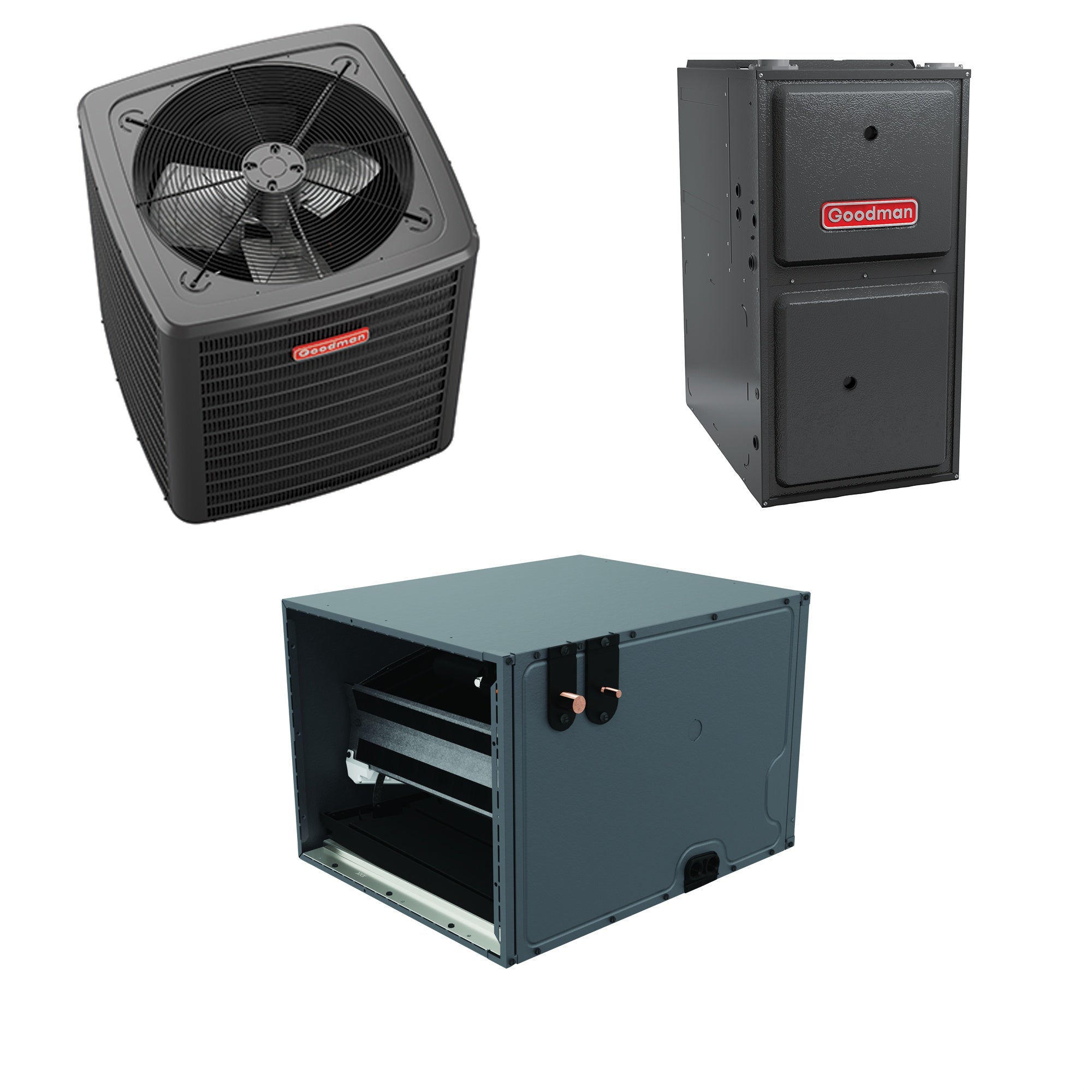

Bundle Includes
Goodman GSZB403010 GSZB 2.5 Ton - 14.3 SEER2 - 7.5 HSPF2 - Heat Pump - 208/230V - Single Phase - R-410A Quantity: 1
Goodman GCVC960403BN GCVC96 Series 96% AFUE - 40,000 BTU - Downflow/Horizontal - Variable Speed Quantity: 1
Goodman CHPTA3026B4 Evaporator Coil, 2.5 Tons, Horizontal, R-410A TXV Quantity: 1
Manuals:

Specification Highlights

Bundle Overview Product Category
Furnace & Heat Pump Package
Bundle Overview Performance Capacity
2.5 Tons
Bundle Overview Performance EER2
11.0

View More

LTL Delivery

This product weighs 385 lbs and may require the use of lift gate. If you require a lift gate you will have the option to add one FREE of charge at checkout.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Goodman GSZB403010 GCVC960403BN CHPTA3026B4 Bundle System

The Goodman GSZB403010 GCVC960403BN CHPTA3026B4 bundle system provides a complete heating and cooling solution for your home. This package includes the GSZB4 air conditioner, the GCVC96 gas furnace, and the CHPTA cased evaporator coil. Each component is designed to offer ease of installation and durability while delivering efficient and reliable performance.

  • Includes air conditioner, gas furnace, and evaporator coil
  • Designed for ease of installation
  • Durable and reliable components
  • Complete home HVAC solution
  • Energy-efficient performance
  • Compatible with ComfortBridge™ communicating controls

GSZB403010 Air Conditioner

The Goodman GSZB403010 air conditioner offers reliable cooling with a 2.5-ton capacity and a 14.3 SEER2 rating. The unit utilizes a single-stage compressor and operates with R-410A refrigerant. This outdoor heat pump condenser ensures efficient and effective cooling.

  • 2.5-ton cooling capacity
  • 14.3 SEER2 rating
  • Single-stage compressor
  • R-410A refrigerant
  • Outdoor installation
  • Energy-efficient compressor

GCVC960403BN Gas Furnace

The Goodman GCVC960403BN gas furnace is a reliable heating solution with a 96% AFUE rating and a 40,000 BTU heating capacity. It features a dual-diameter tubular heat exchanger made from aluminized steel for optimal heat transfer and durability. The furnace offers quiet operation and multiple venting options.

  • 96% AFUE rating
  • 40,000 BTU heating capacity
  • Dual-diameter tubular heat exchanger
  • Quiet operation
  • Multiple venting options
  • ComfortBridge™ compatible

CHPTA3026B4 Cased Evaporator Coil

The Goodman CHPTA3026B4 cased evaporator coil is designed for horizontal installations and has a 2.5-ton cooling capacity. The coil features an all-aluminum design with grooved tubes and fins for maximum heat transfer efficiency. It also includes a factory-installed thermostatic expansion valve for ideal refrigerant flow.

  • 2.5-ton cooling capacity
  • Horizontal installation
  • All-aluminum design
  • Thermostatic expansion valve included
  • Foil-faced insulation
  • UV-resistant drain pan
Specifications
Overview
Bundle Overview Product Category
Furnace & Heat Pump Package
Bundle Overview Performance Capacity
2.5 Tons
Bundle Overview Performance EER2
11.0
Bundle Overview Performance HSPF2
7.5
Bundle Overview Performance SEER2
14.3
Bundle Overview Performance Cooling Capacity
30000 BTU
Bundle Overview Performance Maximum Air Flow
1200 CFM
Bundle Overview Performance Heating BTU
40000
GSZB403010 General Information Type
Heat Pump Condenser
GSZB403010 General Information Product Line
GSZB4
GSZB403010 General Information Operating Mode
Heating and Cooling
GSZB403010 General Information Refrigerant Type
R-410A
GSZB403010 General Information Compressor Stages
Single Stage
GSZB403010 General Information Installation Location
Outdoor
GSZB403010 General Information Installation Available
Yes
GSZB403010 General Information DOE Regional Compliance
Nationwide
GSZB403010 Certifications ETL Listed
Yes
GSZB403010 Certifications Energy Star Listed
No
GSZB403010 Certifications ISO Certified
Yes
GSZB403010 Certifications AHRI Certified
Yes
GSZB403010 Electrical Data Voltage
208/230 Volts
GSZB403010 Electrical Data Phase
1
GSZB403010 Electrical Data Frequency
60 Hz
GSZB403010 Electrical Data Minimum Circuit Ampacity
18.6 Amps
GSZB403010 Electrical Data Recommended Breaker Size
30 Amps
GSZB403010 Performance Capacity
2.5 Tons
GSZB403010 Performance Cooling BTU
30000
GSZB403010 Performance Cooling Capacity
30000 BTU
GSZB403010 Performance Heating Capacity
30000 BTU
GSZB403010 Performance Maximum Sound Level
75 dB
GSZB403010 Performance SEER2
14.3
GSZB403010 Performance HSPF2
7.5
GSZB403010 Dimensions Product Height
39 1/2 Inches
GSZB403010 Dimensions Product Width
29 Inches
GSZB403010 Dimensions Product Depth
29 Inches
GSZB403010 Dimensions Product Weight
175 Pounds
GSZB403010 Dimensions Shipping Weight
190 Pounds
GSZB403010 Dimensions Liquid Connection Size
3/8 Inch
GSZB403010 Dimensions Suction Connection Size
3/4 Inch
GSZB403010 Warranty Information Parts Warranty
5 Years Years
GSZB403010 Warranty Information Compressor Warranty
Limited* 10 Years
GSZB403010 Warranty Information Parts Warranty
5 Years
GCVC960403BN General Information Type
Gas Furnace
GCVC960403BN General Information Product Line
GCVC96
GCVC960403BN General Information Product Category
Furnace
GCVC960403BN General Information Fuel Type
Natural Gas
GCVC960403BN General Information Vent Type
Direct Vent
GCVC960403BN General Information Modulating/Staging
Two Stage
GCVC960403BN General Information Blower Motor Type
ECM Variable-Speed
GCVC960403BN General Information Configuration
Downflow/Horizontal
GCVC960403BN General Information Gas Conversion Kit
Available
GCVC960403BN General Information Installation Available
Yes
GCVC960403BN General Information DOE Regional Compliance
Nationwide (Except CA)
GCVC960403BN Certifications ETL Listed
Yes
GCVC960403BN Certifications Energy Star Listed
Yes
GCVC960403BN Certifications ISO Certified
Yes
GCVC960403BN Certifications AHRI Certified
Yes
GCVC960403BN Certifications AHRI Reference Number
7368837
GCVC960403BN Electrical Data Voltage
115 Volts
GCVC960403BN Electrical Data Phase
1
GCVC960403BN Electrical Data Frequency
60 Hz
GCVC960403BN Electrical Data Minimum Circuit Ampacity
7.8 Amps
GCVC960403BN Electrical Data Recommended Breaker Size
15 Amps
GCVC960403BN Performance AFUE
96 %
GCVC960403BN Performance Heating BTU
40000
GCVC960403BN Performance High Fire Input
40000 BTU
GCVC960403BN Performance High Fire Output
38400 BTU
GCVC960403BN Performance Low Fire Input
28000 BTU
GCVC960403BN Performance Low Fire Output
26880 BTU
GCVC960403BN Performance Maximum Air Flow
1200 CFM
GCVC960403BN Performance Ultra Low NOx Emissions
No
GCVC960403BN Performance Low NOx Emissions
Yes
GCVC960403BN Dimensions Cabinet Width
17 1/2 Inches
GCVC960403BN Dimensions Product Height
34 1/2 Inches
GCVC960403BN Dimensions Product Width
17 1/2 Inches
GCVC960403BN Dimensions Product Depth
28 3/4 Inches
GCVC960403BN Dimensions Product Weight
116 Pounds
GCVC960403BN Dimensions Shipping Weight
116 Pounds
GCVC960403BN Dimensions Flue Connection Size
2 or 3 Inches
GCVC960403BN Warranty Information Parts Warranty
5 Years
GCVC960403BN Warranty Information Heat Exchanger Warranty
20 Years
CHPTA3026B4 General Information Type
Evaporator Coil
CHPTA3026B4 General Information Product Line
CHPTA
CHPTA3026B4 General Information Product Category
Evaporator Coil
CHPTA3026B4 General Information Refrigerant Type
R-410A
CHPTA3026B4 General Information Style
A Coil
CHPTA3026B4 General Information Casing
Cased
CHPTA3026B4 General Information Configuration
Horizontal
CHPTA3026B4 General Information TXV Installed
Yes
CHPTA3026B4 General Information Installation Available
Yes
CHPTA3026B4 Certifications ETL Listed
Yes
CHPTA3026B4 Certifications ISO Certified
Yes
CHPTA3026B4 Certifications AHRI Certified
Yes
CHPTA3026B4 Performance Capacity
2.5 Tons
CHPTA3026B4 Performance Cooling BTU
30000
CHPTA3026B4 Performance Nominal Minimum Cooling Capacity
30000 BTU
CHPTA3026B4 Dimensions Product Height
17 1/2 Inches
CHPTA3026B4 Dimensions Product Width
26 Inches
CHPTA3026B4 Dimensions Product Depth
21 Inches
CHPTA3026B4 Dimensions Cabinet Width
17 1/2 Inches
CHPTA3026B4 Dimensions Product Weight
46 Pounds
CHPTA3026B4 Dimensions Shipping Weight
61 Pounds
CHPTA3026B4 Dimensions Liquid Connection Size
3/8 Inch
CHPTA3026B4 Dimensions Suction Connection Size
7/8 Inch
CHPTA3026B4 Warranty Information Warranty
10 Years
CHPTA3026B4 Warranty Information Parts Warranty
10 Limited Years
