Goodman - 2.5 Ton Cooling - 40k BTU/Hr Heating - Air Conditioner + Variable Speed Furnace System - 15 SEER2 - 96% AFUE - Horizontal

GOODMAN
Brand: GOODMAN
SKU: GSXN403010 GCVC960403BN CHPTA3630B4
Availability: Out Of Stock
$4,245.05
$4,245.05
Bundle Includes
Goodman GSXN403010 GSXN4 2.5 Ton - 14.3 SEER2 - Air Conditioner - 208/230V - Single Phase - Cooling Only - R-410A Quantity: 1
Goodman GCVC960403BN GCVC96 Series 96% AFUE - 40,000 BTU - Downflow/Horizontal - Variable Speed Quantity: 1
Goodman CHPTA3630B4 Evaporator Coil 3 Tons Horizontal Replacement MPN Quantity: 1
Manuals:

Specification Highlights

SEER2
15
AFUE
96 %
Capacity
2.5 Tons

View More

LTL Delivery

This product weighs 210 lbs each and will be shipped via LTL carrier. A lift gate option will be added free of charge for your convenience.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Bundle Overview

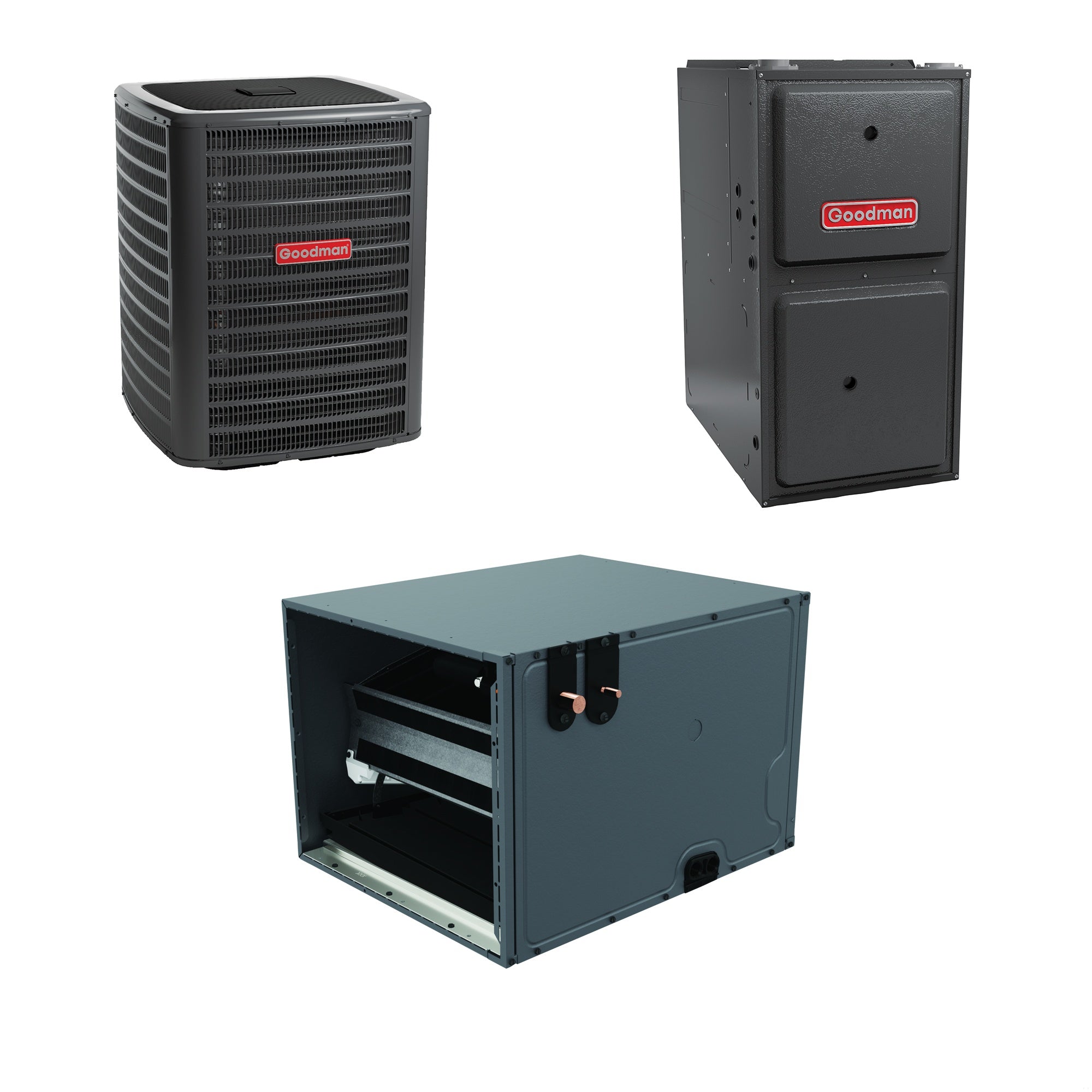

The Goodman GSXN403010 GCVC960403BN CHPTA3630B4 is an integrated HVAC system that brings together a 2.5-ton air conditioner, a 40,000 BTU/h gas furnace, and a cased 3.0-ton evaporator coil. This bundle is designed for comprehensive climate control, providing efficient heating and cooling solutions for various environments.

  • Goodman GSXN403010 air conditioner
  • Goodman GCVC960403BN gas furnace
  • Goodman CHPTA3630B4 cased evaporator coil

Product Highlights

This HVAC system is ideal for areas experiencing moderate cooling requirements but demanding efficient heating for cold winters. The components are designed for easy installation and durability, ensuring long-term value.

Goodman GSXN403010 Air Conditioner

The Goodman GSXN403010 is a 2.5-ton, single-stage air conditioner designed for efficient cooling with a SEER2 rating of 14.3. It features aluminum fins and copper tubing to maximize heat transfer.

  • Energy-efficient compressor
  • Factory-installed filter drier
  • Heavy-gauge galvanized-steel cabinet
  • Aluminum fin and copper tube condenser coil
  • SEER2 rating: 14.3

Product Information

Standard Information

  • Type: Air Conditioning Condenser
  • Product Line: GSXN4
  • Refrigerant Type: R-410A
  • Installation Location: Outdoor

Goodman GCVC960403BN Gas Furnace

The Goodman GCVC960403BN is a 40,000 BTU/h, two-stage gas furnace with an AFUE rating of 96%. It employs a dual-diameter tubular heat exchanger made of aluminized steel for efficient heat transfer.

  • Durable aluminized steel heat exchanger
  • Variable-speed ECM blower motor
  • Uses natural gas
  • AFUE rating: 96%
  • Two-stage operation

Product Information

Standard Information

  • Type: Gas Furnace
  • Product Line: GCVC96
  • Fuel Type: Natural Gas
  • Vent Type: Direct Vent

Goodman CHPTA3630B4 Cased Evaporator Coil

The Goodman CHPTA3630B4 is a 3.0-ton horizontal A coil with a factory-installed thermostatic expansion valve (TXV). It is designed with a reliable all-aluminum construction for efficient heat transfer.

  • All-aluminum construction
  • Factory-installed TXV
  • Foil-faced insulation
  • UV-resistant thermoplastic drain pan
  • Cooling capacity: 36,000 BTU

Product Information

Standard Information

  • Type: Evaporator Coil
  • Product Line: CHPTA
  • Refrigerant Type: R-410A
  • Configuration: Horizontal
Specifications
Overview
SEER2
15
AFUE
96 %
Capacity
2.5 Tons
Cooling Capacity
28200 BTU
Heating BTU
40000
Maximum Air Flow
1200 CFM
EER2
11.7
Product Weight
323 Pounds
Shipping Weight
362 Pounds
ETL Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
208791606
General Information
Furnace & Air Conditioner Package
Operating Mode
Heating and Cooling
Modulating/Staging
Two Stage
Blower Motor Type
ECM Variable-Speed
Coil Width
17.5 Inches
Configuration
Horizontal
DOE Regional Compliance
Nationwide (Except CA)
Subscription Eligible
No
Product Line
GCVC96
Product Category
Furnace
Fuel Type
Natural Gas
Vent Type
Direct Vent
High Fire Input
40000 BTU
High Fire Output
38400 BTU
Low Fire Input
28000 BTU
Low Fire Output
26880 BTU
Product Height
34 1/2 Inches
Product Width
17 1/2 Inches
Product Depth
28 3/4 Inches
Product Weight
116 Pounds
Shipping Weight
116 Pounds
Installation Available
Yes
Ultra Low NOx Emissions
No
Low NOx Emissions
Yes
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
7.8 Amps
Recommended Breaker Size
15 Amps
Flue Connection Size
2 or 3 Inches
Cabinet Width
17 1/2 Inches
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
AHRI Reference Number
7368837
Parts Warranty
5 Years
Heat Exchanger Warranty
20 Years
General Information
Furnace
Type
Condenser
Product Line
GSXN4
Product Category
Air Conditioning Condensers
Operating Mode
Cooling
Refrigerant Type
R-410A
Installation Location
Outdoor
Compressor Stages
Single Stage
DOE Regional Compliance
Nationwide
Installation Available
Yes
Cooling BTU
30000
Cooling Capacity
30000 BTU
Maximum Sound Level
72 dB
SEER2
14.3
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
15.5 Amps
Recommended Breaker Size
25 Amps
Suction Connection Size
7/8 Inch
Liquid Connection Size
3/8 Inch
Product Height
39 1/2 Inches
Product Width
29 Inches
Product Depth
29 Inches
Product Weight
156 Pounds
Shipping Weight
180 Pounds
ETL Listed
Yes
Energy Star Listed
No
AHRI Certified
Yes
ISO Certified
Yes
Parts Warranty
Limited* 10 Years Years
Compressor Warranty
LIFETIME Years
General Information
Evaporator Coil
Product Line
CHPTA
Product Category
Evaporator Coil
Refrigerant Type
R-410A
Casing
Cased
Style
A Coil
Configuration
Horizontal
Installation Available
Yes
TXV Installed
Yes
Cooling BTU
36000
Nominal Minimum Cooling Capacity
36000 BTU
Suction Connection Size
7/8 Inch
Liquid Connection Size
3/8 Inch
Cabinet Width
17 1/2 Inches
Product Height
17 1/2 Inches
Product Width
30 Inches
Product Depth
21 Inches
Product Weight
51 Pounds
Shipping Weight
66 Pounds
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty
10 Years
Parts Warranty
10 Limited Years
Warranty
10 Years
Parts Warranty
10 Limited Years
