Goodman - 2.5 Ton Cooling - 30k BTU/Hr Heating - Heat Pump + Air Handler System - 14.3 SEER2 - 7.5 HSPF2
Goodman - 2.5 Ton Cooling - 30k BTU/Hr Heating - Heat Pump + Air Handler System - 14.3 SEER2 - 7.5 HSPF2
Goodman - 2.5 Ton Cooling - 30k BTU/Hr Heating - Heat Pump + Air Handler System - 14.3 SEER2 - 7.5 HSPF2
Goodman - 2.5 Ton Cooling - 30k BTU/Hr Heating - Heat Pump + Air Handler System - 14.3 SEER2 - 7.5 HSPF2

Goodman - 2.5 Ton Cooling - 30k BTU/Hr Heating - Heat Pump + Air Handler System - 14.3 SEER2 - 7.5 HSPF2

GOODMAN
Brand: GOODMAN
SKU: GSZB403010 MBVC1201AA-1 CAPTA3026B4
Availability: Out Of Stock
Free Shipping
$3,805.00
$3,805.00

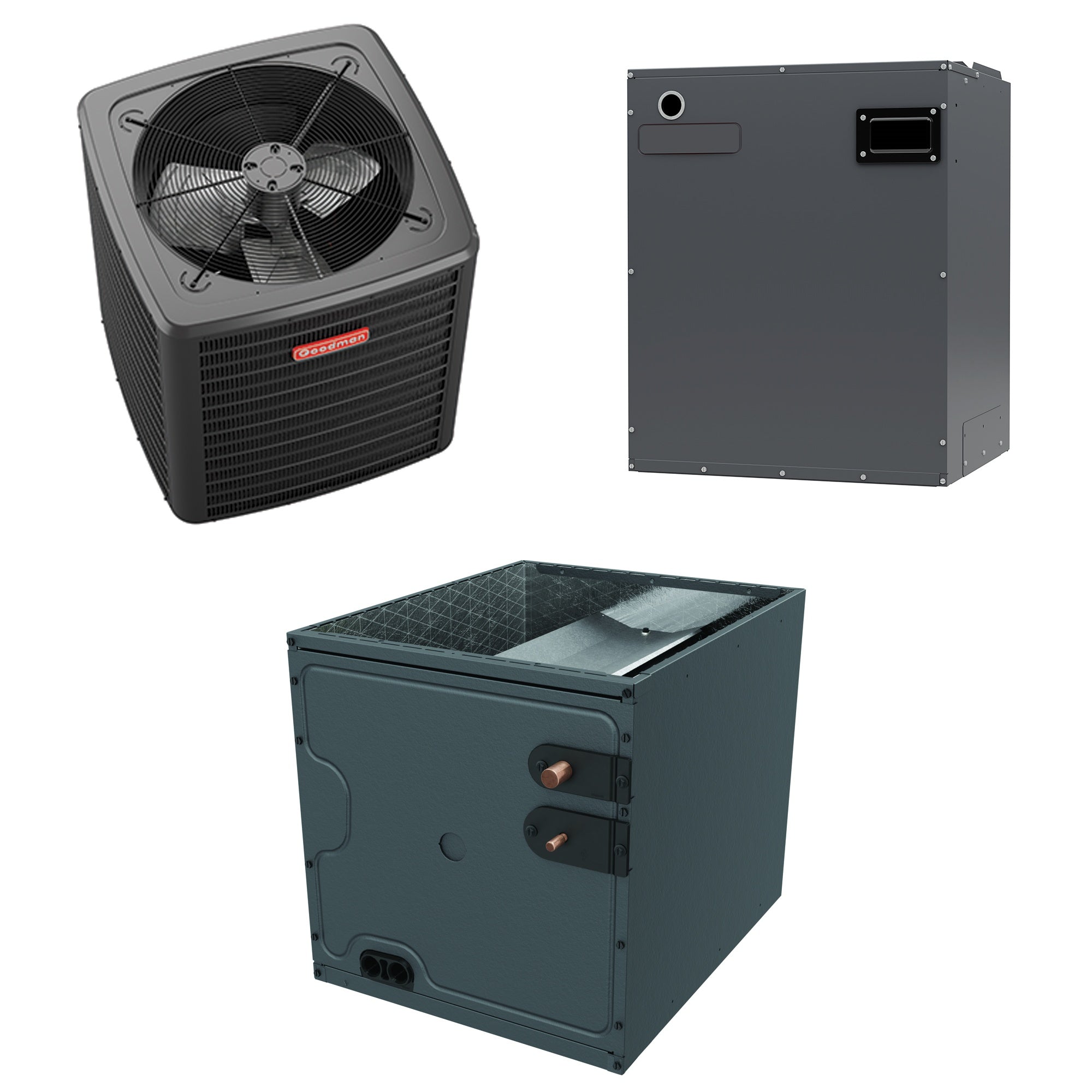

Bundle Includes
Goodman GSZB403010 GSZB 2.5 Ton - 14.3 SEER2 - 7.5 HSPF2 - Heat Pump - 208/230V - Single Phase - R-410A Quantity: 1
Goodman MBVC1201AA-1 Modular Blower, ComfortBridge, 1.5-3 tons Quantity: 1
Goodman CAPTA3026B4 CAPTA Series 2.5 Ton Upflow/Downflow Cased Coil Painted Quantity: 1
Manuals:

Specification Highlights

Product Category
Heat Pump & Air Handler Package
Operating Mode
Heating and Cooling
Refrigerant Type
R-410A

View More

LTL Delivery

This product weighs 309 lbs and may require the use of lift gate. If you require a lift gate you will have the option to add one FREE of charge at checkout.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

The Goodman GSZB403010 MBVC1201AA-1 CAPTA3026B4 Bundle System

The Goodman GSZB403010 MBVC1201AA-1 CAPTA3026B4 high-efficiency central air kit is an excellent upgrade for your homes HVAC system. This bundle includes a GSZB403010 heat pump, an MBVC1201AA-1 modular blower with a variable-speed blower motor, and a CAPTA cased coil. The advanced variable-speed ECM motor ensures energy-efficient circulation. Each component is known for its durability and ease of accessibility, focusing on energy efficiency.

Features

  • Energy-efficient compressor
  • Factory-installed internal thermostatic expansion valve
  • Smartshift technology for efficient defrost
  • Aluminum fins and copper tubing for superior heat transfer
  • Foil-faced insulation and rust-resistant drain pan
  • ComfortBridge compatible

Product Highlights

This bundle offers modular design for easy configuration, energy-efficient circulation, and reliable ComfortBridge compatibility.

The Goodman GSZB403010 Heat Pump

The Goodman GSZB403010 heat pump is a core component of this bundle. This 2.5-ton unit operates with a 14.3 SEER2 rating and provides efficient heating and cooling for homes. Its energy-efficient compressor ensures consistent refrigerant flow.

Features

  • 2.5-ton capacity
  • Single-stage compressor
  • 75 dB sound level
  • Factory-installed high-capacity muffler

Product Highlights

This heat pump ensures reliable and efficient heating and cooling, with a durable design for outdoor installation.

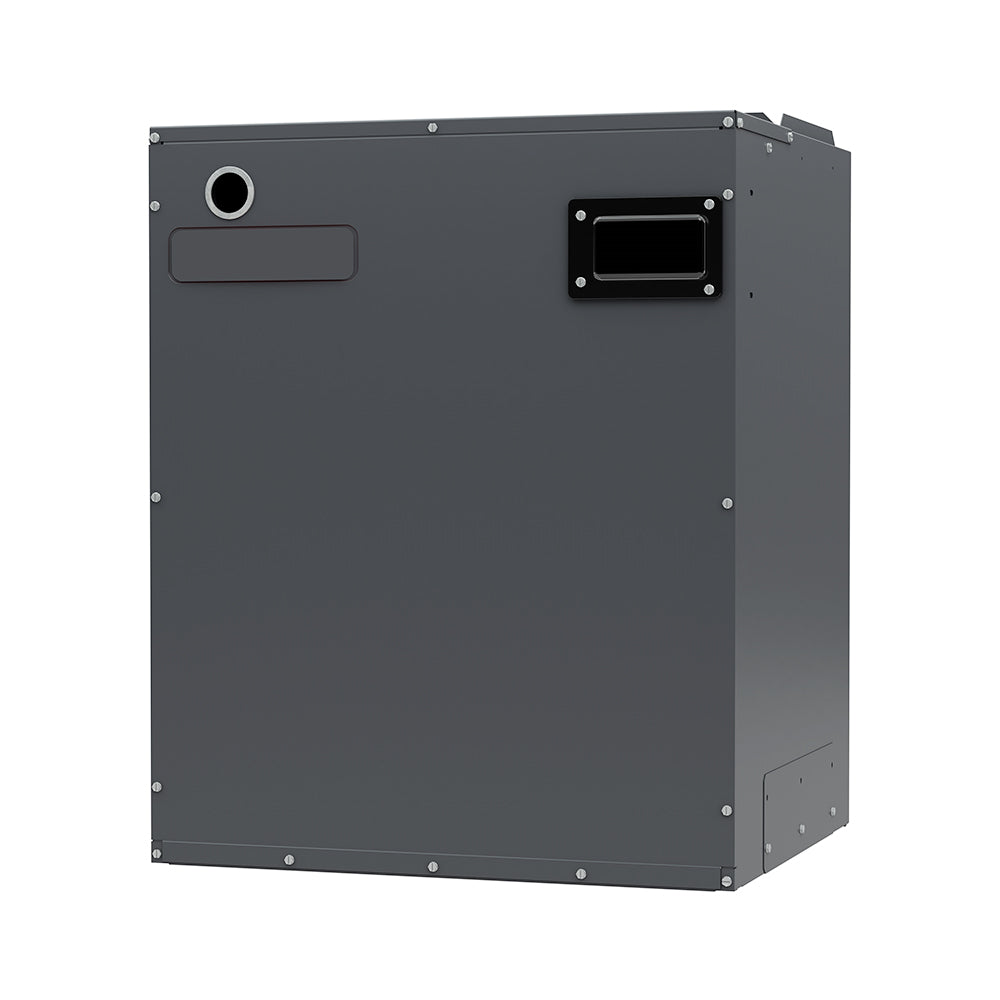

The MBVC1201AA-1 Modular Blower

The MBVC1201AA-1 modular blower features a variable-speed ECM motor, providing energy-efficient air circulation. Its modular design allows for easy installation in multiple configurations.

Features

  • Variable-speed motor
  • Multi-position mount type
  • ComfortBridge compatible
  • 17.5-inch cabinet width

Product Highlights

This blower adapts to various installation configurations, offering energy-efficient performance and easy maintenance.

The CAPTA3026B4 Cased Evaporator Coil

The CAPTA3026B4 cased evaporator coil is designed for optimal heat transfer with its all-aluminum construction. It includes a factory-installed thermostatic expansion valve for efficient refrigerant flow.

Features

  • All-aluminum coil
  • 17.5-inch coil width
  • Rust-resistant thermoplastic drain pan
  • Suction and liquid connections included

Product Highlights

This cased coil improves system efficiency with optimized heat transfer and easy condensate management.

Specifications
Overview
Product Category
Heat Pump & Air Handler Package
Operating Mode
Heating and Cooling
Refrigerant Type
R-410A
Cooling Capacity
30000 BTU
Heating Capacity
30000 BTU
SEER2
14.3
HSPF2
7.5
EER2
12.0
Maximum Air Flow
950 CFM
Cabinet Width
17.5 Inches
Weight
292 Pounds
Certifications
ETL Listed, AHRI Certified
Dimensions
17.5 x 21 x 26 Inches
GSZB403010 Heat Pump
General Information
Type
Heat Pump Condenser
Product Line
GSZB4
Product Category
Heat Pump
Operating Mode
Heating and Cooling
Refrigerant Type
R-410A
Installation Location
Outdoor
Compressor Stages
Single Stage
DOE Regional Compliance
Nationwide
Capacity
2.5 Tons
Cooling Capacity
30000 BTU
Heating Capacity
30000 BTU
Maximum Sound Level
75 dB
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
18.6 Amps
Recommended Breaker Size
30 Amps
Liquid Connection Size
3/8 Inch
Suction Connection Size
3/4 Inch
Dimensions
29 x 29 x 39.5 Inches
Product Weight
175 Pounds
Shipping Weight
190 Pounds
Certifications
ETL Listed, ISO Certified, AHRI Certified
Parts Warranty
5 Years
Compressor Warranty
Limited* 10 Years
CAPTA3026B4 Cased Coil
General Information
Type
Evaporator Coil
Product Line
CAPT
Product Category
Evaporator Coil
Refrigerant Type
R-410A
Casing
Cased
Style
A Coil
Configuration
Upflow/Downflow
TXV Installed
Yes
Capacity
2.5 Tons
Cooling Capacity
30000 BTU
Nominal Minimum Cooling Capacity
30000 BTU
Dimensions
17.5 x 21 x 26 Inches
Product Weight
50 Pounds
Shipping Weight
60 Pounds
Certifications
ETL Listed, AHRI Certified
Warranty
5 Years
MBVC1201AA-1 Modular Blower
General Information
Type
Air Handler
Product Line
MBVC
Product Category
Air Handler
Blower Motor Type
Variable Speed
Motor Type
ECM
Mount Type
Multi-Position
Installation Location
Indoor
Electric Heat
Available
Capacity
3.0 Tons
Maximum Air Flow
1200 CFM
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
4.9 Amps
Recommended Breaker Size
15 Amps
Dimensions
17.5 x 21 x 26 Inches
Product Weight
67 Pounds
Shipping Weight
77 Pounds
Certifications
ETL Listed, AHRI Certified
Parts Warranty
Limited* 10 Years
