Goodman - 2.5 Ton Cooling - 30k BTU/Hr Heating - Heat Pump + Air Handler System - 14.3 SEER2 - 7.5 HSPF2

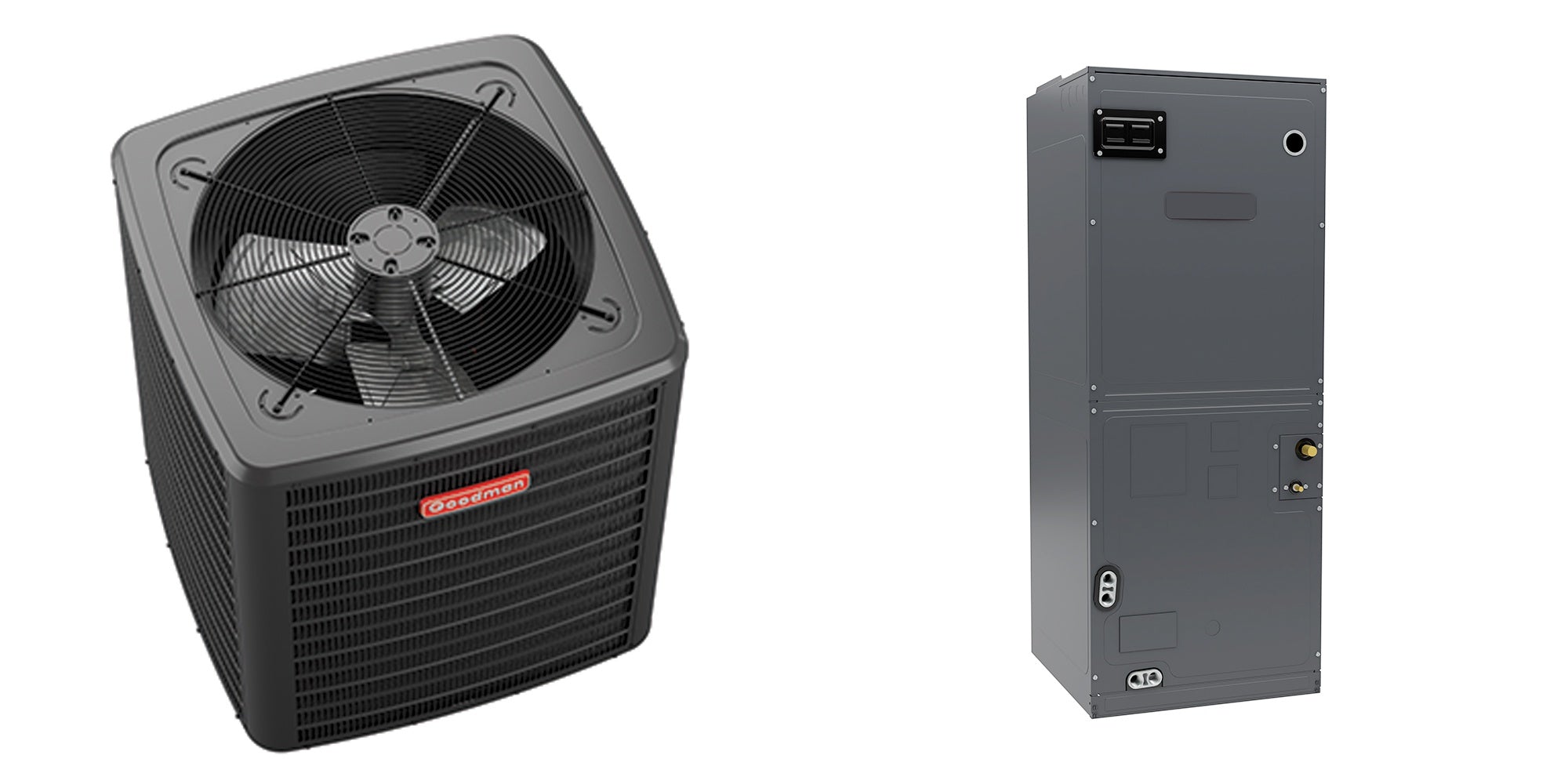

Goodman Heat Pump and Air Handler System

The Goodman GSZB403010 AMVT30BP1400 is a comprehensive HVAC solution for homes. This bundle includes a GSZB403010 heat pump and an AMVT30BP1400 air handler, providing efficient heating and cooling throughout the year. The heat pump features aluminum fins with a large surface area for better efficiency. When combined with the variable-speed air handler, specifically chosen to complement the heat pump, this system ensures economic comfort all year round.

The GSZB403010 heat pump includes:

• Energy-efficient compressor for optimal refrigerant flow
• Smartshift™ technology for time-delay defrost
• Copper tube and enhanced aluminum fin coil for improved heat transfer
• Factory-installed suction line accumulator to prevent compressor damage
• Factory-installed compressor crankcase heater to prevent refrigerant migration
• Factory-installed high-capacity muffler to reduce noise and vibrations
• High and low-pressure switches for safety
• Secure cabinet with removable grille-style top
• Heavy-gauge galvanized-steel cabinet for durability
• All-aluminum coil for reliable performance

The AMVT30BP1400 air handler includes:

• Variable-speed ECM blower motor for air volume variation
• Internal thermostatic expansion valve for optimal refrigerant flow
• ComfortBridge™ compatibility for advanced control
• Coolcloud™ compatibility for easy diagnostics
• SmartFrame™ sub-structure for enhanced accessibility
• Condensate management to prevent condensation

Product Highlights

This system combines the efficiency of a heat pump with the versatility of a variable-speed air handler. It features multiple factory-installed components to ensure smooth operation and durability. The GSZB403010 and AMVT30BP1400 units are designed to work together for optimal performance and comfort.

Goodman GSZB403010 Heat Pump

• Energy-efficient compressor
• Smartshift™ technology
• Copper tube and aluminum fin coil
• Factory-installed suction line accumulator
• Factory-installed compressor crankcase heater
• Factory-installed high-capacity muffler
• High and low-pressure switches
• Secure, heavy-gauge galvanized-steel cabinet
• Removable grille-style top
• All-aluminum coil

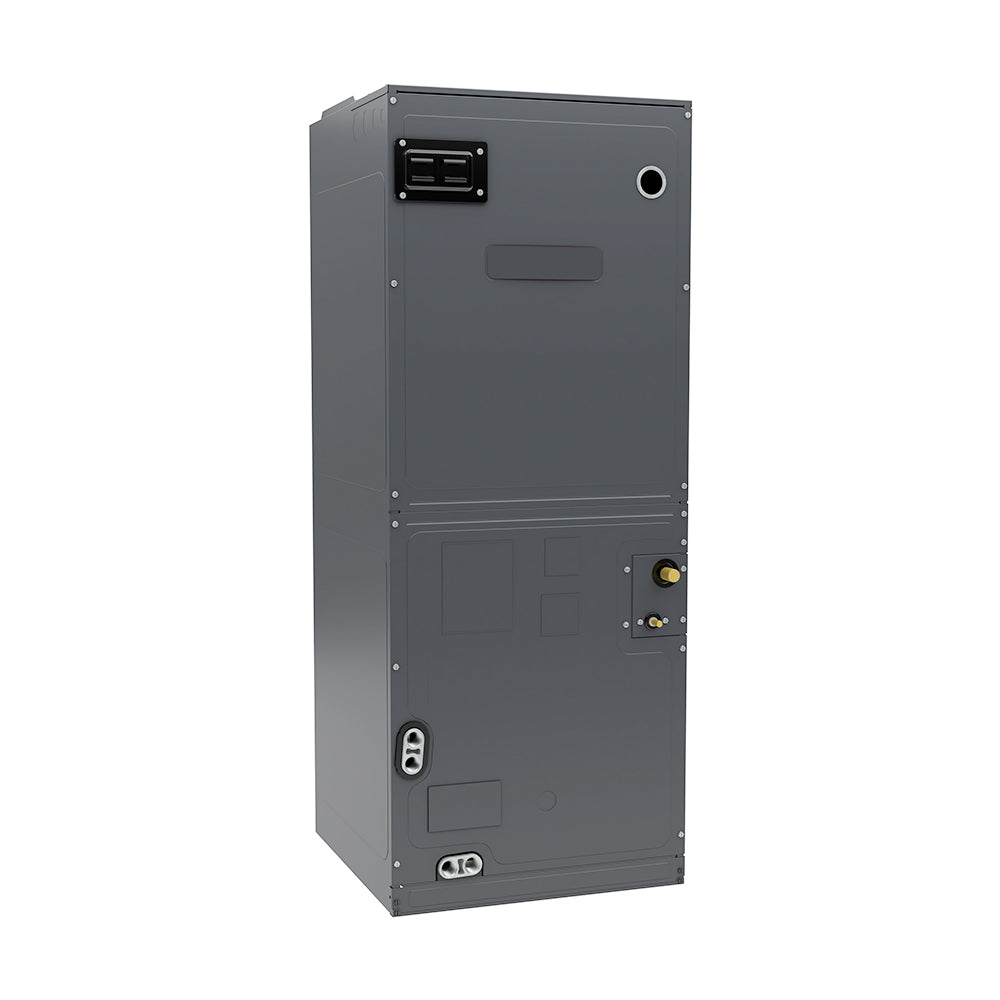

Goodman AMVT30BP1400 Air Handler

• Variable-speed ECM blower motor
• Internal thermostatic expansion valve
• ComfortBridge™ compatible
• Coolcloud™ compatible
• SmartFrame™ sub-structure
• Condensate management

Product Information

Standard Information

• Energy Efficiency Ratio (SEER2): 14.3
• Heating Seasonal Performance Factor (HSPF2): 7.5
• Cooling Capacity: 30,000 BTU
• Heating Capacity: 30,000 BTU
• Maximum Air Flow: 1000 CFM
