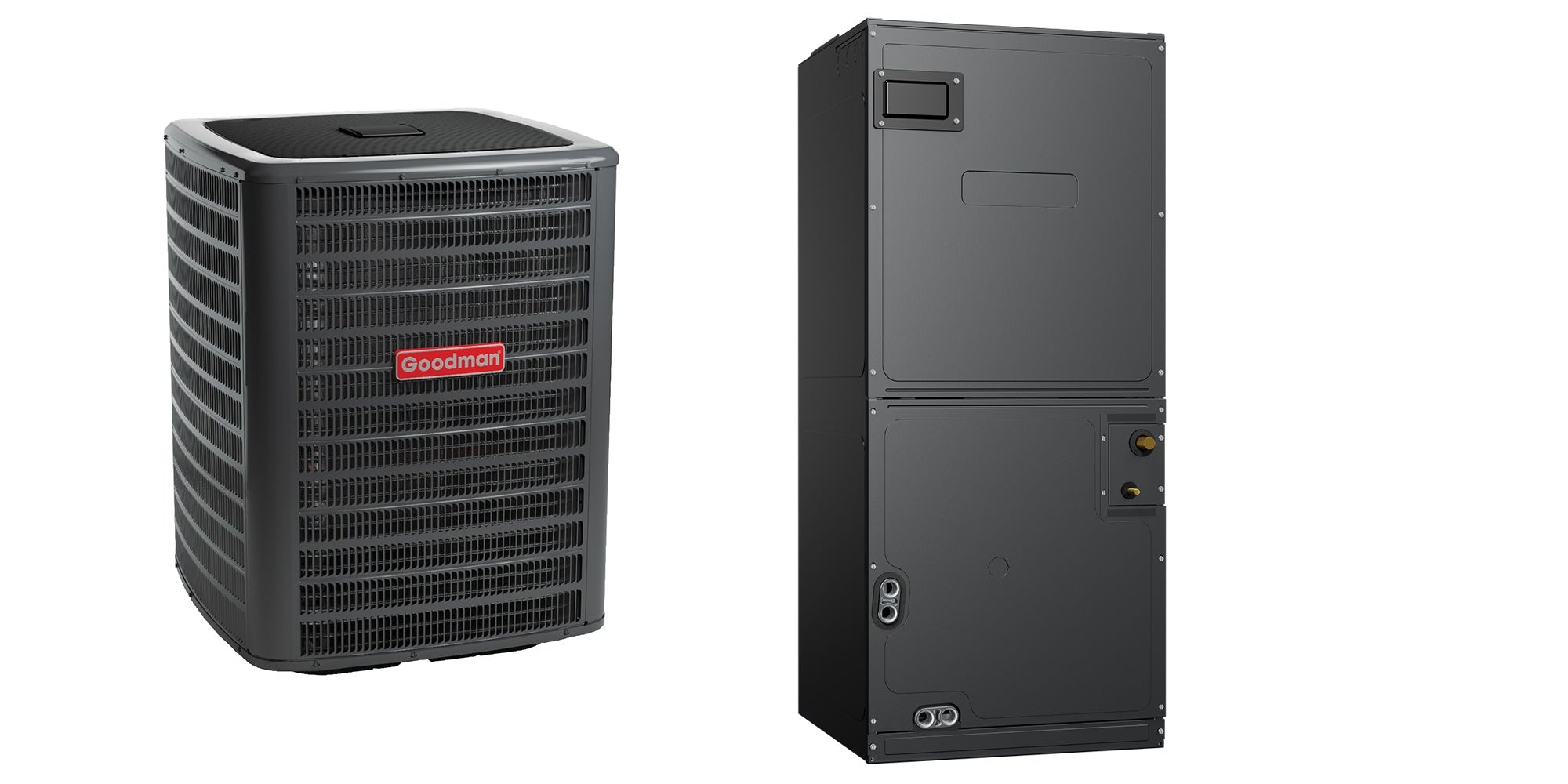

Goodman - 2.0 Ton Cooling - Air Conditioner + Air Handler System - 14.5 SEER2

Features

The Goodman GSXN402410 AMST30BU1400 is a high efficiency central air kit, featuring a GSXN402410 air conditioner and an AMST30BU1400 air handler with a multi-speed blower motor. Its energy-efficient design ensures optimal cooling and heating efficiency for your home. The air conditioner uses an aluminum fin and copper tube condenser coil to maximize heat transfer. The factory-installed filter drier removes moisture and impurities, keeping the system running smoothly. The galvanized-steel cabinet is durable and reduces noise. The AMST30BU1400 air handler is equipped with an ECM motor and internal thermostatic expansion valve, simplifying installation and maintaining refrigerant flow.

• Energy-efficient compressor
• Copper tube and aluminum fin coil
• Factory-installed filter drier
• Galvanized-steel cabinet
• Internal thermostatic expansion valve
• Efficient multi-speed blower motor

Product Highlights

The Goodman GSXN402410 air conditioner works well in most residential settings, offering a 14.5 SEER2 rating. The AMST30BU1400 air handler supports multiple installation positions and features a SmartFrame design for easy access and maintenance.

Product Information

Bundle Overview

• Product Category: Air Conditioner & Air Handler Package
• Operating Mode: Cooling
• Blower Motor Type: ECM Multi-Speed
• Configuration: Multi-Position
• Compressor Stages: Single Stage
• DOE Regional Compliance: Nationwide

GSXN402410 Specifications

• Type: Condenser
• Product Line: GSXN4
• Product Category: Air Conditioning Condensers
• Operating Mode: Cooling
• Refrigerant Type: R-410A
• Installation Location: Outdoor
• Compressor Stages: Single Stage
• DOE Regional Compliance: Nationwide
• Installation Available: Yes
• Capacity: 2.0 Tons
• Cooling BTU: 24000
• Cooling Capacity: 24000 BTU
• Maximum Sound Level: 72 dB
• SEER2: 14.3
• Voltage: 208/230 Volts
• Phase: 1
• Frequency: 60 Hz
• Minimum Circuit Ampacity: 11.2 Amps
• Recommended Breaker Size: 15 Amps
• Suction Connection Size: 3/4 Inch
• Liquid Connection Size: 3/8 Inch
• Product Height: 32.5 Inches
• Product Width: 26 Inches
• Product Depth: 26 Inches
• Product Weight: 138 Pounds
• Shipping Weight: 153 Pounds
• ETL Listed: Yes
• Energy Star Listed: No
• AHRI Certified: Yes
• ISO Certified: Yes
• Parts Warranty: Limited* 10 Years
• Compressor Warranty: Lifetime

AMST30BU1400 Specifications

• Type: Air Handler
• Product Line: AMST
• Product Category: Air Handler
• Refrigerant Type: R-410A
• Blower Motor Type: Multi-Speed
• Motor Type: ECM
• Mount Type: Multi-Position
• Installation Location: Indoor
• Electric Heat: Available
• Installation Available: Yes
• TXV Installed: Yes
• Capacity: 2.5 Tons
• Cooling BTU: 36000
• Maximum Air Flow: 955 CFM
• Minimum Air Flow: 750 CFM
• Voltage: 208/230 Volts
• Phase: 1
• Frequency: 60 Hz
• Minimum Circuit Ampacity: 5.6 Amps
• Recommended Breaker Size: 15/15 Amps
• Suction Connection Size: 3/4 Inch
• Liquid Connection Size: 3/8 Inch
• Drain Outlet Diameter: 3/4 Inch
• Cabinet Width: 17.5 Inches
• Product Height: 57.44 Inches
• Product Width: 17.5 Inches
• Product Depth: 21 Inches
• Product Weight: 114 Pounds
• Shipping Weight: 129 Pounds
• ETL Listed: Yes
• AHRI Certified: Yes
• ISO Certified: Yes
• Warranty: 10 Years
• Parts Warranty: 10 Limited Years
