GOODMAN
Brand: GOODMAN
SKU: GSZB402410 GMVM970804CN CAPTA2422C4
Availability: In Stock
Free Shipping
truck-svgrepo-com

Ships via Freight in 3-5 Business Days
$5,248.00
$5,248.00

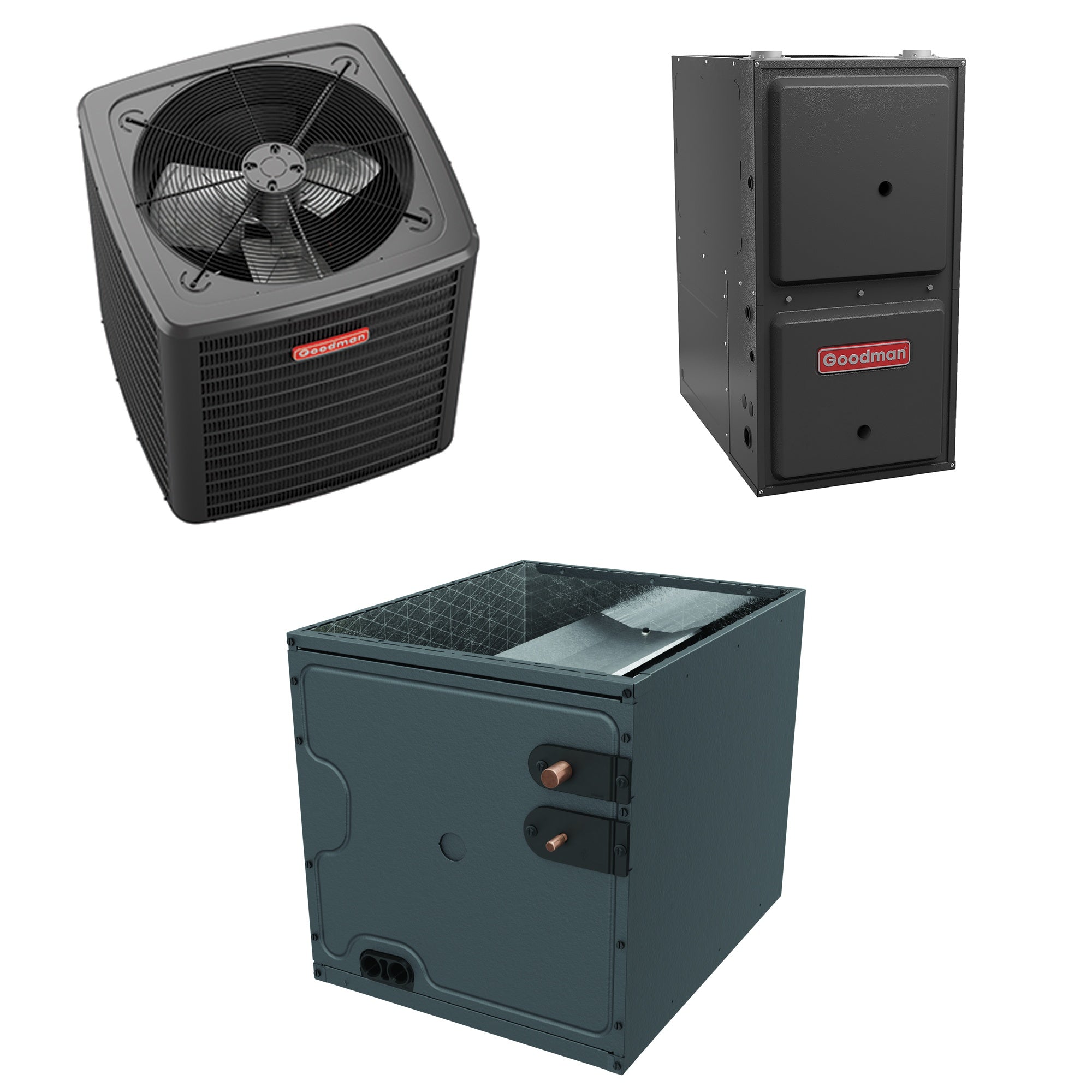

Bundle Includes
Goodman GSZB402410 GSZ 2 Ton 14.3 SEER2 Heat Pump 208/230V Single Phase R-410A Quantity: 1
Goodman GMVM970804CN 97% 80,000 BTU Modulating Variable-Speed ECM Upflow Furnace Quantity: 1
Goodman CAPTA2422C4 Evaporator Coil, 2 Tons, Upflow/Downflow, R-410A TXV Quantity: 1
Manuals:

Specification Highlights

Capacity
2.0 Tons
Heating Capacity
80,000 BTU
SEER2
14.3

View More

LTL Delivery

This product weighs 369 lbs and may require the use of lift gate. If you require a lift gate you will have the option to add one FREE of charge at checkout.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Goodman GSZB402410 GMVM970804CN CAPTA2422C4 Bundle System

The Goodman GSZB402410 GMVM970804CN CAPTA2422C4 bundle system combines a high-efficiency heat pump, a reliable gas furnace, and a cased evaporator coil. This bundle is designed to maximize your home’s comfort by providing exceptional heating and cooling performance.

  • Efficient heating and cooling for year-round comfort
  • Compatible with Goodman’s ComfortBridge™ communicating controls
  • Advanced heat exchanger and blower design
  • Factory-installed safety features and condensate management

Product Highlights

This bundle system includes the Goodman GSZB402410 heat pump, GMVM970804CN gas furnace, and CAPTA2422C4 evaporator coil. Each component is designed for easy installation and longevity.

Goodman GSZB402410 Heat Pump

The GSZB402410 heat pump by Goodman provides efficient heating and cooling. This unit features Smartshift™ technology for quiet operation during defrost cycles and a durable all-aluminum coil for effective heat transfer.

  • 2.0 Tons heating and cooling capacity
  • 14.3 SEER2 and 7.5 HSPF2 ratings
  • Single-stage compressor
  • Heavy-gauge galvanized steel cabinet

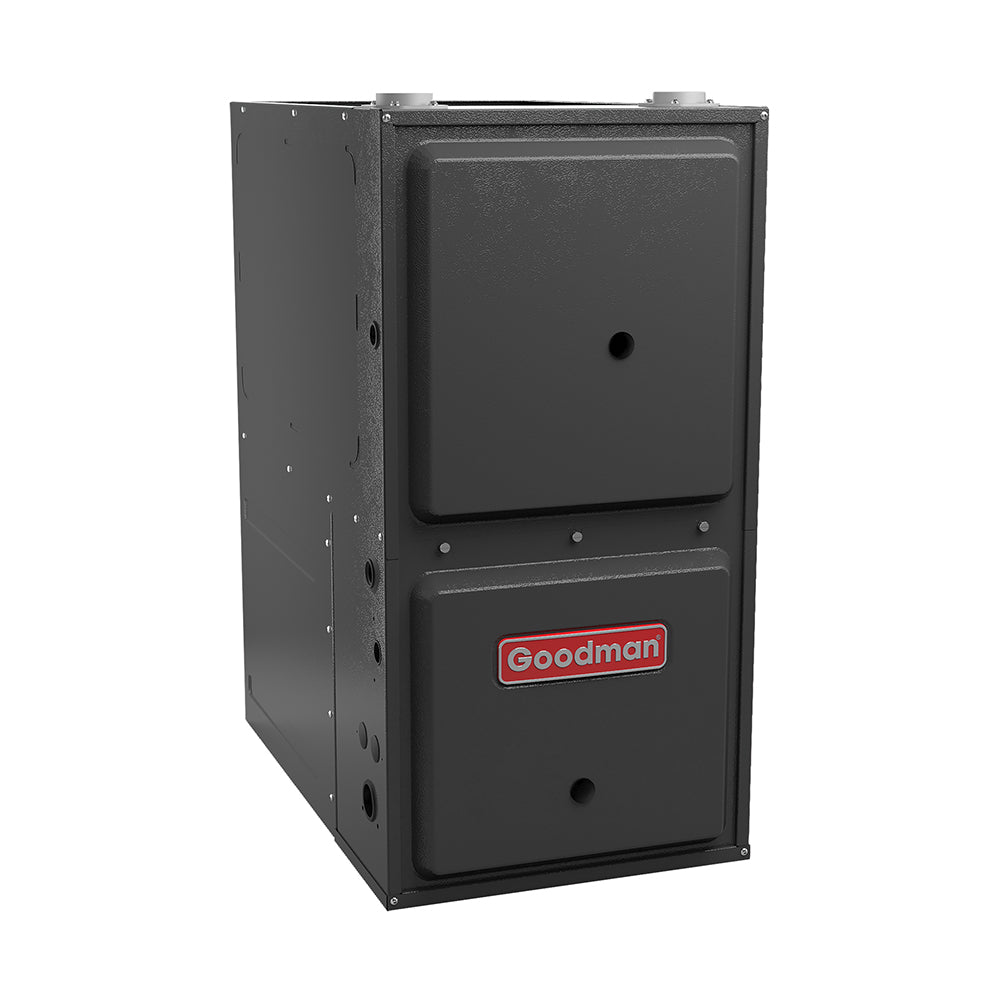

Goodman GMVM970804CN Gas Furnace

The GMVM970804CN is a 97% AFUE efficient gas furnace that features a dual-diameter tubular heat exchanger for superior heat transfer. This furnace operates quietly and offers multiple venting options to fit various installations.

  • 80,000 BTU heating capacity
  • Modulating furnace with variable-speed ECM blower motor
  • ComfortBridge™ compatible controls
  • Direct vent configuration

Goodman CAPTA2422C4 Evaporator Coil

The CAPTA2422C4 is a cased evaporator coil designed for upflow or downflow installations. It features an internal thermostatic expansion valve to maintain optimal refrigerant flow and foil-faced insulation to prevent condensate formation.

  • 2 Tons cooling capacity
  • All-aluminum construction with sine fin design
  • Thermoplastic drain pan
  • Factory-installed expansion valve
Specifications
Overview
Capacity
2.0 Tons
Heating Capacity
80,000 BTU
SEER2
14.3
HSPF2
7.5
AFUE
97%
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
11.5 Amps
Recommended Breaker Size
15 Amps
Product Height
35.69 Inches
Product Width
29 Inches
Product Depth
29 Inches
Product Weight
160 Pounds
Shipping Weight
175 Pounds
ETL Listed
Yes
ISO Certified
Yes
AHRI Certified
Yes
Energy Star Listed
No
Compressor Stages
Single Stage
Installation Location
Outdoor
Refrigerant Type
R-410A
Blower Motor Type
ECM Variable-Speed
Cooling Capacity
24,000 BTU
Heating Capacity
24,000 BTU
Maximum Sound Level
74 dB
Parts Warranty
5 Years
Compressor Warranty
Limited* 10 Years
Suction Connection Size
3/4 Inch
Liquid Connection Size
3/8 Inch
Vent Type
Direct Vent
Natural Gas
Yes
Heating BTU
80,000
High Fire Input
80,000 BTU
High Fire Output
77,600 BTU
Low Fire Input
40,000 BTU
Low Fire Output
38,800 BTU
Cabinet Width
21 Inches
Product Height
34.5 Inches
Product Width
21 Inches
Product Depth
28.75 Inches
Product Weight
142 Pounds
Shipping Weight
142 Pounds
Flue Connection Size
2 or 3 Inches
Ultra Low NOx Emissions
No
Low NOx Emissions
Yes
Cabinet Width
21 Inches
Product Height
22 Inches
Product Width
21 Inches
Product Depth
21 Inches
Product Weight
53 Pounds
Shipping Weight
63 Pounds
AHRI Reference Number
210318632
AHRI Certified
Yes
ISO Certified
Yes
Energy Star Listed
Yes
Parts Warranty
5 Years
Heat Exchanger Warranty
20 Years
Configuration
Upflow/Downflow
Casing
Cased
Style
A Coil
TXV Installed
Yes
Cooling Capacity
24,000 BTU
Nominal Minimum Cooling Capacity
24,000 BTU
