Goodman - 2.0 Ton Cooling - 80k BTU/Hr Heating - Heat Pump + Furnace System - 14.3 SEER2 - 80% AFUE - Downflow
Goodman - 2.0 Ton Cooling - 80k BTU/Hr Heating - Heat Pump + Furnace System - 14.3 SEER2 - 80% AFUE - Downflow
Goodman - 2.0 Ton Cooling - 80k BTU/Hr Heating - Heat Pump + Furnace System - 14.3 SEER2 - 80% AFUE - Downflow
Goodman - 2.0 Ton Cooling - 80k BTU/Hr Heating - Heat Pump + Furnace System - 14.3 SEER2 - 80% AFUE - Downflow

Goodman - 2.0 Ton Cooling - 80k BTU/Hr Heating - Heat Pump + Furnace System - 14.3 SEER2 - 80% AFUE - Downflow

GOODMAN
Brand: GOODMAN
SKU: GSZB402410 GCVC800803BX CAPTA3026B4
Availability: In Stock
Free Shipping
truck-svgrepo-com

Ships via Freight in 3-5 Business Days
$4,435.00
$4,435.00
Bundle Includes
Goodman GSZB402410 GSZ 2 Ton 14.3 SEER2 Heat Pump 208/230V Single Phase R-410A Quantity: 1
Goodman GCVC800803BX GCVC80 80% AFUE - 80,000 BTU - Downflow/Horizontal - Furnace Quantity: 1
Goodman CAPTA3026B4 CAPTA Series 2.5 Ton Upflow/Downflow Cased Coil Painted Quantity: 1
Manuals:

Specification Highlights

Capacity
2.0 Tons
Cooling Capacity
24000 BTU
Heating Capacity
80000 BTU

View More

LTL Delivery

This product weighs 335 lbs and may require the use of lift gate. If you require a lift gate you will have the option to add one FREE of charge at checkout.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

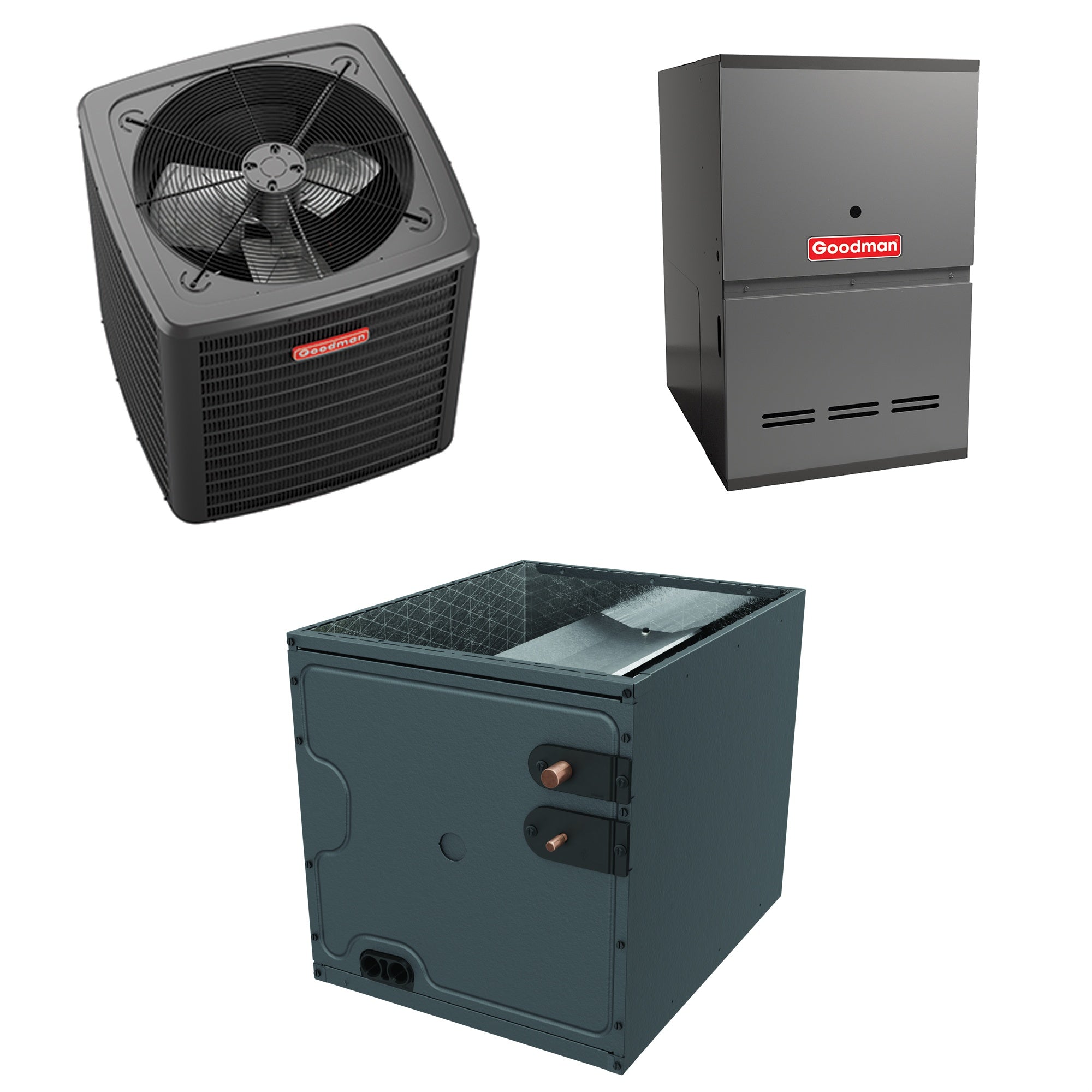

The Goodman GSZB402410 GCVC800803BX CAPTA3026B4 Bundle System

This Goodman heating and cooling system bundle includes a GSZB4 air conditioner, a GCVC80 furnace, and a cased CAPTA evaporator coil. Designed to be easy to install and durable, it provides both upfront and long-term value. This system offers a comprehensive comfort solution for homes in most parts of the country.

  • Contains all necessary components for heating and cooling
  • Easy installation
  • Durable materials
  • Energy-efficient performance
  • Quiet operation
  • Advanced technology for customized comfort

The Goodman GSZB402410 Heat Pump

The GSZB402410 heat pump is a 2.0-ton unit with a SEER2 rating of 14.3 and HSPF2 rating of 7.5. It uses R-410A refrigerant and has copper tube and enhanced aluminum fin coils for efficient heat transfer. This unit also includes a factory-installed suction-line accumulator, compressor crankcase heater, high-capacity muffler, and high and low-pressure switches.

  • Capacity: 2.0 tons
  • Cooling Capacity: 24000 BTU
  • Heating Capacity: 24000 BTU
  • Maximum Sound Level: 74 dB

The Goodman GCVC800803BX Gas Furnace

The GCVC800803BX furnace features an aluminized steel tubular heat exchanger and a variable speed ECM motor. It has an AFUE rating of 80% and uses natural gas. This furnace also includes ComfortBridge™ technology for customized indoor comfort and operates quietly thanks to its blower and gas valve design.

  • Heating BTU: 80000
  • High Fire Output: 64000 BTU
  • Low Fire Output: 44800 BTU
  • Maximum Air Flow: 1200 CFM

The Goodman CAPTA3026B4 Cased Evaporator Coil

The CAPTA3026B4 evaporator coil is cased and can be used in both upflow and downflow configurations. It has a cooling capacity of 30000 BTU and includes a factory-installed internal thermostatic expansion valve (TXV). The coil is designed with sine fins and grooved tubes to maximize surface area and enhance heat transfer efficiency.

  • Cooling BTU: 30000
  • Cabinet Width: 17 1/2 inches
  • Height: 26 inches
  • Depth: 21 inches
Specifications
Overview
Capacity
2.0 Tons
Cooling Capacity
24000 BTU
Heating Capacity
80000 BTU
SEER2
14.3
HSPF2
7.5
AFUE
80%
Maximum Air Flow
1200 CFM
Energy Star Listed
No
Installation Location
Outdoor
Refrigerant Type
R-410A
Product Height
35 11/16 Inches
Product Width
29 Inches
Product Depth
29 Inches
Product Weight
160 Pounds
Suction Connection Size
3/4 Inch
Liquid Connection Size
3/8 Inch
Minimum Circuit Ampacity
11.5 Amps
Recommended Breaker Size
15 Amps
Voltage
208/230 Volts
Frequency
60 Hz
Phase
1
Shipping Weight
175 Pounds
ETL Listed
Yes
ISO Certified
Yes
AHRI Certified
Yes
Compressor Warranty
Limited 10 Years
Parts Warranty
5 Years
AHRI Reference Number
210318665
Configuration
Downflow
Operating Mode
Heating and Cooling
Gas Conversion Kit
Available
Modulating/Staging
Two Stage
Blower Motor Type
ECM Variable-Speed
Fuel Type
Natural Gas
Vent Type
Chimney Vent
Flue Connection Size
4 Inches
Cabinet Width
17 1/2 Inches
Product Height
33 1/2 Inches
Product Depth
28 Inches
Low Fire Input
56000 BTU
Low Fire Output
44800 BTU
High Fire Output
64000 BTU
Shipping Weight
109 Pounds
Heat Exchanger Warranty
Lifetime
Maximum Sound Level
74 dB
Compressor Stages
Single Stage
DOE Regional Compliance
Nationwide
Cooling BTU
24000
Cabinet Width
17 1/2 Inches
Product Height
26 Inches
Product Depth
21 Inches
Product Weight
50 Pounds
ETL Listed
Yes
Shipping Weight
60 Pounds
Casing
Cased
Configuration
Upflow/Downflow
TXV Installed
Yes
Suction Connection Size
7/8 Inch
Liquid Connection Size
3/8 Inch
Warranty
5 Years
AHRI Reference Number
202274190
