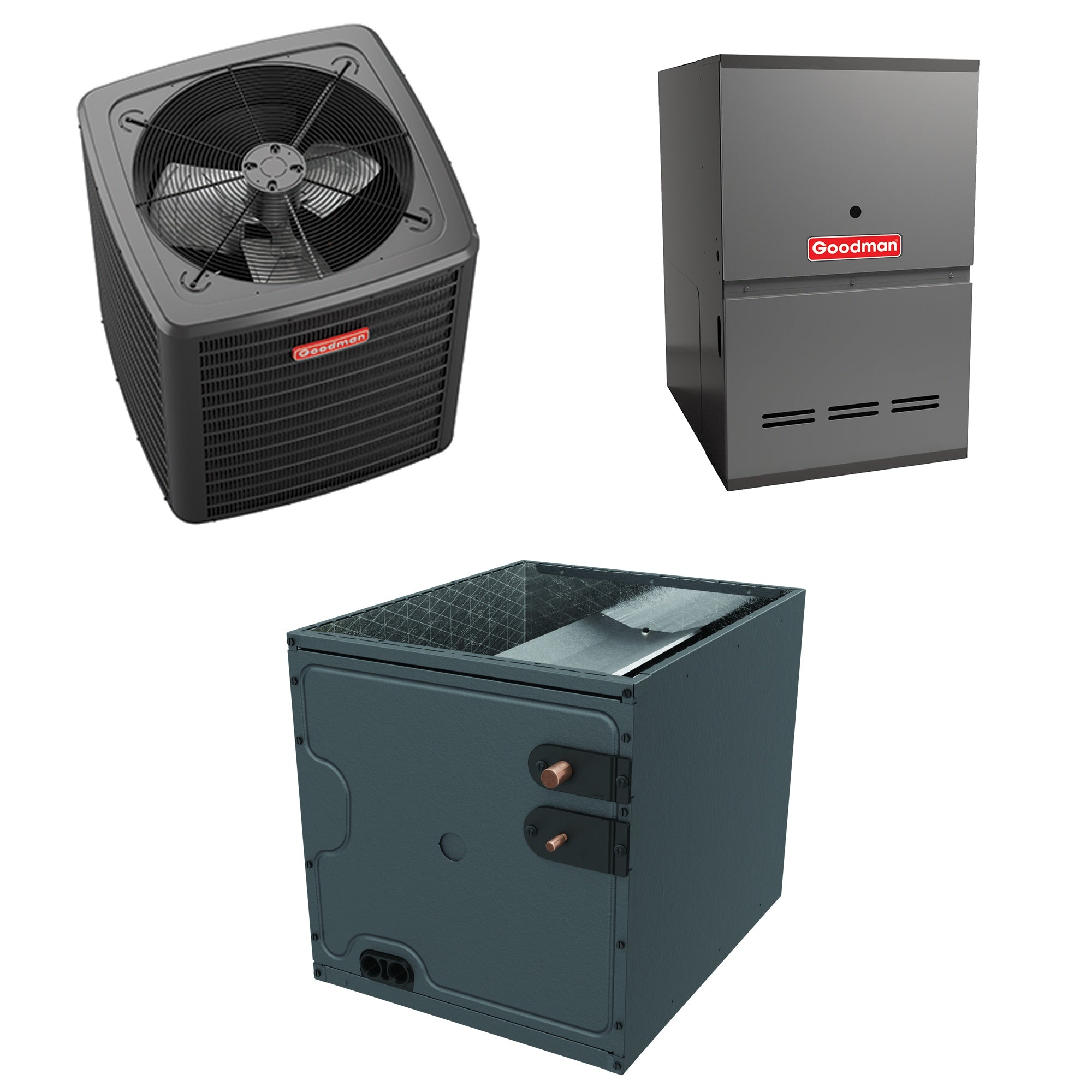

Bundle Includes
Goodman GSZB402410 GSZ 2 Ton 14.3 SEER2 Heat Pump 208/230V Single Phase R-410A Quantity: 1
Goodman GCVC800803BX GCVC80 80% AFUE - 80,000 BTU - Downflow/Horizontal - Furnace Quantity: 1
Goodman CAPTA2422B4 CAPTA Series 2 Ton - Upflow/Downflow - Aluminum - Cased - Coil - Painted Quantity: 1
Manuals:

Specification Highlights

Type
Heat Pump Condenser
Product Line
GSZB4
Operating Mode
Heating and Cooling

View More

LTL Delivery

This product weighs 333 lbs and may require the use of lift gate. If you require a lift gate you will have the option to add one FREE of charge at checkout.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Features

Update your home’s HVAC system with the Goodman GSZB402410 GCVC800803BX CAPTA2422B4 bundle. It includes a GSZB4 heat pump, a GCVC80 gas furnace, and a CAPTA cased evaporator coil. Each component offers ease of installation and long-term durability for both heating and cooling needs. Designed for maximum efficiency and comfort, this system is ideal for most regions.

Bundle System Overview

This Goodman bundle is a complete comfort solution, combining a heat pump, gas furnace, and evaporator coil. Together, these components ensure efficient heating and cooling all year round.

  • Advanced heat exchanger design in the GCVC80 furnace for efficient heat transfer.
  • Variable-speed ECM motor for quiet, accurate temperature control.
  • ComfortBridge™ technology for continuous system performance monitoring.
  • All-aluminum coil in the CAPTA evaporator for optimal heat transfer.

The Goodman GSZB402410 Heat Pump

The GSZB402410 is an efficient single-stage heat pump. It features SmartShift™ technology for smooth defrost mode transitions and a heavy-gauge galvanized-steel cabinet for durability.

  • Energy-efficient compressor for optimal refrigerant flow.
  • Copper tube and enhanced aluminum fin coil.
  • Factory-installed suction-line accumulator and compressor crankcase heater.
  • High and low-pressure switches for safe operation.

The GCVC800803BX Gas Furnace

The GCVC800803BX furnace is designed for quiet and efficient operation. It features a heavy-duty tubular heat exchanger and a variable speed ECM motor that adjusts to heating demands.

  • Blower and gas valve selected for low sound levels.
  • Foil-faced insulation to manage condensate.
  • ComfortBridge™ technology for customized indoor comfort.
  • 80,000 BTU heating capacity with 80% AFUE.

The CAPTA2422B4 Cased Evaporator Coil

The CAPTA2422B4 evaporator coil is an essential component for efficient cooling. It has an all-aluminum design to prevent corrosion and an internal thermostatic expansion valve for optimal refrigerant flow.

  • Foil-faced insulation and rust-resistant thermoplastic drain pan.
  • All-aluminum coil design.
  • Upflow/downflow configuration.
  • 2-ton cooling capacity.

This complete system ensures your home remains comfortable year-round, with components designed for reliability and durability.

Specifications
Overview
Type
Heat Pump Condenser
Product Line
GSZB4
Operating Mode
Heating and Cooling
Refrigerant Type
R-410A
Compressor Stages
Single Stage
Capacity
2.0 Tons
Cooling Capacity
24000 BTU
Heating Capacity
80000 BTU
SEER2
14.3
EER2
12.0
HSPF2
7.5
Product Height
35 11/16 Inches
Product Width
29 Inches
Product Depth
29 Inches
Product Weight
160 Pounds
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
11.5 Amps
Recommended Breaker Size
15 Amps
Suction Connection Size
3/4 Inch
Liquid Connection Size
3/8 Inch
AHRI Certified
Yes
ISO Certified
Yes
ETL Listed
Yes
Energy Star Listed
No
Parts Warranty
5 Years
Compressor Warranty
Limited* 10 Years
General Information
Furnace & Heat Pump Package
Doe Regional Compliance
Nationwide (Except CA)
AFUE
80%
Nominal Cooling Capacity
24000 BTU
Maximum Air Flow
1200 CFM
Blower Motor Type
ECM Variable-Speed
Low NOx Emissions
Yes
Ultra Low NOx Emissions
No
Flue Connection Size
4 Inches
Cabinet Width
17 1/2 Inches
General Information
Gas Furnace
Product Line
GCVC80
Fuel Type
Natural Gas
Vent Type
Chimney Vent
Blower Motor Type
ECM Variable-Speed
Gas Conversion Kit
Available
Modulating/Staging
Two Stage
Low Fire Input
56000 BTU
High Fire Output
64000 BTU
Product Height
33 1/2 Inches
Product Width
17 1/2 Inches
Product Depth
28 Inches
Shipping Weight
109 Pounds
High Fire Input
80000 BTU
Low Fire Output
44800 BTU
Maximum Air Flow
1200 CFM
Minimum Circuit Ampacity
7.75 Amps
Recommended Breaker Size
15 Amps
Electrical Data
115 Volts
Phase
1
Frequency
60 Hz
AHRI Certified
Yes
ISO Certified
Yes
ETL Listed
Yes
AHRI Reference Number
202274190
Electrical Data
Voltage
AFUE
80%
Heating BTU
80000
AHRI Certified
Yes
General Information
Evaporator Coil
Product Line
CAPT
Refrigerant Type
R-410A
Casing
Cased
Suction Connection Size
3/4 Inch
Liquid Connection Size
3/8 Inch
Product Height
22 Inches
Product Width
17 1/2 Inches
Product Depth
21 Inches
Product Weight
48 Pounds
Shipping Weight
58 Pounds
Capacity
2 Tons
Cooling BTU
24000
Nominal Minimum Cooling Capacity
24000 BTU
Installation Available
Yes
TXV Installed
Yes
General Information
Evaporator Coil
AHRI Certified
Yes
ETL Listed
Yes
Warranty
5 Years
