Goodman - 2.0 Ton Cooling - 80k BTU/Hr Heating - Air Conditioner + Variable Speed Furnace System - 15 SEER2 - 97% AFUE - Horizontal

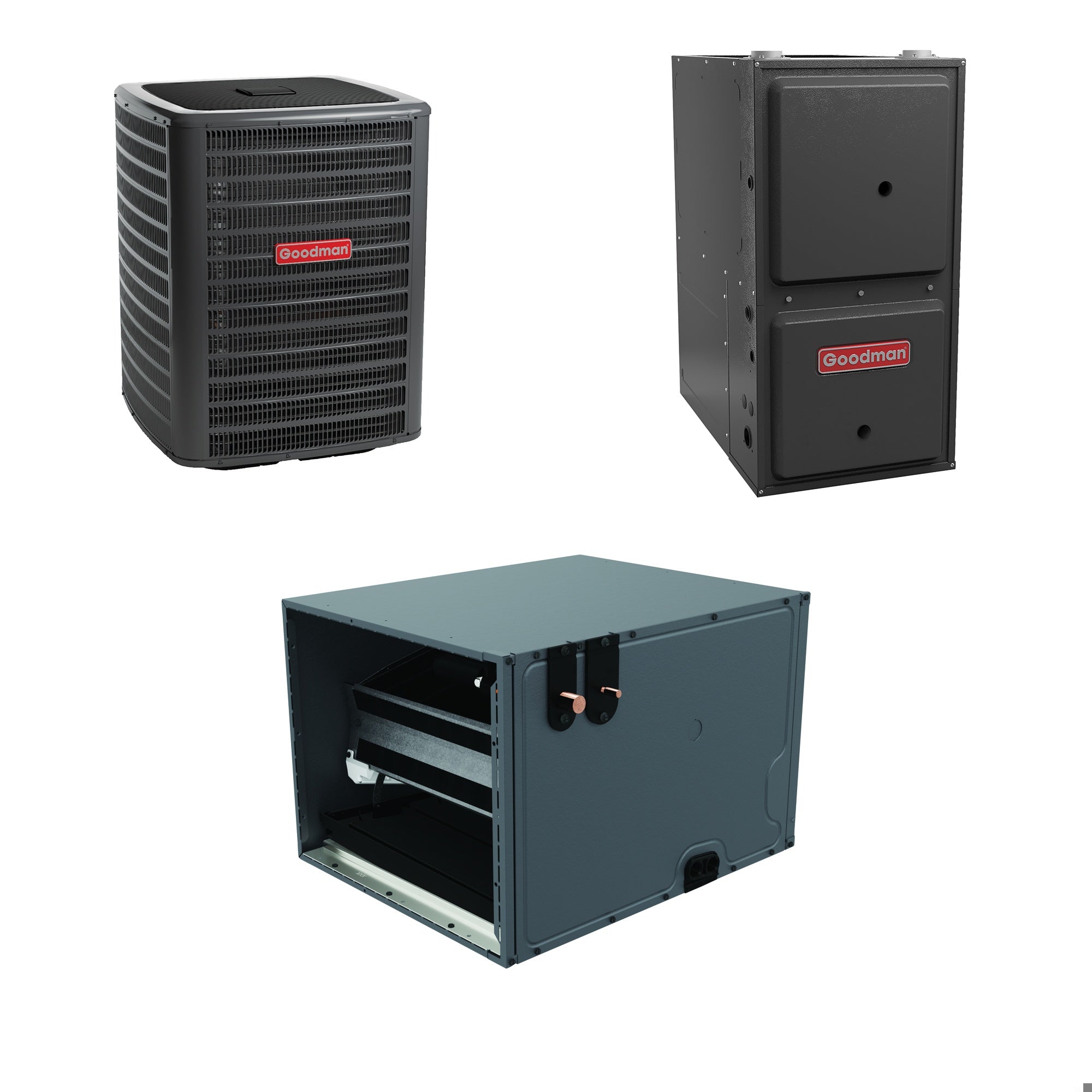

Goodman GSXN402410 GMVM970804CN CHPTA3026C4 Bundle System

The Goodman GSXN402410 GMVM970804CN CHPTA3026C4 bundle system offers a complete HVAC solution, providing efficient cooling and heating for your home. This bundle includes the GSXN4 air conditioner, GMVM97 furnace, and cased CHPTA evaporator coil.

• Goodman GSXN4 air conditioner for reliable cooling.
• GMVM97 furnace with modulating gas valve for efficient heating.
• CHPTA cased evaporator coil for improved performance.

Efficiency and Compatibility

This system is designed with an all-aluminum coil to maximize surface area and heat transfer. The CHPTA coil features a factory-installed thermostatic expansion valve for optimal refrigerant flow.

Goodman GSXN402410 Air Conditioner

The Goodman GSXN402410 air conditioner offers high efficiency and reliable cooling with a 2.0-ton capacity and 24000 BTU cooling. The unit includes aluminum fins and copper tubing for enhanced efficiency and a factory-installed filter drier for moisture removal and impurity filtration.

• Capacity: 2.0 Tons
• Cooling BTU: 24000
• SEER2: 14.3
• Energy-efficient compressor

Advanced Features

The GSXN4 includes a heavy-gauge galvanized-steel cabinet for durability and long-term performance.

Goodman GMVM970804CN Gas Furnace

The GMVM970804CN gas furnace delivers 80,000 BTU/h heating and features a dual-diameter tubular heat exchanger for efficient heat transfer. It offers modulating operation for precise temperature control and quiet comfort.

• Heating BTU: 80000
• AFUE: 97%
• Modulating/Staging: Modulating
• Dual-diameter tubular heat exchanger

Durability and Ease of Installation

This furnace includes a secondary stainless steel heat exchanger and variable-speed ECM blower motor for consistent airflow and low sound levels.

Goodman CHPTA3026C4 Cased Evaporator Coil

The CHPTA3026C4 cased evaporator coil enhances the performance of your HVAC system with its all-aluminum design. It includes a thermostatic expansion valve and foil-faced insulation to prevent condensate accumulation.

• Capacity: 2.5 Tons
• Cooling BTU: 30000
• Width: 21 inches
• Factory-installed TXV

Performance Enhancements

The coil maximizes heat transfer efficiency and integrates easily with your existing system.
