GOODMAN
Brand: GOODMAN
SKU: GSXN402410 GMVC800803BN CAPTA2422B4
Availability: In Stock
Free Shipping
truck-svgrepo-com

Ships via Freight in 3-5 Business Days
$3,978.00
$3,978.00
Bundle Includes
Goodman GSXN402410 2 Ton - 14.3 SEER2 - Air Conditioner - 208/230V - Single Phase - R-410A Quantity: 1
Goodman GMVC800803BN GMVC80 Series 80% AFUE - 80,000 BTU - Horizontal/Upflow - Furnace Quantity: 1
Goodman CAPTA2422B4 CAPTA Series 2 Ton - Upflow/Downflow - Aluminum - Cased - Coil - Painted Quantity: 1
Manuals:

Specification Highlights

Bundle SEER2
15
Bundle Cooling Capacity
22600 BTU
Bundle Heating BTU
80000

View More

LTL Delivery

This product weighs 311 lbs and may require the use of lift gate. If you require a lift gate you will have the option to add one FREE of charge at checkout.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

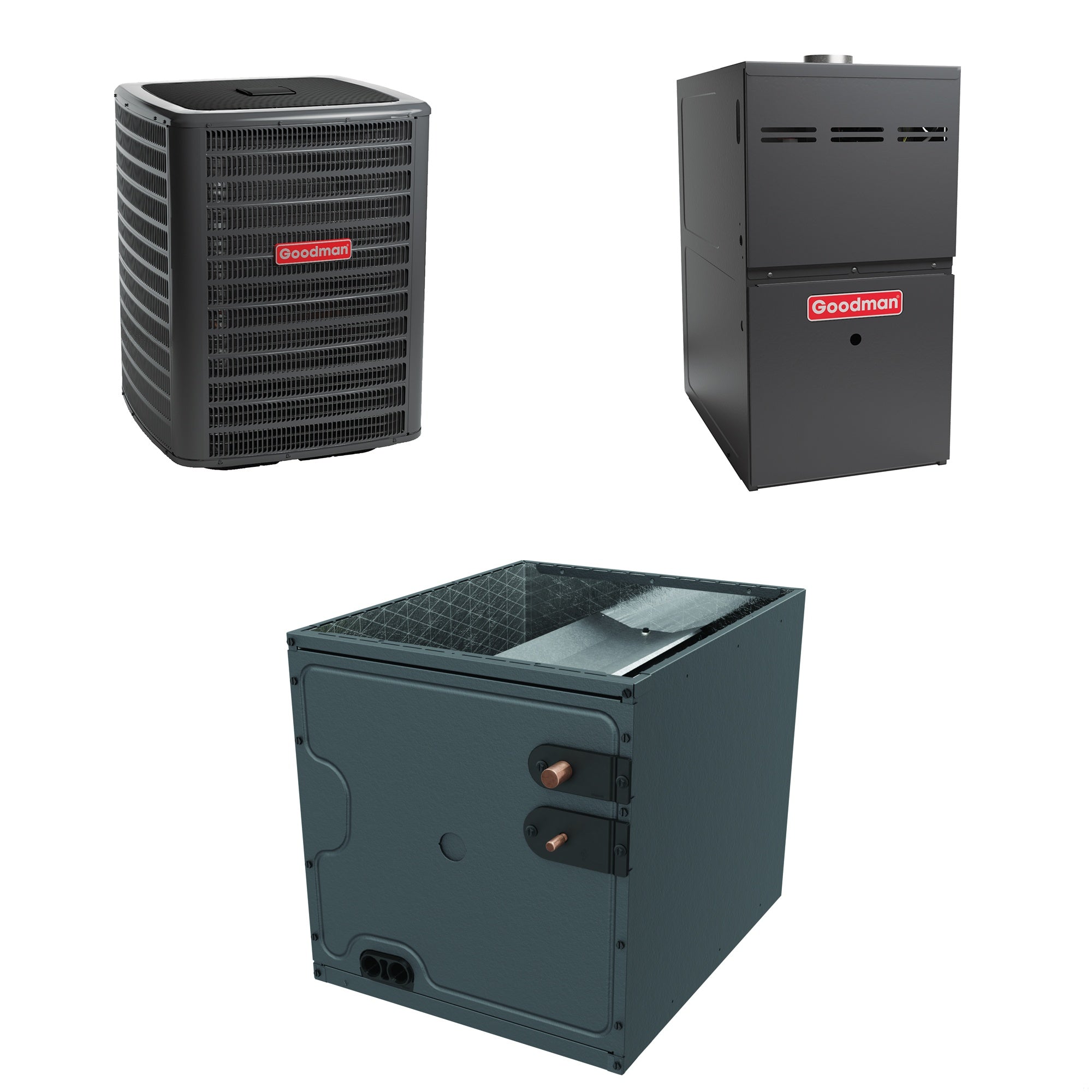

Goodman GSXN402410 GMVC800803BN CAPTA2422B4 Bundle System

The Goodman GSXN402410 GMVC800803BN CAPTA2422B4 bundle system includes a GSXN4 air conditioner, GMVC80 furnace, and CAPTA evaporator coil. This system is designed for areas with moderate cooling needs and long cold winters. Each component is built for durability and ease of installation, providing both upfront and long-term value.

  • 15 SEER2 air conditioner
  • 80% AFUE furnace
  • Upflow configuration
  • All-aluminum coil
  • Variable speed motor
  • ComfortBridge technology

The Goodman GSXN402410 Air Conditioner

The Goodman GSXN402410 is a 2.0-ton air conditioner with a 14.3 SEER2 rating. It features aluminum fins and copper tubing to maximize efficiency. The unit has a single-stage compressor, a factory-installed filter drier, and a heavy-gauge galvanized-steel cabinet. This air conditioner is designed for efficient and reliable cooling.

  • 2.0 tons cooling capacity
  • Aluminum fins and copper tubing
  • Factory-installed filter drier
  • Heavy-gauge galvanized-steel cabinet

The Goodman GMVC800803BN Gas Furnace

The GMVC800803BN is an 80,000 BTU gas furnace with an 80% AFUE rating. It employs a heavy-duty tubular heat exchanger made of aluminized steel and features a variable-speed ECM motor. The furnace operates quietly and efficiently, thanks to its ComfortBridge technology, which monitors system performance for customized comfort.

  • 80,000 BTU heating capacity
  • 80% AFUE rating
  • Variable-speed ECM motor
  • ComfortBridge technology

The Goodman CAPTA2422B4 Cased Evaporator Coil

The CAPTA2422B4 is a 2-ton evaporator coil with a factory-installed thermostatic expansion valve (TXV). It has a reliable all-aluminum design with sine fins and grooved tubes for optimum heat transfer. The coil includes foil-faced insulation and a rust-resistant thermoplastic drain pan for efficient condensate management.

  • 2.0 tons cooling capacity
  • Factory-installed TXV
  • All-aluminum design
  • Foil-faced insulation
Specifications
Overview
Bundle SEER2
15
Bundle Cooling Capacity
22600 BTU
Bundle Heating BTU
80000
Bundle AFUE
80%
Bundle EER2
11.7
Bundle Max Air Flow
1200 CFM
Bundle Product Weight
296 Pounds
Bundle Shipping Weight
321 Pounds
Bundle AHRI Reference Number
208791255
GSXN402410 SEER2
14.3
GSXN402410 Cooling Capacity
24000 BTU
GSXN402410 Max Sound Level
72 dB
GSXN402410 Voltage
208/230 Volts
GSXN402410 Phase
1
GSXN402410 Frequency
60 Hz
GSXN402410 MCA
11.2 Amps
GSXN402410 Recommended Breaker Size
15 Amps
GSXN402410 Suction Connection Size
3/4 Inch
GSXN402410 Liquid Connection Size
3/8 Inch
GSXN402410 Product Height
32 1/2 Inches
GSXN402410 Product Width
26 Inches
GSXN402410 Product Depth
26 Inches
GSXN402410 Product Weight
138 Pounds
GSXN402410 Shipping Weight
153 Pounds
GSXN402410 ETL Listed
Yes
GSXN402410 ISO Certified
Yes
GSXN402410 AHRI Certified
Yes
GSXN402410 Energy Star Listed
No
GSXN402410 Compressor Warranty
LIFETIME Years
GSXN402410 Parts Warranty
Limited* 10 Years Years
GMVC800803BN AFUE
80%
GMVC800803BN Heating BTU
80000
GMVC800803BN High Fire Input
80000 BTU
GMVC800803BN High Fire Output
64000 BTU
GMVC800803BN Low Fire Input
56000 BTU
GMVC800803BN Low Fire Output
44800 BTU
GMVC800803BN Max Air Flow
1200 CFM
GMVC800803BN Voltage
115 Volts
GMVC800803BN Phase
1
GMVC800803BN Frequency
60 Hz
GMVC800803BN MCA
7.75 Amps
GMVC800803BN Recommended Breaker Size
15 Amps
GMVC800803BN Flue Connection Size
4 Inches
GMVC800803BN Cabinet Width
17 1/2 Inches
GMVC800803BN Product Height
33 1/2 Inches
GMVC800803BN Product Width
17 1/2 Inches
GMVC800803BN Product Depth
28 Inches
GMVC800803BN Product Weight
110 Pounds
GMVC800803BN Shipping Weight
110 Pounds
GMVC800803BN ETL Listed
Yes
GMVC800803BN ISO Certified
Yes
GMVC800803BN AHRI Certified
Yes
GMVC800803BN AHRI Reference Number
202327716
GMVC800803BN Blower Motor Type
ECM Variable-Speed
GMVC800803BN Vent Type
Chimney Vent
GMVC800803BN Gas Conversion Kit
Available
GMVC800803BN Modulating/Staging
Two Stage
GMVC800803BN Ultra Low NOx Emissions
No
GMVC800803BN Low NOx Emissions
No
GMVC800803BN Warranty
10 Years
GMVC800803BN Heat Exchanger Warranty
Lifetime Years
CAPTA2422B4 Cooling Capacity
24000 BTU
CAPTA2422B4 Nominal Cooling Capacity
24000 BTU
CAPTA2422B4 Nominal Minimum Cooling Capacity
24000 BTU
CAPTA2422B4 Suction Connection Size
3/4 Inch
CAPTA2422B4 Liquid Connection Size
3/8 Inch
CAPTA2422B4 Cabinet Width
17 1/2 Inches
CAPTA2422B4 Product Height
22 Inches
CAPTA2422B4 Product Width
17 1/2 Inches
CAPTA2422B4 Product Depth
21 Inches
CAPTA2422B4 Product Weight
48 Pounds
CAPTA2422B4 Shipping Weight
58 Pounds
CAPTA2422B4 ETL Listed
Yes
CAPTA2422B4 AHRI Certified
Yes
CAPTA2422B4 Warranty
5 Years
