Goodman - 2.0 Ton Cooling - 80k BTU/Hr Heating - Air Conditioner + Variable Speed Furnace System - 15 SEER2 - 80% AFUE - Upflow

GOODMAN
Brand: GOODMAN
SKU: GSXN402410 GMVC800804CX CAPTA2422C4
Availability: Out Of Stock
Free Shipping
Final Sale Alert Final Sale / No Returns
$3,673.87
$3,673.87

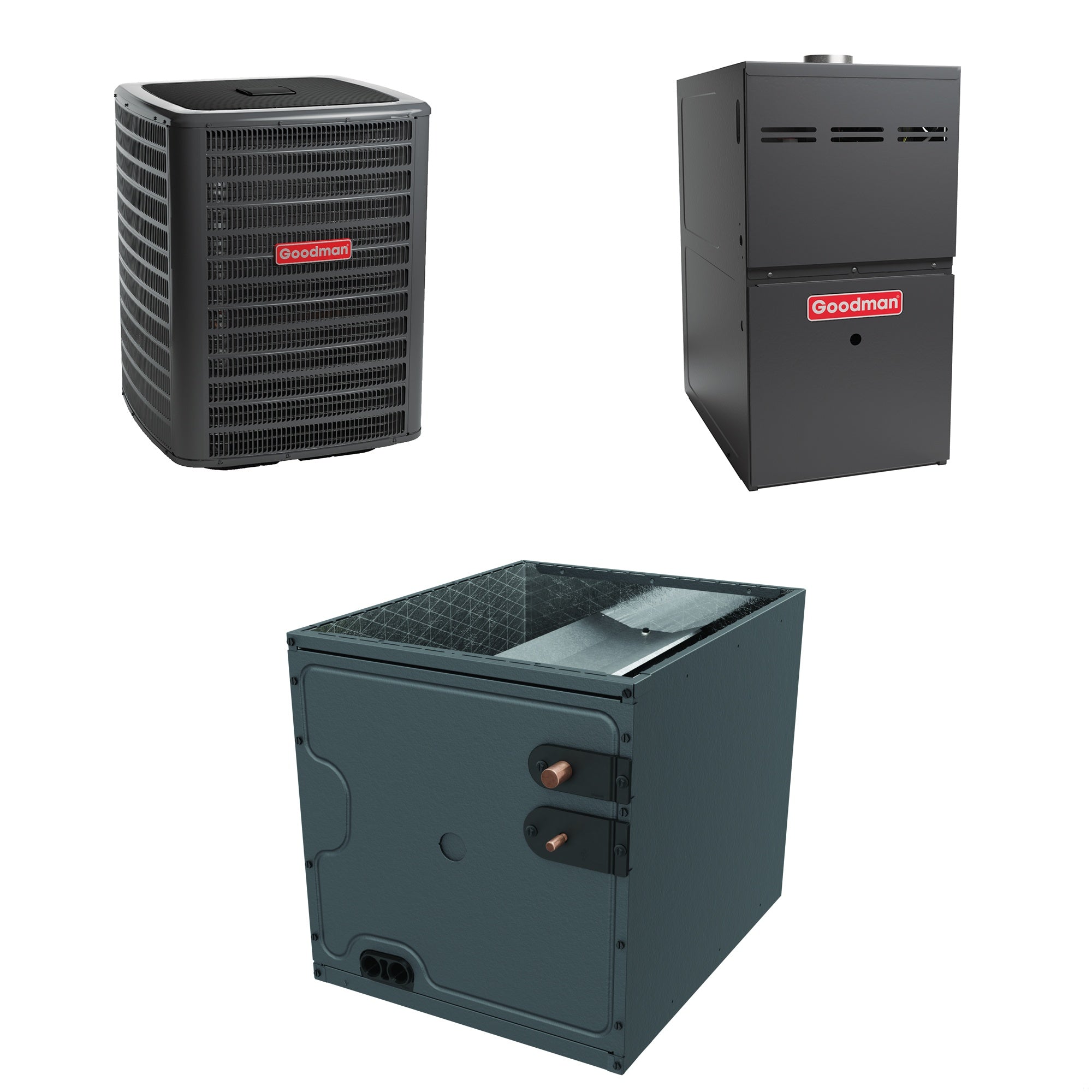

Bundle Includes
Goodman GMVC800804CX Gas Furnace 80% AFUE Variable Speed ECM Two Stage Quantity: 1
Goodman CAPTA2422C4 Evaporator Coil, 2 Tons, Upflow/Downflow, R-410A TXV Quantity: 1
Manuals:

Specification Highlights

Brand
Goodman
Product SKU
136588
Cooling Capacity
2.0 Tons

View More

LTL Delivery

This product weighs 324 lbs each and will be shipped via LTL carrier. A lift gate option will be added free of charge for your convenience.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

The Goodman GSXN402410 GMVC800804CX CAPTA2422C4 Bundle System

The Goodman GSXN402410 GMVC800804CX CAPTA2422C4 bundle comprises a central air conditioner, a variable speed furnace, and a cased evaporator coil. This bundle is built for optimal performance and long-term reliability. Suitable for areas needing average cooling but requiring efficient heating during cold winters, its components are designed for easy installation and durability, delivering both short-term and long-term value.

  • Efficient performance with an all-aluminum coil and variable speed ECM motor.
  • Long-term durability with heavy-duty construction and advanced heat exchanger design.
  • Quiet operation for consistent comfort.
  • Factory-installed features streamline setup and operation.
  • 10-year parts warranty upon registration.
  • Compliance with nationwide DOE efficiency standards.

The Goodman GSXN402410 Air Conditioner

The Goodman GSXN402410 is a 2.0-ton air conditioner with a 14.3 SEER2 rating. It features energy-efficient technology, including a copper tube and enhanced aluminum fin coil for optimal heat transfer. The units heavy-gauge galvanized-steel cabinet provides long-lasting durability, while the factory-installed filter drier ensures clean refrigerant flow.

  • SEER2 Rating: 14.3
  • Cooling Capacity: 24000 BTU
  • Heavy-gauge galvanized-steel cabinet
  • Factory-installed filter drier

The GMVC800804CX Gas Furnace

The GMVC800804CX is an 80,000 BTU/hr variable-speed gas furnace with an 80% AFUE rating. It includes a reliable heavy-duty tubular heat exchanger made from aluminized steel with a wrinkle-bend design for enhanced heat transfer and durability. The furnace also incorporates ComfortBridge technology for continuous system performance monitoring.

  • AFUE Rating: 80%
  • Heating Capacity: 80000 BTU
  • Variable speed ECM motor
  • ComfortBridge technology

The CAPTA2422C4 Cased Evaporator Coil

The CAPTA2422C4 is a 2-ton evaporator coil designed for upflow/downflow configurations. It features an all-aluminum coil with sine fins and grooved tubes, which maximizes surface area for efficient heat transfer. The coil includes a factory-installed thermostatic expansion valve (TXV) for optimal refrigerant flow and condensate management features to maintain system safety.

  • Cooling Capacity: 24000 BTU
  • All-aluminum construction
  • Factory-installed TXV
  • Foil-faced insulation and rust-resistant drain pan

Product Highlights

This Goodman central air conditioner and furnace system bundle offers a complete HVAC solution. Its durable design, advanced technology, and efficient performance ensure long-term value for residential installations.

Specifications
Overview
Brand
Goodman
Product SKU
136588
Cooling Capacity
2.0 Tons
Heating Capacity
80k BTU
SEER2
15
AFUE
80%
Installation Orientation
Upflow
Energy Efficiency Ratio (EER2)
11.7
Maximum Air Flow
1600 CFM
Nominal Cooling Capacity
24000 BTU
Compressor Stages
Single Stage
Voltage
208/230 Volts
Frequency
60 Hz
Minimum Circuit Ampacity
11.2 Amps
Recommended Breaker Size
15 Amps
Installation Location
Outdoor
Refrigerant Type
R-410A
General Information - Type
Condenser
General Information - Product Line
GSXN4
Maximum Sound Level
72 dB
Energy Star Listed
No
ETL Listed
Yes
ISO Certified
Yes
AHRI Certified
Yes
Dimensions - Product Depth
26 Inches
Dimensions - Product Width
26 Inches
Dimensions - Product Height
32 1/2 Inches
Dimensions - Product Weight
138 Pounds
General Information - Type
Gas Furnace
General Information - Product Line
GMVC80
General Information - Vent Type
Chimney Vent
General Information - Fuel Type
Natural Gas
General Information - Configuration
Upflow/Horizontal
Blower Motor Type
ECM Variable-Speed
Modulating/Staging
Two Stage
Electrical Data - Voltage
115 Volts
Electrical Data - Phase
1
Electrical Data - Frequency
60 Hz
Minimum Circuit Ampacity
7.75 Amps
Recommended Breaker Size
15 Amps
Performance - Heating BTU
80000
Performance - Low Fire Input
56000 BTU
Performance - High Fire Input
80000 BTU
Performance - Low Fire Output
44800 BTU
Performance - High Fire Output
64000 BTU
Performance - Maximum Air Flow
1600 CFM
Performance - Ultra Low NOx Emissions
No
Performance - Low NOx Emissions
Yes
Dimensions - Product Height
33 1/2 Inches
Dimensions - Product Width
21 Inches
Dimensions - Product Depth
28 Inches
Dimensions - Flue Connection Size
4 Inches
Dimensions - Cabinet Width
21 Inches
Dimensions - Shipping Weight
118 Pounds
AHRI Certified
Yes
ISO Certified
Yes
ETL Listed
Yes
Parts Warranty
10 Years
Heat Exchanger Warranty
Lifetime Years
General Information - Type
Evaporator Coil
General Information - Product Line
CAPT
General Information - Casing
Cased
General Information - Style
A Coil
General Information - Configuration
Upflow/Downflow
TXV Installed
Yes
Specifications - Performance
2 Tons
Nominal Minimum Cooling Capacity
24000 BTU
Dimensions - Cabinet Width
21 Inches
Dimensions - Product Depth
21 Inches
Dimensions - Product Width
21 Inches
Dimensions - Product Height
22 Inches
Dimensions - Product Weight
53 Pounds
Dimensions - Shipping Weight
63 Pounds
Suction Connection Size
3/4 Inch
Liquid Connection Size
3/8 Inch
ETL Listed
Yes
AHRI Certified
Yes
Warranty
5 Years
