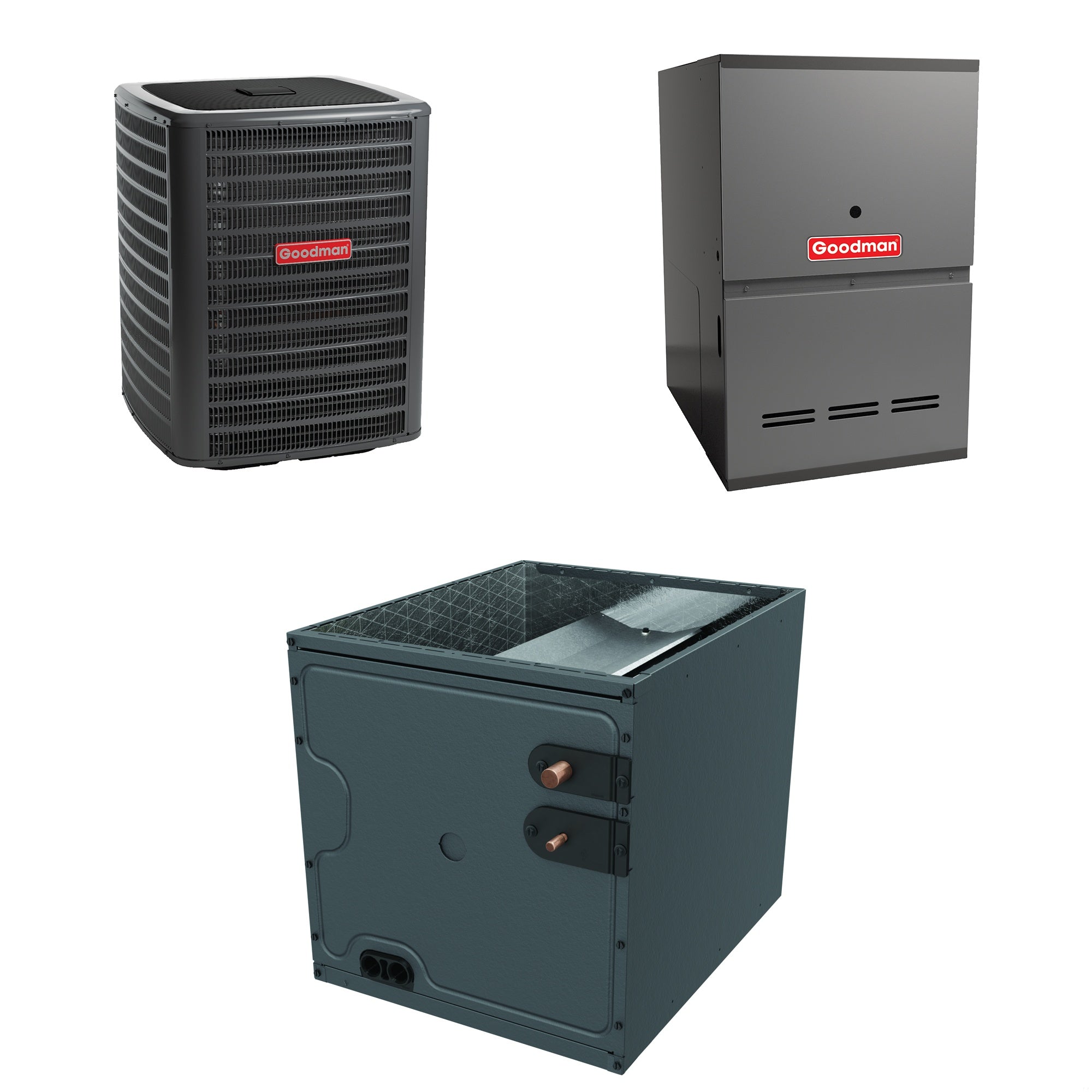

Goodman - 2.0 Ton Cooling - 80k BTU/Hr Heating - Air Conditioner + Variable Speed Furnace System - 15 SEER2 - 80% AFUE - Downflow

Overview

The Goodman GSXN402410 GCVC800803BX CAPTA2422B4 bundle is a central air and furnace kit designed to enhance your homes comfort system. This kit includes a GSXN4 air conditioner, a GCVC80 furnace, and a cased CAPTA evaporator coil, making it suitable for numerous regions. It is ideal for areas requiring moderate cooling but also needing a multi-speed furnace for harsh winters. Each component is crafted with an emphasis on straightforward installation and long-lasting durability, offering both immediate and extended value. If you seek a complete comfort solution reinforced by superior build quality, the Goodman GSXN402410 GCVC800803BX CAPTA2422B4 bundle is a perfect fit.

Features

• All-Aluminum Coil: Goodman’s evaporator coils incorporate a reliable all-aluminum design with sine fins and grooved tubes, maximizing surface area for efficient heat transfer.
• Internal Thermostatic Expansion Valve: The CAPTA evaporator coil has a pre-installed thermostatic expansion valve, facilitating installation and maintaining optimal refrigerant flow.
• Condensate Management: The CAPTA coil uses foil-faced insulation to prevent condensate formation and includes a rust-resistant drain pan to manage any that occurs.
• Advanced Heat Exchanger Design: The GCVC80 furnace features a durable tubular heat exchanger made of aluminized steel, enhancing heat transfer efficiency and reliability.
• Variable Speed ECM Motor: The GCVC80 furnace has a variable speed motor for precise temperature control and energy efficiency, adjusting its speed based on heating or cooling needs.
• Quiet Comfort: The furnace’s blower and gas valve are designed for low noise levels, providing consistent comfort quietly.
• ComfortBridge Technology: This technology in the GCVC80 furnace continuously monitors system performance to customize indoor comfort.
• Energy-Efficient Compressor: The GSXN4 air conditioner uses an energy-efficient compressor for refrigerant flow.
• Copper Tube/Enhanced Aluminum Fin Coil: The GSXN4 condenser coil features copper tubing and aluminum fins for maximum efficiency.
• Factory-Installed Filter Drier: The GSXN4 includes a filter drier in the liquid line, removing moisture and preventing impurities from causing operational issues.
• Heavy-Gauge Galvanized-Steel Cabinet: The units cabinet is robust, featuring galvanized steel construction, powder-paint finish, and a steel louver coil guard.
• Extended Warranty: Goodman provides a 10-year limited parts warranty with online registration within 60 days of installation, otherwise, a standard 5-year warranty applies.

Note: Proper line set size varies based on installation requirements. Check under the Recommended Accessories tab for compatible sets.

The Goodman GSXN402410 Air Conditioner

The Goodman GSXN402410 is a 2.0 ton, 14.3 SEER2 single-stage air conditioner using R-410A refrigerant. Designed for outdoor installation, it features copper tubing and aluminum fins for enhanced heat transfer. This unit includes a factory-installed filter drier for moisture and impurity management and operates quietly at a maximum sound level of 72 dB.

• Cooling Capacity: 24000 BTU
• SEER2 Rating: 14.3
• Maximum Sound Level: 72 dB
• Electrical: 208/230 Volts, 60 Hz, single phase

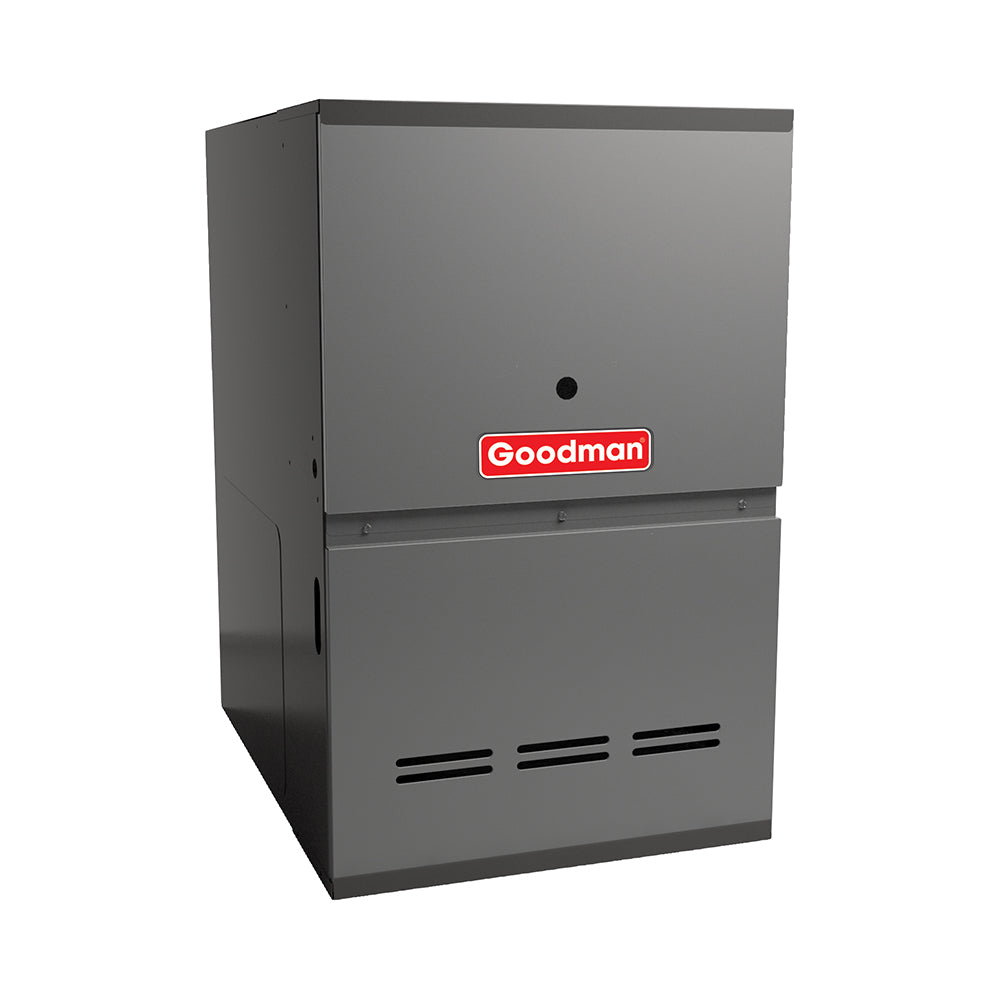

The GCVC800803BX Gas Furnace

The GCVC800803BX is an 80,000 BTU, 80% AFUE gas furnace featuring a two-stage operation and ECM variable-speed blower motor. It uses a tubular heat exchanger made from aluminized steel for efficient heat transfer and reliability. The furnace is designed for downflow/horizontal installation and includes ComfortBridge technology for performance monitoring.

• Heating Capacity: 80000 BTU
• AFUE: 80%
• Electrical: 115 Volts, 60 Hz, single phase
• Maximum Air Flow: 1200 CFM

The CAPTA2422B4 Cased Evaporator Coil

The CAPTA2422B4 is a 2-ton, upflow/downflow evaporator coil with a factory-installed thermostatic expansion valve. It features a cased A-coil design and is insulated to manage condensate formation, ensuring the systems safety.

• Cooling Capacity: 24000 BTU
• Configuration: Upflow/Downflow
• TXV: Factory Installed
• Dimensions: Height 22 inches, Width 17.5 inches, Depth 21 inches
