GOODMAN
Brand: GOODMAN
SKU: GSZB402410 GMVC800603BX CHPTA2426B4
Availability: In Stock
Free Shipping
truck-svgrepo-com

Ships via Freight in 3-5 Business Days
$4,148.00
$4,148.00

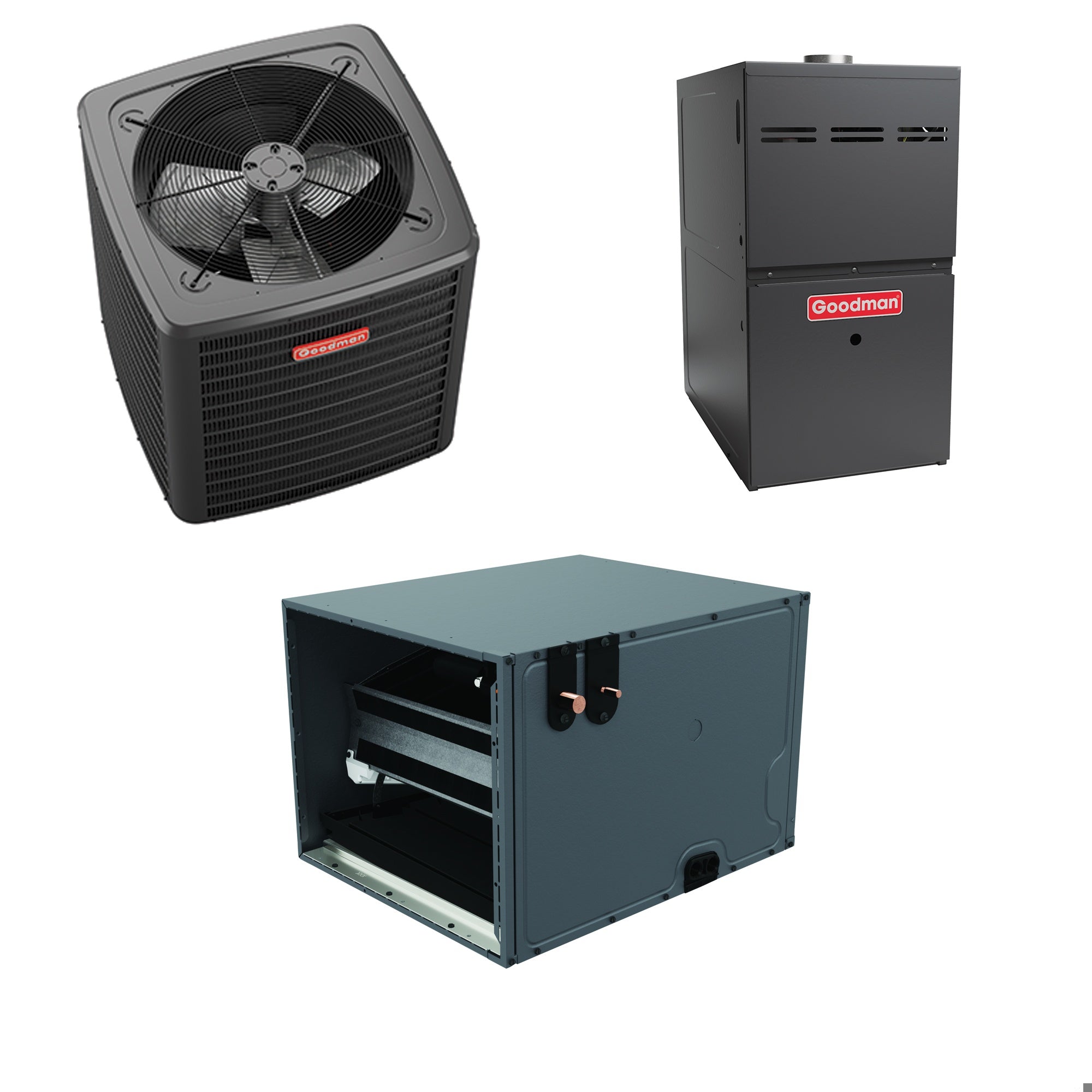

Bundle Includes
Goodman GSZB402410 GSZ 2 Ton 14.3 SEER2 Heat Pump 208/230V Single Phase R-410A Quantity: 1
Goodman 80% AFUE Gas Furnace Variable Speed ECM, Two Stage (GMVC800603BX) Quantity: 1
Goodman CHPTA2426B4 Evaporator Coil, 2 tons, Horizontal, R-410A TXV, 26 Wide 17.5 Tall Quantity: 1
Manuals:

Specification Highlights

Bundle Overview
Bundle Overview
Performance AFUE
80 %
Performance EER2
12.0

View More

LTL Delivery

This product weighs 338 lbs and may require the use of lift gate. If you require a lift gate you will have the option to add one FREE of charge at checkout.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Features

The Goodman GSZB402410 GMVC800603BX CHPTA2426B4 Bundle System combines a heat pump, furnace, and cased evaporator coil to offer a comprehensive HVAC system. This bundle is designed with easy installation and long-term durability in mind, ensuring optimal performance and comfort for your home. The GSZB4 heat pump, GMVC80 furnace, and CHPTA cased evaporator coil work together seamlessly for efficient heating and cooling.

  • Efficient and quiet variable speed motor
  • Reliable heavy-duty tubular heat exchanger
  • All-aluminum evaporator coils
  • Advanced ComfortBridge technology
  • Factory-installed internal thermostatic expansion valve
  • Energy-efficient compressor

Product Highlights

This bundle provides a complete heating and cooling solution with advanced features for improved efficiency and comfort. The GSZB402410 heat pump, GMVC800603BX furnace, and CHPTA2426B4 evaporator coil are all designed to work together seamlessly.

Product Information

Standard Information

  • Brand: Goodman
  • MPN: GSZB402410, GMVC800603BX, CHPTA2426B4

The Goodman GSZB402410 Heat Pump

The Goodman GSZB402410 is a 2.0 ton heat pump designed to efficiently provide heating and cooling. It includes advanced features like Smartshift™ technology for smooth defrost transitions and a factory-installed suction-line accumulator to protect the compressor.

  • Capacity: 2.0 Tons
  • Cooling BTU: 24000
  • Maximum Sound Level: 74 dB
  • Factory-installed high-capacity muffler
  • Energy-efficient compressor

The GMVC800603BX Furnace

The GMVC800603BX is a 60,000 BTU gas furnace designed for efficient and quiet operation. It features a variable speed ECM motor, ComfortBridge technology for continuous system monitoring, and a heavy-duty tubular heat exchanger.

  • Heating BTU: 60000
  • AFUE: 80%
  • Two-stage heating
  • Quiet blower and gas valve
  • Factory-installed crankcase heater

The CHPTA2426B4 Cased Evaporator Coil

The CHPTA2426B4 is a cased evaporator coil designed for horizontal installation. It features an all-aluminum design for efficient heat transfer, foil-faced insulation to prevent condensate formation, and a factory-installed internal thermostatic expansion valve.

  • Capacity: 2.0 Tons
  • Cooling BTU: 24000
  • Cabinet Width: 17.5 inches
  • Factory-installed TXV
  • UV-resistant thermoplastic drain pan

Complete System

The Goodman GSZB402410 GMVC800603BX CHPTA2426B4 bundle provides a comprehensive solution to your heating and cooling needs. This system ensures efficient performance, durability, and ease of installation, making it a valuable investment for home comfort.

Specifications
Overview
Bundle Overview
Bundle Overview
Performance AFUE
80 %
Performance EER2
12.0
Performance HSPF2
7.5
Capacity
2.0 Tons
Cooling Capacity
24000 BTU
Nominal Cooling Capacity
24000 BTU
Heating BTU
60000
Maximum Air Flow
1200 CFM
General Information
General Information
Configuration
Horizontal
Refrigerant Type
R-410A
Blower Motor Type
ECM Variable-Speed
Compressor Stages
Single Stage
DOE Regional Compliance
Nationwide (Except CA)
Certifications
Certifications
ETL Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
210318687
Dimensions
Dimensions
Product Weight
307 Pounds
Shipping Weight
337 Pounds
Goodman GSZB402410 Heat Pump
Goodman GSZB402410 Heat Pump
Performance HSPF2
7.5
Performance SEER2
14.3
Capacity
2.0 Tons
Cooling BTU
24000
Heating BTU
24000
Electrical Data
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
11.5 Amps
Recommended Breaker Size
15 Amps
Dimensions
Dimensions
Product Height
35 11/16 Inches
Product Width
29 Inches
Product Depth
29 Inches
Product Weight
160 Pounds
Shipping Weight
175 Pounds
Suction Connection Size
3/4 Inch
Liquid Connection Size
3/8 Inch
Certifications
Certifications
ETL Listed
Yes
Energy Star Listed
No
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Warranty Information
Parts Warranty
5 Years
Compressor Warranty
Limited 10 Years
General Information
General Information
Type
Heat Pump Condenser
Product Line
GSZB4
Operating Mode
Heating and Cooling
Installation Location
Outdoor
Installation Available
Yes
DOE Regional Compliance
Nationwide
Maximum Sound Level
74 dB
Goodman GMVC800603BX Furnace
Goodman GMVC800603BX Furnace
Performance AFUE
80 %
Performance Heating BTU
60000
Performance Low Fire Input
42000 BTU
Performance Low Fire Output
33600 BTU
Performance High Fire Input
60000 BTU
Performance High Fire Output
48000 BTU
Performance Maximum Air Flow
1200 CFM
Electrical Data
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
7.75 Amps
Recommended Breaker Size
15 Amps
Dimensions
Dimensions
Cabinet Width
17 1/2 Inches
Product Height
33 1/2 Inches
Product Width
17 1/2 Inches
Product Depth
28 Inches
Shipping Weight
105 Pounds
Flue Connection Size
4 Inches
Certifications
Certifications
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Warranty Information
Parts Warranty
10 Years
Heat Exchanger Warranty
Lifetime Years
General Information
General Information
Type
Gas Furnace
Product Line
GMVC80
Fuel Type
Natural Gas
Vent Type
Chimney Vent
Blower Motor Type
ECM Variable-Speed
Modulating/Staging
Two Stage
Gas Conversion Kit
Available
Configuration
Upflow/Horizontal
Installation Available
Yes
DOE Regional Compliance
Nationwide (Except CA)
Low NOx Emissions
Yes
Ultra Low NOx Emissions
No
Goodman CHPTA2426B4 Cased Evaporator Coil
Goodman CHPTA2426B4 Cased Evaporator Coil
Performance Capacity
2.0 Tons
Performance Cooling BTU
24000
Performance Nominal Minimum Cooling Capacity
24000 BTU
Dimensions
Dimensions
Cabinet Width
17 1/2 Inches
Product Height
17 1/2 Inches
Product Width
26 Inches
Product Depth
21 Inches
Product Weight
42 Pounds
Shipping Weight
57 Pounds
Suction Connection Size
7/8 Inch
Liquid Connection Size
3/8 Inch
Certifications
Certifications
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Warranty Information
Warranty
10 Years
Parts Warranty
10 Limited Years
General Information
General Information
Type
Evaporator Coil
Product Line
CHPTA
Casing
Cased
Style
A Coil
Configuration
Horizontal
Refrigerant Type
R-410A
TXV Installed
Yes
Installation Available
Yes
