Goodman - 2.0 Ton Cooling - 60k BTU/Hr Heating - Heat Pump + Furnace System - 14.3 SEER2 - 80% AFUE - Horizontal

Features

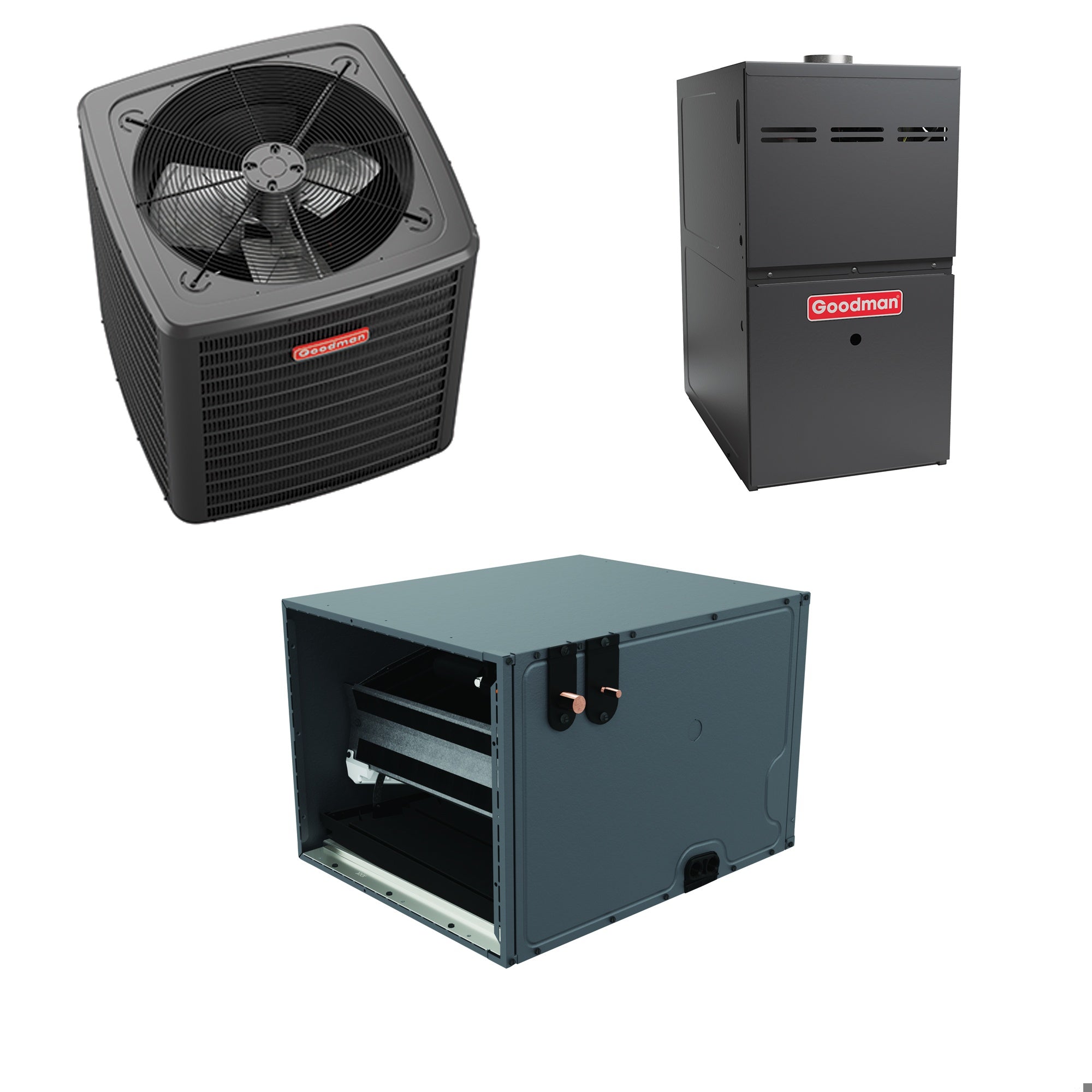

The Goodman GSZB402410 GMVC800604BN CHPTA2426B4 bundle includes a 2.0 Ton cooling air conditioner, a 60k BTU/Hr heating gas furnace, and a cased horizontal evaporator coil. This set is ideal for enhancing your homes HVAC system, featuring high-quality construction and ease of installation. Each component is crafted to ensure durability and continuous efficiency, providing both immediate and long-term value.

• Heavy-duty tubular heat exchanger
• Variable speed ECM motor for efficient operation
• Quiet performance with low sound levels
• ComfortBridge technology for customized comfort
• All-aluminum coil for maximized heat transfer
• Factory-installed internal thermostatic expansion valve

Product Highlights

This Goodman bundle integrates three critical HVAC components, offering a comprehensive solution for heating and cooling needs. The GSZB402410 air conditioner, GMVC800604BN furnace, and CHPTA2426B4 evaporator coil work together to ensure efficient climate control.

Product Information

Standard Information

• Type: Heat Pump + Furnace System
• Cooling Capacity: 2.0 Tons
• Heating Capacity: 60,000 BTU/Hr
• Configuration: Horizontal
• Energy Efficiency: 14.3 SEER2, 80% AFUE
• System Includes: GSZB402410, GMVC800604BN, CHPTA2426B4

Goodman GSZB402410 Air Conditioner

The Goodman GSZB402410 is a 2.0 Ton heat pump featuring R-410A refrigerant. Its aluminum fin coil maximizes surface area for heat transfer. It includes a factory-installed suction-line accumulator to prevent compressor damage.

• Single-stage compressor
• 14.3 SEER2 for energy efficiency
• Maximum sound level: 74 dB
• Factory-installed crankcase heater

GMVC800604BN Gas Furnace

The GMVC800604BN is a 60k BTU gas furnace with an 80% AFUE rating. It features a variable speed ECM motor and aluminized steel heat exchanger for efficient operation. This furnace operates quietly and is versatile for upflow or horizontal installation.

• Two-stage heating
• Maximum air flow: 1600 CFM
• Chimney vent type
• ComfortBridge technology for system monitoring

CHPTA2426B4 Cased Evaporator Coil

The CHPTA2426B4 is a 2.0 Ton horizontal evaporator coil with an all-aluminum design. It includes a factory-installed thermostatic expansion valve for ideal refrigerant flow.

• Horizontal configuration
• Foil-faced insulation for condensate management
• DecaBDE-free thermoplastic drain pan
• ETL and AHRI certified
