Goodman - 2.0 Ton Cooling - 60k BTU/Hr Heating - Air Conditioner + Multi Speed Furnace System - 14.5 SEER2 - 80% AFUE - Upflow

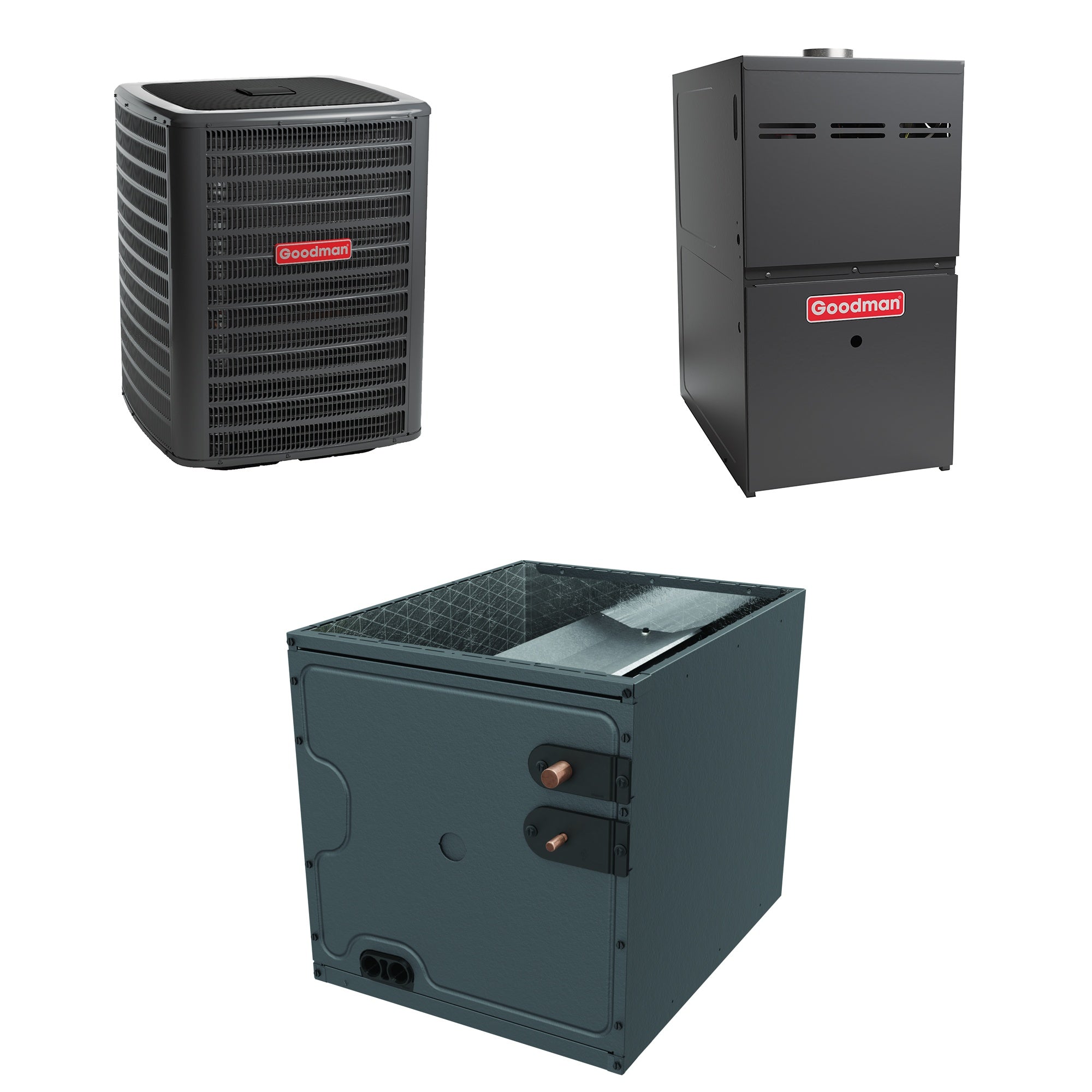

Overview of Goodman GSXN402410 GM9S800604BN CAPTA3022B4 Bundle System

The Goodman central air and furnace kit offers a comprehensive solution for updating your homes HVAC system. This bundle includes the GSXN4 air conditioner, the GM9S80 furnace, and the CAPTA evaporator coil. Designed with efficiency and durability, the system ensures both comfort in cooling and robust heating capabilities.

Features

• All-Aluminum Coil: Maximizes surface area and heat transfer.
• Internal Thermostatic Expansion Valve: Ensures ideal refrigerant flow.
• Condensate Management: Keeps the system operational with foil-faced insulation and a rust-resistant drain pan.
• Advanced Heat Exchanger Design: Aluminized steel tubular design for efficient heat transfer.
• Multi-Speed ECM Motor: Delivers precise temperature control while minimizing utility costs.
• Quiet Comfort: Operating with low sound levels for consistent comfort.
• Self-Diagnostic Control Board: Monitors system reliability with quick troubleshooting via flashing LEDs.
• Energy-Efficient Compressor: Provides efficient refrigerant flow.
• Factory-Installed Filter Drier: Removes moisture and traps impurities.
• Heavy-Gauge Galvanized-Steel Cabinet: Durable construction with an architectural gray powder-paint finish.

The Goodman GSXN402410 GM9S800604BN CAPTA3022B4 system is designed to offer long-term value with superior craftsmanship.

Goodman GSXN402410 Air Conditioner

The Goodman GSXN402410 is a 2.0-ton air conditioner with a 14.3 SEER2 rating. It features a single-stage compressor using R-410A refrigerant. The condenser coil integrates aluminum fins and copper tubing to enhance heat transfer.

Product Highlights

• SEER2: 14.3
• Capacity: 2.0 Tons
• Cooling Capacity: 24000 BTU
• Maximum Sound Level: 72 dB
• Galvanized-Steel Cabinet: Durable design with enhanced protection
• Factory-Installed Filter Drier: Prevents corrosion and system blockages

Goodman GM9S800604BN Gas Furnace

The GM9S800604BN is a 60k BTU gas furnace with an 80% AFUE rating. It incorporates a multi-speed ECM blower motor for precise temperature control. Its advanced heat exchanger design ensures efficient heat transfer with longevity in mind.

Key Features

• AFUE: 80%
• Heating BTU: 60000
• High Fire Output: 48000 BTU
• Maximum Air Flow: 1600 CFM
• Low Sound Levels: Quiet operation for comfort
• Self-Diagnostic Control Board: Continuous monitoring and quick troubleshooting

Goodman CAPTA3022B4 Cased Evaporator Coil

The CAPTA3022B4 is a 2.5-ton cased evaporator coil designed for upflow and downflow configurations. It includes a factory-installed thermostatic expansion valve for optimal refrigerant flow and efficiency.

Core Specifications

• Performance Capacity: 2.5 Tons
• Cooling BTU: 30000
• Nominal Minimum Cooling Capacity: 30000 BTU
• Upflow/Downflow Configuration: Versatile installation options
• ETL Listed: Ensuring safety compliance
• Foil-Faced Insulation: Prevents condensate formation
• Rust-Resistant Drain Pan: Maintains functionality and safety

This bundle system is perfect for varied climatic conditions and is designed to deliver efficient performance and lasting reliability.
