Goodman - 2.0 Ton Cooling - 60k BTU/Hr Heating - Air Conditioner + Multi Speed Furnace System - 14.5 SEER2 - 80% AFUE - Downflow
Goodman - 2.0 Ton Cooling - 60k BTU/Hr Heating - Air Conditioner + Multi Speed Furnace System - 14.5 SEER2 - 80% AFUE - Downflow
Goodman - 2.0 Ton Cooling - 60k BTU/Hr Heating - Air Conditioner + Multi Speed Furnace System - 14.5 SEER2 - 80% AFUE - Downflow
Goodman - 2.0 Ton Cooling - 60k BTU/Hr Heating - Air Conditioner + Multi Speed Furnace System - 14.5 SEER2 - 80% AFUE - Downflow

Goodman - 2.0 Ton Cooling - 60k BTU/Hr Heating - Air Conditioner + Multi Speed Furnace System - 14.5 SEER2 - 80% AFUE - Downflow

GOODMAN
Brand: GOODMAN
SKU: GSXN402410 GC9C800603BX CAPTA3022B4
Availability: In Stock
Free Shipping
truck-svgrepo-com

Ships via Freight in 3-5 Business Days
$3,496.00
$3,496.00
Bundle Includes
Goodman GSXN402410 2 Ton - 14.3 SEER2 - Air Conditioner - 208/230V - Single Phase - R-410A Quantity: 1
Goodman GC9C800603BX Furnace 80% 60,000 Down/Horz 2-Stage 9SPD ECM Quantity: 1
Goodman CAPTA3022B4 Evaporator Coil 2.5 Ton Upflow/Downflow R-410A Quantity: 1
Manuals:

Specification Highlights

Brand
Goodman
Cooling Capacity
2.0 Tons
Heating Capacity
60,000 BTU

View More

LTL Delivery

This product weighs 308 lbs and may require the use of lift gate. If you require a lift gate you will have the option to add one FREE of charge at checkout.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

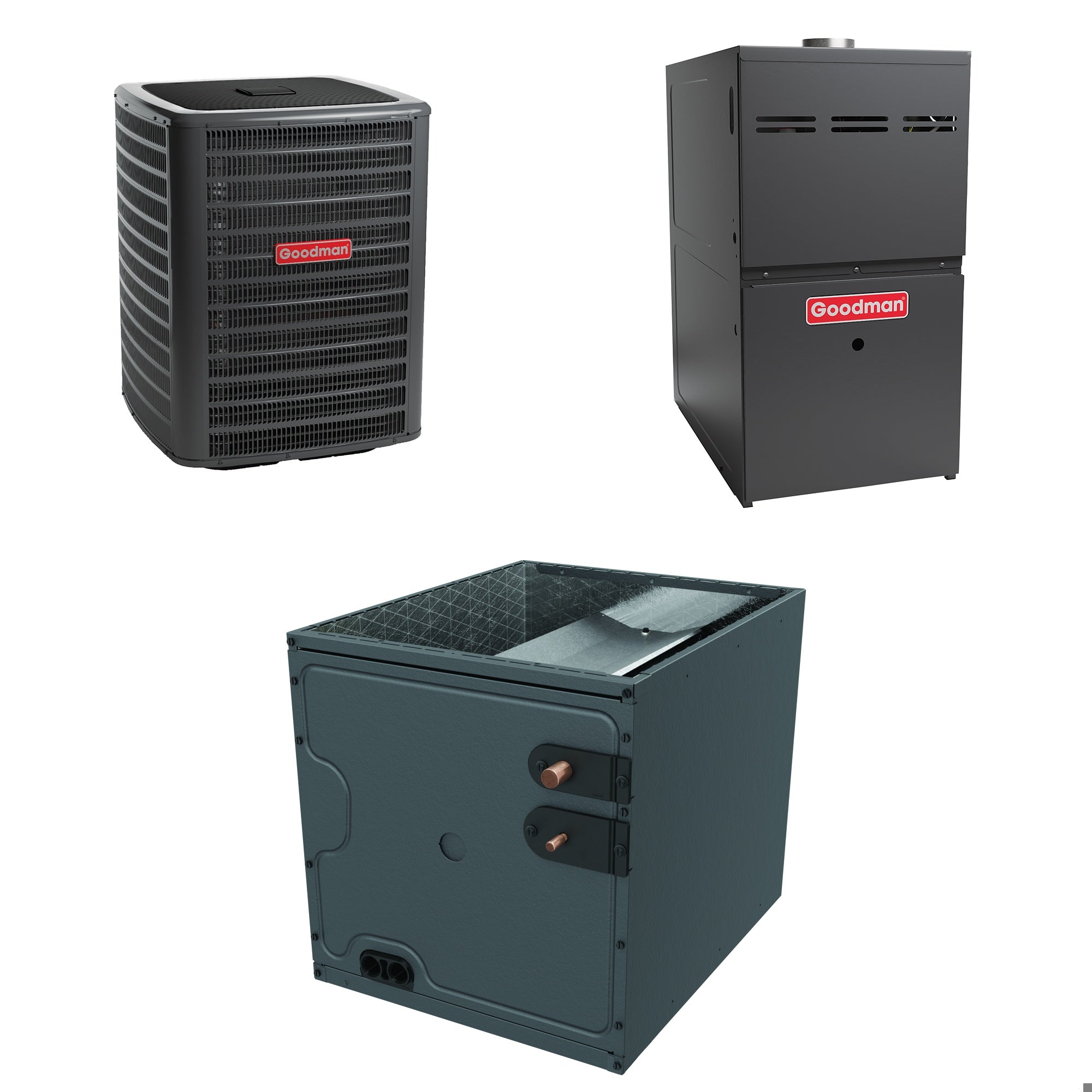

Goodman GSXN402410 GC9C800603BX CAPTA3022B4 Bundle System

This Goodman central air and furnace kit is a complete solution to upgrade your homes HVAC system. It includes the GSXN4 air conditioner, the GC9C80 furnace, and the CAPTA cased evaporator coil. This kit is perfect for regions with average cooling requirements and long, cold winters.

  • Includes air conditioner, gas furnace, and evaporator coil
  • Ideal for regions with average cooling needs
  • Multi-speed furnace for cold winters
  • Easy installation and durable build

Goodman GSXN402410 Air Conditioner

The Goodman GSXN4 air conditioner delivers 2.0 ton cooling capacity with a SEER2 rating of 14.3, ensuring efficient cooling for your home. This unit features a durable, all-aluminum evaporator coil for optimal heat transfer. It includes an internal thermostatic expansion valve for streamlined installation and effective refrigerant flow management.

  • 2.0 ton cooling capacity
  • 14.3 SEER2 rating
  • Energy-efficient compressor
  • Single stage compressor

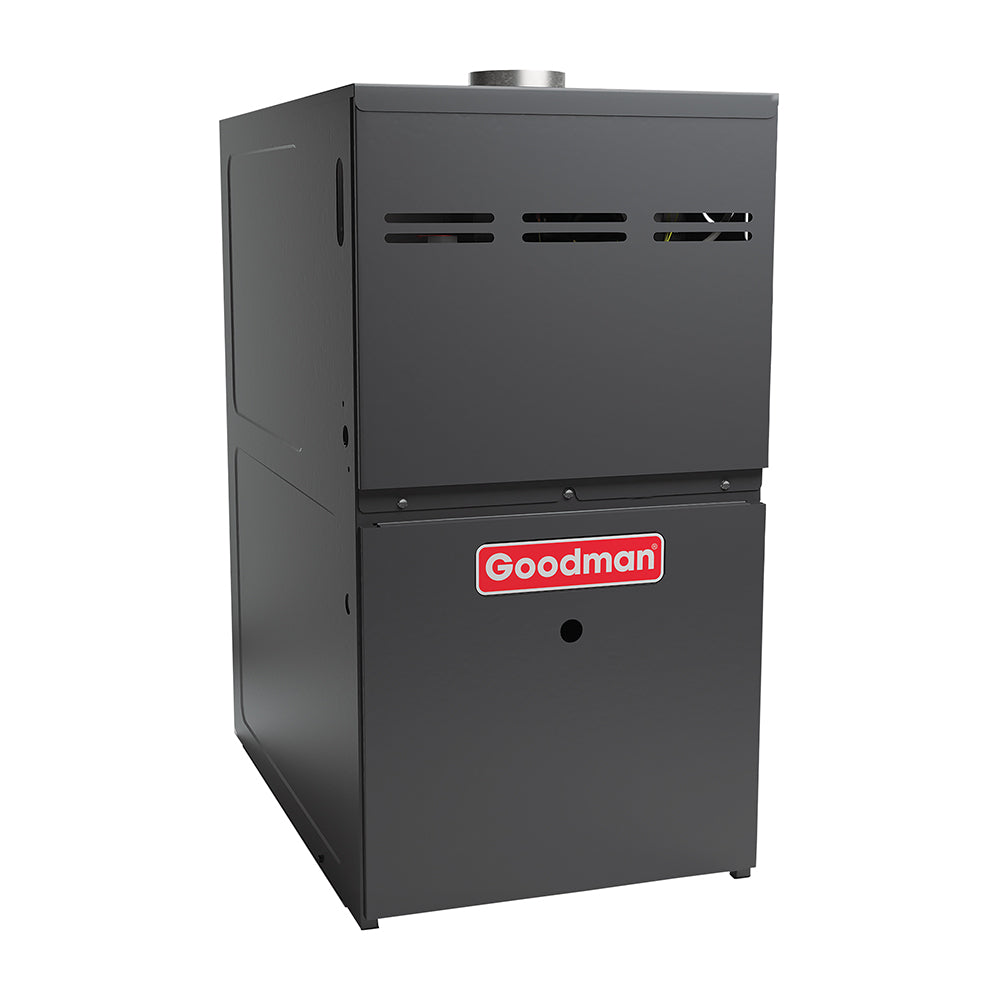

Goodman GC9C800603BX Gas Furnace

The GC9C80 gas furnace offers 60,000 BTU/hr heating capacity with an 80% AFUE rating. It features a multi-speed ECM blower motor to optimize energy usage and ensure precise temperature control. The advanced heat exchanger design and self-diagnostic control board provide reliable and efficient performance.

  • 60,000 BTU/hr heating capacity
  • 80% AFUE rating
  • Multi-speed ECM blower motor
  • Self-diagnostic control board

Goodman CAPTA3022B4 Cased Evaporator Coil

The CAPTA evaporator coil has a 2.5 ton cooling capacity, featuring a reliable all-aluminum design with foil-faced insulation for condensate management. It includes a factory-installed internal thermostatic expansion valve to maintain ideal refrigerant flow and a rust-resistant thermoplastic drain pan for durability.

  • 2.5 ton cooling capacity
  • Factory-installed internal TXV
  • Foil-faced insulation
  • Rust-resistant thermoplastic drain pan

Product Highlights

This bundle provides a comprehensive HVAC solution with efficient cooling and heating capacities, durable components, and easy installation processes.

Product Information

Standard Information

  • Brand: Goodman
  • Cooling Capacity: 2.0 Tons
  • Heating Capacity: 60,000 BTU
  • SEER2: 14.5
Specifications
Overview
Brand
Goodman
Cooling Capacity
2.0 Tons
Heating Capacity
60,000 BTU
SEER2
14.5
AFUE
80%
EER2
11.7
Maximum Air Flow
1200 CFM
General Information
Condenser
General Information
Gas Furnace
General Information
Evaporator Coil
General Information
R-410A Refrigerant
Installation Location
Outdoor
Operating Mode
Heating and Cooling
Compressor Stages
Single Stage
Blower Motor Type
ECM Multi-Speed
Modulating/Staging
Two Stage
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
11.2 Amps
Recommended Breaker Size
15 Amps
Product Height
32 1/2 Inches
Product Width
26 Inches
Product Depth
26 Inches
Product Weight
138 Pounds
Shipping Weight
153 Pounds
ETL Listed
Yes
ISO Certified
Yes
AHRI Certified
Yes
Parts Warranty
Limited* 10 Years
Compressor Warranty
LIFETIME Years
Heat Exchanger Warranty
Lifetime Years
Cooling Capacity
24000 BTU
Maximum Sound Level
72 dB
DOE Regional Compliance
Nationwide
AFUE
80%
Heating BTU
60000
Ultra Low NOx Emissions
No
Low NOx Emissions
Yes
Minimum Circuit Ampacity
8.7 Amps
Recommended Breaker Size
15 Amps
Flue Connection Size
4 Inches
Cabinet Width
17 1/2 Inches
Product Height
33 3/8 Inches
Product Width
17 1/2 Inches
Product Depth
28 Inches
Product Weight
107 Pounds
Shipping Weight
107 Pounds
ETL Listed
Yes
ISO Certified
Yes
AHRI Certified
Yes
Parts Warranty
10 Years
Heat Exchanger Warranty
Lifetime Years
Performance
AFUE 80 %
Performance
High Fire Input 60000 BTU
Performance
Low Fire Input 42000 BTU
Performance
Low Fire Output 33600 BTU
Performance
High Fire Output 48000 BTU
Performance
Maximum Air Flow 1200 CFM
Performance
Yes
Electrical Data
Voltage 115 Volts
Electrical Data
Phase 1
Electrical Data
Frequency 60 Hz
Electrical Data
Minimum Circuit Ampacity 8.7 Amps
Electrical Data
Recommended Breaker Size 15 Amps
Dimensions
Cabinet Width 17 1/2 Inches
Dimensions
Cabinet Width 17 1/2 Inches
Dimensions
Product Height 33 3/8 Inches
Dimensions
Product Width 17 1/2 Inches
Dimensions
Product Depth 28 Inches
Dimensions
Product Weight 107 Pounds
Dimensions
Shipping Weight 107 Pounds
General Information
Type Gas Furnace
General Information
Product Line GC9C80
General Information
Product Category Furnace
General Information
Fuel Type Natural Gas
General Information
Vent Type Chimney Vent
General Information
Blower Motor Type ECM Multi-Speed
General Information
Configuration Downflow/Horizontal
General Information
Gas Conversion Kit Available
General Information
Modulating/Staging Two Stage
DOE Regional Compliance
Nationwide (Except CA)
Installation Available
Yes
