Goodman - 2.0 Ton Cooling - 60k BTU/Hr Heating - Air Conditioner + Multi Speed Furnace System - 14.3 SEER2 - 96% AFUE - Upflow
Goodman - 2.0 Ton Cooling - 60k BTU/Hr Heating - Air Conditioner + Multi Speed Furnace System - 14.3 SEER2 - 96% AFUE - Upflow
Goodman - 2.0 Ton Cooling - 60k BTU/Hr Heating - Air Conditioner + Multi Speed Furnace System - 14.3 SEER2 - 96% AFUE - Upflow
Goodman - 2.0 Ton Cooling - 60k BTU/Hr Heating - Air Conditioner + Multi Speed Furnace System - 14.3 SEER2 - 96% AFUE - Upflow

Goodman - 2.0 Ton Cooling - 60k BTU/Hr Heating - Air Conditioner + Multi Speed Furnace System - 14.3 SEER2 - 96% AFUE - Upflow

GOODMAN
Brand: GOODMAN
SKU: GSXN402410 GM9S960603BN CAPTA3022B4
Availability: In Stock
Free Shipping
truck-svgrepo-com

Ships via Freight in 3-5 Business Days

Title: Evaporator Coils
$3,881.00
$3,881.00
Bundle Includes
Goodman - 2.0 Ton Cooling - 60k BTU/Hr Heating - Air Conditioner + Multi Speed Furnace System - 14.3 SEER2 - 96% AFUE - Upflow Quantity: 1
Manuals:

Specification Highlights

Master SKU
8320341581709
SEER2
14.3
Cooling Capacity
2.0 Tons

View More

LTL Delivery

This product weighs 312 lbs and may require the use of lift gate. If you require a lift gate you will have the option to add one FREE of charge at checkout.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Bundle Overview

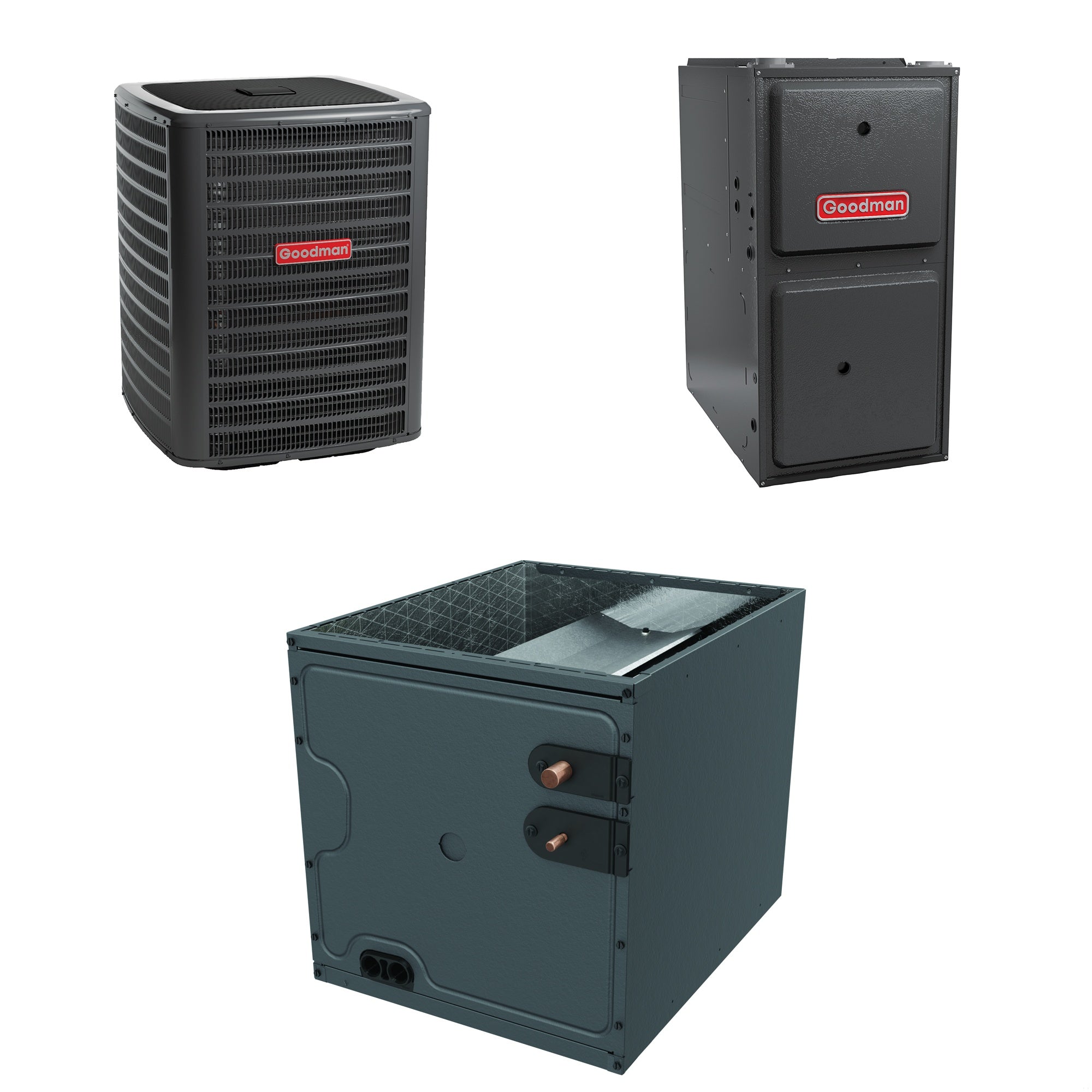

The Goodman GSXN402410 GM9S960603BN CAPTA3022B4 air conditioner and furnace kit is ideal for upgrading your homes HVAC system. This bundle includes a GSXN4 air conditioner, a GM9S96 gas furnace, and a cased CAPTA evaporator coil. These components work together to provide efficient heating and cooling for a wide range of climates. The system is designed for easy installation and long-term durability, making it a valuable investment for both immediate and future needs.

  • All components are designed with ease-of-installation and durability in mind.
  • Perfect for areas with average cooling needs and cold winters.
  • Offers multi-speed operation for enhanced comfort.
  • Factory-installed components ensure streamlined installation.
  • Efficient performance backed by superior craftsmanship.

The Goodman GSXN402410 Air Conditioner

The Goodman GSXN402410 air conditioner is a reliable cooling solution featuring a single-stage, energy-efficient compressor. This unit comes equipped with a factory-installed filter drier and uses R-410A refrigerant. The condenser coil is made with aluminum fins and copper tubing to maximize efficiency.

  • Capacity: 2.0 tons
  • Cooling BTU: 24000
  • SEER2: 14.3
  • Maximum Sound Level: 72 dB
  • Heavy-Gauge Galvanized-Steel Cabinet

The Goodman GM9S960603BN Gas Furnace

The GM9S96 gas furnace features a single-stage, multi-speed ECM blower motor and is capable of up to 96% AFUE. The unit has a tubular heat exchanger made of aluminized steel and includes a secondary heat exchanger for additional efficiency. This furnace also offers multiple venting options and quiet operation.

  • Heating BTU: 60000
  • Maximum Air Flow: 1200 CFM
  • AFUE: 96%
  • Ultra Low NOx Emissions: No
  • Dimensions: 34.5 x 17.5 x 28.75 inches

The CAPTA3022B4 Cased Evaporator Coil

The CAPTA3022B4 evaporator coil from Goodman features an all-aluminum construction and comes with a factory-installed thermostatic expansion valve. It includes foil-faced insulation and a rust-resistant thermoplastic drain pan to manage condensate. This coil is compatible with upflow and downflow installations.

  • Capacity: 2.5 tons
  • Cooling BTU: 30000
  • Dimensions: 22 x 17.5 x 21 inches
  • Style: A Coil
  • ETL Listed

Product Information

Standard Information

  • Brand: Goodman
  • Product SKU: 136553
  • Installation Location: Indoor
  • Warranty: 10 Years Limited Warranty
Specifications
Overview
Master SKU
8320341581709
SEER2
14.3
Cooling Capacity
2.0 Tons
Heating BTU
60000
AFUE
96 %
Product Weight
304 Pounds
Product Depth
26 Inches
Product Width
26 Inches
Product Height
32.5 Inches
Shipping Weight
329 Pounds
Compressor Stages
Single Stage
Refrigerant Type
R-410A
Minimum Circuit Ampacity
11.2 Amps
Recommended Breaker Size
15 Amps
Maximum Sound Level
72 dB
Product Category
Air Conditioning Condensers
Installation Available
Yes
Energy Star Listed
No
ISO Certified
Yes
ETL Listed
Yes
AHRI Certified
Yes
Parts Warranty
Limited* 10 Years
Compressor Warranty
LIFETIME Years
Bundle Overview
Furnace & Air Conditioner Package
Venting Options
Direct Vent
Blower Motor Type
ECM Multi-Speed
General Information
Upflow Configuration
Gas Conversion Kit Available
Yes
Electrical Data Voltage
208/230 Volts
Electrical Data Phase
1
Electrical Data Frequency
60 Hz
General Information Product Line
GSXN4
General Information Installation Location
Outdoor
General Information Operating Mode
Cooling
Cooling BTU
24000
Suction Connection Size
3/4 Inch
Liquid Connection Size
3/8 Inch
Dimensions Product Weight
138 Pounds
Dimensions Shipping Weight
153 Pounds
Dimensions Product Height
32.5 Inches
AHRI Reference Number
208791411
AHRI Certified
Yes
General Information Type
Gas Furnace
Furnace Capacity
60k BTU/h
Warranty Information Parts Warranty
10 Years
Electrical Data Voltage
115 Volts
Electrical Data Phase
1
Electrical Data Frequency
60 Hz
ETL Listed
Yes
Energy Star Listed
Yes
ISO Certified
Yes
Heating BTU
60000
High Fire Input
60000 BTU
High Fire Output
57660 BTU
Maximum Air Flow
1200 CFM
AFUE
96 %
Ultra Low NOx Emissions
No
Low NOx Emissions
Yes
Certifications AHRI Certified
Yes
Certifications ISO Certified
Yes
DOE Regional Compliance
Nationwide (Except CA)
Warranty Information Heat Exchanger Warranty
Lifetime Years
General Information Blower Motor Type
ECM Multi-Speed
General Information Vent Type
Direct Vent
Cabinet Width
17.5 Inches
Product Depth
28.75 Inches
Product Width
17.5 Inches
Product Height
34.5 Inches
Product Weight
118 Pounds
Shipping Weight
118 Pounds
Flue Connection Size
2 or 3 Inches
General Information Product Line
GM9S96
Performance Heating BTU
60000
General Information Configuration
Upflow/Horizontal
Electrical Data Minimum Circuit Ampacity
10.3 Amps
Electrical Data Recommended Breaker Size
15 Amps
General Information Type
Evaporator Coil
General Information Product Line
CAPT
General Information Style
A Coil
General Information Casing
Cased
General Information TXV Installed
Yes
General Information Configuration
Upflow/Downflow
Refrigerant Type
R-410A
Performance Capacity
2.5 Tons
Performance Nominal Minimum Cooling Capacity
30000 BTU
Dimensions Product Weight
48 Pounds
Dimensions Product Height
22 Inches
Dimensions Product Width
17.5 Inches
Dimensions Product Depth
21 Inches
Certifications ETL Listed
Yes
Certifications AHRI Certified
Yes
Warranty Information Warranty
5 Years
Suction Connection Size
3/4 Inch
Liquid Connection Size
3/8 Inch
General Information Installation Available
Yes
Product Category
Evaporator Coil
