GOODMAN
Brand: GOODMAN
SKU: GSXN402410 GC9C800603AX CAPTA2422A4
Availability: In Stock
Free Shipping
truck-svgrepo-com

Ships via Freight in 3-5 Business Days
$3,374.00
$3,374.00
Bundle Includes
Goodman GSXN402410 2 Ton - 14.3 SEER2 - Air Conditioner - 208/230V - Single Phase - R-410A Quantity: 1
Goodman GC9C800603AX Downflow, Horizontal Left and Horizontal Right Two Stage Gas 1/2 hp 60000 BTU Furnace Quantity: 1
Goodman CAPTA2422A4 Evaporator Coil, 2 Tons, Upflow/Downflow, R-410A TXV (14 W x 21 D x 22 H) Quantity: 1
Manuals:

Specification Highlights

SEER2
14.3
Cooling Capacity
2.0 Tons
Capacity
24000 BTU

View More

LTL Delivery

This product weighs 304 lbs and may require the use of lift gate. If you require a lift gate you will have the option to add one FREE of charge at checkout.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

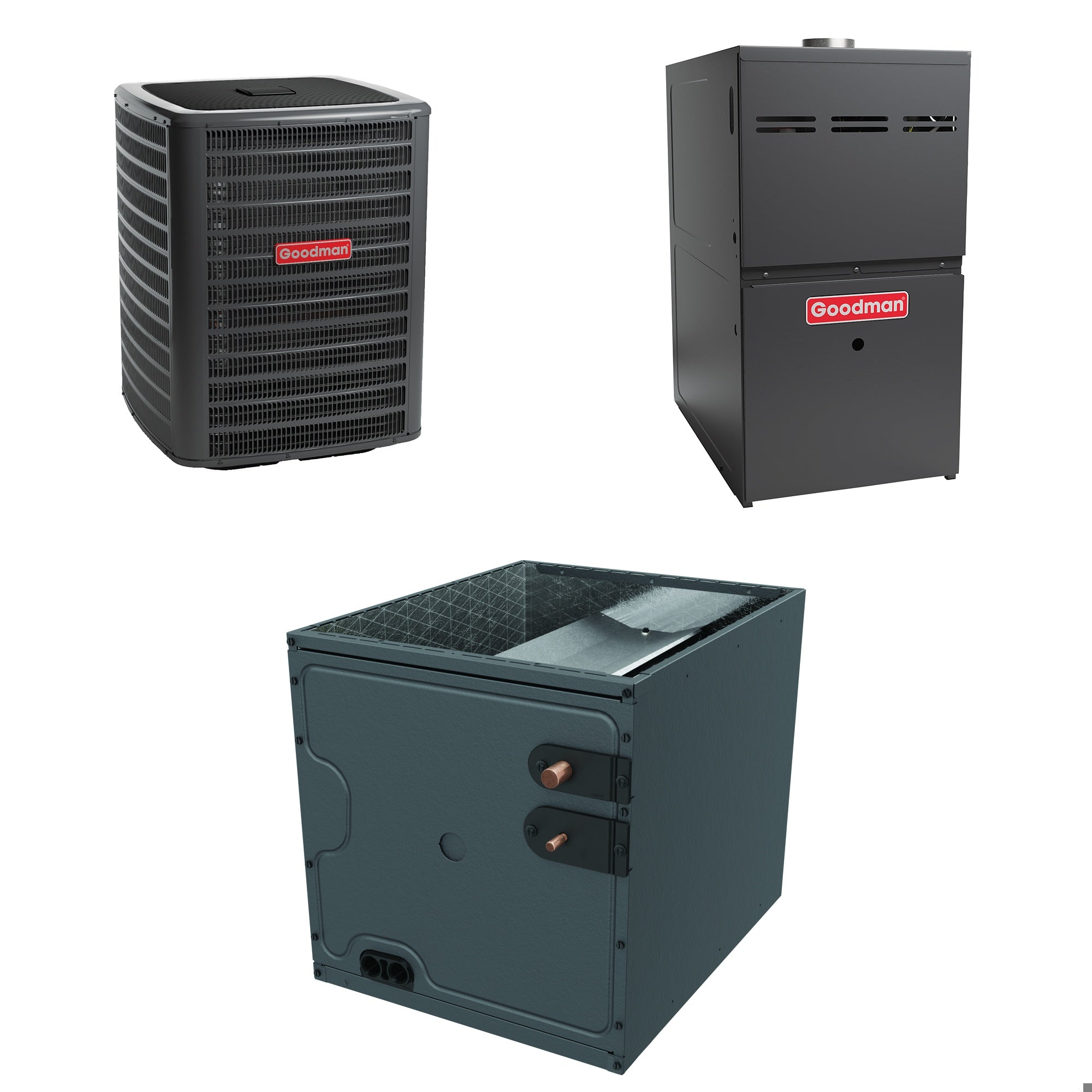

The Goodman GSXN402410 GC9C800603AX CAPTA2422A4 Bundle System

The Goodman GSXN402410 GC9C800603AX CAPTA2422A4 bundle system combines an air conditioner, a gas furnace, and a cased evaporator coil. These components work together to provide a complete heating and cooling solution for your home. Each part is designed for easy installation and long-term durability, ensuring reliable performance and energy efficiency.

The Goodman GSXN402410 Air Conditioner

The Goodman GSXN402410 air conditioner features a reliable all-aluminum coil with sine fins and grooved tubes that maximize surface area and boost heat transfer. An internal thermostatic expansion valve is factory-installed for efficient refrigerant flow. Condensate management is handled with foil-faced insulation and a rust-resistant thermoplastic drain pan.

  • All-Aluminum Coil
  • Internal Thermostatic Expansion Valve
  • Condensate Management
  • Energy-Efficient Compressor

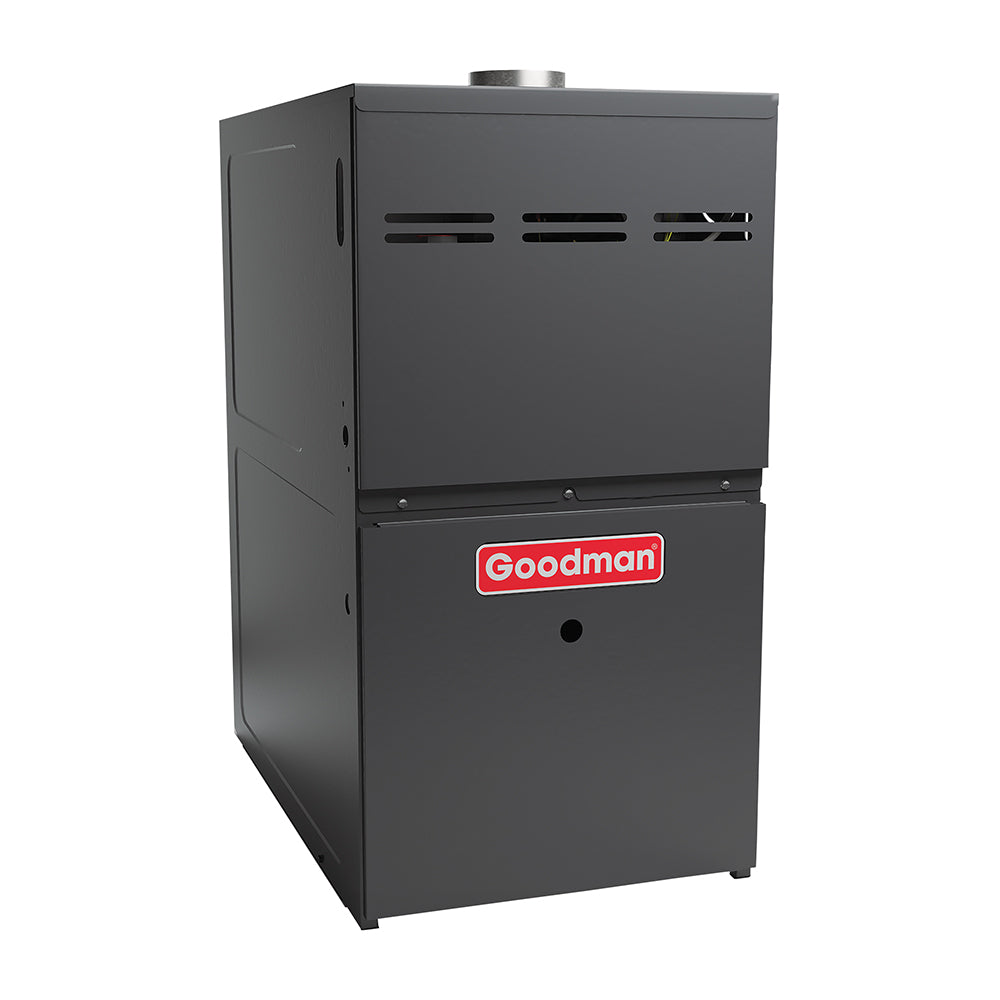

The GC9C800603AX Gas Furnace

The GC9C800603AX gas furnace employs a tubular heat exchanger made of aluminized steel for efficient heat transfer and durability. A multi-speed ECM motor provides precise temperature control while minimizing utility bills. This furnace operates quietly, with a blower and gas valve selected for low sound levels.

  • Tubular Heat Exchanger
  • Multi-Speed ECM Motor
  • Quiet Operation
  • Self-Diagnostic Control Board

The CAPTA2422A4 Cased Evaporator Coil

The CAPTA2422A4 cased evaporator coil uses an all-aluminum design for efficient heat transfer. It features a factory-installed internal thermostatic expansion valve and foil-faced insulation to inhibit condensate formation. A rust-resistant thermoplastic drain pan helps keep the system operational.

  • All-Aluminum Coil
  • Internal Thermostatic Expansion Valve
  • Foil-Faced Insulation
  • Rust-Resistant Thermoplastic Drain Pan
Specifications
Overview
SEER2
14.3
Cooling Capacity
2.0 Tons
Capacity
24000 BTU
Heating BTU
60000
AFUE
80%
Maximum Air Flow
1200 CFM
Product Depth
26 Inches
Product Width
26 Inches
Product Height
32 1/2 Inches
Product Weight
138 Pounds
Shipping Weight
153 Pounds
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
11.2 Amps
Recommended Breaker Size
15 Amps
Cooling BTU
24000
Maximum Sound Level
72 dB
Installation Location
Outdoor
Refrigerant Type
R-410A
Compressor Stages
Single Stage
Cabinet Width
14 Inches
Product Width
14 Inches
Product Depth
21 Inches
Product Height
22 Inches
Product Weight
44 Pounds
Shipping Weight
54 Pounds
Configuration
Upflow/Downflow
TXV Installed
Yes
Warranty
5 Years
General Information
Gas Furnace
Fuel Type
Natural Gas
Vent Type
Chimney Vent
Blower Motor Type
ECM Multi-Speed
Modulating/Staging
Two Stage
Cabinet Width
14 Inches
Product Depth
28 Inches
Product Width
14 Inches
Product Height
33 3/8 Inches
Product Weight
107 Pounds
Shipping Weight
107 Pounds
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
8.7 Amps
Recommended Breaker Size
15 Amps
Flue Connection Size
4 Inches
Heating BTU
60000
High Fire Input
60000 BTU
High Fire Output
48000 BTU
Low Fire Input
42000 BTU
Low Fire Output
33600 BTU
Ultra Low NOx Emissions
No
Low NOx Emissions
Yes
Parts Warranty
10 Years
Heat Exchanger Warranty
Lifetime Years
