Goodman - 2.0 Ton Cooling - 40k BTU/Hr Heating - Heat Pump + Furnace System - 14.3 SEER2 - 96% AFUE - Horizontal
Goodman - 2.0 Ton Cooling - 40k BTU/Hr Heating - Heat Pump + Furnace System - 14.3 SEER2 - 96% AFUE - Horizontal
Goodman - 2.0 Ton Cooling - 40k BTU/Hr Heating - Heat Pump + Furnace System - 14.3 SEER2 - 96% AFUE - Horizontal
Goodman - 2.0 Ton Cooling - 40k BTU/Hr Heating - Heat Pump + Furnace System - 14.3 SEER2 - 96% AFUE - Horizontal

Goodman - 2.0 Ton Cooling - 40k BTU/Hr Heating - Heat Pump + Furnace System - 14.3 SEER2 - 96% AFUE - Horizontal

GOODMAN
Brand: GOODMAN
SKU: GSZB402410 GMVC960403BN CHPTA2426B4
Availability: In Stock
Free Shipping
truck-svgrepo-com

Ships via Freight in 3-5 Business Days
$4,493.00
$4,493.00
Bundle Includes
Goodman GSZB402410 GSZ 2 Ton 14.3 SEER2 Heat Pump 208/230V Single Phase R-410A Quantity: 1
Goodman GMVC960403BN GMVC96 2-Stage Gas Furnace 40000 BTU 96% AFUE Quantity: 1
Goodman CHPTA2426B4 Evaporator Coil, 2 tons, Horizontal, R-410A TXV, 26 Wide 17.5 Tall Quantity: 1
Manuals:

Specification Highlights

Cooling BTU
24000
Heating BTU
40000
SEER2
14.3

View More

LTL Delivery

This product weighs 362 lbs and may require the use of lift gate. If you require a lift gate you will have the option to add one FREE of charge at checkout.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Features

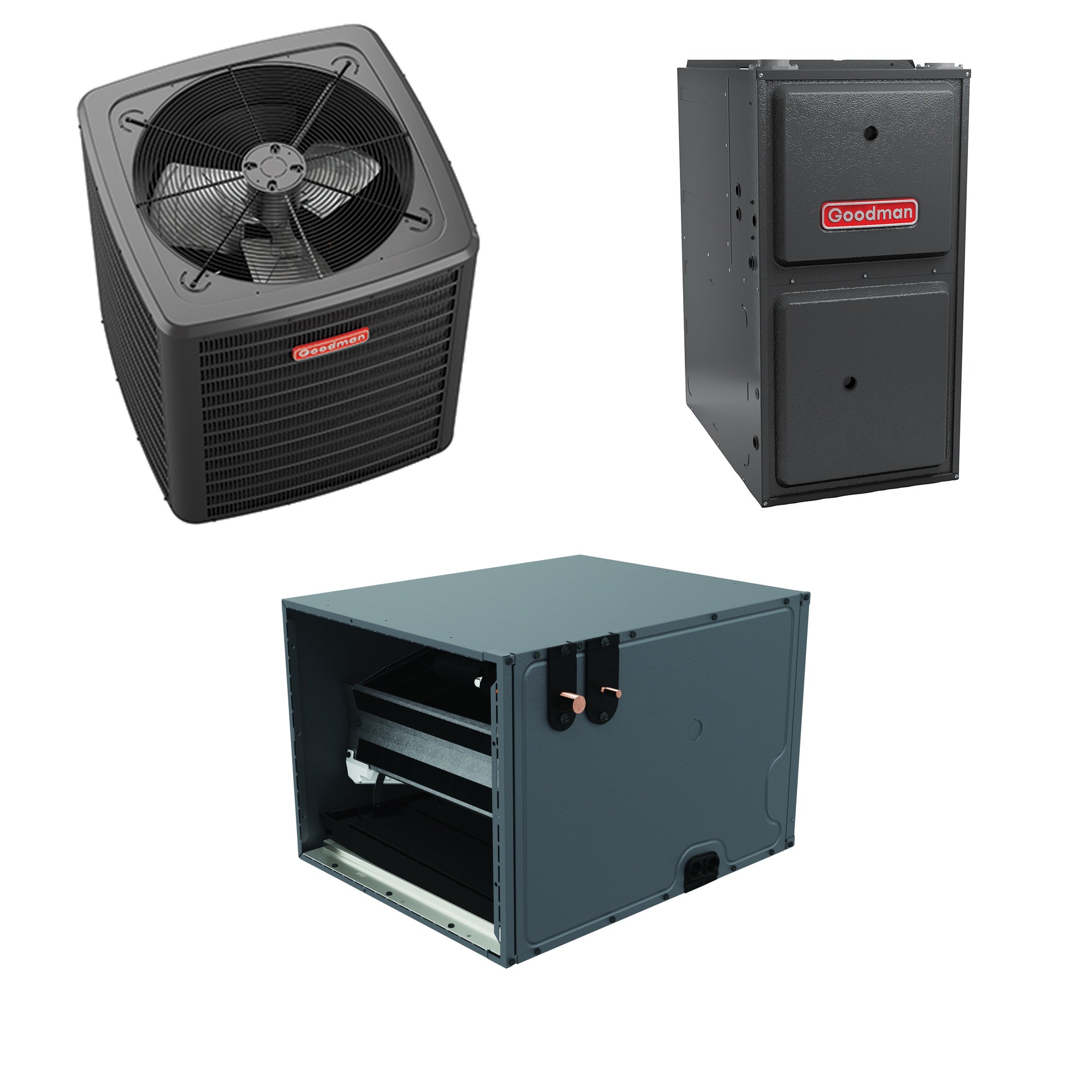

The Goodman GSZB402410 GMVC960403BN CHPTA2426B4 heat pump and furnace system is a comprehensive solution for home heating and cooling. This bundle includes the GSZB4 heat pump, GMVC96 furnace, and CHPTA cased evaporator coil. Together, these components offer efficient performance and reliable comfort, making them ideal for various climates.

The Goodman GSZB402410 GMVC960403BN CHPTA2426B4 Bundle System

The bundle consists of the GSZB402410 air conditioner, GMVC960403BN furnace, and CHPTA2426B4 evaporator coil. Each part is designed for easy installation and long-term durability.

  • Heat pump, furnace, and cased evaporator coil included.
  • Designed for various climates.
  • Offers both heating and cooling capabilities.
  • Efficient and reliable operation.

The Goodman GSZB402410 Air Conditioner

The GSZB402410 is a heat pump with a cooling capacity of 2.0 tons and a SEER2 rating of 14.3.

  • Uses R-410A refrigerant.
  • Single-stage compressor.
  • Aluminum fin and copper tube condenser coil.
  • Energy-efficient compressor.

The Goodman GMVC960403BN Gas Furnace

The GMVC960403BN furnace features a dual-diameter tubular heat exchanger made of aluminized steel for efficient heat transfer.

  • 96% AFUE rating.
  • ECM variable-speed blower motor.
  • Direct and single-pipe venting options.
  • ComfortBridge™ technology compatibility.

The Goodman CHPTA2426B4 Cased Evaporator Coil

The CHPTA2426B4 evaporator coil includes a factory-installed thermostatic expansion valve (TXV) and an all-aluminum coil design.

  • 2.0-ton cooling capacity.
  • UV-resistant drain pan.
  • Foil-faced insulation.
  • Horizontal configuration.

Specifications
Overview
Cooling BTU
24000
Heating BTU
40000
SEER2
14.3
AFUE
96 %
HSPF2
7.5
EER2
11.5
Cooling Capacity
24000 BTU
Maximum Air Flow
1200 CFM
Phase
1
Voltage
208/230 Volts
Minimum Circuit Ampacity
11.5 Amps
Recommended Breaker Size
15 Amps
Frequency
60 Hz
Compressor Stages
Single Stage
Installation Location
Outdoor
Product Height
35 11/16 Inches
Product Width
29 Inches
Product Depth
29 Inches
Product Weight
160 Pounds
Shipping Weight
175 Pounds
ETL Listed
Yes
ISO Certified
Yes
AHRI Certified
Yes
Energy Star Listed
No
Suction Connection Size
3/4 Inch
Liquid Connection Size
3/8 Inch
Parts Warranty
5 Years
Compressor Warranty
Limited 10 Years
Product Line
GSZB4
Operating Mode
Heating and Cooling
Fuel Type
Natural Gas
Vent Type
Direct Vent
Product Category
Furnace
Blower Motor Type
ECM Variable-Speed
Cabinet Width
17 1/2 Inches
Product Height
34 1/2 Inches
Product Depth
28 3/4 Inches
Product Weight
114 Pounds
Shipping Weight
114 Pounds
Flue Connection Size
2 or 3 Inches
Low Fire Input
28000 BTU
High Fire Input
40000 BTU
Low Fire Output
26880 BTU
High Fire Output
38400 BTU
Maximum Air Flow
1200 CFM
ETL Listed
Yes
ISO Certified
Yes
AHRI Certified
Yes
Energy Star Listed
Yes
Style
A Coil
Casing
Cased
Product Category
Evaporator Coil
TXV Installed
Yes
Cabinet Width
17 1/2 Inches
Product Height
17 1/2 Inches
Product Depth
21 Inches
Product Width
26 Inches
Product Weight
42 Pounds
Shipping Weight
57 Pounds
Suction Connection Size
7/8 Inch
Liquid Connection Size
3/8 Inch
Parts Warranty
10 Limited Years
Warranty
10 Years
General Information
Furnace & Heat Pump Package
Weight
316 Pounds
Dimensions
346 Pounds
