GOODMAN
Brand: GOODMAN
SKU: GSXN402410 GMVC960403BN CHPTA3630B4
Availability: In Stock
Free Shipping
truck-svgrepo-com

Ships via Freight in 3-5 Business Days
$4,236.00
$4,236.00
Bundle Includes
Goodman GSXN402410 2 Ton - 14.3 SEER2 - Air Conditioner - 208/230V - Single Phase - R-410A Quantity: 1
Goodman GMVC960403BN GMVC96 2-Stage Gas Furnace 40000 BTU 96% AFUE Quantity: 1
Goodman CHPTA3630B4 Evaporator Coil 3 Tons Horizontal Replacement MPN Quantity: 1
Manuals:

Specification Highlights

SEER2
15
AFUE
96 %
EER2
11.7

View More

LTL Delivery

This product weighs 348 lbs and may require the use of lift gate. If you require a lift gate you will have the option to add one FREE of charge at checkout.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

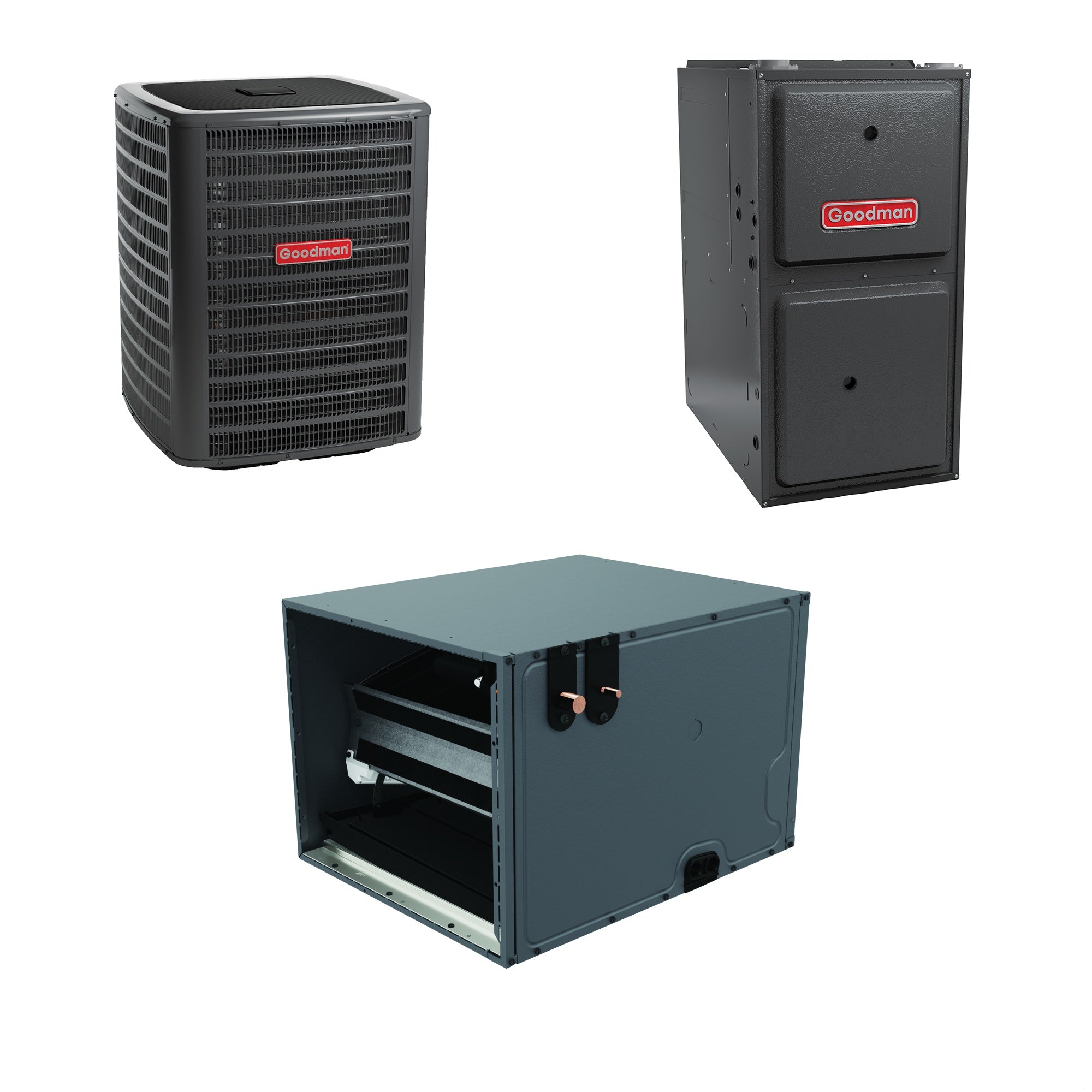

Overview of the Goodman GSXN402410 GMVC960403BN CHPTA3630B4 Bundle System

The Goodman GSXN402410 GMVC960403BN CHPTA3630B4 bundle system provides a comprehensive HVAC solution. This kit includes a GSXN4 air conditioner, a GMVC96 furnace, and a cased CHPTA evaporator coil, making it a fitting option for areas requiring moderate cooling and robust heating capabilities.

Each component is crafted for straightforward installation and long-lasting durability, ensuring both initial and prolonged value. This setup includes:

  • GSXN4 air conditioner
  • GMVC96 furnace
  • CHPTA evaporator coil

The systems SEER2 rating of 15 and 96% AFUE underscore its energy efficiency, making it suitable for varied climatic conditions.

Key Features

  • All-in-one air conditioning and heating solution
  • High energy efficiency with a 15 SEER2 rating
  • Durable and easy-to-install components
  • Multi-speed furnace for variable climates

This set is equipped with durable, efficient, and easy-to-install parts, ideal for providing comprehensive comfort across different seasons.

Goodman GSXN402410 Air Conditioner

The Goodman GSXN402410 air conditioner is a 2.0-ton cooling unit, designed for efficient performance. This air conditioner features:

  • 24,000 BTU cooling capacity
  • Single-stage compressor
  • Aluminum fin and copper tube condenser coil for enhanced efficiency
  • 72 dB maximum sound level

Additionally, the unit includes a factory-installed filter drier to remove moisture and impurities, ensuring optimal system operation.

GMVC960403BN Gas Furnace

The Goodman GMVC960403BN furnace is a robust heating solution with a 40,000 BTU/hr capacity. Key features include:

  • 96% AFUE for high efficiency
  • Two-stage modulating heat output
  • Advanced heat exchanger design for enhanced reliability
  • ComfortBridge™ compatibility for streamlined control

The furnace also supports various venting options and operates quietly, making it a versatile and low-noise choice for heating.

CHPTA3630B4 Cased Evaporator Coil

The Goodman CHPTA3630B4 evaporator coil is designed to complement the air conditioner and furnace. Features include:

  • 3.0-ton cooling capacity
  • 17.5-inch cabinet width
  • Internal thermostatic expansion valve for ideal refrigerant flow
  • Corrosion-resistant UV-resistant drain pan

The coil’s all-aluminum construction maximizes heat transfer efficiency, ensuring effective cooling performance.

Specifications
Overview
SEER2
15
AFUE
96 %
EER2
11.7
Nominal Cooling Capacity
24000 BTU
Heating BTU
40000
Cooling Capacity
22600 BTU
Maximum Air Flow
1200 CFM
Component Type
Furnace & Air Conditioner Package
Voltage
208/230 Volts
Frequency
60 Hz
Minimum Circuit Ampacity
11.2 Amps
Recommended Breaker Size
15 Amps
Installation Location
Outdoor
Compressor Stages
Single Stage
Cooling BTU
24000
Maximum Sound Level
72 dB
Dimensions
32 1/2 Inches
Dimensions
26 Inches
Dimensions
26 Inches
Dimensions
138 Pounds
Suction Connection Size
3/4 Inch
Liquid Connection Size
3/8 Inch
Energy Star Listed
No
ETL Listed
Yes
ISO Certified
Yes
Warranty
Limited* 10 Years
Compressor Warranty
LIFETIME
Phase
1
Type
Condenser
Product Line
GSXN4
Product Category
Air Conditioning Condensers
Refrigerant Type
R-410A
General Information
Cooling
Product Height
34 1/2 Inches
Product Width
17 1/2 Inches
Product Depth
28 3/4 Inches
Product Weight
114 Pounds
Cabinet Width
17 1/2 Inches
Flue Connection Size
2 or 3 Inches
Fuel Type
Natural Gas
Vent Type
Direct Vent
Blower Motor Type
ECM Variable-Speed
Configuration
Upflow/Horizontal
Gas Conversion Kit
Available
Modulating/Staging
Two Stage
Maximum Air Flow
1200 CFM
Low NOx Emissions
Yes
AFUE
96 %
Heating BTU
40000
High Fire Input
40000 BTU
High Fire Output
38400 BTU
Low Fire Input
28000 BTU
Low Fire Output
26880 BTU
Voltage
115 Volts
Minimum Circuit Ampacity
7.8 Amps
Recommended Breaker Size
15 Amps
Energy Star Listed
Yes
ETL Listed
Yes
ISO Certified
Yes
AHRI Certified
Yes
Parts Warranty
5 Years
Heat Exchanger Warranty
20 Years
Type
Gas Furnace
Product Line
GMVC96
Product Category
Furnace
Horizontal
Yes
TXV Installed
Yes
Capacity
3.0 Tons
Cooling BTU
36000
Nominal Minimum Cooling Capacity
36000 BTU
Suction Connection Size
7/8 Inch
Liquid Connection Size
3/8 Inch
Dimensions
17 1/2 Inches
Dimensions
30 Inches
Dimensions
21 Inches
Product Weight
51 Pounds
Shipping Weight
66 Pounds
Configuration
Horizontal
Style
A Coil
Casing
Cased
ETL Listed
Yes
ISO Certified
Yes
