Goodman 10123531 Rolloutlimitsw. L325f,40f dif replaces 10123532 10123504

Product Description

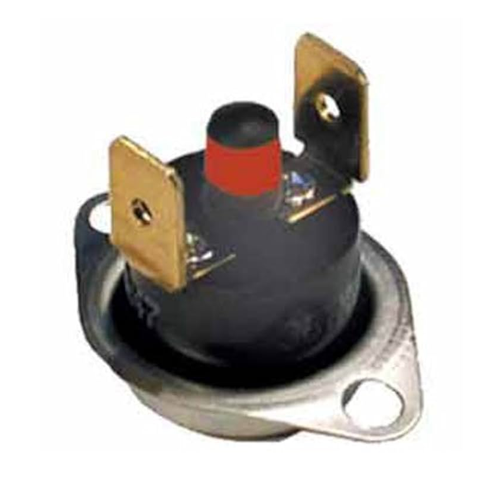

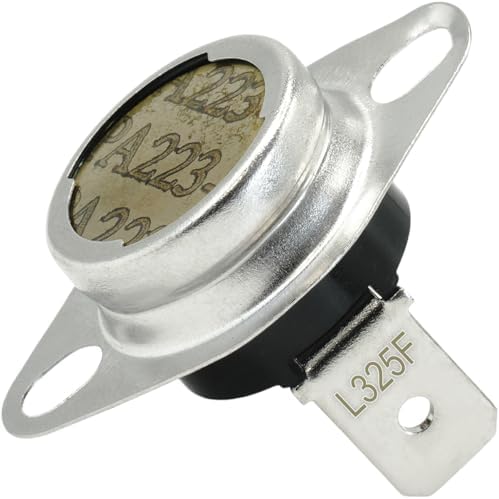

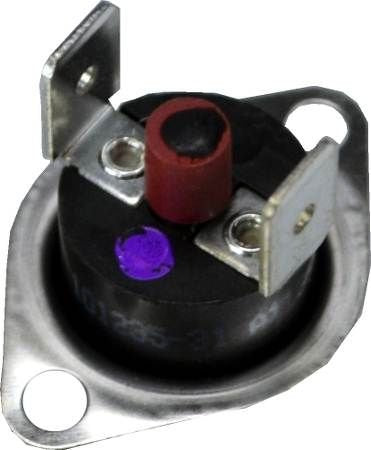

The GOODMAN 10123531 Rolloutlimitsw. L325f,40f dif is a replacement part engineered to resolve temperature control malfunctions in heating systems. This manual reset limit switch maintains a closed circuit during normal furnace operation, and opens automatically at 325F to cut power and prevent damage. It is compatible with select Amana and Goodman furnace models.

• Triggers power cut at 325F when overheating occurs; requires manual operation to restore circuit and resume furnace use
• Must fully cool down before manual reset; attempting reset while hot may cause switch damage and affect performance
• Stays closed during normal operation; opens automatically at 325F to protect furnace internal components

Product Highlights

The GOODMAN 10123531 is a manual reset limit switch that protects furnaces from overheating by cutting power at 325F. It is compatible with select Amana and Goodman models.

Product Information

Standard Information

• Brand: GOODMAN
• Manufacturer Part Number: 10123531
• Country of Origin: United States

Technical Specifications

• Manufacturer: Goodman Parts
• Brand: Goodman
• MPN: 10123531
• Product Type: MECHANICAL_COMPONENTS
• Country of Origin (subject to change): United States
• Operation Mode: ON-OFF
• Current Rating: 16 Amps
• Operating Voltage: 120 Volts
• Contact Type: Normally Closed
• Connector Type: Clamp
• Terminal: Spade
• Circuit Type: 1-way
• Mounting Type: Surface Mount
• Number of Positions: 2
• Upper Temperature Rating: 325 Degrees Fahrenheit
• Contact Material: Brass
• Specification Met: RoHS
• Model: Manual
• Item Number: 10123531SP
