Goodman - 1.5 Ton Cooling - 80k BTU/Hr Heating - Heat Pump + Furnace System - 14.3 SEER2 - 97% AFUE - Upflow

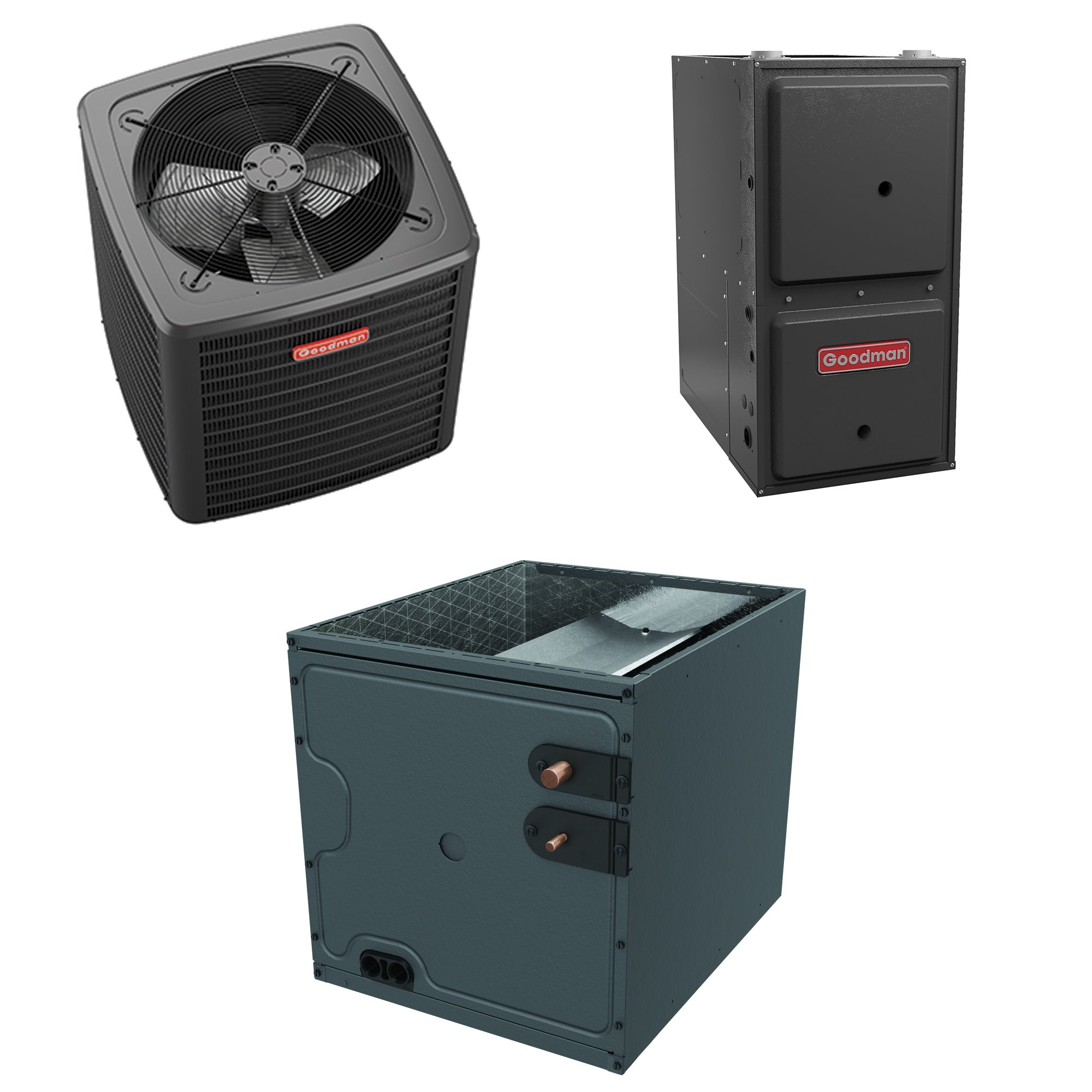

The Goodman GSZB401810 GMVM970803BN CAPTA3022B4 Bundle System

The Goodman GSZB401810 GMVM970803BN CAPTA3022B4 is a comprehensive heat pump and furnace system. This bundle includes the GSZB4 air conditioner, GMVM97 furnace, and CAPTA evaporator coil, making it an ideal solution for HVAC needs across various regions. Each component is designed for ease of installation and long-term durability. The system offers upfront and lasting value, supported by Goodmans reputation for quality craftsmanship. Sold together as a bundle, each component has a specific role, providing complete comfort solutions.

• 1.5 Ton Cooling Capacity
• 80,000 BTU Heating Capacity
• 14.3 SEER2 and 97% AFUE efficiency
• Includes air conditioner, furnace, and evaporator coil
• Designed for durability and ease of installation
• Upflow configuration

The Goodman GSZB401810 Air Conditioner

The Goodman GSZB401810 is a single-stage heat pump and air conditioner with a cooling capacity of 1.5 tons and a heating capacity of 18,000 BTU. It features aluminum fins and copper tubing for efficient heat transfer. The unit uses R-410A refrigerant and has a SEER2 rating of 14.3 for energy efficiency.

• 1.5 Ton Cooling Capacity
• Single Stage Compressor
• R-410A Refrigerant
• 70 dB Maximum Sound Level
• Factory-installed Suction-Line Accumulator
• 35-11/16 inches height, 29 inches width, and 29 inches depth

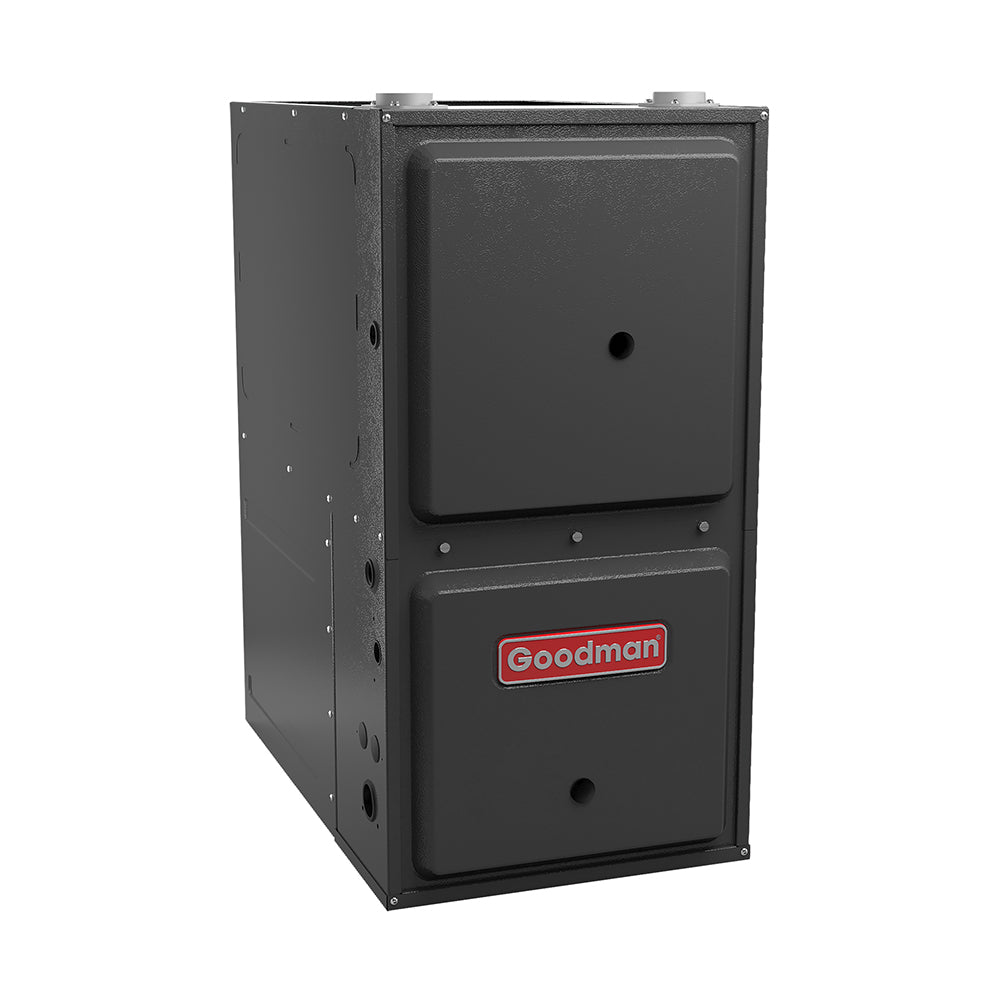

The GMVM970803BN Gas Furnace

The GMVM970803BN is a gas furnace with an 80,000 BTU heating capacity and a 97% AFUE efficiency rating. It employs a dual-diameter tubular heat exchanger made of aluminized steel, enhancing heat transfer and long-term reliability. The furnace features low sound levels and multiple venting options, including two-pipe direct vent and single-pipe configurations.

• 80,000 BTU Heating Capacity
• 97% AFUE Efficiency
• ECM Variable-Speed Blower Motor
• ComfortBridge™ Compatible
• Vent type: Direct Vent
• 34-1/2 inches height, 17-1/2 inches width, and 28-3/4 inches depth

The CAPTA3022B4 Cased Evaporator Coil

The CAPTA3022B4 is a 2.5-ton upflow/downflow evaporator coil with a 30,000 BTU nominal cooling capacity. It features an all-aluminum design with sine fins and grooved tubes for optimal heat transfer. This component includes a factory-installed internal thermostatic expansion valve, facilitating easy installation and ideal refrigerant flow.

• 2.5 Ton Cooling Capacity
• All-Aluminum Coil
• Factory-installed Internal Thermostatic Expansion Valve
• Foil-faced Insulation
• Rust-resistant Thermoplastic Drain Pan
• 22 inches height, 17.5 inches width, and 21 inches depth

Key Features

The Goodman bundle system brings together an air conditioner, furnace, and evaporator coil, all designed to work seamlessly. The heat exchanger uses aluminized steel for efficient heating, while the evaporator coils aluminum design ensures optimal cooling. The units are built for quiet operation, energy efficiency, and easy installation.
