Goodman - 1.5 Ton Cooling - 80k BTU/Hr Heating - Air Conditioner + Variable Speed Furnace System - 15 SEER2 - 80% AFUE - Upflow
Goodman - 1.5 Ton Cooling - 80k BTU/Hr Heating - Air Conditioner + Variable Speed Furnace System - 15 SEER2 - 80% AFUE - Upflow
Goodman - 1.5 Ton Cooling - 80k BTU/Hr Heating - Air Conditioner + Variable Speed Furnace System - 15 SEER2 - 80% AFUE - Upflow
Goodman - 1.5 Ton Cooling - 80k BTU/Hr Heating - Air Conditioner + Variable Speed Furnace System - 15 SEER2 - 80% AFUE - Upflow

Goodman - 1.5 Ton Cooling - 80k BTU/Hr Heating - Air Conditioner + Variable Speed Furnace System - 15 SEER2 - 80% AFUE - Upflow

GOODMAN
Brand: GOODMAN
SKU: GSXN401810 GMVC800803BN CAPTA1818B4
Availability: In Stock
Free Shipping
truck-svgrepo-com

Ships via Freight in 3-5 Business Days
$3,839.00
$3,839.00
Bundle Includes
Goodman GSXN401810 1.5 Ton - 14.3 SEER2 - Air Conditioner - 208/230V - Single Phase - R-410A Quantity: 1
Goodman GMVC800803BN GMVC80 Series 80% AFUE - 80,000 BTU - Horizontal/Upflow - Furnace Quantity: 1
Goodman CAPTA1818B4 Evaporator Coil 1.5 Tons Upflow Downflow R-410A TXV Quantity: 1
Manuals:

Specification Highlights

Performance AFUE
80%
Performance EER2
11.7
Performance Capacity
1.5 Tons

View More

LTL Delivery

This product weighs 287 lbs and may require the use of lift gate. If you require a lift gate you will have the option to add one FREE of charge at checkout.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Features

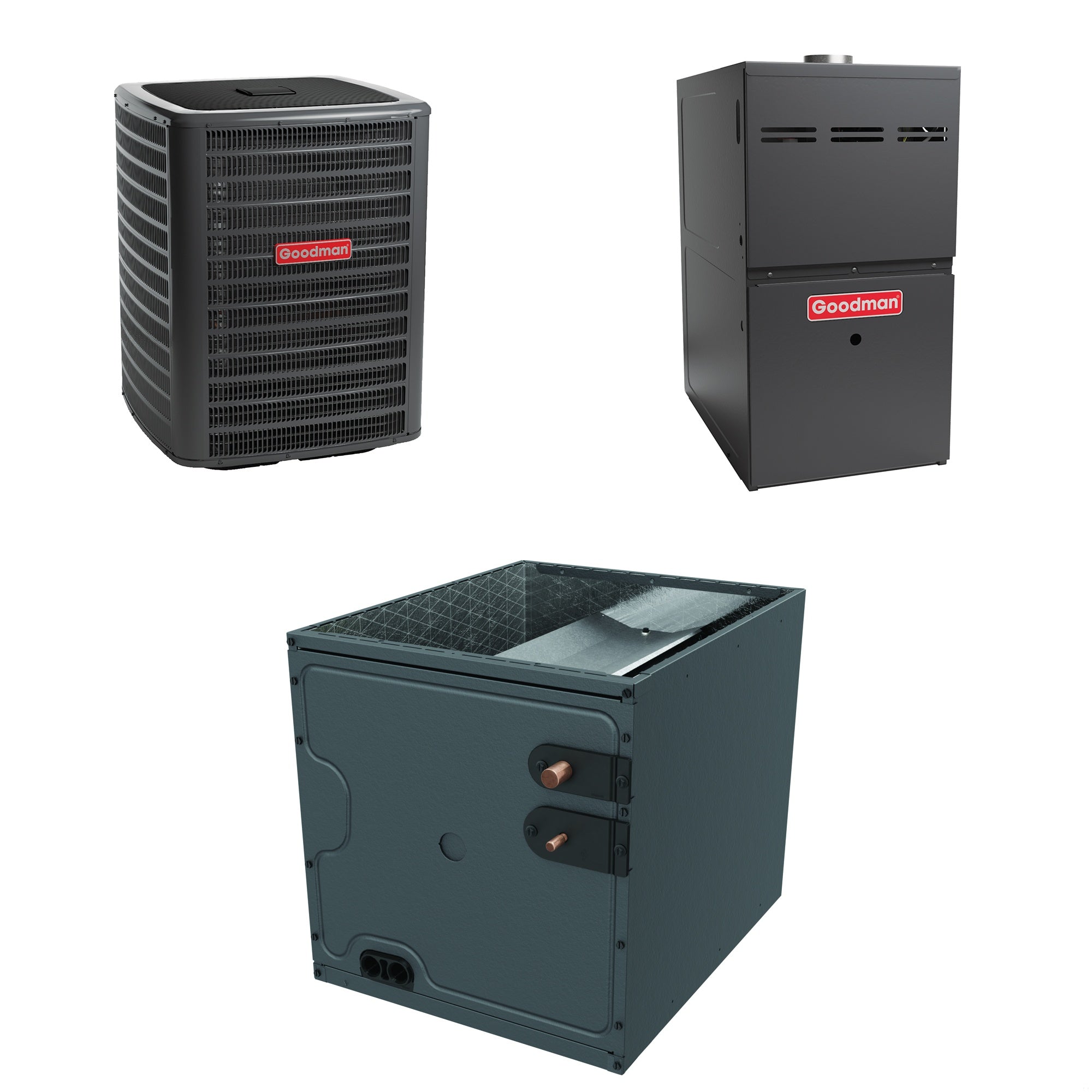

The Goodman GSXN401810 GMVC800803BN CAPTA1818B4 bundle is a comprehensive HVAC solution. This system includes the GSXN4 air conditioner, GMVC80 furnace, and CAPTA cased evaporator coil. Designed for ease of installation and durability, it is ideal for regions with standard cooling needs but require a robust, multi-speed furnace for colder seasons. The bundle is made for efficiency and longevity, providing both immediate and long-term value for homeowners.

  • All-Aluminum Coil
  • Internal Thermostatic Expansion Valve
  • Condensate Management
  • Advanced Heat Exchanger Design
  • Variable Speed ECM Motor
  • Quiet Comfort
  • ComfortBridge Technology
  • Energy-Efficient Compressor
  • Factory-Installed Filter Drier
  • Heavy-Gauge Galvanized-Steel Cabinet

Bundle Highlights

This HVAC bundle includes an air conditioner, furnace, and evaporator coil, all of which are designed for efficiency and long-term use. The system is ideal for homes needing reliable heating and cooling solutions.

Product Information

Goodman GSXN401810 Air Conditioner

The Goodman GSXN401810 air conditioner features a single-stage energy-efficient compressor, utilizing R-410A refrigerant. Its designed with aluminum fins and copper tubing to maximize efficiency. The factory-installed filter drier removes moisture and traps impurities, enhancing the units longevity.

  • Cooling Capacity: 18,000 BTU
  • Energy Efficiency: 14.3 SEER2, 11.7 EER2
  • Noise Level: 71 dB
  • Dimensions: 27 H x 26 W x 26 D inches

Goodman GMVC800803BN Gas Furnace

The GMVC800803BN gas furnace has a heavy-duty tubular heat exchanger made of aluminized steel. It features a variable speed ECM motor for precise temperature control, reducing utility costs. ComfortBridge technology continuously monitors system performance for customized comfort.

  • Heating Capacity: 80,000 BTU
  • Efficiency: 80% AFUE
  • Air Flow: 1,200 CFM
  • Dimensions: 33.5 H x 17.5 W x 28 D inches

Goodman CAPTA1818B4 Evaporator Coil

The CAPTA1818B4 cased evaporator coil features an all-aluminum design. It has a factory-installed thermostatic expansion valve for optimized refrigerant flow. The coil includes foil-faced insulation to prevent condensation and a rust-resistant drain pan.

  • Cooling Capacity: 18,000 BTU
  • Width: 17.5 inches
  • Height: 18 inches
  • Depth: 21 inches
Specifications
Overview
Performance AFUE
80%
Performance EER2
11.7
Performance Capacity
1.5 Tons
General Information Type
Air Conditioning Condensers
General Information Refrigerant Type
R-410A
General Information Compressor Stages
Single Stage
General Information DOE Regional Compliance
Nationwide
Certifications ETL Listed
Yes
Certifications ISO Certified
Yes
Certifications AHRI Certified
Yes
Dimensions Product Height
27 Inches
Dimensions Product Width
26 Inches
Dimensions Product Depth
26 Inches
Dimensions Product Weight
118 Pounds
Electrical Data Voltage
208/230 Volts
Electrical Data Frequency
60 Hz
Electrical Data Minimum Circuit Ampacity
8.3 Amps
Electrical Data Recommended Breaker Size
15 Amps
Performance Maximum Sound Level
71 dB
Performance Cooling BTU
18000
Warranty Information Parts Warranty
Limited* 10 Years Years
Warranty Information Compressor Warranty
LIFETIME Years
General Information Operating Mode
Cooling
General Information Installation Location
Outdoor
General Information Product Line
GSXN4
Performance Nominal Cooling Capacity
18000 BTU
General Information Casing
Cased
General Information Style
A Coil
General Information Configuration
Upflow/Downflow
General Information Product Category
Evaporator Coil
General Information TXV Installed
Yes
General Information Product Line
CAPT
Dimensions Liquid Connection Size
3/8 Inch
Dimensions Suction Connection Size
3/4 Inch
Dimensions Product Height
18 Inches
Dimensions Product Width
17.5 Inches
Dimensions Product Depth
21 Inches
Performance Cooling BTU
18000
General Information Type
Evaporator Coil
General Information Refrigerant Type
R-410A
Certifications ETL Listed
Yes
Certifications AHRI Certified
Yes
Warranty Information Warranty
5 Years
General Information Fuel Type
Natural Gas
General Information Vent Type
Chimney Vent
General Information Installation Available
Yes
General Information Configuration
Upflow/Horizontal
General Information Modulating/Staging
Two Stage
General Information Blower Motor Type
ECM Variable-Speed
Dimensions Product Height
33.5 Inches
Dimensions Product Width
17.5 Inches
Dimensions Product Depth
28 Inches
Dimensions Cabinet Width
17.5 Inches
Dimensions Flue Connection Size
4 Inches
Performance Maximum Air Flow
1200 CFM
Performance Heating BTU
80000
Performance High Fire Input
80000 BTU
Performance Low Fire Input
56000 BTU
Performance High Fire Output
64000 BTU
Performance Low Fire Output
44800 BTU
Electrical Data Voltage
115 Volts
Electrical Data Frequency
60 Hz
Electrical Data Minimum Circuit Ampacity
7.75 Amps
Electrical Data Recommended Breaker Size
15 Amps
Certifications ETL Listed
Yes
Certifications ISO Certified
Yes
Certifications AHRI Certified
Yes
Warranty Information Parts Warranty
10 Years
Warranty Information Heat Exchanger Warranty
Lifetime Years
Performance AFUE
80%
Certifications Ultra Low NOx Emissions
No
Certifications Low NOx Emissions
No
Certifications AHRI Reference Number
202327716
General Information Product Line
GMVC80
General Information Type
Gas Furnace
General Information Product Category
Furnace
General Information Installation Available
Yes
General Information DOE Regional Compliance
Nationwide (Except CA)
