Goodman - 1.5 Ton Cooling - 80k BTU/Hr Heating - Air Conditioner + Variable Speed Furnace System - 15 SEER2 - 80% AFUE - Downflow

GOODMAN
Brand: GOODMAN
SKU: GSXN401810 GCVC800803BX CAPTA1818B4
Availability: In Stock
Free Shipping
truck-svgrepo-com

Ships via Freight in 3-5 Business Days

$3,889.00
$3,889.00
Bundle Includes
Goodman GSXN401810 1.5 Ton - 14.3 SEER2 - Air Conditioner - 208/230V - Single Phase - R-410A Quantity: 1
Goodman GCVC800803BX GCVC80 80% AFUE - 80,000 BTU - Downflow/Horizontal - Furnace Quantity: 1
Goodman CAPTA1818B4 Evaporator Coil 1.5 Tons Upflow Downflow R-410A TXV Quantity: 1

Specification Highlights

SEER2
15
Capacity (Tons)
1.5
Furnace Capacity (BTU/h)
80k

View More

LTL Delivery

This product weighs 286 lbs and may require the use of lift gate. If you require a lift gate you will have the option to add one FREE of charge at checkout.

HAVE A QUESTION?

Our team is ready to help!

  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Overview

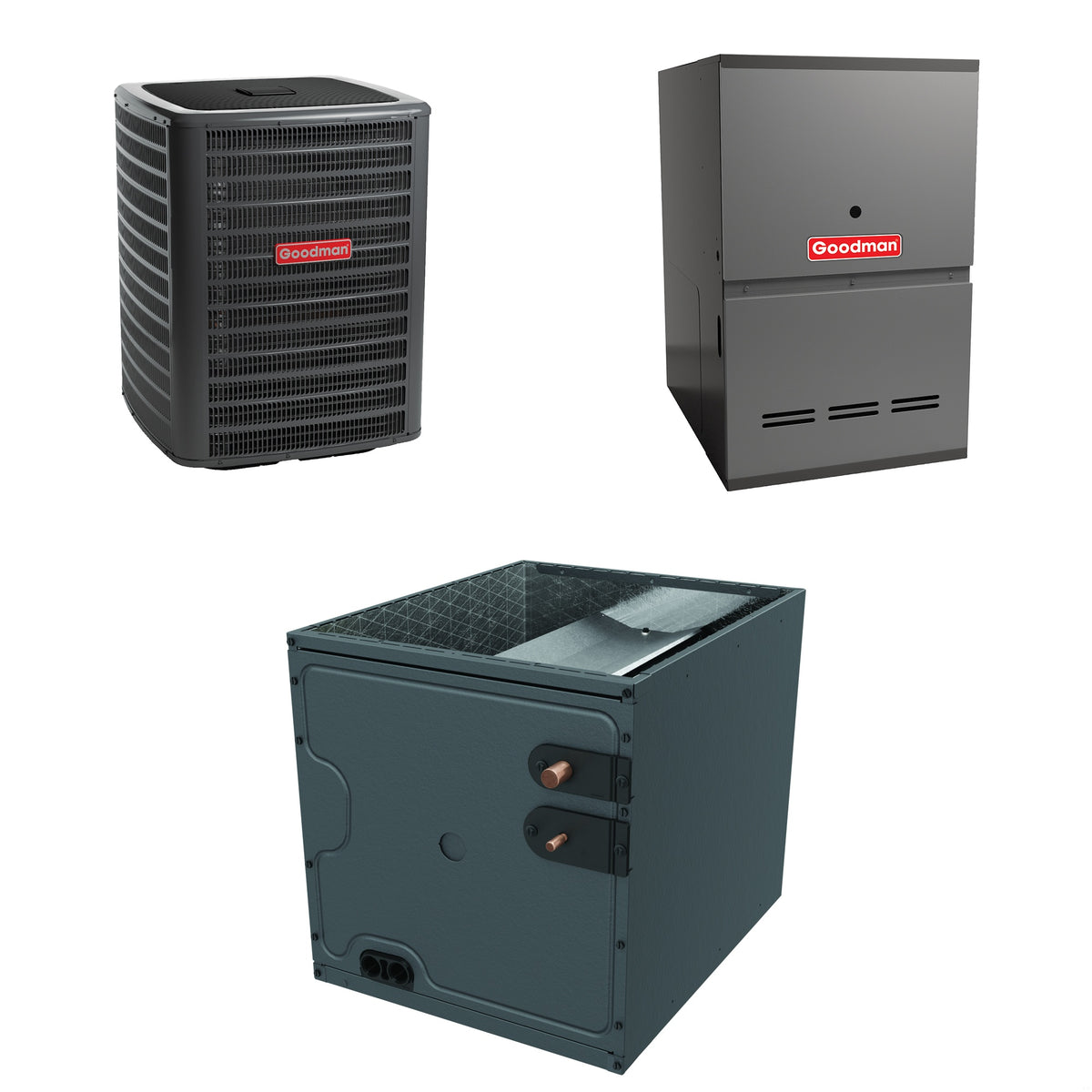

The Goodman GSXN401810 GCVC800803BX CAPTA1818B4 bundled system includes a central air conditioner, a variable speed furnace, and a cased evaporator coil. This system is designed for efficiency, reliability, and ease of installation, making it ideal for homes that experience moderate cooling needs and long cold winters.

System Features

  • All-Aluminum Coil: Enhanced heat transfer and durability with sine fins and grooved tubes.
  • Internal Thermostatic Expansion Valve: Maintains optimal refrigerant flow.
  • Condensate Management: Foil-faced insulation and rust-resistant thermoplastic drain pan.
  • Advanced Heat Exchanger: Heavy-duty tubular design for efficient heat transfer.
  • ComfortBridge™ Technology: Continuous system performance monitoring.

Goodman GSXN401810 Air Conditioner

The Goodman GSXN401810 is a 1.5-ton air conditioner with 14.3 SEER2 efficiency, utilizing R-410A refrigerant. It features a single-stage compressor and a condenser coil with aluminum fins and copper tubing, maximizing heat transfer capabilities. A factory-installed filter drier removes moisture and traps impurities, preventing operational issues such as corrosion and freezing.

  • Energy-Efficient Compressor: Ensures proper refrigerant flow and system efficiency.
  • Durable Cabinet: Heavy-gauge galvanized steel construction with a powder-paint finish.
  • Quiet Operation: Maintains low sound levels for a peaceful environment.
  • Extended Warranty: 10-year limited parts warranty with registration.

Goodman GCVC800803BX Gas Furnace

The Goodman GCVC800803BX is an 80,000 BTU/hr gas furnace with 80% AFUE efficiency. It features a variable speed ECM motor, ensuring quiet and efficient operation by adjusting speeds based on heating or cooling demand. The furnace also includes ComfortBridge™ technology for optimized comfort and system performance.

  • Variable Speed ECM Motor: Provides accurate temperature control and energy savings.
  • Heavy-Duty Heat Exchanger: Aluminized steel construction for efficient heat transfer.
  • Quiet Comfort: Low sound levels with a selectable airflow system.
  • 10-Year Parts Warranty: Enhanced protection with registration.

Goodman CAPTA1818B4 Cased Evaporator Coil

The Goodman CAPTA1818B4 is a 1.5-ton cased evaporator coil designed for upflow and downflow configurations. It features a factory-installed thermostatic expansion valve for efficient refrigerant flow and foil-faced insulation for condensate management. The coil uses an all-aluminum design, maximizing surface area and heat transfer efficiency.

  • All-Aluminum Construction: Durable and efficient heat transfer design.
  • Thermostatic Expansion Valve: Maintains optimal refrigerant flow.
  • Condensate Management: Rust-resistant thermoplastic drain pan.
  • 5-Year Warranty: Ensures protection against defects.
Overview
SEER2
15
Capacity (Tons)
1.5
Furnace Capacity (BTU/h)
80k
Cooling BTU
17400
Nominal Cooling Capacity
18000 BTU
Heating BTU
80000
Maximum Air Flow
1200 CFM
EER2
11.7
AFUE
80%
Electrical Data - Voltage
208/230 Volts
Electrical Data - Phase
1
Electrical Data - Frequency
60 Hz
Electrical Data - Minimum Circuit Ampacity
8.3 Amps
Electrical Data - Recommended Breaker Size
15 Amps
Dimensions - Product Height
27 Inches
Dimensions - Product Width
26 Inches
Dimensions - Product Depth
26 Inches
Dimensions - Product Weight
118 Pounds
Dimensions - Shipping Weight
136 Pounds
General Information - Type
Condenser
General Information - Product Line
GSXN4
General Information - Product Category
Air Conditioning Condensers
General Information - Installation Location
Outdoor
General Information - Operating Mode
Cooling
General Information - Refrigerant Type
R-410A
General Information - Compressor Stages
Single Stage
Warranty Information - Parts Warranty
Limited* 10 Years
Warranty Information - Compressor Warranty
Lifetime
Certifications - ETL Listed
Yes
Certifications - ISO Certified
Yes
Certifications - AHRI Certified
Yes
Certifications - Energy Star Listed
