Goodman - 1.5 Ton Cooling - 80k BTU/Hr Heating - Air Conditioner + Multi Speed Furnace System - 14.5 SEER2 - 96% AFUE - Horizontal

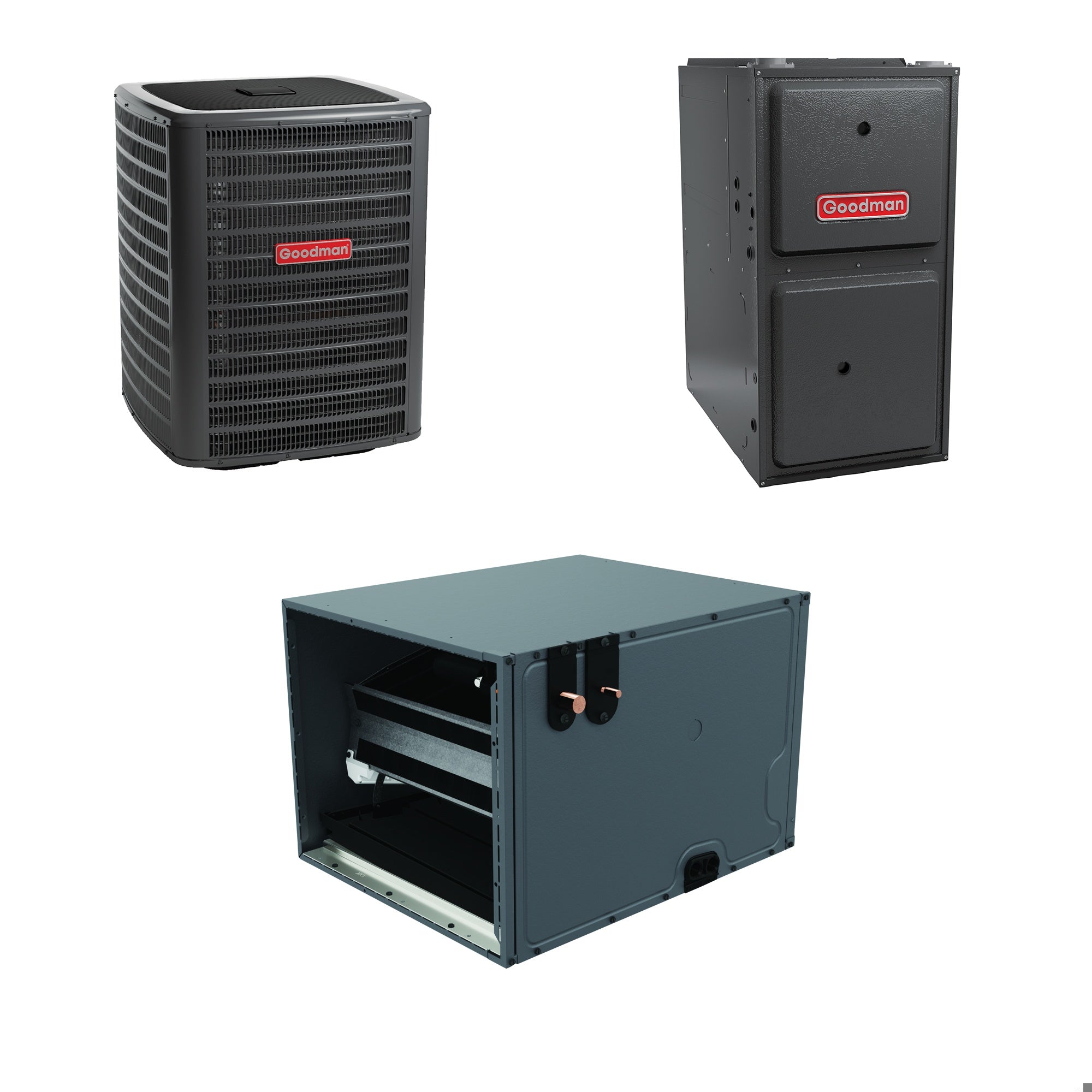

The Goodman GSXN401810 GM9S960803BN CHPTA1822B4 Bundle System

The Goodman GSXN401810 GM9S960803BN CHPTA1822B4 bundle system is an ideal HVAC solution for comprehensive home comfort. This system includes an air conditioner, furnace, and evaporator coil, working together to deliver efficient cooling and heating. It consists of the following components:

• Goodman GSXN401810 air conditioner
• Goodman GM9S960803BN gas furnace
• Goodman CHPTA1822B4 cased evaporator coil

Product Highlights

This bundle is designed for ease of installation and long-term durability. It includes advanced features like an all-aluminum coil, internal thermostatic expansion valve, advanced heat exchanger design, and multiple venting options, making it suitable for various climates and home setups.

The Goodman GSXN401810 Air Conditioner

The Goodman GSXN401810 air conditioner is a 1.5 Ton unit with a 14.3 SEER2 rating. It utilizes an energy-efficient compressor and a copper tube/aluminum fin coil to maximize cooling efficiency. Standard features include:

• Energy-efficient compressor for optimal refrigerant flow
• Factory-installed filter drier to remove moisture and impurities
• Heavy-gauge galvanized-steel cabinet with an architectural gray powder-paint finish
• Quiet operation with low sound levels

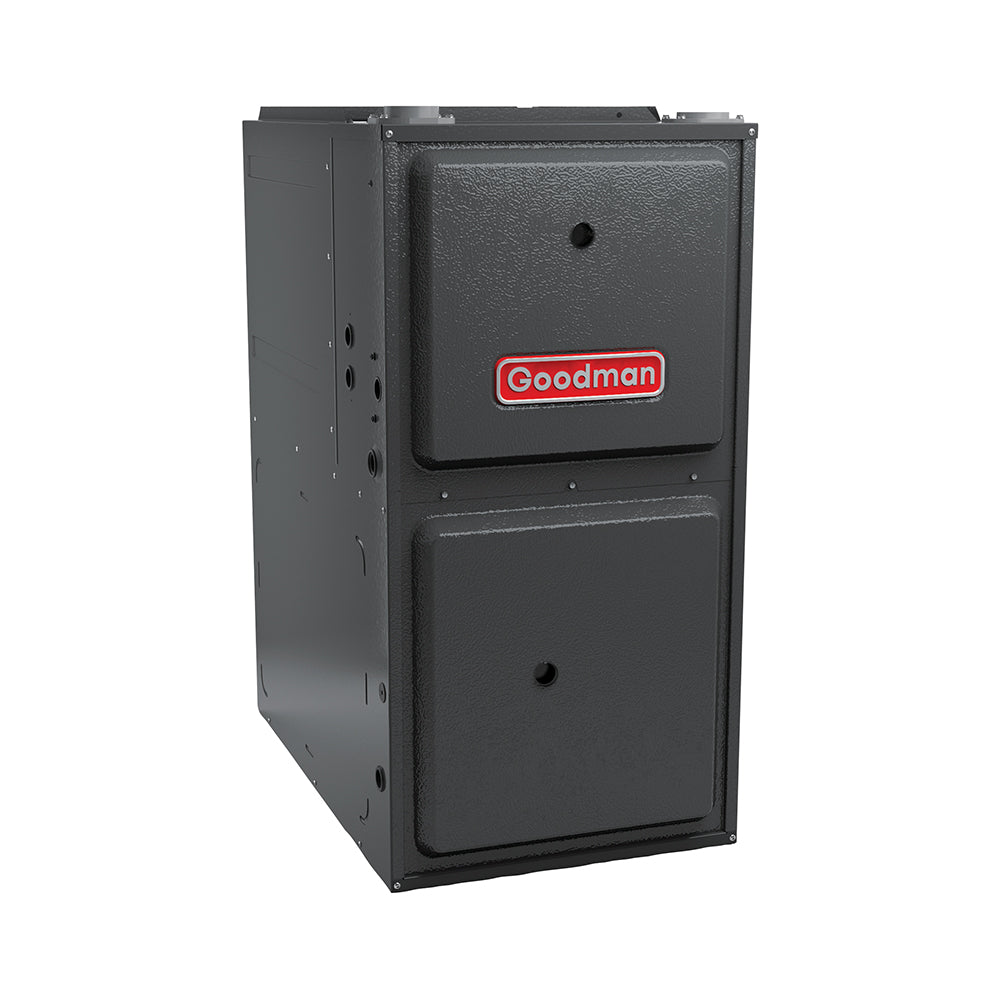

The GM9S960803BN Gas Furnace

The Goodman GM9S960803BN gas furnace is an 80k BTU unit with a 96% AFUE rating. It features an aluminized-steel tubular heat exchanger and a secondary heat exchanger for enhanced heat transfer and efficiency. Standard features include:

• ECM multi-speed blower motor for consistent airflow
• Corrosion-resistant stainless steel secondary heat exchanger
• Low NOx emissions for environmental compliance
• Flexible venting options including two-pipe direct vent setup

The CHPTA1822B4 Cased Evaporator Coil

The Goodman CHPTA1822B4 is a 1.5 Ton horizontal cased evaporator coil with an all-aluminum design. It is equipped with a factory-installed thermostatic expansion valve (TXV) for precise refrigerant control. Standard features include:

• Foil-faced insulation to reduce condensate formation
• UV-resistant thermoplastic drain pan with secondary drain connections
• Efficient heat transfer due to grooved tubes and fins
• Cased design for durability and ease of installation

System Benefits

This Goodman bundle provides a complete HVAC solution with robust components that ensure efficient performance year-round. The system is particularly suited for areas requiring moderate cooling and reliable heating during cold winters. Goodman offers a 10-year parts warranty when registered online within 60 days of installation, providing long-term peace of mind for homeowners.

Product Note:

The recommended line set size may vary based on the installation length. Compatible line sets can be found under the recommended accessories tab.
