Goodman - 1.5 Ton Cooling - 80k BTU/Hr Heating - Air Conditioner + Multi Speed Furnace System - 14.5 SEER2 - 96% AFUE - Downflow

Features

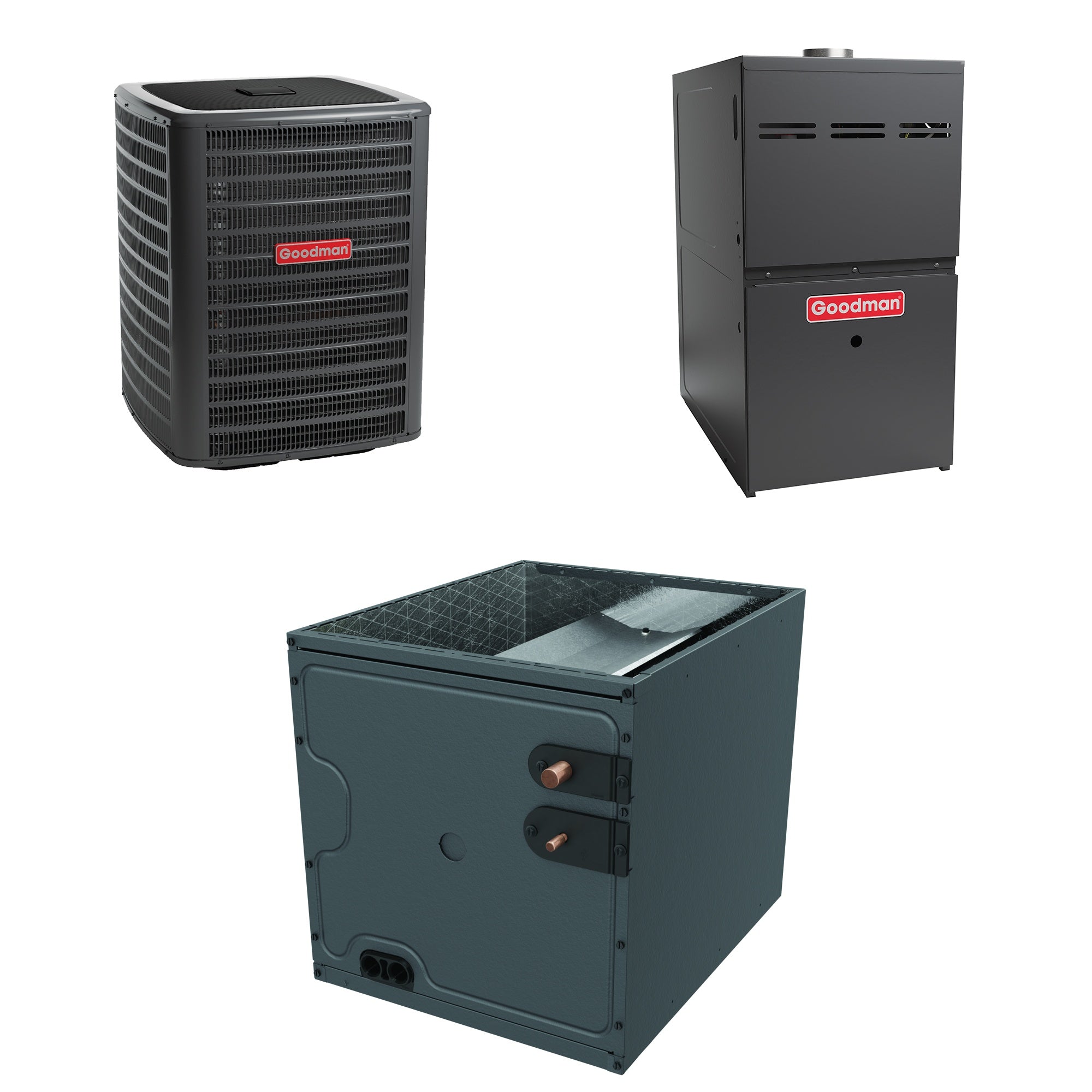

The Goodman GSXN401810 GC9C960803BN CAPTA1818B4 air conditioning and furnace kit is an effective way to upgrade your homes HVAC system. Comprising the GSXN4 air conditioner, GC9C96 furnace, and the CAPTA cased evaporator coil, this kit is suitable for regions with moderate cooling needs but requiring a multi-speed furnace for cold winters. Designed for ease of installation and durability, these components provide both immediate and long-term efficiency.

• All-Aluminum Coil
• Internal Thermostatic Expansion Valve
• Condensate Management
• Advanced Heat Exchanger Design
• Secondary Heat Exchanger
• Quiet Comfort

Product Highlights

This comprehensive HVAC solution is tailored for optimal performance and efficiency. It includes a reliable all-aluminum coil for effective heat transfer, advanced condensate management, a high-efficiency heat exchanger, and multiple venting options for flexible installation.

Product Information

Standard Information

• All-Aluminum Coil: Goodmans evaporator coils feature sine fins and grooved tubes to maximize surface area and optimize heat transfer for efficient comfort.
• Internal Thermostatic Expansion Valve: The CAPTA has a factory-installed internal thermostatic expansion valve, which streamlines installation and maintains ideal refrigerant flow.
• Condensate Management: Features foil-faced insulation to inhibit the formation of condensate and a rust-resistant thermoplastic drain pan.
• Advanced Heat Exchanger Design: Employs a reliable aluminized-steel tubular heat exchanger design for efficient heat transfer and enhanced dependability.
• Secondary Heat Exchanger: Produces additional heat by directing combustion gases through a secondary heat exchanger before they are vented.
• Quiet Comfort: The blower, motor, and gas valve were selected for their low sound levels.
• Venting Options: Offers several venting options to streamline installation.
• Easy Integration: Enhance your system with a humidifier and an electronic air cleaner; simply wire them directly to the low-voltage terminals on the control board.
• Energy-Efficient Compressor: Utilizes an energy-efficient compressor to provide refrigerant flow.
• Copper Tube/Enhanced Aluminum Fin Coil: The condenser coil is designed with aluminum fins and copper tubing.
• Factory-Installed Filter Drier: Installed in the liquid line to remove moisture and trap impurities.
• Heavy-Gauge Galvanized-Steel Cabinet: Built to last with galvanized steel construction, a durable architectural gray powder-paint finish, and a steel louver coil guard.
• Extended Warranty: Offers a 10-year limited parts warranty if registered online within 60 days of installation.

Included Components

Goodman GSXN401810 Air Conditioner

The Goodman GSXN401810 is a 1.5-ton air conditioner with a 14.3 SEER2 rating, designed for efficient cooling. Built with a durable construction and advanced features, this unit ensures reliable performance.

• Capacity: 1.5 Tons
• Cooling Capacity: 18000 BTU
• SEER2: 14.3
• Compressor Stages: Single Stage
• Energy Star Listed: No
• ETL Listed: Yes
• AHRI Certified: Yes
• ISO Certified: Yes

Goodman GC9C960803BN Gas Furnace

The Goodman GC9C960803BN is an 80k BTU gas furnace with a 96% AFUE rating. Its design focuses on quiet operation and durability, featuring an advanced heat exchanger and several venting options.

• Capacity: 80000 BTU
• AFUE: 96%
• Heating BTU: 80000
• Configurations: Downflow/Horizontal
• Blower Motor Type: ECM Multi-Speed
• Energy Star Listed: Yes
• ETL Listed: Yes
• AHRI Certified: Yes
• ISO Certified: Yes

Goodman CAPTA1818B4 Cased Evaporator Coil

The Goodman CAPTA1818B4 is a 1.5-ton evaporator coil, designed to optimize heat transfer and efficiency. It features a factory-installed TXV for easy installation and reliable performance.

• Capacity: 1.5 Tons
• Cooling Capacity: 18000 BTU
• Type: Evaporator Coil
• Style: A Coil
• Configurations: Upflow/Downflow
• TXV Installed: Yes
• ETL Listed: Yes
• AHRI Certified: Yes
