Goodman - 1.5 Ton Cooling - 60k BTU/Hr Heating - Heat Pump + Furnace System - 14.3 SEER2 - 80% AFUE - Upflow

Overview

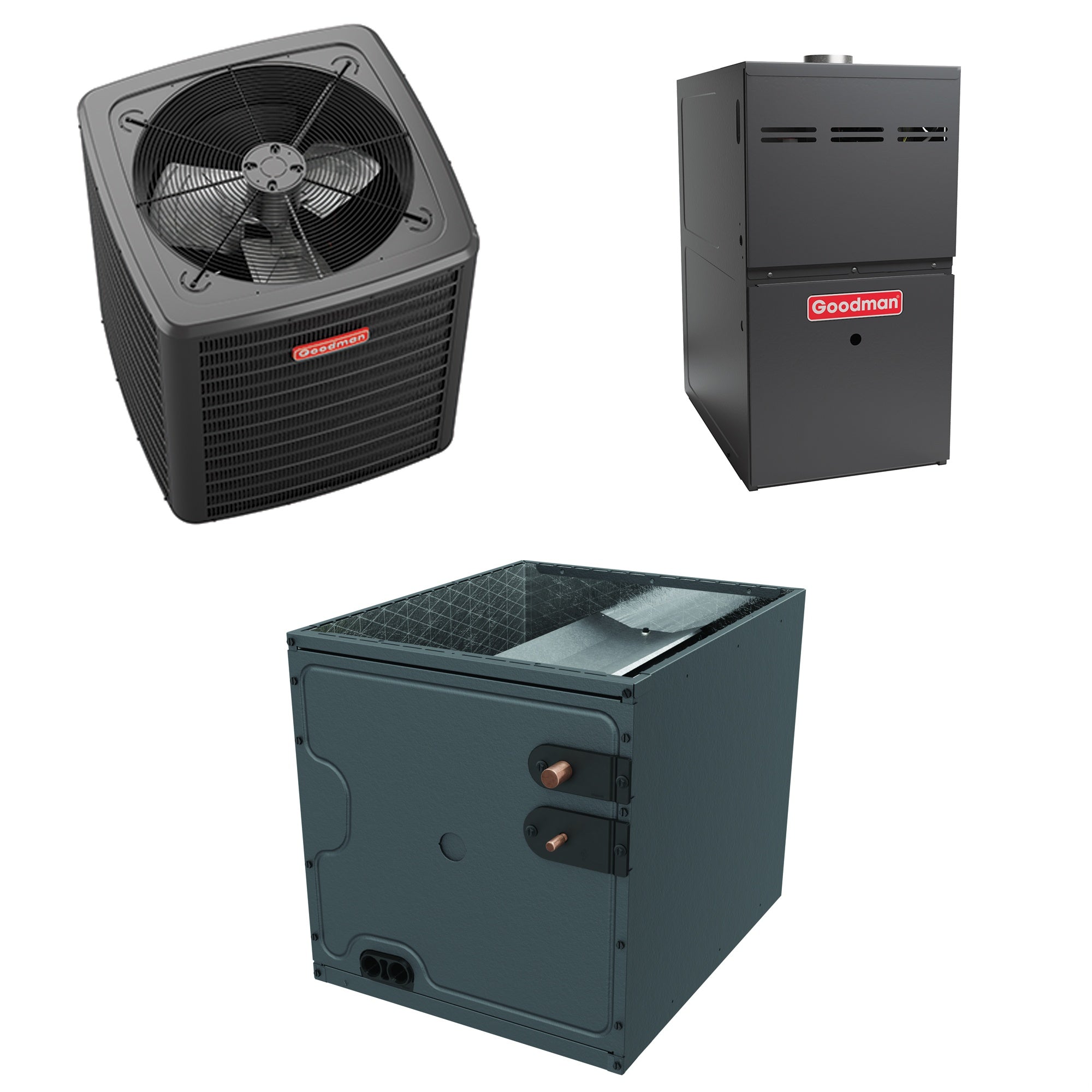

The Goodman GSZB401810 GMVC800603BN CAPTA3022B4 includes a heat pump, furnace, and evaporator coil. This comprehensive HVAC bundle ensures optimal indoor comfort and energy efficiency.

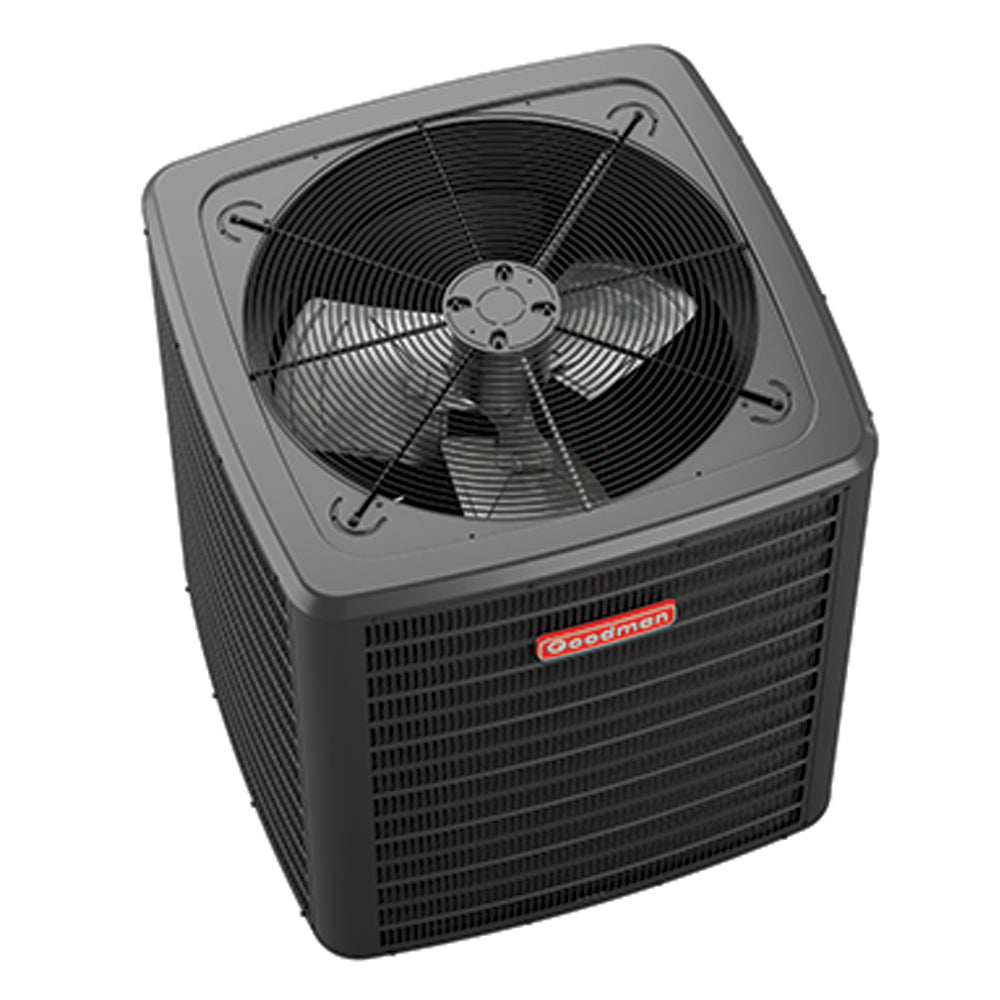

Goodman GSZB401810 Heat Pump

The GSZB401810 is a single-stage heat pump with a cooling capacity of 1.5 tons and a heating capacity of 18,000 BTU. It features aluminum fins with copper tubing to maximize heat transfer and energy efficiency. The factory-installed suction-line accumulator and high-capacity muffler enhance the units reliability and noise reduction.

• SEER2: 14.3
• HSPF2: 7.5
• Maximum Sound Level: 70 dB
• Weight: 161 Pounds
• Height: 35 11/16 Inches
• Width: 29 Inches
• Depth: 29 Inches

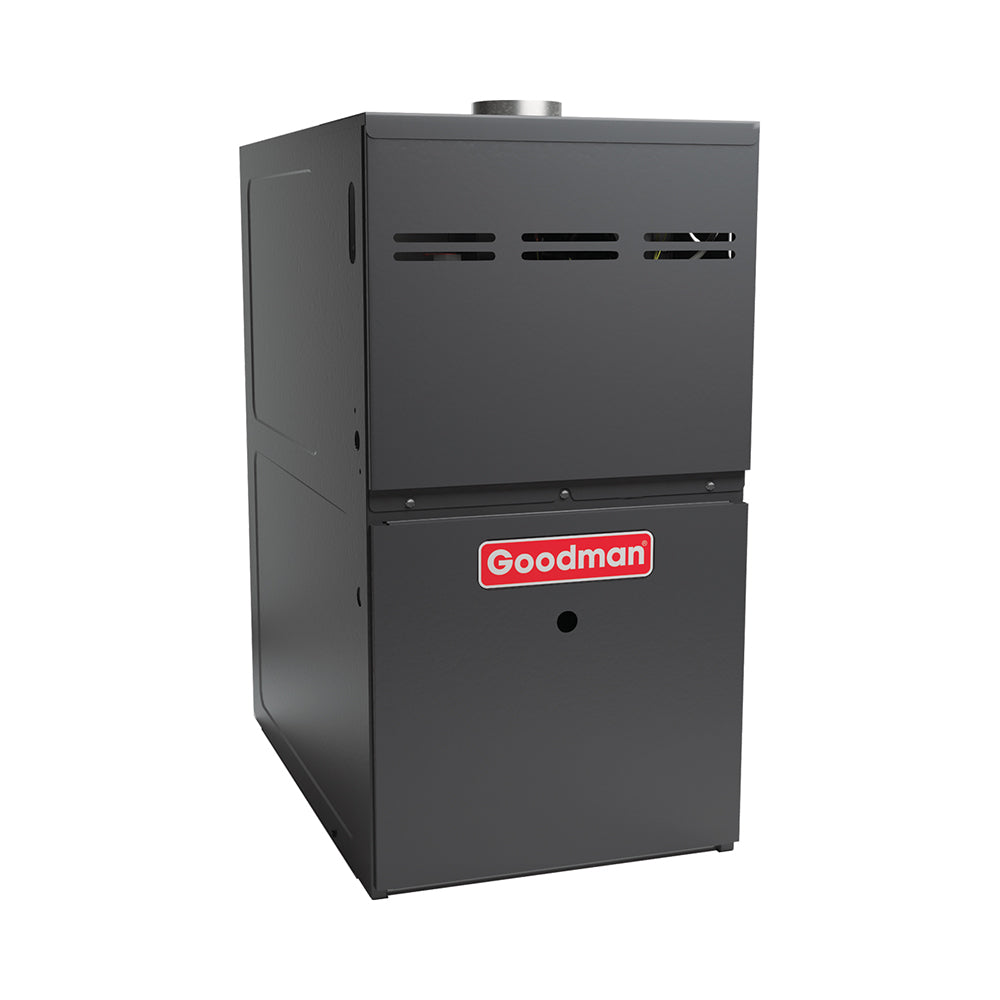

Goodman GMVC800603BN Gas Furnace

The GMVC800603BN is a natural gas furnace with an 80% AFUE rating. It includes a variable-speed ECM motor, quiet operation, and ComfortBridge technology for continuous system performance monitoring. The furnace also features a heavy-duty tubular heat exchanger made of aluminized steel.

• AFUE: 80%
• Heating BTU: 60,000
• Weight: 105 Pounds
• Height: 33 1/2 Inches
• Width: 17 1/2 Inches
• Depth: 28 Inches

Goodman CAPTA3022B4 Evaporator Coil

The CAPTA3022B4 is a cased evaporator coil with a cooling capacity of 2.5 tons. It features an all-aluminum coil design for efficient heat transfer and a factory-installed thermostatic expansion valve for optimal refrigerant flow. The coil also includes foil-faced insulation and a rust-resistant thermoplastic drain pan for effective condensate management.

• Nominal Minimum Cooling Capacity: 30,000 BTU
• Weight: 48 Pounds
• Height: 22 Inches
• Width: 17 1/2 Inches
• Depth: 21 Inches

Product Information

System Features

• Heat Pump and Furnace Kit
• 1.5 Ton Cooling Capacity
• 60,000 BTU Heating Capacity
• Upflow Configuration
• R-410A Refrigerant
