Goodman - 1.5 Ton Cooling - 60k BTU/Hr Heating - Heat Pump + Furnace System - 14.3 SEER2 - 80% AFUE - Horizontal

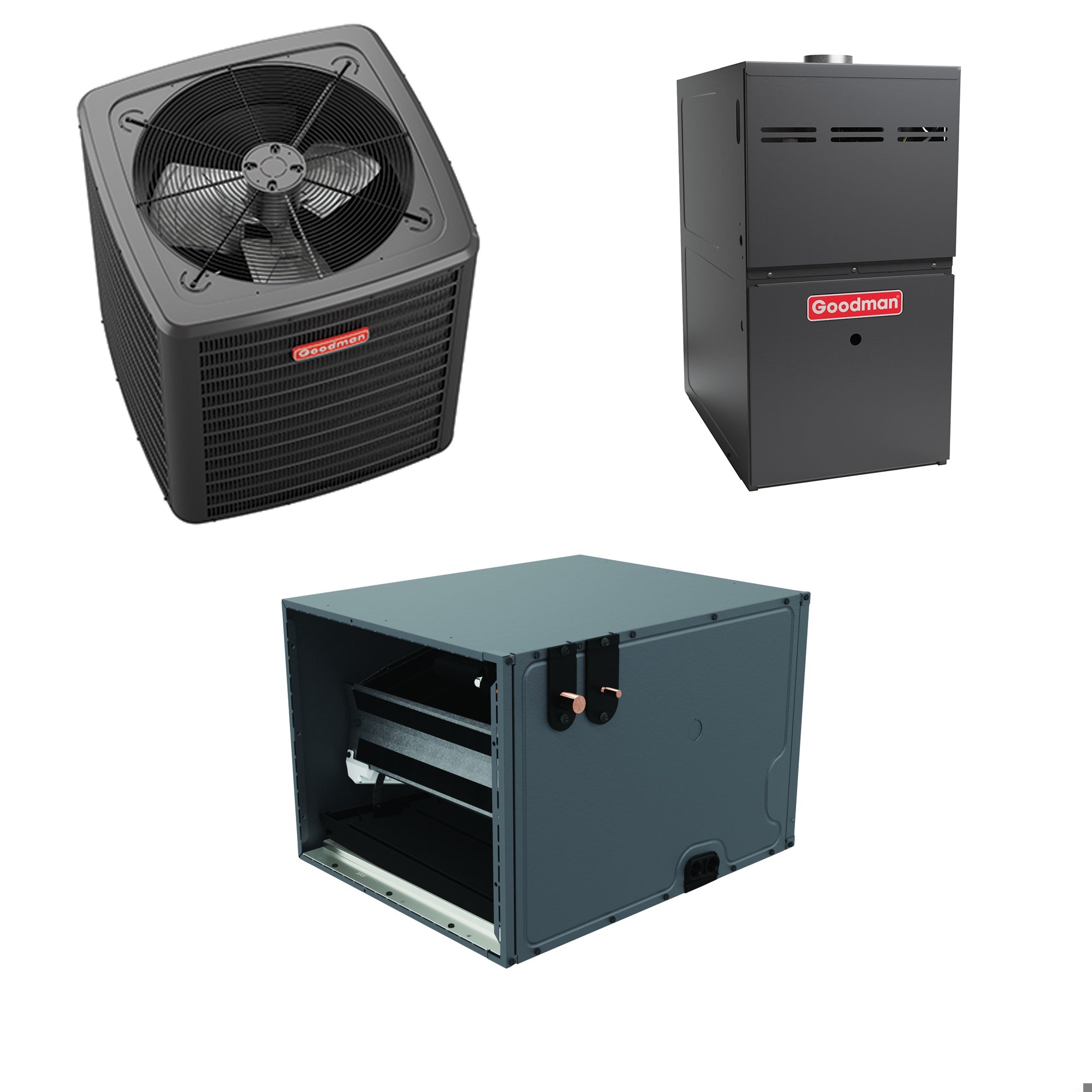

Overview of the Goodman GSZB401810 GMVC800603BN CHPTA1822B4 Bundle System

The Goodman GSZB401810 GMVC800603BN CHPTA1822B4 is a comprehensive HVAC solution designed to offer cooling and heating efficiency. This bundle includes a GSZB4 heat pump, a GMVC80 furnace, and a cased CHPTA evaporator coil. Together, these components ensure consistent comfort and operational efficiency.

• 1.5 Ton Cooling Capacity
• 60,000 BTU Heating Capacity
• 14.3 SEER2 Rating
• 80% AFUE
• Horizontal Configuration

This system is suitable for a wide range of applications, ensuring high performance and durability with features like advanced heat exchanger design, variable-speed ECM motors, and stringent condensate management.

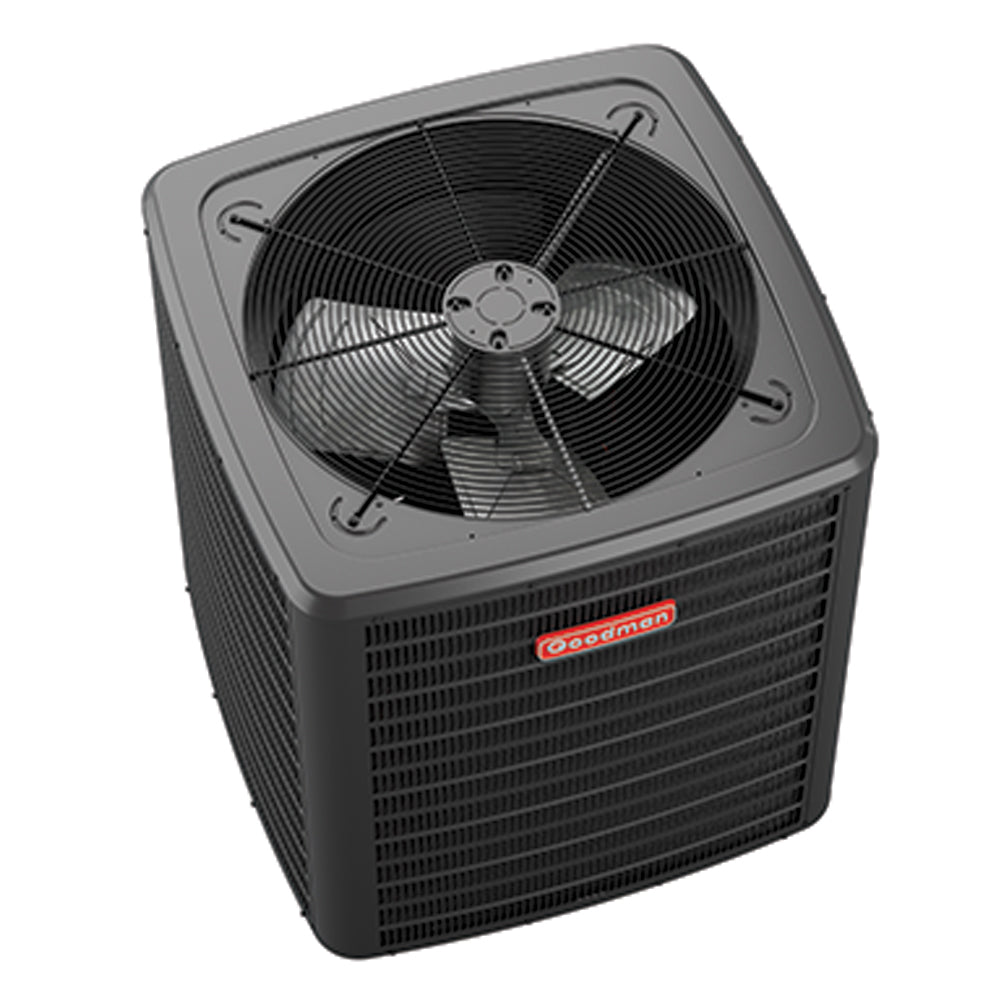

The Goodman GSZB401810 Heat Pump

The Goodman GSZB401810 is a 1.5-ton heat pump designed for energy efficiency and reliability. This component is a vital part of the bundle, providing both heating and cooling functionalities.

• 14.3 SEER2 and 12.0 EER2
• R-410A Refrigerant
• Single-Stage Compressor
• Factory-Installed Suction-Line Accumulator
• Factory-Installed Compressor Crankcase Heater
• Maximum Sound Level: 70 dB

The units Smartshift™ technology offers a quiet and smooth transition when entering defrost mode, ensuring reliable operation.

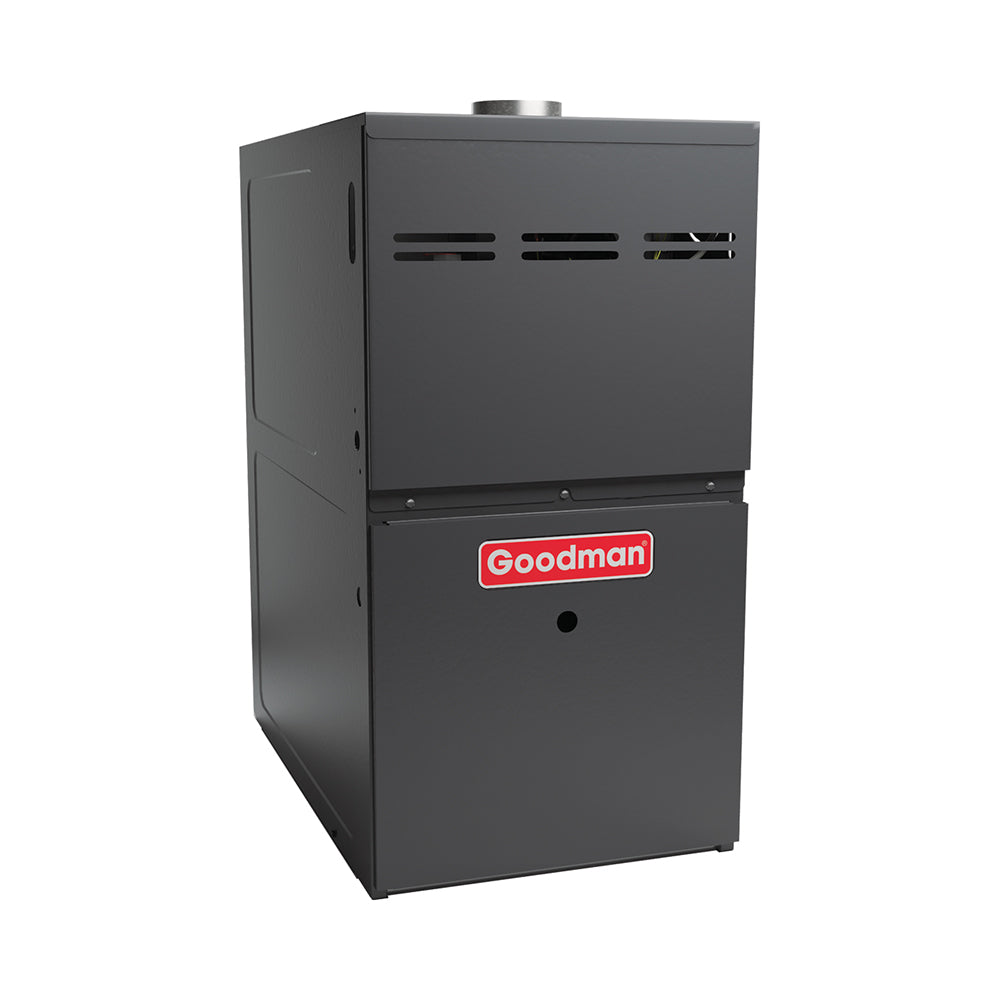

The Goodman GMVC800603BN Gas Furnace

The Goodman GMVC800603BN is an 80% AFUE, 60,000 BTU gas furnace designed for high efficiency and quiet operation. This furnace ensures excellent heating performance within the bundle.

• Variable-Speed ECM Motor
• Two-Stage Modulation
• Aluminized Steel Tubular Heat Exchanger
• ComfortBridge™ Technology
• Heavy-Gauge Galvanized-Steel Cabinet
• Maximum Air Flow: 1200 CFM

This furnace is designed to provide reliable heating with low noise levels, thanks to its efficient blower and gas valve.

The Goodman CHPTA1822B4 Cased Evaporator Coil

The Goodman CHPTA1822B4 is a 1.5-ton, horizontally cased evaporator coil that enhances the overall performance of the HVAC system.

• All-Aluminum Coil
• Foil-Faced Insulation
• UV-Resistant Thermoplastic Drain Pan
• Internal Thermostatic Expansion Valve
• Dimensions: 17.5 W x 22 D x 17.5 H inches

This evaporator coil is designed for efficient heat transfer and easy installation, making it an essential part of the bundle.
