Goodman - 1.5 Ton Cooling - 60k BTU/Hr Heating - Air Conditioner + Variable Speed Furnace System - 15 SEER2 - 80% AFUE - Upflow

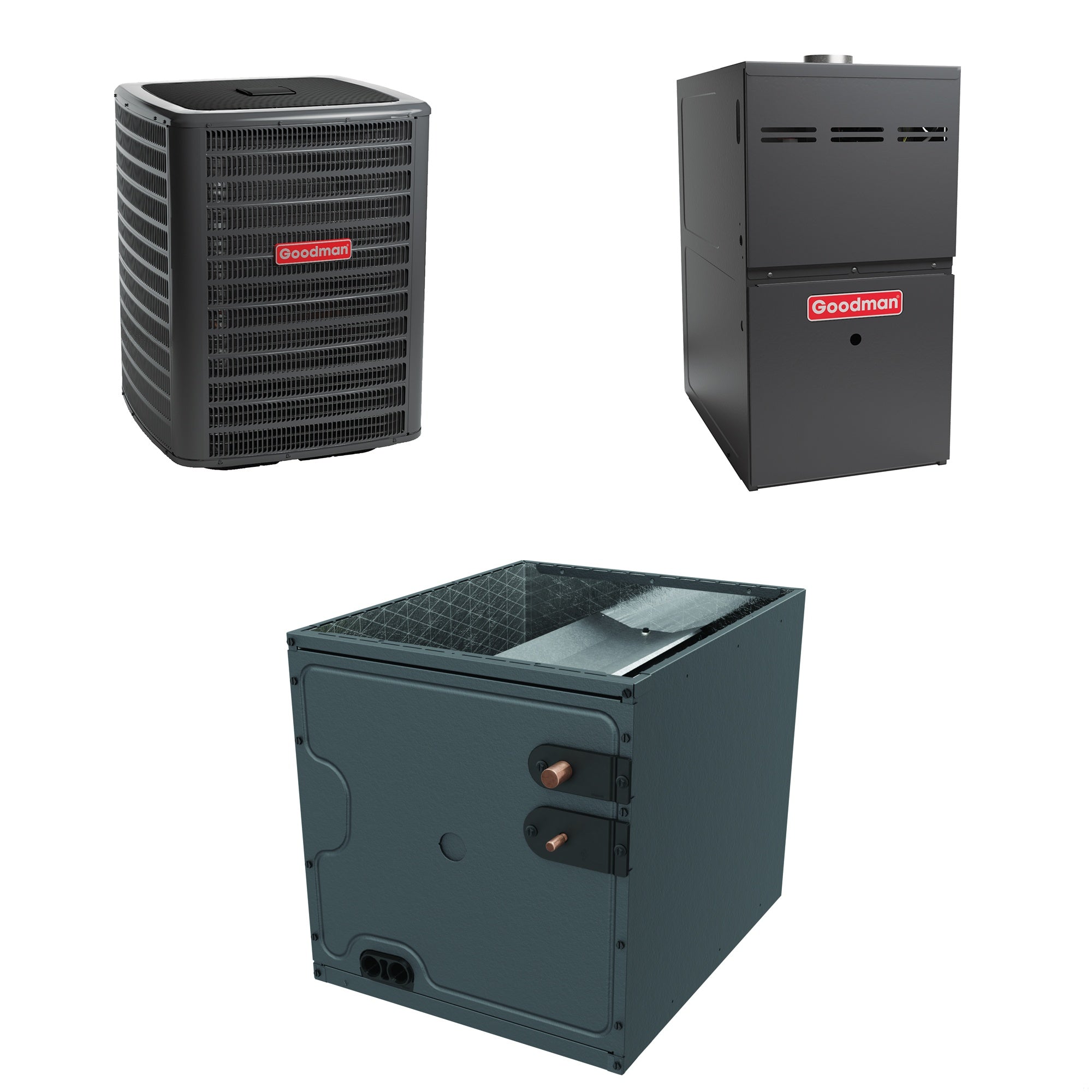

The Goodman GSXN401810 GMVC800603BX CAPTA1818B4 Bundle System

The Goodman GSXN401810 GMVC800603BX CAPTA1818B4 is a central air and furnace kit designed to upgrade your homes HVAC system. This bundle includes a GSXN4 air conditioner, a GMVC80 furnace, and a cased CAPTA evaporator coil, making it ideal for areas with moderate cooling needs and cold winters requiring a multi-speed furnace. All components focus on ease of installation and durability, providing both short-term and long-term value.

• All-aluminum coil with sine fins and grooved tubes
• Factory-installed internal thermostatic expansion valve
• Foil-faced insulation and rust-resistant thermoplastic drain pan
• Advanced tubular heat exchanger design

Product Highlights

The bundle is a complete comfort solution backed by superior craftsmanship.

The Goodman GSXN401810 Air Conditioner

The Goodman GSXN401810 is a 1.5-ton air conditioner designed for efficient cooling. It includes copper tubing and enhanced aluminum fins, an energy-efficient compressor, and a factory-installed filter drier to keep your system operational and free from contaminants.

• Energy-efficient compressor
• Aluminum fins with copper tubing
• Factory-installed filter drier
• Heavy-gauge galvanized steel cabinet

Product Information

Standard Information

• Cooling Capacity: 18,000 BTU
• Maximum Sound Level: 71 dB
• Dimensions: 27 x 26 x 26 inches
• Weight: 118 pounds

The GMVC800603BX Gas Furnace

The GMVC800603BX is a gas furnace that offers 60,000 BTU of heating capacity. It uses a heavy-duty tubular heat exchanger made from aluminized steel and features a variable speed ECM motor for quiet and efficient operation.

• 60,000 BTU heating capacity
• Variable speed ECM motor
• Heavy-duty tubular heat exchanger
• ComfortBridge™ technology

Product Information

Standard Information

• Heating Capacity: 60,000 BTU
• Efficiency: 80% AFUE
• Dimensions: 33.5 x 17.5 x 28 inches
• Weight: 105 pounds

The CAPTA1818B4 Cased Evaporator Coil

The CAPTA1818B4 is a cased evaporator coil designed for both upflow and downflow configurations. It includes a factory-installed thermostatic expansion valve and foil-faced insulation to control humidity and resist condensate formation.

• 1.5-ton cooling capacity
• Factory-installed thermostatic expansion valve
• Foil-faced insulation
• Rust-resistant thermoplastic drain pan

Product Information

Standard Information

• Cooling Capacity: 18,000 BTU
• Dimensions: 18 x 17.5 x 21 inches
• Weight: 41 pounds
