Goodman - 1.5 Ton Cooling - 60k BTU/Hr Heating - Air Conditioner + Variable Speed Furnace System - 15 SEER2 - 80% AFUE - Horizontal
Goodman - 1.5 Ton Cooling - 60k BTU/Hr Heating - Air Conditioner + Variable Speed Furnace System - 15 SEER2 - 80% AFUE - Horizontal
Goodman - 1.5 Ton Cooling - 60k BTU/Hr Heating - Air Conditioner + Variable Speed Furnace System - 15 SEER2 - 80% AFUE - Horizontal
Goodman - 1.5 Ton Cooling - 60k BTU/Hr Heating - Air Conditioner + Variable Speed Furnace System - 15 SEER2 - 80% AFUE - Horizontal

Goodman - 1.5 Ton Cooling - 60k BTU/Hr Heating - Air Conditioner + Variable Speed Furnace System - 15 SEER2 - 80% AFUE - Horizontal

GOODMAN
Brand: GOODMAN
SKU: GSXN401810 GCVC800603BX CHPTA2426B4
Availability: In Stock
Free Shipping
truck-svgrepo-com

Ships via Freight in 3-5 Business Days
$3,812.00
$3,812.00

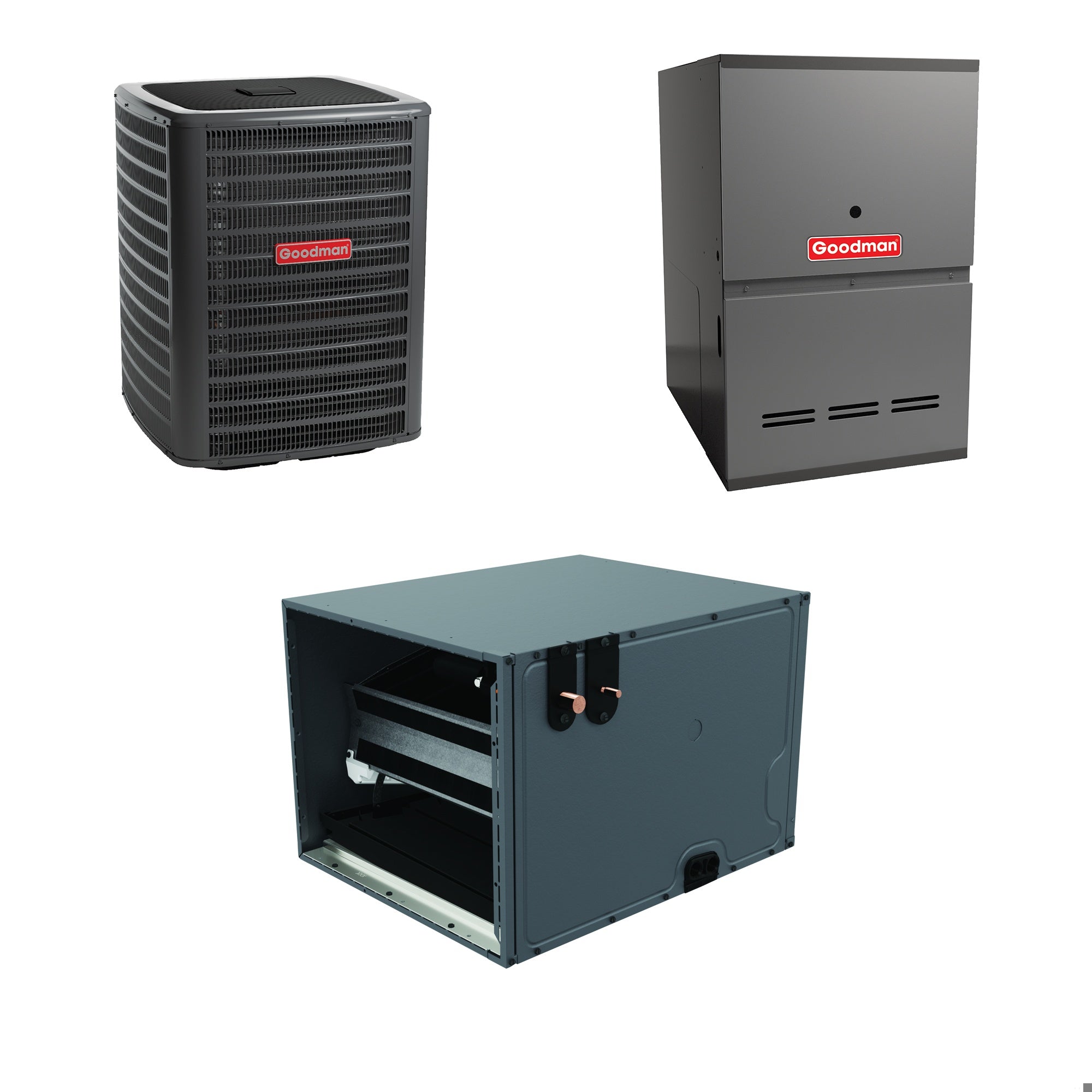

Bundle Includes
Goodman GSXN401810 1.5 Ton - 14.3 SEER2 - Air Conditioner - 208/230V - Single Phase - R-410A Quantity: 1
Goodman GCVC800603BX 80% AFUE - 48,000 BTU - Multi-Position - Furnace Quantity: 1
Goodman CHPTA2426B4 Evaporator Coil, 2 tons, Horizontal, R-410A TXV, 26 Wide 17.5 Tall Quantity: 1
Manuals:

Specification Highlights

Cooling Capacity
1.5 Tons
Heating Capacity
60000 BTU
SEER2
15

View More

LTL Delivery

This product weighs 298 lbs and may require the use of lift gate. If you require a lift gate you will have the option to add one FREE of charge at checkout.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Overview

The Goodman GSXN401810 GCVC800603BX CHPTA2426B4 bundle is a comprehensive HVAC solution designed for optimal comfort. This bundled system includes the GSXN4 air conditioner, the GCVC80 gas furnace, and the CHPTA cased evaporator coil. Together, these components offer reliable performance and energy efficiency for year-round comfort. Each component is engineered for durability and ease of installation, providing both immediate and long-term value. This system is ideal for regions requiring moderate cooling and a multi-speed furnace for cold winters.

Features

  • All-Aluminum Coil
  • Internal Thermostatic Expansion Valve
  • Condensate Management
  • Advanced Heat Exchanger Design
  • Variable Speed ECM Motor
  • Quiet Comfort
  • ComfortBridge™ Technology
  • Energy-Efficient Compressor
  • Copper Tube/Enhanced Aluminum Fin Coil
  • Factory-Installed Filter Drier
  • Heavy-Gauge Galvanized-Steel Cabinet
  • Extended Warranty

The Goodman GSXN401810 Air Conditioner

The Goodman GSXN401810 air conditioner features a 1.5-ton capacity and utilizes R-410A refrigerant. It is equipped with an energy-efficient compressor and a condenser coil made of aluminum fins and copper tubes. The factory-installed filter drier removes moisture and prevents corrosion.

  • 1.5-ton capacity
  • SEER2 rating of 14.3
  • 71 dB maximum sound level
  • Single Stage compressor

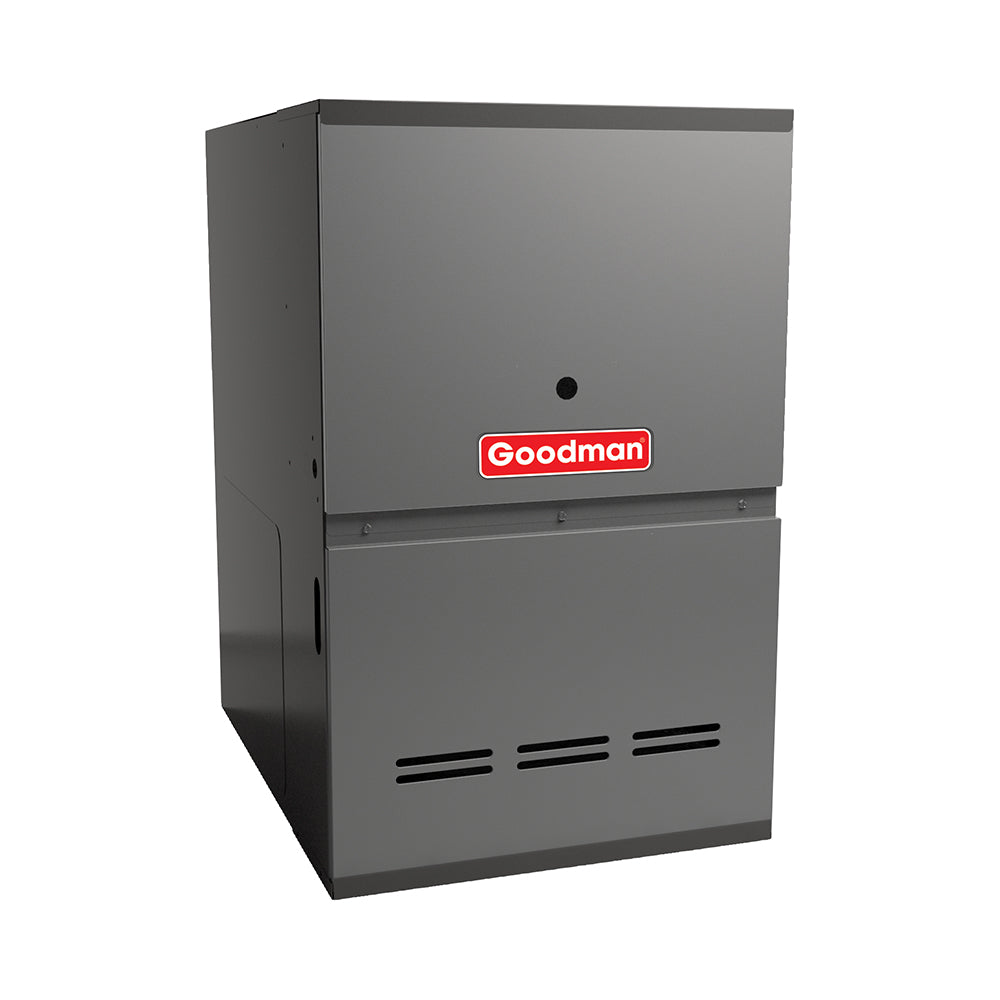

The GCVC800603BX Gas Furnace

The GCVC800603BX gas furnace delivers 60,000 BTUs and operates with 80% AFUE efficiency. It features a heavy-duty tubular heat exchanger made from aluminized steel and a variable-speed ECM motor for optimal temperature control.

  • 60,000 BTUs heating capacity
  • 80% AFUE
  • Two stages of heating
  • Quiet blower and gas valve

The CHPTA2426B4 Cased Evaporator Coil

The CHPTA2426B4 evaporator coil has a 2.0-ton cooling capacity and features an all-aluminum design. It includes a factory-installed thermostatic expansion valve for optimal refrigerant flow and foil-faced insulation to prevent condensate formation.

  • 2.0-ton cooling capacity
  • All-aluminum coil
  • Thermostatic expansion valve
  • UV-resistant thermoplastic drain pan

Product Highlights

This bundled system from Goodman combines various technologies to ensure consistent and efficient indoor comfort. The GSXN4 air conditioner provides reliable cooling, while the GCVC80 furnace ensures warmth during cold seasons. The CHPTA evaporator coil enhances the systems overall efficiency.

Specifications
Overview
Cooling Capacity
1.5 Tons
Heating Capacity
60000 BTU
SEER2
15
EER2
11.7
AFUE
80%
Maximum Air Flow
1200 CFM
Weight
265 Pounds
Shipping Weight
298 Pounds
Voltage (GSXN401810)
208/230 Volts
Frequency (GSXN401810)
60 Hz
Phase (GSXN401810)
1
Minimum Circuit Ampacity (GSXN401810)
8.3 Amps
Recommended Breaker Size (GSXN401810)
15 Amps
Cooling BTU (GSXN401810)
18000
Maximum Sound Level (GSXN401810)
71 dB
Product Depth (GSXN401810)
26 Inches
Product Width (GSXN401810)
26 Inches
Product Height (GSXN401810)
27 Inches
Product Weight (GSXN401810)
118 Pounds
Shipping Weight (GSXN401810)
136 Pounds
Liquid Connection Size (GSXN401810)
3/8 Inch
Suction Connection Size (GSXN401810)
3/4 Inch
ETL Listed (GSXN401810)
Yes
ISO Certified (GSXN401810)
Yes
Energy Star Listed (GSXN401810)
No
Compressor Warranty (GSXN401810)
Lifetime
Parts Warranty (GSXN401810)
Limited 10 Years
Product Line (GSXN401810)
GSXN4
Refrigerant Type (GSXN401810)
R-410A
Type (GSXN401810)
Condenser
Operating Mode (GSXN401810)
Cooling
Installation Location (GSXN401810)
Outdoor
Cooling Capacity (CHPTA2426B4)
2.0 Tons
Cooling BTU (CHPTA2426B4)
24000
Nominal Minimum Cooling Capacity (CHPTA2426B4)
24000 BTU
Product Height (CHPTA2426B4)
17.5 Inches
Product Width (CHPTA2426B4)
26 Inches
Product Depth (CHPTA2426B4)
21 Inches
Product Weight (CHPTA2426B4)
42 Pounds
Shipping Weight (CHPTA2426B4)
57 Pounds
Liquid Connection Size (CHPTA2426B4)
3/8 Inch
Suction Connection Size (CHPTA2426B4)
7/8 Inch
ETL Listed (CHPTA2426B4)
Yes
ISO Certified (CHPTA2426B4)
Yes
Parts Warranty (CHPTA2426B4)
10 Limited Years
Casing (CHPTA2426B4)
Cased
Style (CHPTA2426B4)
A Coil
Configuration (CHPTA2426B4)
Horizontal
TXV Installed (CHPTA2426B4)
Yes
Product Line (CHPTA2426B4)
CHPTA
Type (CHPTA2426B4)
Evaporator Coil
Voltage (GCVC800603BX)
115 Volts
Frequency (GCVC800603BX)
60 Hz
Phase (GCVC800603BX)
1
Minimum Circuit Ampacity (GCVC800603BX)
7.75 Amps
Recommended Breaker Size (GCVC800603BX)
15 Amps
Heating BTU (GCVC800603BX)
60000
Low Fire Input (GCVC800603BX)
42000 BTU
High Fire Input (GCVC800603BX)
60000 BTU
Low Fire Output (GCVC800603BX)
33600 BTU
High Fire Output (GCVC800603BX)
48000 BTU
Maximum Air Flow (GCVC800603BX)
1200 CFM
Flue Connection Size (GCVC800603BX)
4 Inches
Cabinet Width (GCVC800603BX)
17.5 Inches
Product Depth (GCVC800603BX)
28 Inches
Product Width (GCVC800603BX)
17.5 Inches
Product Height (GCVC800603BX)
33.5 Inches
Product Weight (GCVC800603BX)
105 Pounds
Shipping Weight (GCVC800603BX)
105 Pounds
ETL Listed (GCVC800603BX)
Yes
ISO Certified (GCVC800603BX)
Yes
AHRI Certified (GCVC800603BX)
Yes
AHRI Reference Number (GCVC800603BX)
202274193
Parts Warranty (GCVC800603BX)
10 Years
Heat Exchanger Warranty (GCVC800603BX)
Lifetime Years
Product Line (GCVC800603BX)
GCVC80
Fuel Type (GCVC800603BX)
Natural Gas
Vent Type (GCVC800603BX)
Chimney Vent
Blower Motor Type (GCVC800603BX)
ECM Variable-Speed
Modulating/Staging (GCVC800603BX)
Two Stage
Type (GCVC800603BX)
Gas Furnace
Configuration (GCVC800603BX)
Downflow/Horizontal
Gas Conversion Kit
Available
DOE Regional Compliance (GCVC800603BX)
Nationwide (Except CA)
Ultra Low NOx Emissions (GCVC800603BX)
No
Low NOx Emissions (GCVC800603BX)
Yes
Overview Product Category (GCVC800603BX)
Furnace
Certified Energy Star (GSXN401810)
No
Sound Level (GSXN401810)
71 dB
