Goodman - 1.5 Ton Cooling - 60k BTU/Hr Heating - Air Conditioner + Multi Speed Furnace System - 14.5 SEER2 - 80% AFUE - Horizontal

GOODMAN
Brand: GOODMAN
SKU: GSXN401810 GC9C800603BX CHPTA1822B4
Availability: Out Of Stock
$3,008.10
$3,008.10
Bundle Includes
Goodman GSXN401810 1.5 Ton - 14.3 SEER2 - Air Conditioner - 208/230V - Single Phase - Cooling Only - R-410A Quantity: 1
Goodman GC9C800603BX Furnace 80% 60,000 Down/Horz 2-Stage 9SPD ECM Quantity: 1
Goodman CHPTA1822B4 Evaporator Coil 1.5 Tons Horizontal Quantity: 1
Manuals:

Specification Highlights

Product Category
Furnace & Air Conditioner Package
Operating Mode
Heating and Cooling
Modulating/Staging
Two Stage

View More

LTL Delivery

This product weighs 184 lbs each and will be shipped via LTL carrier. A lift gate option will be added free of charge for your convenience.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Features

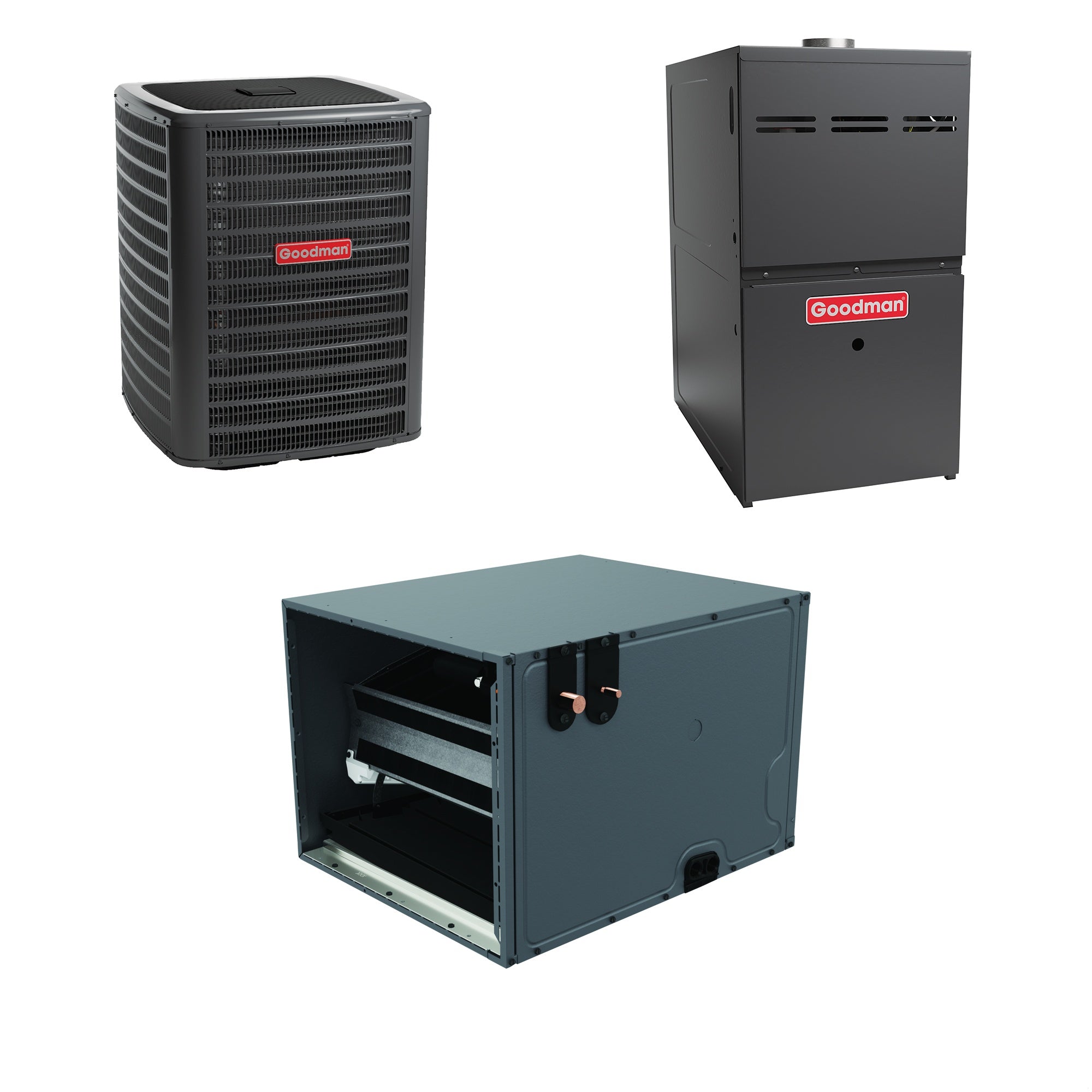

The Goodman GSXN401810 GC9C800603BX CHPTA1822B4 bundle is an efficient HVAC solution for updating home systems. This comprehensive kit includes a GSXN4 air conditioner, a GC9C80 furnace, and a cased CHPTA evaporator coil. The setup is suitable for regions with moderate cooling needs and demands a multi-speed furnace for cold winters. Each component focuses on durability and easy installation, promising long-term value.

  • Efficient cooling and heating system
  • Designed for areas with moderate cooling needs
  • Multi-speed furnace for cold winters
  • Durable and easy installation

The Goodman GSXN401810 GC9C800603BX CHPTA1822B4 system offers a complete comfort solution with superior craftsmanship.

Product Highlights

The bundle includes the GSXN4 air conditioner, GC9C80 gas furnace, and CHPTA evaporator coil designed for optimal efficiency and comfort.

Product Information

Standard Information

  • Product Type: Air Conditioner, Gas Furnace, and Evaporator Coil
  • Cooling Capacity: 1.5 Tons
  • Heating Capacity: 60k BTU

The Goodman GSXN401810 Air Conditioner:

The Goodman GSXN401810 air conditioner is designed for efficient cooling. It features an all-aluminum evaporator coil to maximize surface area and optimize heat transfer.

  • All-aluminum evaporator coil
  • Energy-efficient compressor
  • Copper tube/enhanced aluminum fin coil
  • Factory-installed filter drier

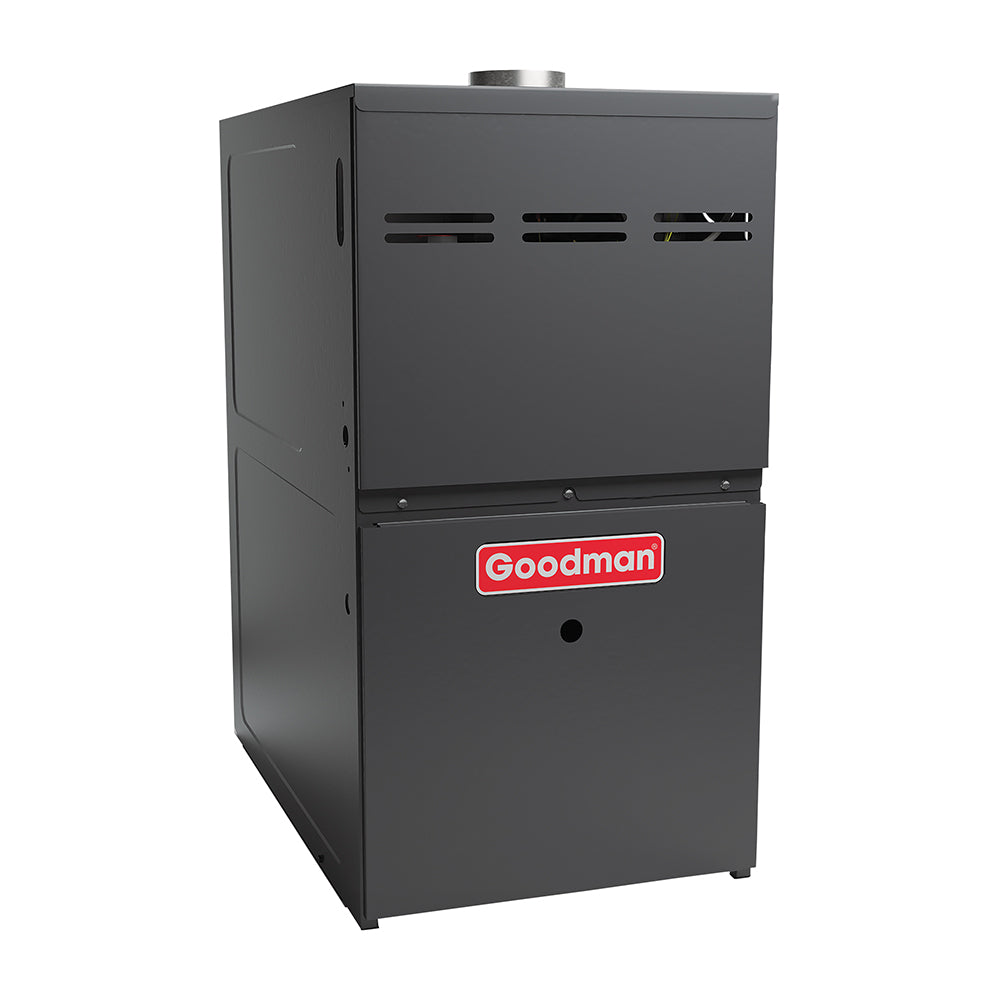

The GC9C800603BX Gas Furnace:

The Goodman GC9C800603BX gas furnace is built with a tubular heat exchanger for efficient heat transfer and durability. It has a multi-speed ECM motor for precise temperature control.

  • Tubular heat exchanger
  • Multi-speed ECM motor
  • Quiet operation
  • Self-diagnostic control board

The CHPTA1822B4 Cased Evaporator Coil:

The Goodman CHPTA1822B4 cased evaporator coil includes a factory-installed internal thermostatic expansion valve for maintaining refrigerant flow. Its foil-faced insulation inhibits condensate formation.

  • Internal thermostatic expansion valve
  • Foil-faced insulation
  • DecaBDE-free thermoplastic drain pan
  • Secondary drain connections
Specifications
Overview
Product Category
Furnace & Air Conditioner Package
Operating Mode
Heating and Cooling
Modulating/Staging
Two Stage
Blower Motor Type
ECM Multi-Speed
Coil Width
17.5 Inches
Configuration
Horizontal
DOE Regional Compliance
Nationwide (Except CA)
Subscription Eligible
No
AFUE
80 %
Capacity
1.5 Tons
Cooling Capacity
17000 BTU
Nominal Cooling Capacity
18000 BTU
Heating BTU
60000
Maximum Air Flow
1200 CFM
SEER2
14.5
EER2
11.7
Product Weight
262 Pounds
Shipping Weight
295 Pounds
ETL Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
208791055
Type
Condenser
Product Line
GSXN4
Product Category
Air Conditioning Condensers
Operating Mode
Cooling
Refrigerant Type
R-410A
Installation Location
Outdoor
Compressor Stages
Single Stage
DOE Regional Compliance
Nationwide
Installation Available
Yes
Cooling BTU
18000
Cooling Capacity
18000 BTU
Maximum Sound Level
71 dB
SEER2
14.3
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
8.3 Amps
Recommended Breaker Size
15 Amps
Suction Connection Size
3/4 Inch
Liquid Connection Size
3/8 Inch
Product Height
27 Inches
Product Width
26 Inches
Product Depth
26 Inches
Product Weight
118 Pounds
Shipping Weight
136 Pounds
ETL Listed
Yes
Energy Star Listed
No
ISO Certified
Yes
AHRI Certified
Yes
Parts Warranty
Limited* 10 Years Years
Compressor Warranty
LIFETIME Years
Type
Gas Furnace
Product Line
GC9C80
Product Category
Furnace
Fuel Type
Natural Gas
Vent Type
Chimney Vent
Modulating/Staging
Two Stage
Blower Motor Type
ECM Multi-Speed
Configuration
Downflow/Horizontal
Gas Conversion Kit
Available
DOE Regional Compliance
Nationwide (Except CA)
Installation Available
Yes
AFUE
80 %
Heating BTU
60000
High Fire Input
60000 BTU
High Fire Output
48000 BTU
Low Fire Input
42000 BTU
Low Fire Output
33600 BTU
Maximum Air Flow
1200 CFM
Ultra Low NOx Emissions
No
Low NOx Emissions
Yes
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
8.7 Amps
Recommended Breaker Size
15 Amps
Flue Connection Size
4 Inches
Cabinet Width
17 1/2 Inches
Product Height
33 3/8 Inches
Product Width
17 1/2 Inches
Product Depth
28 Inches
Product Weight
107 Pounds
Shipping Weight
107 Pounds
ETL Listed
Yes
Energy Star Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
AHRI Reference Number
207254743
Parts Warranty
10 Years
Heat Exchanger Warranty
Lifetime Years
Product Category
Furnace
Type
Evaporator Coil
Product Line
CHPTA
Product Category
Evaporator Coil
Refrigerant Type
R-410A
Casing
Cased
Style
A Coil
Configuration
Horizontal
Installation Available
Yes
TXV Installed
Yes
Capacity
1.5 Tons
Cooling BTU
18000
Nominal Minimum Cooling Capacity
18000 BTU
Suction Connection Size
3/4 Inch
Liquid Connection Size
3/8 Inch
Cabinet Width
17 1/2 Inches
Product Height
17 1/2 Inches
Product Width
22 Inches
Product Depth
21 Inches
Product Weight
37 Pounds
Shipping Weight
52 Pounds
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty
10 Years
Parts Warranty
10 Limited Years
