Goodman - 1.5 Ton Cooling - 60k BTU/Hr Heating - Air Conditioner + Multi Speed Furnace System - 14.5 SEER2 - 80% AFUE - Horizontal

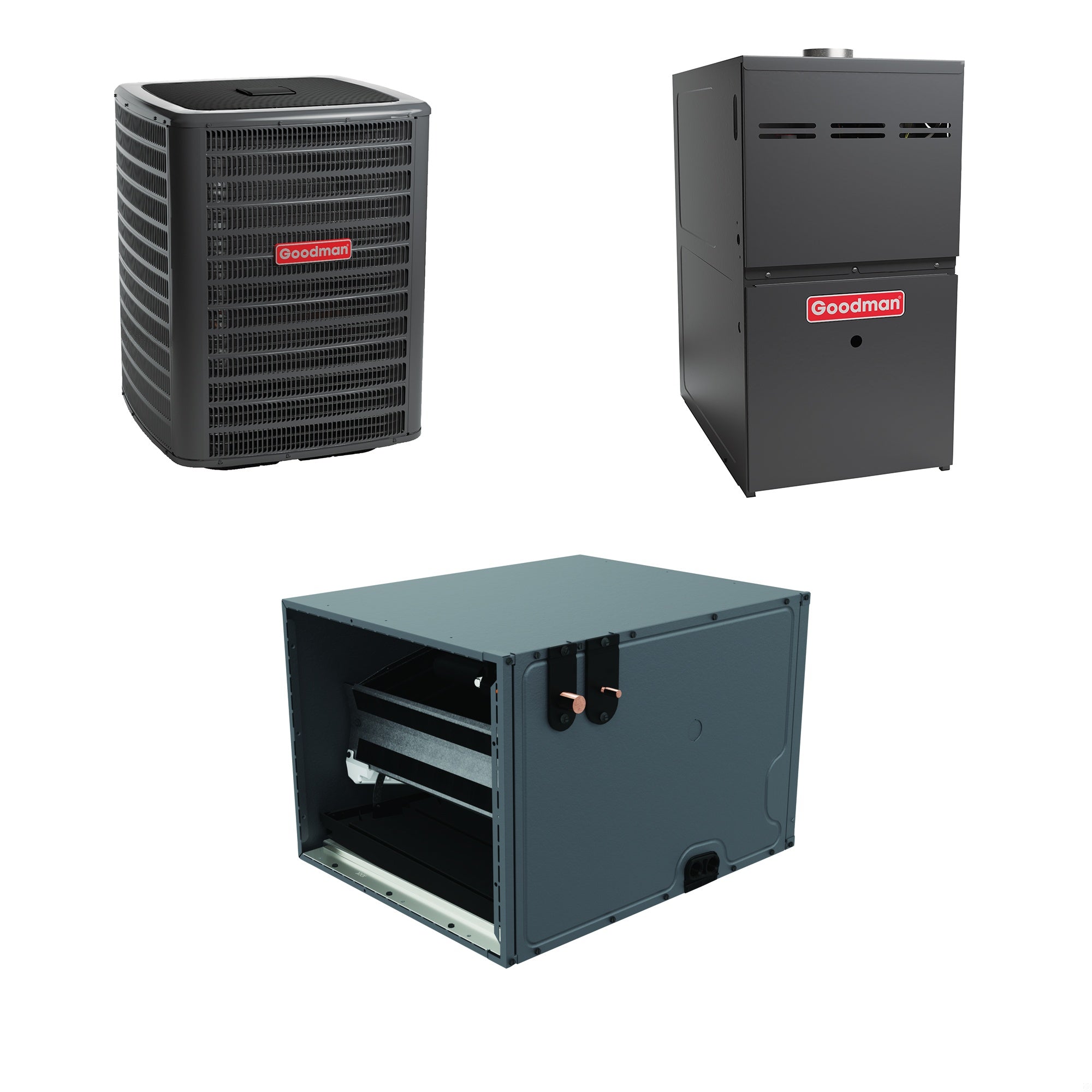

Overview of the Goodman GSXN401810 GM9S800603BX CHPTA1822B4 Bundle System

The Goodman GSXN401810 GM9S800603BX CHPTA1822B4 bundle system is a comprehensive HVAC solution. This system includes the GSXN4 air conditioner, the GM9S80 furnace, and the CHPTA cased evaporator coil. This combination is designed with a focus on durability and ease of installation to offer both immediate and long-term value. Perfect for areas with average cooling needs and cold winters requiring a multi-speed furnace, this bundle aims to provide reliable comfort and efficiency.

Key Features

• All-Aluminum Coil: Maximizes surface area and optimizes heat transfer.
• Internal Thermostatic Expansion Valve: Ensures ideal refrigerant flow.
• Condensate Management System: UV-resistant drain pan and foil-faced insulation.
• Advanced Heat Exchanger Design: Aluminized-steel tubular design for efficient heat transfer.
• Multi-Speed ECM Motor: Ensures precise temperature control and energy efficiency.
• Quiet Operation: Low sound levels from blower and gas valve.
• Self-Diagnostic Control Board: Monitors system and stores diagnostic codes.
• Energy-Efficient Compressor: Enhances refrigerant flow and system efficiency.
• Factory-Installed Filter Drier: Removes moisture and traps impurities.
• Heavy-Gauge Galvanized-Steel Cabinet: Durable construction with 500-hour salt-spray approval.

Each component in this bundle is designed to work synergistically to ensure optimal performance and efficiency. The GSXN4 air conditioner offers cooling efficiency, while the GM9S80 furnace provides dependable heating. The CHPTA evaporator coil completes the system with its effective design.

Goodman GSXN401810 Air Conditioner

The Goodman GSXN4 air conditioner is a 1.5-ton unit designed for efficient cooling. It operates at 14.3 SEER2 and utilizes R-410A refrigerant.

• Single Stage Compressor
• Outdoor Installation
• 71 dB Maximum Sound Level
• Factory-Installed Filter Drier

The air conditioners condenser coil is built with aluminum fins and copper tubing to maximize surface area and enhance heat transfer.

Goodman GM9S800603BX Gas Furnace

The Goodman GM9S80 gas furnace provides 60,000 BTU/hr heating capacity with 80% AFUE efficiency. It uses an aluminized-steel tubular heat exchanger for reliable heat transfer.

• Natural Gas Fuel
• Multi-Speed ECM Motor
• Chimney Vent Type
• Upflow/Horizontal Configuration

This furnace is equipped with a self-diagnostic control board and an energy-efficient blower motor for precise temperature control and quiet operation.

Goodman CHPTA1822B4 Cased Evaporator Coil

The Goodman CHPTA1822B4 is a 1.5-ton horizontal evaporator coil designed to work with the GSXN4 air conditioner and GM9S80 furnace. It includes a factory-installed TXV for efficient refrigerant flow.

• All-Aluminum Design
• UV-Resistant Drain Pan
• 17.5-Inch Width
• 21-Inch Depth

This evaporator coil is housed in a durable casing to ensure longevity and effective performance.
