Goodman - 1.5 Ton Cooling - 40k BTU/Hr Heating - Heat Pump + Furnace System - 14.3 SEER2 - 80% AFUE - Horizontal

GOODMAN
Brand: GOODMAN
SKU: GSZB401810 GM9C800403AX CHPTA1822A4
Availability: Out Of Stock
Free Shipping
$3,501.00
$3,501.00

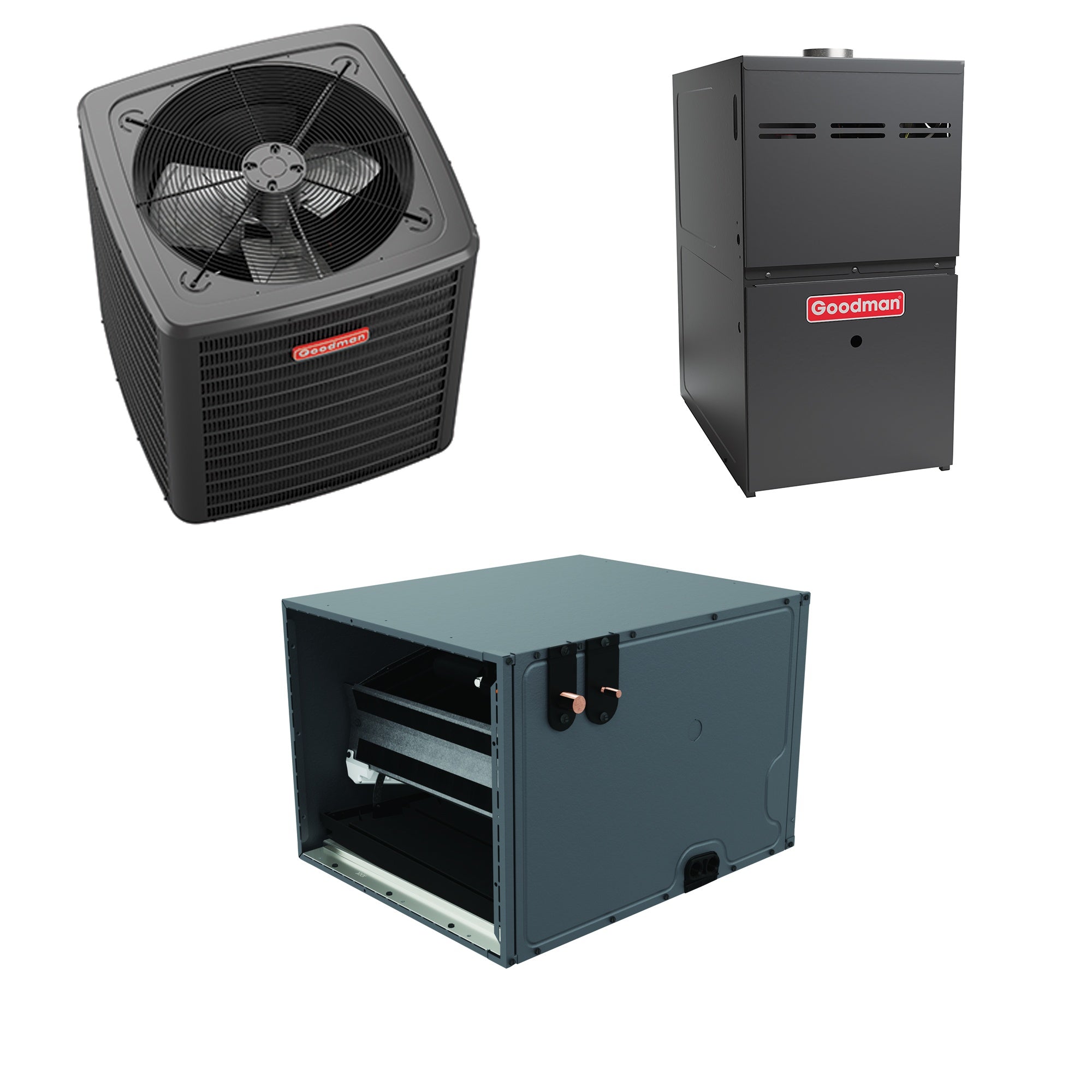

Bundle Includes
Goodman GSZB401810 1.5 Ton - 14.3 SEER2 - Heat Pump - 208/230V - Single Phase - R-410A Quantity: 1
Goodman GM9C800403AX Gas Furnace 40k BTU 80% AFUE Quantity: 1
Goodman CHPTA1822A4 Evaporator Coil 1.5 Ton Horizontal R-410A TXV Quantity: 1

Specification Highlights

Bundle Overview Performance AFUE
80 %
Bundle Overview Performance EER2
12.0
Bundle Overview Performance HSPF2
7.5

View More

LTL Delivery

This product weighs 329 lbs and may require the use of lift gate. If you require a lift gate you will have the option to add one FREE of charge at checkout.

HAVE A QUESTION?

Our team is ready to help!

  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Features & Bundle Details

The Goodman GSZB401810 GM9C800403AX CHPTA1822A4 bundle system is designed for high-efficiency heating and cooling. It includes a GSZB4 air conditioner, a GM9C80 gas furnace, and a CHPTA evaporator coil, optimized for ease of installation and longevity. This package is ideal for residential HVAC upgrades, offering reliable performance and efficiency.

Bundle System Overview

  • Goodman GSZB401810: 1.5 Ton Heat Pump with 14.3 SEER2, R-410A refrigerant
  • Goodman GM9C800403AX: 40k BTU Gas Furnace with 80% AFUE
  • Goodman CHPTA1822A4: Cased 1.5 Ton Horizontal A Coil with TXV included

This bundle offers a comprehensive HVAC solution for diverse climatic conditions, ensuring optimal temperature regulation and energy efficiency.

Component Details

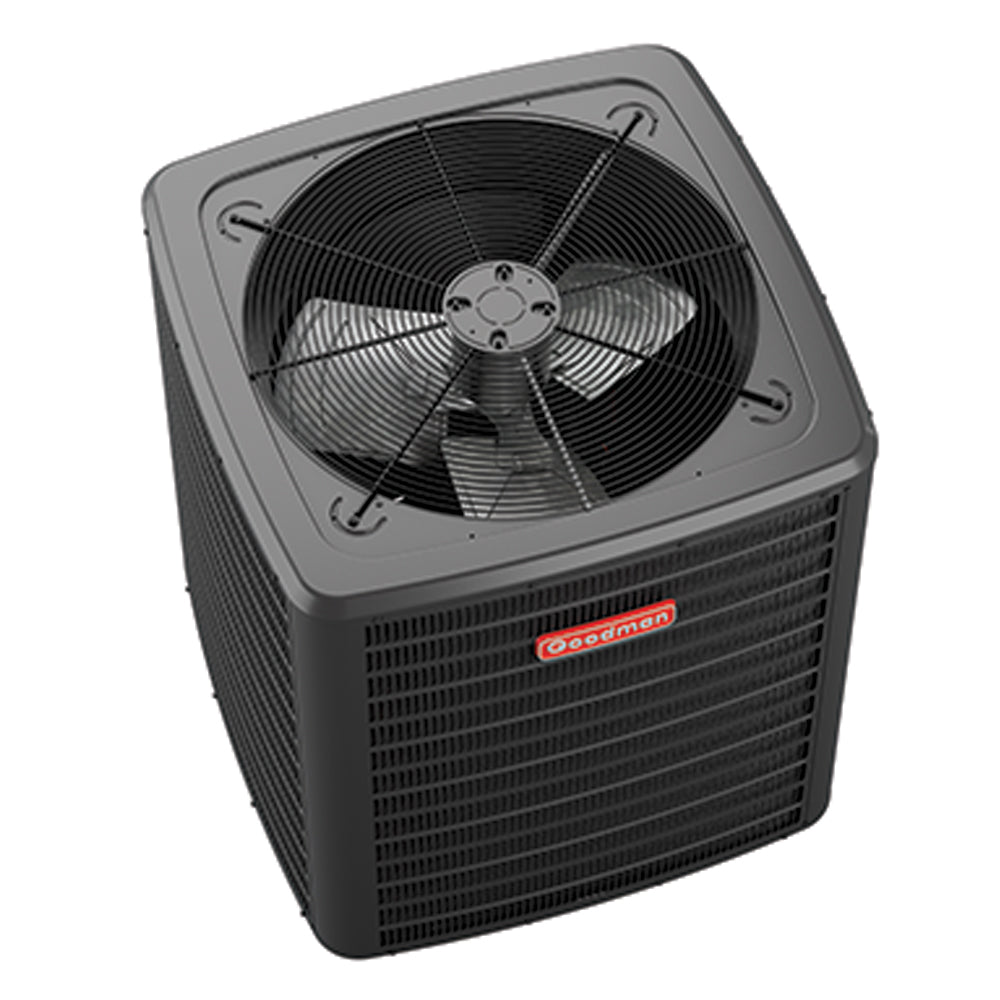

The Goodman GSZB401810 Air Conditioner:

The GSZB401810 is a 1.5-ton heat pump designed for efficient operation. It incorporates an energy-efficient compressor, copper tube, and enhanced aluminum fin coil to maximize heat transfer efficiency.

  • 14.3 SEER2 rating
  • 70 dB maximum sound level
  • R-410A refrigerant
  • Single-stage compressor

This unit ensures quiet operation and durable performance with a galvanized steel cabinet and high-capacity muffler.

The Goodman GM9C800403AX Gas Furnace:

The GM9C800403AX is a 40,000 BTU gas furnace featuring an 80% AFUE rating. It uses a multi-speed ECM motor for precise temperature control and low energy consumption.

  • Two-stage operation
  • ECM multi-speed blower motor
  • Self-diagnostic control board
  • Tubular heat exchanger design

Equipped with aluminized steel construction and wrinkle-bend technology, this furnace ensures efficient heat transfer and long-lasting durability.

The Goodman CHPTA1822A4 Cased Evaporator Coil:

The CHPTA1822A4 is a 1.5-ton cased horizontal A coil with a factory-installed TXV, optimizing refrigerant flow. It features an all-aluminum design for maximum surface area and efficient heat transfer.

  • 14-inch coil width
  • 21-inch depth
  • 22-inch width
  • 14-inch height

This evaporator coil enhances condensate management and ensures reliable, efficient operation.

Overview
Bundle Overview Performance AFUE
80 %
Bundle Overview Performance EER2
12.0
Bundle Overview Performance HSPF2
7.5
Bundle Overview Performance SEER2
14.3
Bundle Overview General Information Coil Width
14 Inches
Bundle Overview General Information Configuration
Horizontal
Bundle Overview General Information DOE Regional Compliance
Nationwide (Except CA)
Bundle Overview General Information Operating Mode
Heating and Cooling
Bundle Overview Performance Cooling Capacity
18000 BTU
Bundle Overview Performance Maximum Air Flow
1200 CFM
Bundle Overview General Information Blower Motor Type
ECM Multi-Speed
Bundle Overview General Information Compressor Stages
Single Stage
GM9C800403AX Performance AFUE
80 %
GM9C800403AX Electrical Data Phase
1
GSZB401810 Performance HSPF2
7.5
GSZB401810 Performance SEER2
14.3
GSZB401810 Performance Cooling BTU
18000
GSZB401810 Dimensions Product Depth
29 Inches
GSZB401810 Dimensions Product Width
29 Inches
GSZB401810 Certifications ETL Listed
Yes
GSZB401810 Dimensions Product Height
35 11/16 Inches
GSZB401810 Dimensions Product Weight
161 Pounds
GSZB401810 General Information Type
Heat Pump Condenser
GSZB401810 General Information Installation Location
Outdoor
GSZB401810 General Information Compressor Stages
Single Stage
CHPTA1822A4 Dimensions Cabinet Width
14 Inches
CHPTA1822A4 Dimensions Product Depth
21 Inches
CHPTA1822A4 Dimensions Product Width
22 Inches
CHPTA1822A4 General Information Type
Evaporator Coil
CHPTA1822A4 Certifications ETL Listed
Yes
CHPTA1822A4 Dimensions Product Height
14 Inches
CHPTA1822A4 Dimensions Product Weight
33 Pounds
CHPTA1822A4 Certifications AHRI Certified
Yes
GM9C800403AX Electrical Data Voltage
115 Volts
GM9C800403AX Performance Heating BTU
40000
GM9C800403AX Performance High Fire Input
40000 BTU
GM9C800403AX Performance Low Fire Input
28000 BTU
GM9C800403AX Performance Low Fire Output
22400 BTU
GM9C800403AX General Information Type
Gas Furnace
GM9C800403AX Electrical Data Recommended Breaker Size
15 Amps
GM9C800403AX Electrical Data Minimum Circuit Ampacity
8.7 Amps
GM9C800403AX Performance Maximum Air Flow
1200 CFM
GM9C800403AX Certification ISO Certified
Yes
GM9C800403AX General Information Configuration
Upflow/Horizontal
GM9C800403AX Certification Energy Star Listed
Yes
GM9C800403AX Certification AHRI Certified
Yes
GM9C800403AX General Information Modulating/Staging
Two Stage
CHPTA1822A4 General Information TXV Installed
Yes
