Goodman - 1.5 Ton Cooling - 40k BTU/Hr Heating - Air Conditioner + Variable Speed Furnace System - 15 SEER2 - 96% AFUE - Horizontal
Goodman - 1.5 Ton Cooling - 40k BTU/Hr Heating - Air Conditioner + Variable Speed Furnace System - 15 SEER2 - 96% AFUE - Horizontal
Goodman - 1.5 Ton Cooling - 40k BTU/Hr Heating - Air Conditioner + Variable Speed Furnace System - 15 SEER2 - 96% AFUE - Horizontal
Goodman - 1.5 Ton Cooling - 40k BTU/Hr Heating - Air Conditioner + Variable Speed Furnace System - 15 SEER2 - 96% AFUE - Horizontal

Goodman - 1.5 Ton Cooling - 40k BTU/Hr Heating - Air Conditioner + Variable Speed Furnace System - 15 SEER2 - 96% AFUE - Horizontal

GOODMAN
Brand: GOODMAN
SKU: GSXN401810 GMVC960403BN CHPTA3026B4
Availability: In Stock
Free Shipping
truck-svgrepo-com

Ships via Freight in 3-5 Business Days
$4,089.00
$4,089.00
Bundle Includes
Goodman GSXN401810 1.5 Ton - 14.3 SEER2 - Air Conditioner - 208/230V - Single Phase - R-410A Quantity: 1
Goodman GMVC960403BN GMVC96 2-Stage Gas Furnace 40000 BTU 96% AFUE Quantity: 1
Goodman CHPTA3026B4 Evaporator Coil, 2.5 Tons, Horizontal, R-410A TXV Quantity: 1
Manuals:

Specification Highlights

Type
Gas Furnace
Type
Condenser
Type
Evaporator Coil

View More

LTL Delivery

This product weighs 326 lbs and may require the use of lift gate. If you require a lift gate you will have the option to add one FREE of charge at checkout.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Features

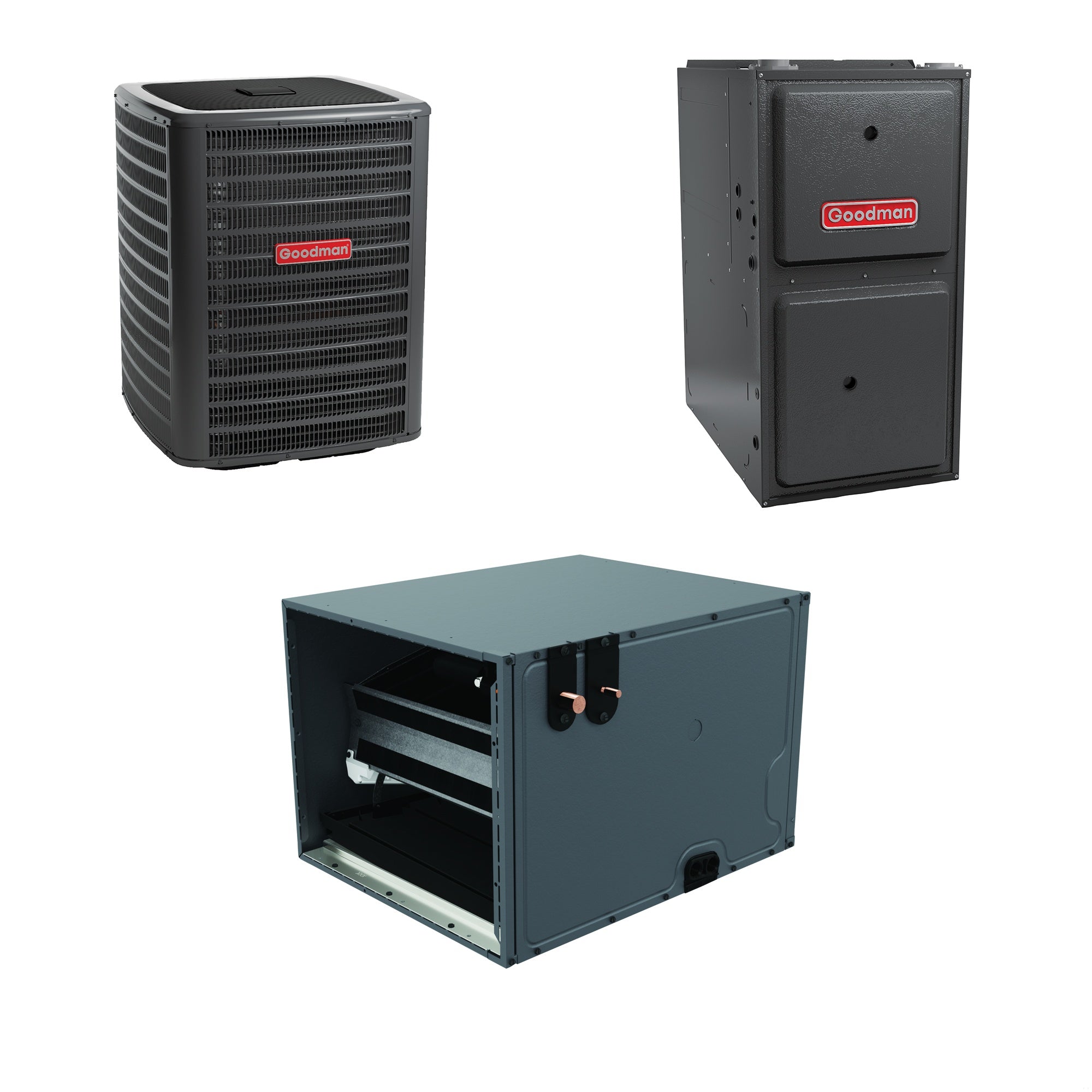

The Goodman GSXN401810 GMVC960403BN CHPTA3026B4 bundle offers a comprehensive HVAC solution for any home. Including a GSXN4 air conditioner, a GMVC96 furnace, and a CHPTA evaporator coil, this system provides optimal cooling and heating.

Goodman GSXN401810 Air Conditioner

The GSXN401810 unit offers efficient cooling with its 1.5-ton capacity. It includes a copper tube and aluminum fin coil for maximized efficiency and a factory-installed filter drier to remove moisture and impurities.

  • 14.3 SEER2
  • 18000 BTU cooling capacity
  • 71 dB sound level
  • Factory-installed filter drier

Goodman GMVC960403BN Gas Furnace

The GMVC960403BN furnace ensures reliable heating with its 40,000 BTU capacity. It utilizes a dual-diameter tubular heat exchanger for efficient heat transfer, and its compatible with ComfortBridge™ communicating controls.

  • 96% AFUE
  • Two-stage gas valve
  • 20-year heat exchanger warranty
  • ECM variable-speed motor

Goodman CHPTA3026B4 Evaporator Coil

The CHPTA3026B4 cased evaporator coil is crucial for effective heat transfer. It features an all-aluminum construction and a factory-installed TXV for refrigerant flow control.

  • 2.5-ton capacity
  • 30000 BTU cooling capacity
  • Horizontal configuration
  • 17.5-inch width

Product Highlights

This Goodman HVAC system is designed for ease of installation and long-term durability, offering significant upfront and long-term value.

Specifications
Overview
Type
Gas Furnace
Type
Condenser
Type
Evaporator Coil
Product Line
GMVC96
Product Line
GSXN4
Product Line
CHPTA
Operating Mode
Heating and Cooling
Capacity
1.5 Tons
Cooling BTU
18000
Heating BTU
40000
AFUE
96%
SEER2
14.3
EER2
11.7
Maximum Air Flow
1200 CFM
Sound Level
71 dB
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
7.8 Amps
Recommended Breaker Size
15 Amps
Dimensions Product Height
34.5 Inches
Dimensions Product Width
17.5 Inches
Dimensions Product Depth
28.75 Inches
Dimensions Product Weight
114 Pounds
Certifications Energy Star Listed
Yes
Certifications AHRI Certified
Yes
Certifications ISO Certified
Yes
Warranty Parts Warranty
5 Years
Warranty Heat Exchanger Warranty
20 Years
Cooling Capacity
18000 BTU
Compressor Stages
Single Stage
Refrigerant Type
R-410A
Installation Location
Outdoor
Dimensions Product Height
27 Inches
Dimensions Product Width
26 Inches
Dimensions Product Depth
26 Inches
Dimensions Product Weight
118 Pounds
Certifications ETL Listed
Yes
GSXN401810 Performance SEER2
14.3
GSXN401810 Cooling BTU
18000
GMVC960403BN AFUE
96%
GMVC960403BN Heating BTU
40000
GMVC960403BN Low Fire Input
28000 BTU
GMVC960403BN High Fire Input
40000 BTU
GMVC960403BN Low Fire Output
26880 BTU
GMVC960403BN High Fire Output
38400 BTU
GMVC960403BN Maximum Air Flow
1200 CFM
GMVC960403BN Dimensions Product Height
34.5 Inches
GMVC960403BN Dimensions Product Width
17.5 Inches
GMVC960403BN Dimensions Product Depth
28.75 Inches
GMVC960403BN Dimensions Product Weight
114 Pounds
CHPTA3026B4 Capacity
2.5 Tons
CHPTA3026B4 Cooling BTU
30000
CHPTA3026B4 Nominal Minimum Cooling Capacity
30000 BTU
CHPTA3026B4 Dimensions Product Height
17.5 Inches
CHPTA3026B4 Dimensions Product Width
17.5 Inches
CHPTA3026B4 Dimensions Product Depth
21 Inches
CHPTA3026B4 Dimensions Product Weight
46 Pounds
Installation Available
Yes
