Goodman - 1.5 Ton Cooling - 40k BTU/Hr Heating - Air Conditioner + Multi Speed Furnace System - 14.5 SEER2 - 96% AFUE - Upflow

Features

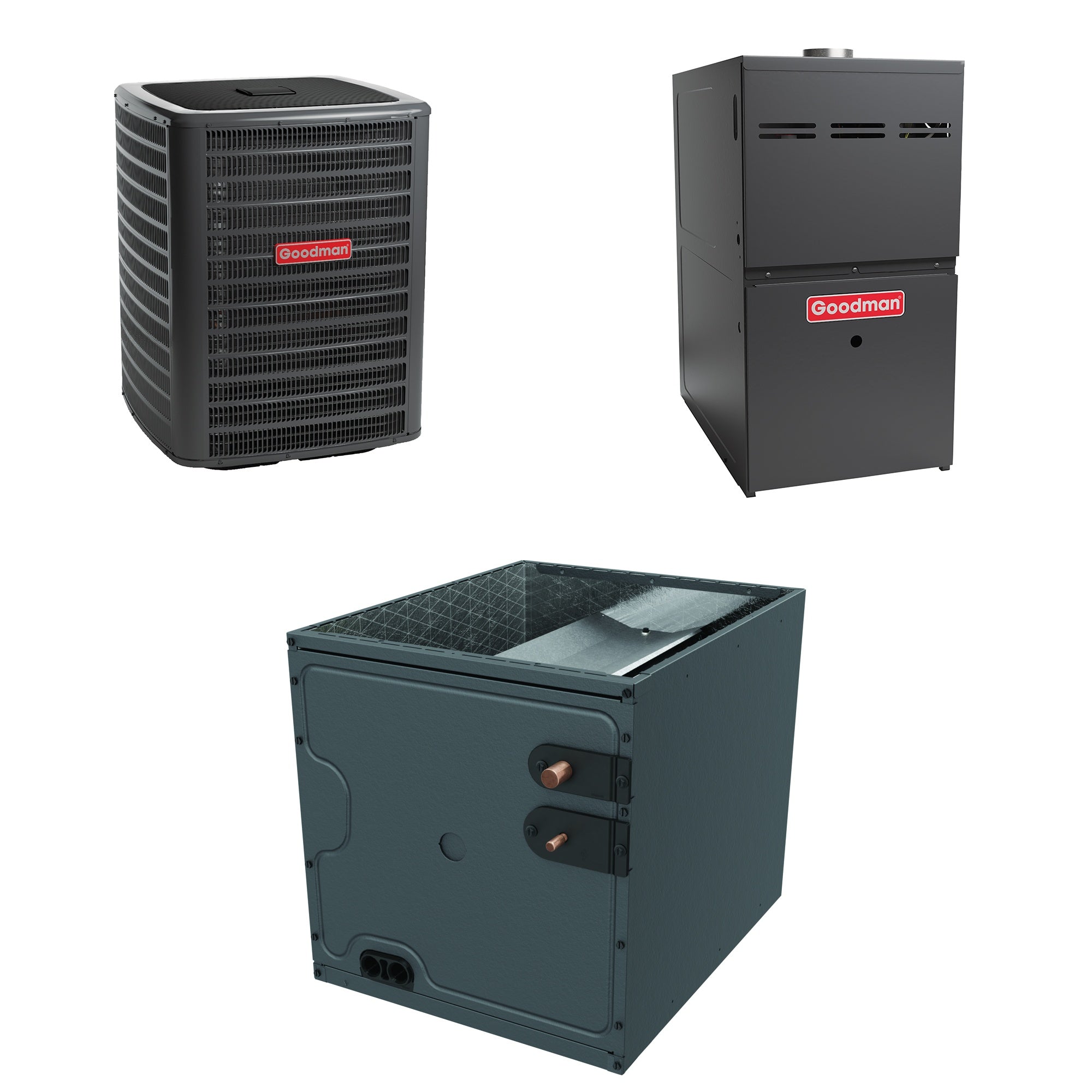

The Goodman GSXN401810 GM9C960403AN CAPTA2422A4 bundle is a comprehensive HVAC solution that includes a GSXN4 air conditioner, a GM9C96 furnace, and a cased CAPTA evaporator coil. This setup is ideal for homes needing reliable heating and cooling throughout the year. Designed with ease of installation and durability in mind, this system offers both immediate and long-term value.

• All-Aluminum Coil: Maximizes efficiency with sine fins and grooved tubes.
• Internal Thermostatic Expansion Valve: Ensures optimal refrigerant flow.
• Condensate Management: Foil-faced insulation and a rust-resistant drain pan.

Product Highlights

This bundle includes everything needed for a robust HVAC system. The components work together to ensure reliable performance, efficiency, and comfort.

Product Information

System Overview

The system includes:

• Goodman GSXN4 Air Conditioner: 1.5 tons, 14.3 SEER2, single-stage compressor, 208/230 Volts.
• Goodman GM9C96 Furnace: 40k BTU, 96% AFUE, two-stage blower motor.
• Goodman CAPTA Cased Evaporator Coil: 2 tons, upflow/downflow configuration.

Goodman GSXN4 Air Conditioner

The GSXN4 air conditioner is a single-stage, 1.5-ton unit with a 14.3 SEER2 rating. It includes an energy-efficient compressor and a copper tube/aluminum fin coil for optimal heat transfer. This unit also comes with a factory-installed filter drier to prevent moisture and impurities.

• Capacity: 1.5 tons.
• Max Sound Level: 71dB.
• SEER2: 14.3.
• Voltage: 208/230 Volts.

Goodman GM9C96 Furnace

The GM9C96 gas furnace offers 40,000 BTU heating with 96% AFUE efficiency. It features a two-stage blower motor, aluminized-steel tubular heat exchanger, and multiple venting options for easy installation. It is compatible with humidifiers and air cleaners for added comfort.

• AFUE: 96%.
• Heating BTU: 40,000.
• Venting Options: Two-pipe direct or single-pipe.
• Maximum Air Flow: 1200 CFM.

Goodman CAPTA Evaporator Coil

The CAPTA2422A4 is a cased evaporator coil with a 2-ton capacity, designed for upflow/downflow configurations. It includes a factory-installed TXV for optimal refrigerant flow and comes with foil-faced insulation to manage condensate effectively.

• Capacity: 2 tons.
• Configuration: Upflow/Downflow.
• TXV Installed: Yes.
• Dimensions: 14 inches W x 21 inches D x 22 inches H.
