Goodman - 1.5 Ton Cooling - 40k BTU/Hr Heating - Air Conditioner + Multi Speed Furnace System - 14.5 SEER2 - 80% AFUE - Downflow
Goodman - 1.5 Ton Cooling - 40k BTU/Hr Heating - Air Conditioner + Multi Speed Furnace System - 14.5 SEER2 - 80% AFUE - Downflow
Goodman - 1.5 Ton Cooling - 40k BTU/Hr Heating - Air Conditioner + Multi Speed Furnace System - 14.5 SEER2 - 80% AFUE - Downflow
Goodman - 1.5 Ton Cooling - 40k BTU/Hr Heating - Air Conditioner + Multi Speed Furnace System - 14.5 SEER2 - 80% AFUE - Downflow

Goodman - 1.5 Ton Cooling - 40k BTU/Hr Heating - Air Conditioner + Multi Speed Furnace System - 14.5 SEER2 - 80% AFUE - Downflow

GOODMAN
Brand: GOODMAN
SKU: GSXN401810 GC9C800403AX CAPTA1818A4
Availability: In Stock
Free Shipping
truck-svgrepo-com

Ships via Freight in 3-5 Business Days
$3,167.00
$3,167.00
Bundle Includes
Goodman GSXN401810 1.5 Ton - 14.3 SEER2 - Air Conditioner - 208/230V - Single Phase - R-410A Quantity: 1
Goodman GC9C800403AX Gas Furnace 80% AFUE 40k BTU/h Counterflow Two Stage Quantity: 1
Goodman CAPTA1818A4 CAPTA Series 1.5 Ton Upflow/Downflow Aluminum Cased Coil Painted Quantity: 1
Manuals:

Specification Highlights

SEER2
14.5
Cooling Capacity
18000 BTU
AFUE
80%

View More

LTL Delivery

This product weighs 277 lbs and may require the use of lift gate. If you require a lift gate you will have the option to add one FREE of charge at checkout.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Overview

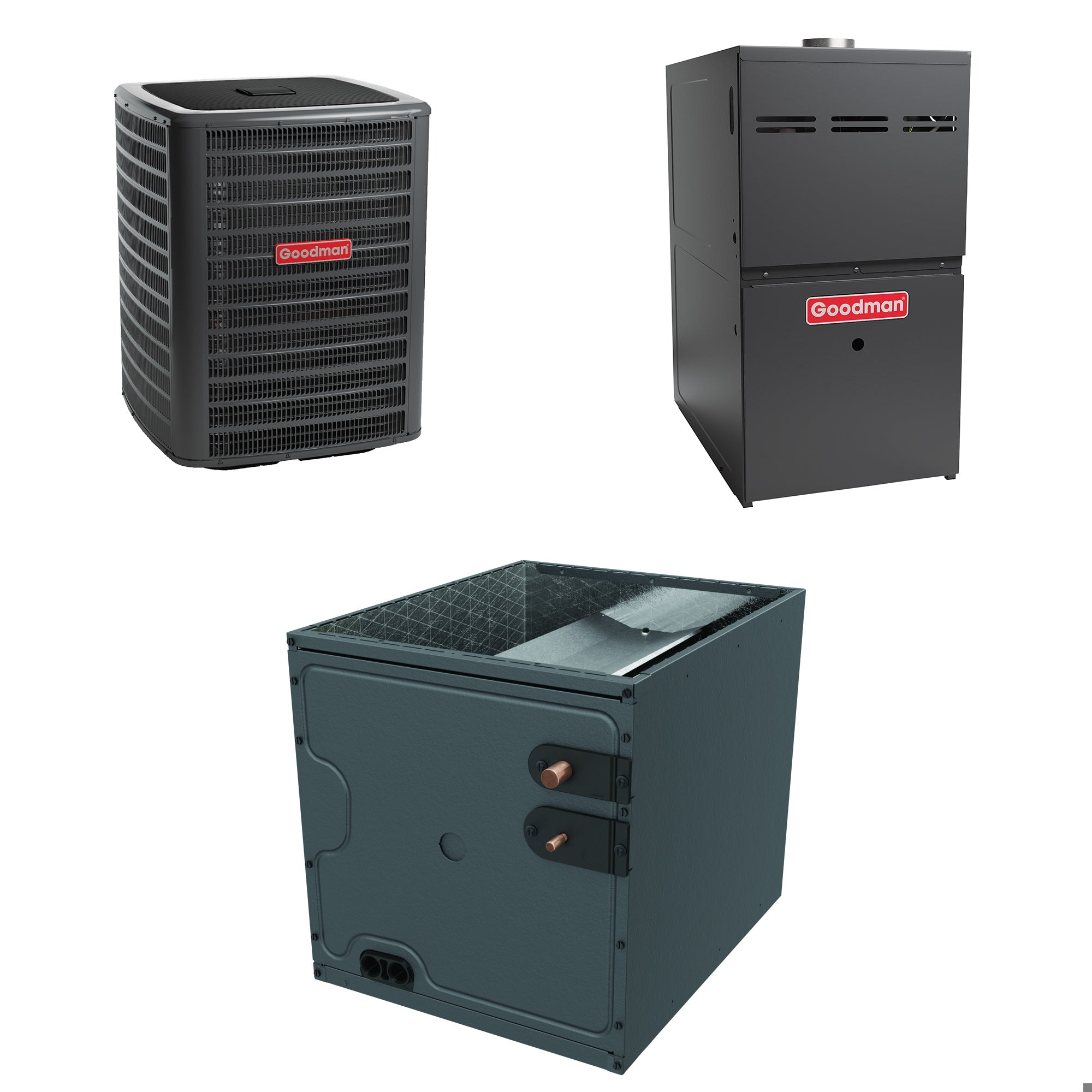

The Goodman GSXN401810 GC9C800403AX CAPTA1818A4 bundle is a comprehensive HVAC solution for your home, including an air conditioner, furnace, and cased evaporator coil. This system is designed to deliver efficient heating and cooling for various regions, ensuring year-round comfort.

  • All-aluminum evaporator coil
  • Internal thermostatic expansion valve
  • Advanced heat exchanger design
  • Energy-efficient ECM motor
  • Energy-efficient compressor
  • Heavy-gauge galvanized-steel cabinet

Goodman GSXN401810 Air Conditioner

The Goodman GSXN401810 is a 1.5-ton air conditioner featuring a 14.3 SEER2 rating, designed for efficient cooling. This unit includes an energy-efficient compressor and a copper tube/enhanced aluminum fin coil to maximize performance.

  • Cooling capacity: 18000 BTU
  • Maximum sound level: 71 dB
  • R-410A refrigerant
  • Single stage compressor

Goodman GC9C800403AX Gas Furnace

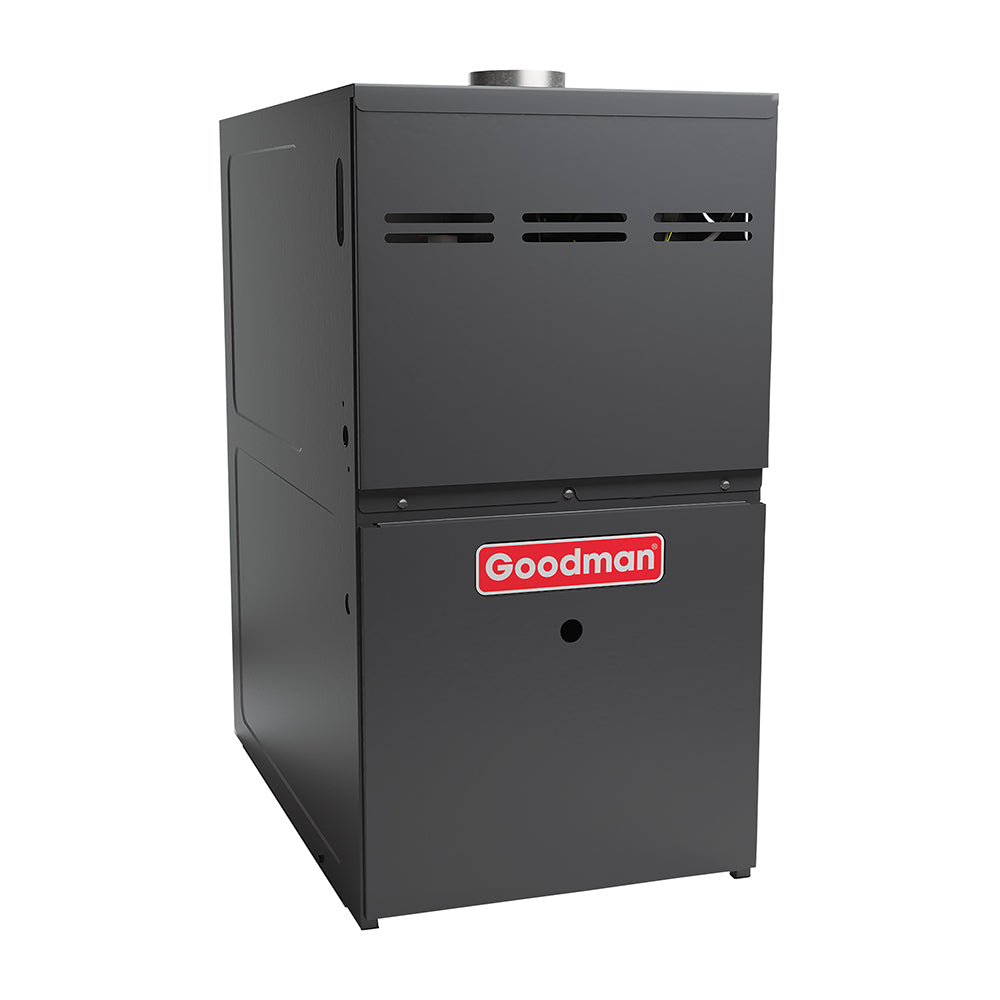

The Goodman GC9C800403AX is a 40k BTU gas furnace with an 80% AFUE rating. It features a tubular heat exchanger, an ECM multi-speed motor, and a self-diagnostic control board to ensure reliable operation.

  • AFUE: 80%
  • Heating capacity: 40000 BTU
  • Two-stage operation
  • Natural gas fuel type

Goodman CAPTA1818A4 Cased Evaporator Coil

The Goodman CAPTA1818A4 is a 1.5-ton evaporator coil with a cased upflow/downflow configuration. Equipped with a factory-installed thermostatic expansion valve, it ensures efficient refrigerant flow and optimal cooling performance.

  • Cooling capacity: 18000 BTU
  • 14 inches cabinet width
  • R-410A refrigerant
  • TXV installed
Specifications
Overview
SEER2
14.5
Cooling Capacity
18000 BTU
AFUE
80%
Heating BTU
40000
Product Weight
259 Pounds
Shipping Weight
287 Pounds
ETL Listed
Yes
Energy Star Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
8.3 Amps
Recommended Breaker Size
15 Amps
Maximum Sound Level
71 dB
Product Height
27 Inches
Product Width
26 Inches
Product Depth
26 Inches
Suction Connection Size
3/4 Inch
Liquid Connection Size
3/8 Inch
Compressor Warranty
LIFETIME Years
Parts Warranty
Limited* 10 Years Years
General Information
Gas Furnace
Fuel Type
Natural Gas
Vent Type
Chimney Vent
Configuration
Downflow/Horizontal
Blower Motor Type
ECM Multi-Speed
Gas Conversion Kit
Available
Product Category
Furnace
Low NOx Emissions
Yes
Cabinet Width
14 Inches
Product Height
33 3/8 Inches
Product Depth
28 Inches
Flue Connection Size
4 Inches
ETL Listed
Yes
ISO Certified
Yes
AHRI Certified
Yes
Parts Warranty
10 Years
General Information
Evaporator Coil
Product Line
CAPT
Casing
Cased
Style
A Coil
Refrigerant Type
R-410A
Configuration
Upflow/Downflow
TXV Installed
Yes
Cabinet Width
14 Inches
Product Height
18 Inches
Product Width
14 Inches
Product Depth
21 Inches
Suction Connection Size
3/4 Inch
Liquid Connection Size
3/8 Inch
ETL Listed
Yes
AHRI Certified
Yes
Warranty
5 Years
