Goodman 0161P00055S Ptac Condenser Fan Blade 14 in

Product Description

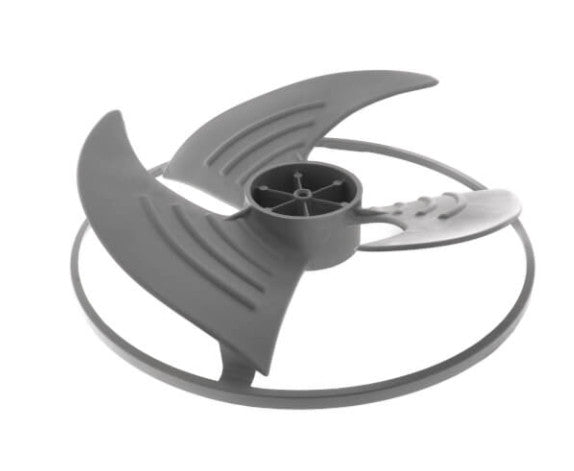

The GOODMAN 0161P00055S is a replacement condenser fan blade designed for Packaged Terminal Air Conditioner (PTAC) units. This component moves air across the condenser coil, maintaining heat rejection and overall unit efficiency. The blade assembly measures approximately 14 inches in diameter and features 3 blades along with an integrated slinger ring that picks up condensate water and deposits it onto the condenser coil to improve moisture management. Installation is performed by HVAC technicians servicing PTAC equipment in hotels, motels, multi-family residential units, and similar applications.

This fan blade is suited for PTAC condenser sections requiring a direct OEM-style replacement. The slinger ring design is common to many through-the-wall packaged terminal units where condensate management is handled internally rather than through a separate drain. The 3-blade configuration provides the airflow characteristics required for standard PTAC condenser operation. Technicians replacing a failed or damaged blade will find this a straightforward swap within the condenser section of the unit.

Key Features

• Approximately 14 inches in diameter for proper airflow in standard PTAC condenser sections
• 3-blade design matched to OEM airflow requirements
• Integrated slinger ring for on-coil condensate management
• OEM-style replacement for reliable fit and function

Compatibility

Designed as an OEM-style replacement condenser fan blade for Amana PTAC units. Refer to your unit model number and service documentation to confirm fitment before installation.

Installation Notes

Fan blade replacement on PTAC units should be performed by a qualified HVAC technician. Disconnect and lock out all power to the unit before accessing the condenser section. Verify blade pitch orientation and hub engagement before securing the assembly to the motor shaft. Follow all applicable local codes and manufacturer service procedures when servicing PTAC equipment.

Technical Specifications

• Blade Diameter: Approximately 14 inches
• Number of Blades: 3
• Slinger Ring: Included
• Application: PTAC Condenser Section

Standard Information

• Brand: GOODMAN
• Manufacturer Part Number: 0161P00055S
