Goodman 0151f00000ps Gas Valve Natural Gas 24V

Product Description

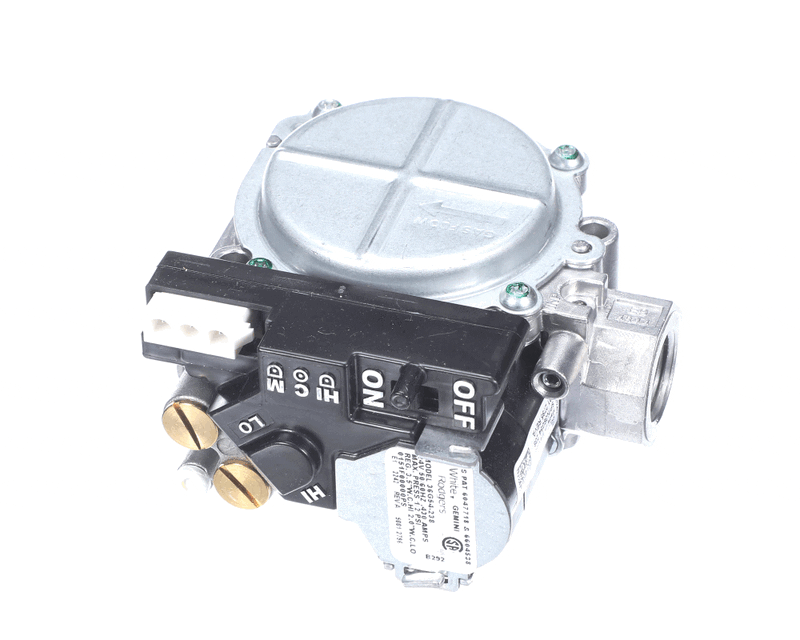

The Goodman 0151F00000PS is a natural gas valve designed for automated gas supply control in residential and light-commercial HVAC systems. Operating at 24 volts and rated for 50/60 Hz service, this valve opens and closes on command from the system control board to regulate gas flow to the burner assembly. The outlet pressure rating is 3.5 inches water column (WC), consistent with standard natural gas appliance requirements. At 1.5 pounds and compact dimensions, it is a direct OEM replacement part for Goodman-manufactured furnace and heating equipment.

This gas valve is used in natural gas-fired forced-air furnaces where the gas valve receives a 24-volt signal from the integrated furnace control board during a call for heat. It is suited for residential single-stage heating applications. Licensed HVAC technicians typically encounter this part during annual maintenance inspections, no-heat service calls, or system retrofits. Compatibility is confirmed by the OEM part number, making it a reliable drop-in replacement for the original installed valve.

Key Features

• Natural gas service with a 3.5 inches WC outlet pressure rating
• 24-volt low-voltage control signal compatible with standard furnace control boards
• Dual-frequency rated at 50/60 Hz for broad application use
• Genuine OEM replacement part for Goodman heating equipment
• Compact form factor at 4.75 x 4.55 x 3.3 inches and 1.5 pounds

Compatibility

Designed as an OEM-style replacement gas valve for Goodman natural gas-fired furnaces requiring a 24-volt, 3.5 inches WC-rated valve under part number 0151F00000PS.

Installation Notes

Gas valve replacement must be performed by a licensed HVAC technician in accordance with local mechanical codes and manufacturer instructions. Shut off the manual gas supply and disconnect 24-volt power to the furnace control board before removing the existing valve. Leak-test all gas connections with an approved leak-detection solution after installation and before returning the system to service. Never use an open flame to check for gas leaks.

Technical Specifications

• Gas Type: Natural Gas
• Voltage: 24 volts
• Frequency: 50/60 Hz
• Pressure Rating: 3.5 inches WC
• Length: 4.75 inches
• Width: 4.55 inches
• Height: 3.3 inches
• Weight: 1.5 pounds

Standard Information

• Brand: Goodman
• Manufacturer Part Number: 0151F00000PS
