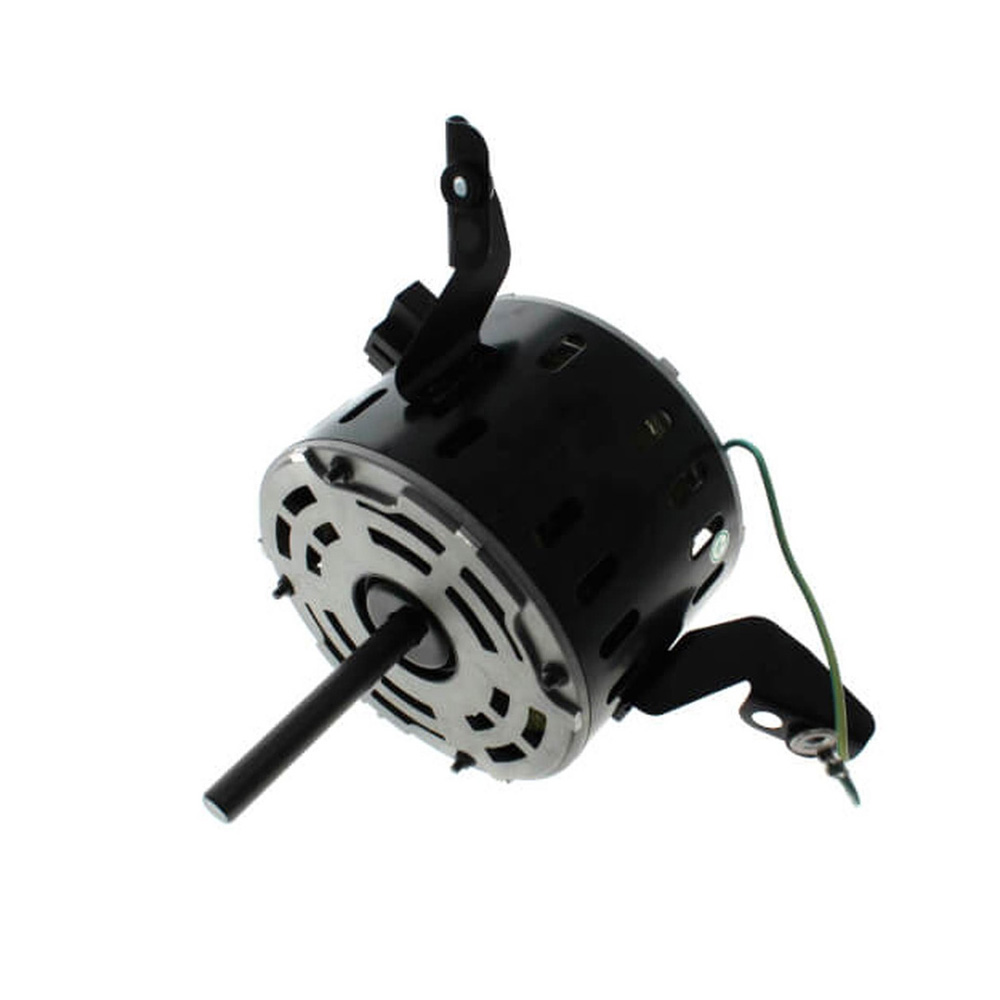

Goodman 0131M00094S Blower Motor 1/3 Hp 230V 910 Rpm

Product Description

The Goodman 0131M00094S is a direct-drive blower motor designed for use in residential and light-commercial HVAC air-handling systems. Rated at 1/3 HP and 230 volts single-phase, this Frame 48 motor runs at 910 RPM and delivers three selectable speed taps, giving technicians flexibility when matching airflow to system requirements. It draws 2.5 amps, operates at 60 Hz, and carries a Class B insulation rating. The open air-over (OAO) enclosure suits the blower-compartment environment where airflow passes over the motor for cooling. Licensed HVAC technicians handle installation during new equipment setup or motor replacement service calls.

This motor is applied in forced-air furnaces, air handlers, and fan coils where a direct-drive blower wheel is mounted directly to the motor shaft. The clockwise shaft rotation (viewed from the shaft end) is a critical selection factor when replacing an existing unit. The 6-pole design supports the 910 RPM output without a gearbox. The motor body measures 8.87 inches in length, which is relevant when evaluating clearance inside the blower compartment during installation or replacement.

Key Features

• 1/3 HP output with 230V single-phase, 60 Hz input for compatibility with standard residential HVAC electrical supplies
• Three-speed taps allow airflow adjustment to match static pressure and comfort requirements
• Frame 48 construction provides a standardized mounting footprint for direct OEM-style replacement
• Class B insulation rating supports reliable operation within typical blower-compartment temperature ranges
• Open air-over (OAO) enclosure designed for blower-deck environments where motor cooling is provided by system airflow
• Clockwise rotation (shaft end) — verify rotation direction before installation to ensure proper blower-wheel performance

Compatibility

Designed as an OEM-style direct-drive replacement blower motor for residential and light-commercial forced-air HVAC systems requiring a Frame 48, 1/3 HP, 230V, 910 RPM, three-speed motor with clockwise shaft rotation.

Installation Notes

Installation should be performed by a licensed HVAC technician. Disconnect and lock out all electrical power to the air handler or furnace before removing the existing motor or accessing the blower compartment. Confirm shaft rotation direction, motor speed tap wiring, and mounting orientation match the original unit before energizing the system. Refer to the equipment manufacturer's wiring diagram and applicable local codes when reconnecting speed-tap leads.

Technical Specifications

• Horsepower: 1/3 HP
• Voltage: 230 volts
• Phase: 1-phase
• Frequency: 60 Hz
• Amperage: 2.5 amps
• Speed: 910 RPM
• Number of Speeds: 3
• Poles: 6
• Frame: 48
• Insulation Class: Class B
• Enclosure Type: Open Air-Over (OAO)
• Drive Type: Direct Drive
• Rotation: Clockwise (shaft end)
• Motor Length: 8.87 inches
• UPC: 193031170177

Standard Information

• Brand: Goodman
• Manufacturer Part Number: 0131M00094S
